Panasonic Dmc Fz18 Operating Instructions Manual

Others
131VQT1F83

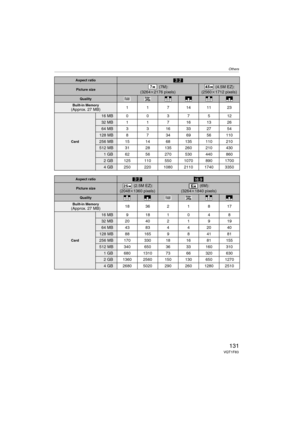

Aspect ratio
Picture size (7M):
(3264k2176 pixels) (4.5M EZ):
(2560k1712 pixels)
Quality
Built-in Memory(Approx. 27 MB)1 1 7 14 11 23
Card
16MB0037512
32 MB 1 1 7 16 13 26
64 MB 3 3 16 33 27 54
128MB8 7 346956110
256 MB 15 14 68 135 110 210
512 MB 31 28 135 260 210 430
1 GB 62 56 270 530 440 860
2 GB 125 110 550 1070 890 1700
4 GB 250 220 1080 2110 1740 3350
Aspect ratio
Picture size (2.5M EZ):
(2048k1360 pixels) (6M):
(3264k1840 pixels)
Quality
Built-in Memory(Approx. 27 MB)18 36 2 1 8...

Others
132VQT1F83

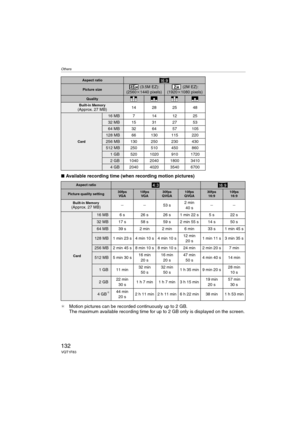

∫Available recording time (when recording motion pictures)
¢Motion pictures can be recorded continuously up to 2 GB.
The maximum available recording time for up to 2 GB only is displayed on the screen.
Aspect ratio
Picture size (3.5M EZ):
(2560k1440 pixels) (2M EZ):
(1920k1080 pixels)
Quality
Built-in Memory(Approx. 27 MB)14 28 25 48
Card
16MB7 141225
32 MB 15 31 27 53
64 MB 32 64 57 105
128 MB 66 130 115 220
256 MB 130 250 230 430
512 MB 250 510 450 860
1 GB 520 1020 910 1720
2 GB...

Others
133VQT1F83

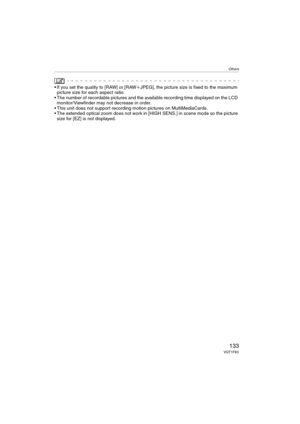

 If you set the quality to [RAW] or [RAWiJPEG], the picture size is fixed to the maximum
picture size for each aspect ratio.
 The number of recordable pictures and the available recording time displayed on the LCD
monitor/Viewfinder may not decrease in order.
 This unit does not support recording motion pictures on MultiMediaCards.
 The extended optical zoom does not work in [HIGH SENS.] in scene mode so the picture
size for [EZ] is not displayed.
DMC-FZ18ENG.book  133 ページ...

Others
134VQT1F83

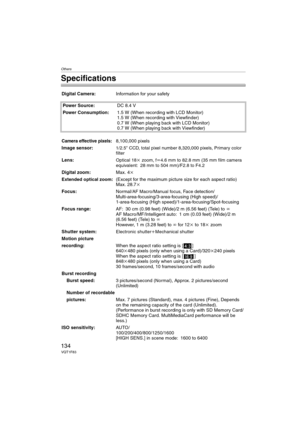

Specifications
Digital Camera:Information for your safety
Power Source:DC 8.4 V
Power Consumption:1.5 W (When recording with LCD Monitor)
1.5 W (When recording with Viewfinder)
0.7 W (When playing back with LCD Monitor)
0.7 W (When playing back with Viewfinder)
Camera effective pixels:8,100,000 pixels
Image sensor:
1/2.5q CCD, total pixel number 8,320,000 pixels, Primary color
filter
Lens:Optical 18kzoom, fl4.6 mm to 82.8 mm (35 mm film camera
equivalent: 28 mm to 504 mm)/F2.8 to...

Others
135VQT1F83

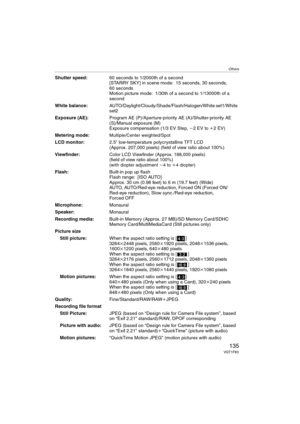

Shutter speed:60 seconds to 1/2000th of a second
[STARRY SKY] in scene mode: 15 seconds, 30 seconds,
60 seconds
Motion picture mode: 1/30th of a second to 1/13000th of a
second
White balance:AUTO/Daylight/Cloudy/Shade/Flash/Halogen/White set1/White
set2
Exposure (AE):Program AE (P)/Aperture-priority AE (A)/Shutter-priority AE
(S)/Manual exposure (M)
Exposure compensation (1/3 EV Step, j2EV to i2EV)
Metering mode:
Multiple/Center weighted/Spot
LCD monitor:2.5q low-temperature...

Others
136VQT1F83

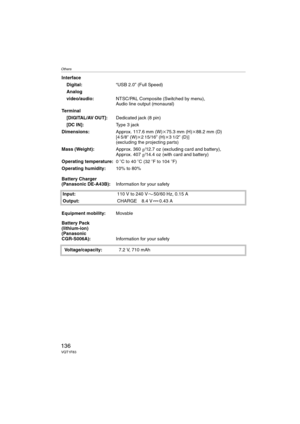

Interface
Digital:“USB 2.0” (Full Speed)
Analog
video/audio:NTSC/PAL Composite (Switched by menu),
Audio line output (monaural)
Terminal
[DIGITAL/AV OUT]:Dedicated jack (8 pin)
[DC IN]:Type 3 jack
Dimensions:Approx. 117.6 mm (W)k75.3 mm (H)k88.2 mm (D)
[4 5/8q (W)k215/16q (H)k31/2q (D)]
(excluding the projecting parts)
Mass (Weight):Approx. 360g/12.7 oz (excluding card and battery),
Approx. 407g/14.4 oz (with card and battery)
Operating temperature:
0oC to 40oC (32oF to 104oF)
Operating...

Others
137VQT1F83
Others

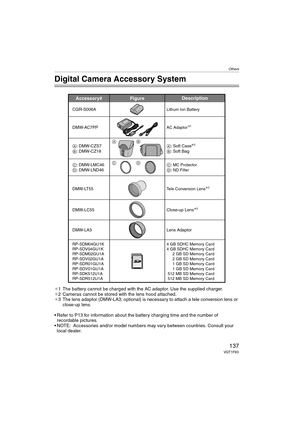

Digital Camera Accessory System
¢1 The battery cannot be charged with the AC adaptor. Use the supplied charger.
¢2 Cameras cannot be stored with the lens hood attached.
¢3 The lens adaptor (DMW-LA3; optional) is necessary to attach a tele conversion lens or
close-up lens.
 Refer to P13 for information about the battery charging time and the number of
recordable pictures.
 NOTE: Accessories and/or model numbers may vary between countries. Consult your
local dealer....

Others
138VQT1F83

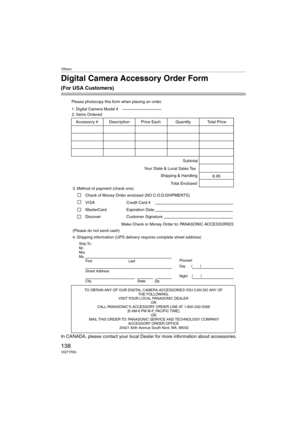

Digital Camera Accessory Order Form
(For USA Customers)
In CANADA, please contact your local Dealer for more information about accessories.
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-6 PM M-F, PACIFIC TIME]
OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY
ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship...

Others
139VQT1F83

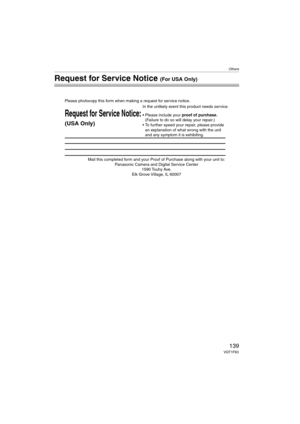

Request for Service Notice (For USA Only)
Mail this completed form and your Proof of Purchase along with your unit to:
Panasonic Camera and Digital Service Center
1590 Touhy Ave.
Elk Grove Village, IL 60007
Request for Service Notice:
(USA Only)
Please photocopy this form when making a request for service notice.
In the unlikely event this product needs service.
Please include your proof of purchase.
(Failure to do so will delay your repair.)
To further speed your repair,...

Others
140VQT1F83

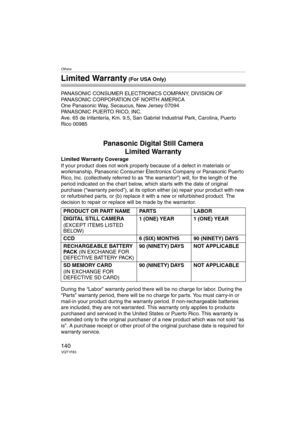

Limited Warranty (For USA Only)
PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF
PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way, Secaucus, New Jersey 07094
PANASONIC PUERTO RICO, INC.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto
Rico 00985
Panasonic Digital Still Camera
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company...
