Panasonic Dmc Fz18 Operating Instructions Manual

Others
121VQT1F83

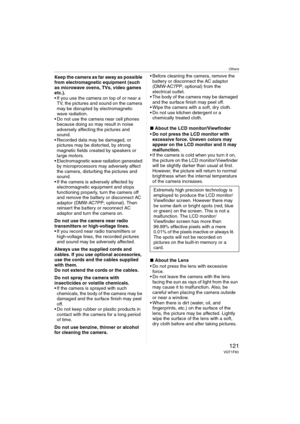

Keep the camera as far away as possible
from electromagnetic equipment (such
as microwave ovens, TVs, video games
etc.).
 If you use the camera on top of or near a
TV, the pictures and sound on the camera
may be disrupted by electromagnetic
wave radiation.
 Do not use the camera near cell phones
because doing so may result in noise
adversely affecting the pictures and
sound.
 Recorded data may be damaged, or
pictures may be distorted, by strong
magnetic fields created by...

Others
122VQT1F83

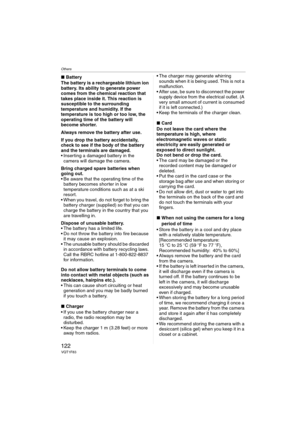

∫Battery
The battery is a rechargeable lithium ion
battery. Its ability to generate power
comes from the chemical reaction that
takes place inside it. This reaction is
susceptible to the surrounding
temperature and humidity. If the
temperature is too high or too low, the
operating time of the battery will
become shorter.
Always remove the battery after use.
If you drop the battery accidentally,
check to see if the body of the battery
and the terminals are damaged.
 Inserting a...

Others
123VQT1F83

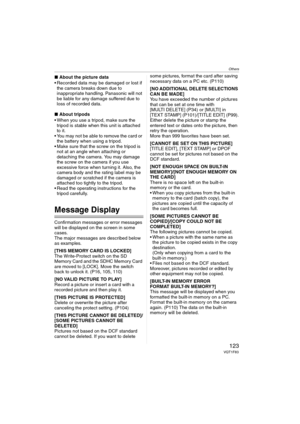

∫About the picture data
 Recorded data may be damaged or lost if
the camera breaks down due to
inappropriate handling. Panasonic will not
be liable for any damage suffered due to
loss of recorded data.
∫About tripods
 When you use a tripod, make sure the
tripod is stable when this unit is attached
to it.
 You may not be able to remove the card or
the battery when using a tripod.
 Make sure that the screw on the tripod is
not at an angle when attaching or
detaching the camera....

Others
124VQT1F83

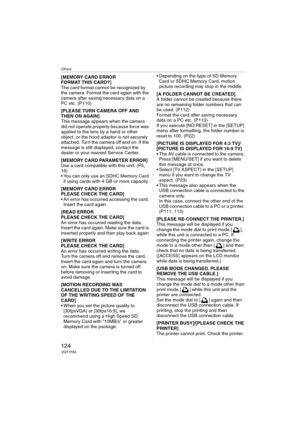

[MEMORY CARD ERROR
FORMAT THIS CARD?]
The card format cannot be recognized by
the camera. Format the card again with the
camera after saving necessary data on a
PC etc. (P110)
[PLEASE TURN CAMERA OFF AND
THEN ON AGAIN]
This message appears when the camera
did not operate properly because force was
applied to the lens by a hand or other
object, or the hood adaptor is not securely
attached. Turn the camera off and on. If the
message is still displayed, contact the
dealer or your...

Others
125VQT1F83

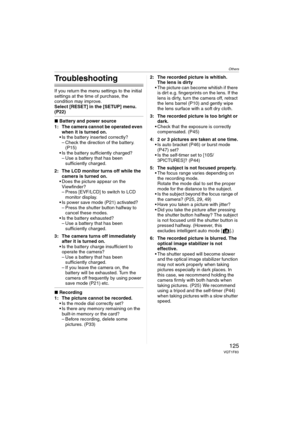

Troubleshooting
If you return the menu settings to the initial
settings at the time of purchase, the
condition may improve.
Select [RESET] in the [SETUP] menu.
(P22)
∫Battery and power source
1: The camera cannot be operated even
when it is turned on.
 Is the battery inserted correctly?
– Check the direction of the battery.
(P15)
 Is the battery sufficiently charged?
– Use a battery that has been
sufficiently charged.
2: The LCD monitor turns off while the
camera is turned on....

Others
126VQT1F83

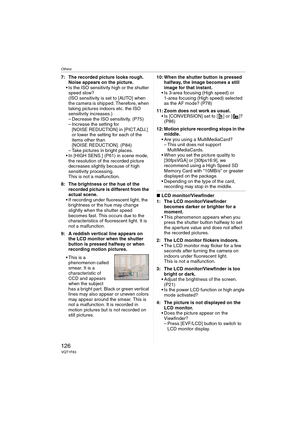

7: The recorded picture looks rough.
Noise appears on the picture.
 Is the ISO sensitivity high or the shutter
speed slow?
(ISO sensitivity is set to [AUTO] when
the camera is shipped. Therefore, when
taking pictures indoors etc. the ISO
sensitivity increases.)
– Decrease the ISO sensitivity. (P75)
– Increase the setting for
[NOISE REDUCTION] in [PICT.ADJ.]
or lower the setting for each of the
items other than
[NOISE REDUCTION]. (P84)
– Take pictures in bright places.
 In [HIGH...

Others

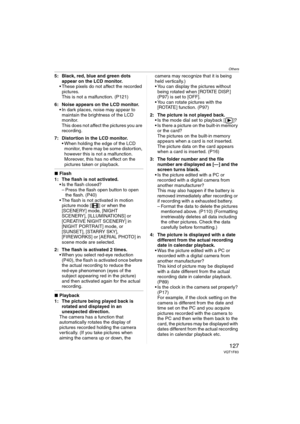

127VQT1F83
5: Black, red, blue and green dots
appear on the LCD monitor.
 These pixels do not affect the recorded
pictures.
This is not a malfunction. (P121)
6: Noise appears on the LCD monitor.
 In dark places, noise may appear to
maintain the brightness of the LCD
monitor.
This does not affect the pictures you are
recording.
7: Distortion in the LCD monitor.
 When holding the edge of the LCD
monitor, there may be some distortion,
however this is not a malfunction.
Moreover, this has no...

Others

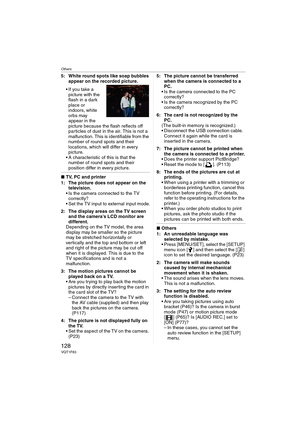

128VQT1F83
5: White round spots like soap bubbles
appear on the recorded picture.
 If you take a
picture with the
flash in a dark
place or
indoors, white
orbs may
appear in the
picture because the flash reflects off
particles of dust in the air. This is not a
malfunction. This is identifiable from the
number of round spots and their
locations, which will differ in every
picture.
 A characteristic of this is that the
number of round spots and their
position differ in every picture....

Others
129VQT1F83

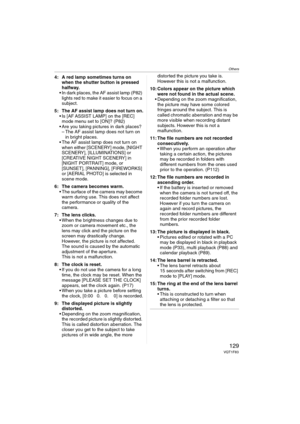

4: A red lamp sometimes turns on
when the shutter button is pressed
halfway.
 In dark places, the AF assist lamp (P82)
lights red to make it easier to focus on a
subject.
5: The AF assist lamp does not turn on.
 Is [AF ASSIST LAMP] on the [REC]
mode menu set to [ON]? (P82)
 Are you taking pictures in dark places?
– The AF assist lamp does not turn on
in bright places.
 The AF assist lamp does not turn on
when either [SCENERY] mode, [NIGHT
SCENERY], [ILLUMINATIONS] or
[CREATIVE...

Others
130VQT1F83
Others

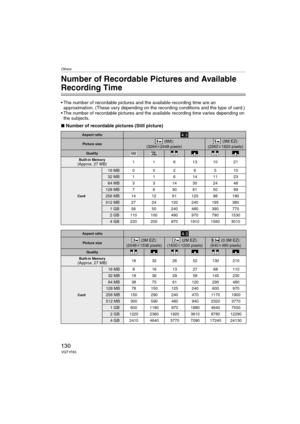

Number of Recordable Pictures and Available
Recording Time
 The number of recordable pictures and the available recording time are an
approximation. (These vary depending on the recording conditions and the type of card.)
 The number of recordable pictures and the available recording time varies depending on
the subjects.
∫Number of recordable pictures (Still picture)
Aspect ratio
Picture size (8M):
(3264k2448 pixels) (5M EZ):
(2560k1920 pixels)
Quality
Built-in Memory(Approx....
