Panasonic Dmc Fz2500 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz2500 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 111
![Page 111
111
4. Focus, Brightness (Exposure) and Color tone Settings
Taking Close-up Pictures
Applicable modes:
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of
flowers.
1Press 4 [AF#].
2Press 2/1 to select the item and then press
[MENU/SET].
[]([AF Macro]) You can take pictures of a subject as close as 3 cm
(0.098 feet) from the lens by rotating the zoom lever upmost
to Wide (1
k).
[]([Macro Zoom]) Use this setting to get close to the subject and then further...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-110.png "Page 111
111
4. Focus, Brightness (Exposure) and Color tone Settings
Taking Close-up Pictures
Applicable modes:
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of
flowers.
1Press 4 [AF#].
2Press 2/1 to select the item and then press
[MENU/SET].
[]([AF Macro]) You can take pictures of a subject as close as 3 cm
(0.098 feet) from the lens by rotating the zoom lever upmost
to Wide (1
k).
[]([Macro Zoom]) Use this setting to get close to the subject and then further...")
111 4. Focus, Brightness (Exposure) and Color tone Settings Taking Close-up Pictures Applicable modes: This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers. 1Press 4 [AF#]. 2Press 2/1 to select the item and then press [MENU/SET]. []([AF Macro]) You can take pictures of a subject as close as 3 cm (0.098 feet) from the lens by rotating the zoom lever upmost to Wide (1 k). []([Macro Zoom]) Use this setting to get close to the subject and then further...

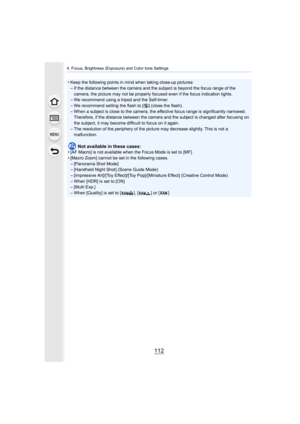

Page 112
![Page 112
4. Focus, Brightness (Exposure) and Color tone Settings
112
• Keep the following points in mind when taking close-up pictures:
– If the distance between the camera and the subject is beyond t he focus range of the
camera, the picture may not be properly focused even if the foc us indication lights.
– We recommend using a tripod and the Self-timer.
– We recommend setting the flash to [ Œ] (close the flash).
– When a subject is close to the camera, the effective focus ran ge is significantly narrowed....](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-111.png "Page 112
4. Focus, Brightness (Exposure) and Color tone Settings
112
• Keep the following points in mind when taking close-up pictures:
– If the distance between the camera and the subject is beyond t he focus range of the
camera, the picture may not be properly focused even if the foc us indication lights.
– We recommend using a tripod and the Self-timer.
– We recommend setting the flash to [ Œ] (close the flash).
– When a subject is close to the camera, the effective focus ran ge is significantly narrowed....")
4. Focus, Brightness (Exposure) and Color tone Settings 112 • Keep the following points in mind when taking close-up pictures: – If the distance between the camera and the subject is beyond t he focus range of the camera, the picture may not be properly focused even if the foc us indication lights. – We recommend using a tripod and the Self-timer. – We recommend setting the flash to [ Œ] (close the flash). – When a subject is close to the camera, the effective focus ran ge is significantly narrowed....
Page 113
![Page 113
113
5. 4K Photo and Drive Settings
Select a Drive Mode
Applicable modes:
You can change what the camera will do when you press the shutt er button.
Rotating the drive mode dial.
[Single]When the shutter button is pressed, only one picture is
recorded.
[Burst]
(P114) Recordings are made in succession while the shutter button
is pressed.
[4K PHOTO]
(P117)When the shutter button is pressed, a 4K photo is recorded.
[Post Focus] (P127)When the shutter button is pressed, Post Focus recording is...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-112.png "Page 113
113
5. 4K Photo and Drive Settings
Select a Drive Mode
Applicable modes:
You can change what the camera will do when you press the shutt er button.
Rotating the drive mode dial.
[Single]When the shutter button is pressed, only one picture is
recorded.
[Burst]
(P114) Recordings are made in succession while the shutter button
is pressed.
[4K PHOTO]
(P117)When the shutter button is pressed, a 4K photo is recorded.
[Post Focus] (P127)When the shutter button is pressed, Post Focus recording is...")
113 5. 4K Photo and Drive Settings Select a Drive Mode Applicable modes: You can change what the camera will do when you press the shutt er button. Rotating the drive mode dial. [Single]When the shutter button is pressed, only one picture is recorded. [Burst] (P114) Recordings are made in succession while the shutter button is pressed. [4K PHOTO] (P117)When the shutter button is pressed, a 4K photo is recorded. [Post Focus] (P127)When the shutter button is pressed, Post Focus recording is...
Page 114
![Page 114
5. 4K Photo and Drive Settings
114
Taking Pictures using Burst Mode
Applicable modes:
Pictures are taken continuously while the shutter button is pressed.
1Set the drive mode dial to [ ] .
2Focus on the subject and take a picture.
• Hold down the shutter button fully to activate the Burst
Mode.
∫ Changing the burst speed
Select the menu.
• The Burst speed may become slower depending on the following s ettings.
– [Picture Size] (P196)/[Quality] (P197) /[Sensitivity] (P105)/Focus Mode...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-113.png "Page 114
5. 4K Photo and Drive Settings
114
Taking Pictures using Burst Mode
Applicable modes:
Pictures are taken continuously while the shutter button is pressed.
1Set the drive mode dial to [ ] .
2Focus on the subject and take a picture.
• Hold down the shutter button fully to activate the Burst
Mode.
∫ Changing the burst speed
Select the menu.
• The Burst speed may become slower depending on the following s ettings.
– [Picture Size] (P196)/[Quality] (P197) /[Sensitivity] (P105)/Focus Mode...")
5. 4K Photo and Drive Settings 114 Taking Pictures using Burst Mode Applicable modes: Pictures are taken continuously while the shutter button is pressed. 1Set the drive mode dial to [ ] . 2Focus on the subject and take a picture. • Hold down the shutter button fully to activate the Burst Mode. ∫ Changing the burst speed Select the menu. • The Burst speed may become slower depending on the following s ettings. – [Picture Size] (P196)/[Quality] (P197) /[Sensitivity] (P105)/Focus Mode...
Page 115
![Page 115
115
5. 4K Photo and Drive Settings
∫About the maximum number of pictures that can be taken continuo usly
When you press the shutter button halfway, the maximum number
of pictures you can take cont inuously will appear. You can chec k
the approximate number of pictures that can be taken before the
burst speed slows down.
Example: When 20 pictures can be taken: [r20]
• Once recording starts, the maximum number of pictures that can be taken continuously will
decrease. When [r0] appears, the burst...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-114.png "Page 115
115
5. 4K Photo and Drive Settings
∫About the maximum number of pictures that can be taken continuo usly
When you press the shutter button halfway, the maximum number
of pictures you can take cont inuously will appear. You can chec k
the approximate number of pictures that can be taken before the
burst speed slows down.
Example: When 20 pictures can be taken: [r20]
• Once recording starts, the maximum number of pictures that can be taken continuously will
decrease. When [r0] appears, the burst...")
115 5. 4K Photo and Drive Settings ∫About the maximum number of pictures that can be taken continuo usly When you press the shutter button halfway, the maximum number of pictures you can take cont inuously will appear. You can chec k the approximate number of pictures that can be taken before the burst speed slows down. Example: When 20 pictures can be taken: [r20] • Once recording starts, the maximum number of pictures that can be taken continuously will decrease. When [r0] appears, the burst...

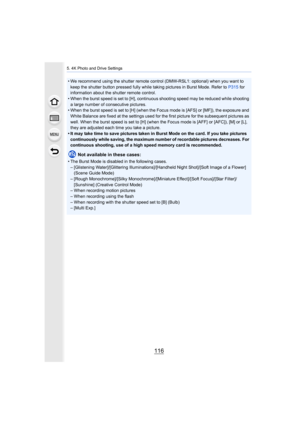

Page 116
![Page 116
5. 4K Photo and Drive Settings
116
• We recommend using the shutter remote control (DMW-RSL1: optional) when you want to
keep the shutter button pressed fully while taking pictures in Burst Mode. Refer to P315 for
information about the shutter remote control.
• When the burst speed is set to [H], continuous shooting speed may be reduced while shooting
a large number of consecutive pictures.
• When the burst speed is set to [H] (when the Focus mode is [AFS] or [MF]), the exposure and
White Balance...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-115.png "Page 116
5. 4K Photo and Drive Settings
116
• We recommend using the shutter remote control (DMW-RSL1: optional) when you want to
keep the shutter button pressed fully while taking pictures in Burst Mode. Refer to P315 for
information about the shutter remote control.
• When the burst speed is set to [H], continuous shooting speed may be reduced while shooting
a large number of consecutive pictures.
• When the burst speed is set to [H] (when the Focus mode is [AFS] or [MF]), the exposure and
White Balance...")
5. 4K Photo and Drive Settings 116 • We recommend using the shutter remote control (DMW-RSL1: optional) when you want to keep the shutter button pressed fully while taking pictures in Burst Mode. Refer to P315 for information about the shutter remote control. • When the burst speed is set to [H], continuous shooting speed may be reduced while shooting a large number of consecutive pictures. • When the burst speed is set to [H] (when the Focus mode is [AFS] or [MF]), the exposure and White Balance...
Page 117
![Page 117
117
5. 4K Photo and Drive Settings
Recording 4K Photos
Applicable modes:
The camera allows you to take burst pictures of 8 million pixels (approx.) at 30 frames /
second. After taking these pictur es, you can save the desired moment extracted from their
burst file.
• Use a UHS Speed Class 3 card to record 4K photos. (P26)
1Set the drive mode dial to [ ] .
2Select the menu. (P51)
¢ Audio is not played back when you perform playback with the camera.
3Press the shutter button halfway to exit the menu.
>...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-116.png "Page 117
117
5. 4K Photo and Drive Settings
Recording 4K Photos
Applicable modes:
The camera allows you to take burst pictures of 8 million pixels (approx.) at 30 frames /
second. After taking these pictur es, you can save the desired moment extracted from their
burst file.
• Use a UHS Speed Class 3 card to record 4K photos. (P26)
1Set the drive mode dial to [ ] .
2Select the menu. (P51)
¢ Audio is not played back when you perform playback with the camera.
3Press the shutter button halfway to exit the menu.
>...")
117 5. 4K Photo and Drive Settings Recording 4K Photos Applicable modes: The camera allows you to take burst pictures of 8 million pixels (approx.) at 30 frames / second. After taking these pictur es, you can save the desired moment extracted from their burst file. • Use a UHS Speed Class 3 card to record 4K photos. (P26) 1Set the drive mode dial to [ ] . 2Select the menu. (P51) ¢ Audio is not played back when you perform playback with the camera. 3Press the shutter button halfway to exit the menu. >...
Page 118
![Page 118
5. 4K Photo and Drive Settings
118
4Record a 4K photo.
[]
[4K Burst]
1Press the shutter button
halfway.
A Press and hold
B Recording is performed
2Press and hold the shutter
button fully for as long as you
want to perform recording.
• Press the button fully slightly in advance. Recording starts
approximately 0.5 seconds after it has been pressed fully.
• If you are using Au to Focus, [Continuous AF] will work during
recording. Focus will be adjusted continuously.
• If you remove your finger from...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-117.png "Page 118
5. 4K Photo and Drive Settings
118
4Record a 4K photo.
[]
[4K Burst]
1Press the shutter button
halfway.
A Press and hold
B Recording is performed
2Press and hold the shutter
button fully for as long as you
want to perform recording.
• Press the button fully slightly in advance. Recording starts
approximately 0.5 seconds after it has been pressed fully.
• If you are using Au to Focus, [Continuous AF] will work during
recording. Focus will be adjusted continuously.
• If you remove your finger from...")
5. 4K Photo and Drive Settings 118 4Record a 4K photo. [] [4K Burst] 1Press the shutter button halfway. A Press and hold B Recording is performed 2Press and hold the shutter button fully for as long as you want to perform recording. • Press the button fully slightly in advance. Recording starts approximately 0.5 seconds after it has been pressed fully. • If you are using Au to Focus, [Continuous AF] will work during recording. Focus will be adjusted continuously. • If you remove your finger from...
Page 119
![Page 119
119
5. 4K Photo and Drive Settings
• The camera will perform burst recording of a 4K photo and save it as a 4K burst file with a [Rec Format] setting of [MP4].
• Regardless of the [System Frequency] setting, 4K burst files a re recorded at [4K/100M/
30p] and they can be played back on the camera.
• When [Auto Review] is enabled, the picture selection screen wi ll be displayed
automatically. To continue recording, press the shutter button halfway to display the
recording screen.
• For information...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-118.png "Page 119
119
5. 4K Photo and Drive Settings
• The camera will perform burst recording of a 4K photo and save it as a 4K burst file with a [Rec Format] setting of [MP4].
• Regardless of the [System Frequency] setting, 4K burst files a re recorded at [4K/100M/
30p] and they can be played back on the camera.
• When [Auto Review] is enabled, the picture selection screen wi ll be displayed
automatically. To continue recording, press the shutter button halfway to display the
recording screen.
• For information...")
119 5. 4K Photo and Drive Settings • The camera will perform burst recording of a 4K photo and save it as a 4K burst file with a [Rec Format] setting of [MP4]. • Regardless of the [System Frequency] setting, 4K burst files a re recorded at [4K/100M/ 30p] and they can be played back on the camera. • When [Auto Review] is enabled, the picture selection screen wi ll be displayed automatically. To continue recording, press the shutter button halfway to display the recording screen. • For information...
Page 120
![Page 120
5. 4K Photo and Drive Settings
120
∫Setting Loop Recording ([4K Burst(S/S)])
With [ ] ([4K Burst(S/S)]), you can perform recording while dele ting the oldest recorded
data, allowing you to keep on recording while waiting for a pho to opportunity without
replacing the card.
• Once you start recording, the 4K burst file will be recorded a nd divided approximately every
2minutes.
Approximately the last 10 minutes (up to approximately 12 minutes) will be saved. The
preceding part will be deleted.
Select...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-119.png "Page 120
5. 4K Photo and Drive Settings
120
∫Setting Loop Recording ([4K Burst(S/S)])
With [ ] ([4K Burst(S/S)]), you can perform recording while dele ting the oldest recorded
data, allowing you to keep on recording while waiting for a pho to opportunity without
replacing the card.
• Once you start recording, the 4K burst file will be recorded a nd divided approximately every
2minutes.
Approximately the last 10 minutes (up to approximately 12 minutes) will be saved. The
preceding part will be deleted.
Select...")
5. 4K Photo and Drive Settings 120 ∫Setting Loop Recording ([4K Burst(S/S)]) With [ ] ([4K Burst(S/S)]), you can perform recording while dele ting the oldest recorded data, allowing you to keep on recording while waiting for a pho to opportunity without replacing the card. • Once you start recording, the 4K burst file will be recorded a nd divided approximately every 2minutes. Approximately the last 10 minutes (up to approximately 12 minutes) will be saved. The preceding part will be deleted. Select...
