Panasonic Dmc Fz2500 Operating Instructions Manual

121
5. 4K Photo and Drive Settings
Selecting pictures from 4K burst file and saving
This section describes how to select pictures from a 4K burst file and save them.
For information on how to record 4K burst files, refer to  P117.
1Select an image with the [ ] icon on the playback screen, and
press  3.
• You can also perform the same operation by touching the icon [ ].
• If the image was recorded with [ ] ([4K Pre-Burst]), proceed to step
3.
3Drag the frames to select the frame you want to save
as a...

5. 4K Photo and Drive Settings
122

• During marker operation, you can skip to the markers that you added or the beginning or end of
the 4K burst file. Press [Fn5] again to return to the original  operation.
Button
operationTouch
operationDescription of operation
2 /1Dragging Selects a frame you want to save as a picture
• You can select a frame from 60 frames (continuous burst
time of approximately 2 seconds).
Select  / >
[MENU/SET]/ Displays the preceding or following 45 frames in slide view.
•...

123
5. 4K Photo and Drive Settings

• Touch the screen twice to enlarge the display. To return to the original display, touch the
enlarged screen twice.
• To select and save pictures from 4K burst files on a PC, use t he software
“ PHOTOfunSTUDIO ”.  (P304)
Please note that it is not possible to edit a 4K burst file as  a motion picture.
During pauseDuring continuous playback
Button
operationTouch
operationDescription of operation
3/Continuous playback/Pause (during continuous playback)
4/Continuous...

5. 4K Photo and Drive Settings
124
∫Selecting and saving pictures on the TV screen• Set [HDMI Mode (Play)] to [AUTO] or [4K].
When connecting to a TV that does not support 4K motion picture , select [AUTO].
• Set [VIERA Link] in [TV Connection] to [OFF].
• If you display 4K burst files on a TV connected to the camera,  they will be displayed only on the
4K burst playback screen.
• Even if you insert the SD card to a 4K-compatible TV with an S D card slot, you cannot play
back 4K burst files recorded...

125
5. 4K Photo and Drive Settings
∫The camera’s setup for the 4K Photo function
The camera’s setup is automatically optimized for 4K photo reco rding.
• The following [Rec] menu items are fixed to the settings below:
• 4K burst files are recorded with the settings indicated below: Settings in the [Motion Picture] menu are not applied to 4K bur st files.
• When recording with the 4K Photo function, the ranges for the  following functions differ from
the ones available for taking pictures:
– Shutter...

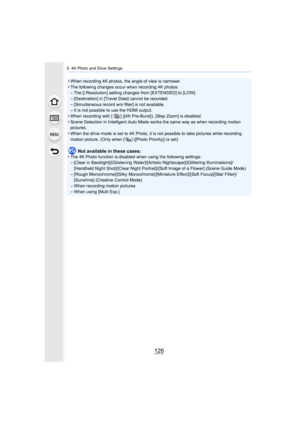

5. 4K Photo and Drive Settings
126
• When recording 4K photos, the angle of view is narrower.
• The following changes occur when recording 4K photos:– The [i.Resolution] setting changes from [EXTENDED] to [LOW].
– [Destination] in [Travel Date] cannot be recorded.
– [Simultaneous record w/o filter] is not available.
– It is not possible to use the HDMI output.
• When recording with [ ] ([4K Pre-Burst]), [Step Zoom] is disabl ed.
• Scene Detection in Intelligent Auto Mode works the same way as  when...

127
5. 4K Photo and Drive Settings
Controlling Focus After Recording
(Post Focus/Focus Stacking)
Applicable modes:
The camera allows you to take 4K burst pictures while shifting the focus to different areas.
After taking these pictures, you can select the desired focus a rea.
This function is suited for recording still objects.
It is also possible to select multiple focus areas and create a  single merged picture. (Focus
Stacking)
• We recommend that you use a tripod when recording images to be...

5. 4K Photo and Drive Settings
128
3Press the shutter button fully to start recording.• The focus point changes automatically while recording. When the icon ( B
) disappears, recording automatically
ends.
• A motion picture in [MP4] will be recorded. (Audio will not be  recorded.)
• Regardless of the [System Frequency]  setting, 4K  burst files are recorded at [4K/100M/ 30p]  and they can be played back on the camera.
• When [Auto Review] is enabled, a screen that lets you select t he desired focus area...

129
5. 4K Photo and Drive Settings
1Select an image with the [ ] icon on the playback screen, and
press 3.
• You can also perform the same operation by touching the icon [ ].
2Select and touch a focus area.• If a picture that is in focus is not available for the selected
area, a red frame will be disp layed. You cannot save a
picture in this case.
• You cannot select the edges of the screen.
• You can fine-adjust the focus by dragging the slide bar
during enlarged display. (You can also perform the...

5. 4K Photo and Drive Settings
130
AFocus
B Focus: closer
C Focus: farther away
1Touch [ ] in step 2 of “Selecting the desired focus area and saving a picture”.• You can also perform the same operation by pressing [Fn4].
2Touch the merging method.
Merging multiple pictures to widen the focus range (Focus Stack ing)
[Auto Merging]
Automatically selects pictures that are suited to be merged, and
merges them into a single picture.
• Priority will be given to pictures with closer focus.
• Pictures will be...
