Panasonic Dmc Fz2500 Operating Instructions Manual

171
7. Recording Motion Pictures
• Hold the camera firmly in place while recording.
• Recording will be performed with a motion picture size of [FHD].
1Set the mode dial to [ ].
2Select the menu. (P51)
• The angle of view narrows.
3Set the cropping start frame.
ACropping start frame
• When making settings for the first time, a cropping start  frame of size 1920 k1080 is displayed. (After setting the
cropping start frame and end frame, the start frame and
end frame that you set immediately before will...

7. Recording Motion Pictures
172
4Repeat step 3, and then set the cropping end
frame.
B Cropping end frame
• The setting of the Auto Focus Mode switches to [ š].(The eye to be in focus is not indicated.)
5Press the motion picture button (or shutter
button) to start recording.
C Elapsed recording time
D Set operating time
• Immediately release the motion picture button (or the
shutter button) after pressing it.
• When the set operating time has elapsed, recording  automatically ends.
To end recording...

173
7. Recording Motion Pictures
1Set the mode dial to [ ].
2Select the menu. (P51)
• The operation for changing the aperture value, shutter speed or ISO sensitivity is the
same as the operation for setting the mode dial to  ,  ,   or  .
3Press the motion picture button (or shutter button) to start re cording.
4Press the motion picture button (or shutter button) again to st op
recording.
Slow motion pictures
Set a frame rate that provides more frames than the recording f rame rate in [Rec Quality]...

7. Recording Motion Pictures
174
1Set the mode dial to [ ].
2Select an item that supports [Variable Frame Rate]. (P168)
• [MP4] does not support [Variable Frame Rate].
• Items available for recording with a [Variable Frame Rate] are  indicated as [VFR
available] on the screen.
3Select the menu. (P51)
4Press  2/1 to select the frame rate you will
record the item with.
• You can select a value between [2fps] and [120fps].
5Press [MENU/SET].
• Exit the menu after it is set.
>  [Motion Picture]  > [Rec...

175
7. Recording Motion Pictures

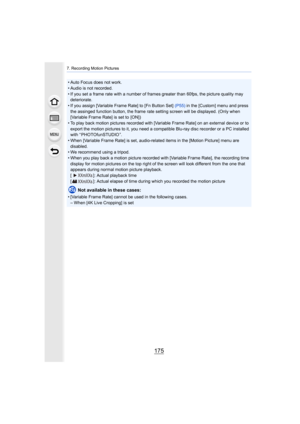

• Auto Focus does not work.
• Audio is not recorded.
• If you set a frame rate with a number of frames greater than 60fps, the picture quality may
deteriorate.
• If you assign [Variable Frame Rate] to [Fn Button Set]  (P55) in the [Custom] menu and press
the assinged function button, the frame rate setting screen wil l be displayed. (Only when
[Variable Frame Rate] is set to  [ON])
• To play back motion pictures recorded with [Variable Frame Rate] on an external device...

7. Recording Motion Pictures
176
The operational sound of the zoom or button operation may be recorded when it is
operated during the recording of a motion picture.
Using touch icons allows silent operation while recording motio n pictures.
1Start recording.
2To u c h   [ ] .
3Touch icon.
4Drag the slide bar to set.
• The speed of the operation varies dep ending on the
position you touch.
5Stop recording.
Minimizing operational sounds during motion picture recording
ZoomExposure Compensation
Aperture...

177
7. Recording Motion Pictures
You can adjust black, which serves as the reference for images, in 31 steps. Acting as the
reference for luminance signals, black is called the master ped estal. By adjusting the
range defined as black, not only can you adjust the way black a ppears, but also the
luminance balance of the entire image.
1Select the menu. (P51)
2Rotate the rear dial or front dial to adjust the
setting.
• When not adjusting the setting, select [0].
3Press [MENU/SET].
• Exit the menu after...

7. Recording Motion Pictures
178
By fine-adjusting the shutter speed, you can reduce flickering and horizontal stripes that
appear on the camera’s image when recording the screen of a TV  or PC.
• This function is available when [Exposure Mode] is set to eith er [S] or [M] in Creative
Video Mode.
1Select the menu. (P51)
2Select [ON] with  3/4, and then press [MENU/SET] .
3Select Shutter Speed with  2/1, and then
press [MENU/SET] .
A Shutter speed
• Adjust the shutter speed while looking at the screen...

179
7. Recording Motion Pictures
You can switch the units of shutter speed values and gain (sensitivity) values.
Select the menu. (P51)
• Exit the menu after it is set.
Switching the units of values ([SS/Gain Operation])
>[Motion Picture]  > [SS/Gain Operation]
[SEC/ISO] Displays the shutter speed in seconds
and the gain in ISO.
[ANGLE/ISO] Displays the shutter speed in degrees
and the gain in ISO.
• The shutter speed below will be
selectable. (When [Synchro Scan] is set
to [OFF]):
11 d to 360 d...

7. Recording Motion Pictures
180
Recording while monitoring camera images
Applicable modes:
You can record pictures or motion pictures while displaying
the camera image on an external device, such as a monitor,
via HDMI.
• The camera image will be output using the setting selected for
[Rec Quality] in the motion picture recording menu.
• For connection information, refer to  P300.
∫Setting the HDMI output options
> [Motion Picture]  > [HDMI Rec Output]
[Bit Mode] Sets the picture quality for the...
