Panasonic Dmc Fz28 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz28 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

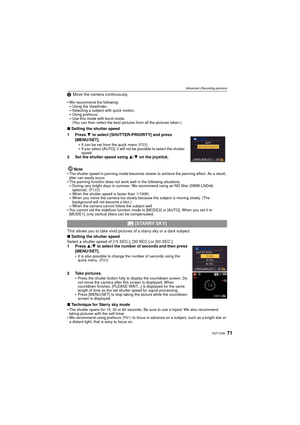

Page 71
![Page 71
71VQT1S36
Advanced (Recording pictures)
3Move the camera continuously.
We recommend the following:–Using the Viewfinder.–Selecting a subject with quick motion.–Using prefocus.–Use this mode with burst mode.
(You can then select the best pictures from all the pictures taken.)
∫ Setting the shutter speed
1 Press 4 to select [SHUTTER-PRIORITY] and press
[MENU/SET].
It can be set from the quick menu (P23).If you select [AUTO], it will not be possible to select the shutter
speed.
2 Set the shutter...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-70.png "Page 71
71VQT1S36
Advanced (Recording pictures)
3Move the camera continuously.
We recommend the following:–Using the Viewfinder.–Selecting a subject with quick motion.–Using prefocus.–Use this mode with burst mode.
(You can then select the best pictures from all the pictures taken.)
∫ Setting the shutter speed
1 Press 4 to select [SHUTTER-PRIORITY] and press
[MENU/SET].
It can be set from the quick menu (P23).If you select [AUTO], it will not be possible to select the shutter
speed.
2 Set the shutter...")
71VQT1S36 Advanced (Recording pictures) 3Move the camera continuously. We recommend the following:–Using the Viewfinder.–Selecting a subject with quick motion.–Using prefocus.–Use this mode with burst mode. (You can then select the best pictures from all the pictures taken.) ∫ Setting the shutter speed 1 Press 4 to select [SHUTTER-PRIORITY] and press [MENU/SET]. It can be set from the quick menu (P23).If you select [AUTO], it will not be possible to select the shutter speed. 2 Set the shutter...

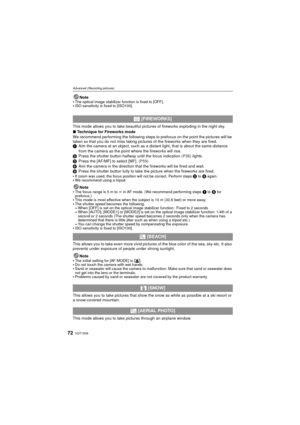

Page 72
![Page 72
VQT1S3672
Advanced (Recording pictures)
Note
The optical image stabilizer function is fixed to [OFF].ISO sensitivity is fixed to [ISO100].
This mode allows you to take beautiful pictures of fireworks exploding in the night sky.
∫ Technique for Fireworks mode
We recommend performing the following steps to prefocus on the point the pictures will be
taken so that you do not miss taking pictures of the fireworks when they are fired.
1 Aim the camera at an object, such as a distant light, that is about the...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-71.png "Page 72
VQT1S3672
Advanced (Recording pictures)
Note
The optical image stabilizer function is fixed to [OFF].ISO sensitivity is fixed to [ISO100].
This mode allows you to take beautiful pictures of fireworks exploding in the night sky.
∫ Technique for Fireworks mode
We recommend performing the following steps to prefocus on the point the pictures will be
taken so that you do not miss taking pictures of the fireworks when they are fired.
1 Aim the camera at an object, such as a distant light, that is about the...")
VQT1S3672 Advanced (Recording pictures) Note The optical image stabilizer function is fixed to [OFF].ISO sensitivity is fixed to [ISO100]. This mode allows you to take beautiful pictures of fireworks exploding in the night sky. ∫ Technique for Fireworks mode We recommend performing the following steps to prefocus on the point the pictures will be taken so that you do not miss taking pictures of the fireworks when they are fired. 1 Aim the camera at an object, such as a distant light, that is about the...

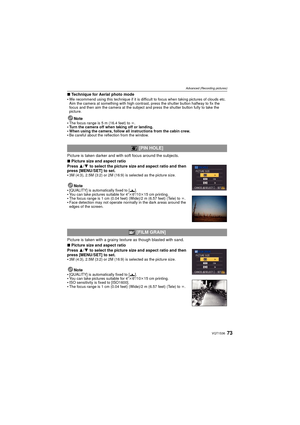

Page 73
73VQT1S36 Advanced (Recording pictures) ∫Technique for Aerial photo mode We recommend using this technique if it is difficult to focus when taking pictures of clouds etc. Aim the camera at something with high contrast, press the shutter button halfway to fix the focus and then aim the camera at the subject and press the shutter button fully to take the picture. Note The focus range is 5 m (16.4 feet) to ¶.Turn the camera off when taking off or landing.When using the camera, follow all instructions...

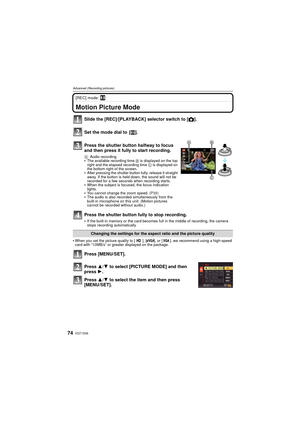

Page 74
![Page 74
VQT1S3674
Advanced (Recording pictures)
[REC] mode: n
Advanced (Recording pictures)Motion Picture Mode
When you set the picture quality to [ ], [ ], or [ ], we recommend using a high-speed
card with “10MB/s” or greater displayed on the package.
Press [MENU/SET].
Press 3/4 to select [PICTURE MODE] and then
press 1.
Press 3/ 4 to select the item and then press
[MENU/SET]. Slide the [REC]/[PLAYBACK] selector switch to [ !].
Set the mode dial to [ n].
Press the shutter button halfway to focus
and then...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-73.png "Page 74
VQT1S3674
Advanced (Recording pictures)
[REC] mode: n
Advanced (Recording pictures)Motion Picture Mode
When you set the picture quality to [ ], [ ], or [ ], we recommend using a high-speed
card with “10MB/s” or greater displayed on the package.
Press [MENU/SET].
Press 3/4 to select [PICTURE MODE] and then
press 1.
Press 3/ 4 to select the item and then press
[MENU/SET]. Slide the [REC]/[PLAYBACK] selector switch to [ !].
Set the mode dial to [ n].
Press the shutter button halfway to focus
and then...")
VQT1S3674 Advanced (Recording pictures) [REC] mode: n Advanced (Recording pictures)Motion Picture Mode When you set the picture quality to [ ], [ ], or [ ], we recommend using a high-speed card with “10MB/s” or greater displayed on the package. Press [MENU/SET]. Press 3/4 to select [PICTURE MODE] and then press 1. Press 3/ 4 to select the item and then press [MENU/SET]. Slide the [REC]/[PLAYBACK] selector switch to [ !]. Set the mode dial to [ n]. Press the shutter button halfway to focus and then...

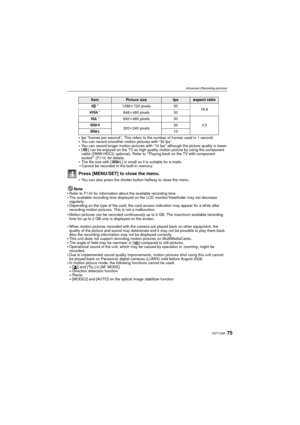

Page 75
![Page 75
75VQT1S36
Advanced (Recording pictures)
fps “frames per second”; This refers to the number of frames used in 1 second.You can record smoother motion pictures with “30 fps”.You can record longer motion pictures with “10 fps” although the picture quality is lower.[ ] can be enjoyed on the TV as high quality motion picture by using the component
cable (DMW-HDC2; optional). Refer to “Playing back on the TV with component
socket” (P119) for details.The file size with [ ] is small so it is suitable for...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-74.png "Page 75
75VQT1S36
Advanced (Recording pictures)
fps “frames per second”; This refers to the number of frames used in 1 second.You can record smoother motion pictures with “30 fps”.You can record longer motion pictures with “10 fps” although the picture quality is lower.[ ] can be enjoyed on the TV as high quality motion picture by using the component
cable (DMW-HDC2; optional). Refer to “Playing back on the TV with component
socket” (P119) for details.The file size with [ ] is small so it is suitable for...")
75VQT1S36 Advanced (Recording pictures) fps “frames per second”; This refers to the number of frames used in 1 second.You can record smoother motion pictures with “30 fps”.You can record longer motion pictures with “10 fps” although the picture quality is lower.[ ] can be enjoyed on the TV as high quality motion picture by using the component cable (DMW-HDC2; optional). Refer to “Playing back on the TV with component socket” (P119) for details.The file size with [ ] is small so it is suitable for...

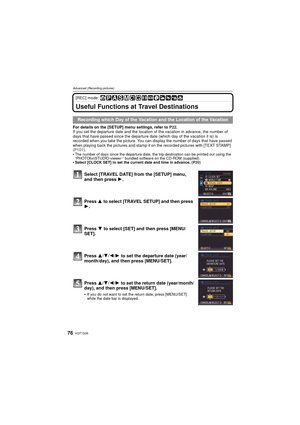

Page 76
![Page 76
VQT1S3676
Advanced (Recording pictures)
[REC] mode:
Useful Functions at Travel Destinations
For details on the [SETUP] menu settings, refer to P22.
If you set the departure date and the location of the vacation in advance, the number of
days that have passed since the departure date (which day of the vacation it is) is
recorded when you take the picture. You can display the number of days that have passed
when playing back the pictures and stamp it on the recorded pictures with [TEXT STAMP]
(P101)...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-75.png "Page 76
VQT1S3676
Advanced (Recording pictures)
[REC] mode:
Useful Functions at Travel Destinations
For details on the [SETUP] menu settings, refer to P22.
If you set the departure date and the location of the vacation in advance, the number of
days that have passed since the departure date (which day of the vacation it is) is
recorded when you take the picture. You can display the number of days that have passed
when playing back the pictures and stamp it on the recorded pictures with [TEXT STAMP]
(P101)...")
VQT1S3676 Advanced (Recording pictures) [REC] mode: Useful Functions at Travel Destinations For details on the [SETUP] menu settings, refer to P22. If you set the departure date and the location of the vacation in advance, the number of days that have passed since the departure date (which day of the vacation it is) is recorded when you take the picture. You can display the number of days that have passed when playing back the pictures and stamp it on the recorded pictures with [TEXT STAMP] (P101)...

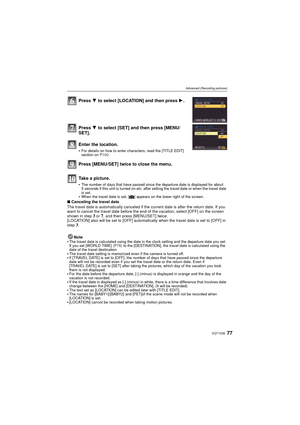

Page 77
![Page 77
77VQT1S36
Advanced (Recording pictures)
Press 4 to select [LOCATION] and then press 1.
Press 4 to select [SET] and then press [MENU/
SET].
Enter the location.
For details on how to enter characters, read the [TITLE EDIT]
section on P100.
Press [MENU/SET] twice to close the menu.
Take a picture.
The number of days that have passed since the departure date is displayed for about
5 seconds if this unit is turned on etc. after setting the travel date or when the travel date
is set.
When the travel date...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-76.png "Page 77
77VQT1S36
Advanced (Recording pictures)
Press 4 to select [LOCATION] and then press 1.
Press 4 to select [SET] and then press [MENU/
SET].
Enter the location.
For details on how to enter characters, read the [TITLE EDIT]
section on P100.
Press [MENU/SET] twice to close the menu.
Take a picture.
The number of days that have passed since the departure date is displayed for about
5 seconds if this unit is turned on etc. after setting the travel date or when the travel date
is set.
When the travel date...")
77VQT1S36 Advanced (Recording pictures) Press 4 to select [LOCATION] and then press 1. Press 4 to select [SET] and then press [MENU/ SET]. Enter the location. For details on how to enter characters, read the [TITLE EDIT] section on P100. Press [MENU/SET] twice to close the menu. Take a picture. The number of days that have passed since the departure date is displayed for about 5 seconds if this unit is turned on etc. after setting the travel date or when the travel date is set. When the travel date...

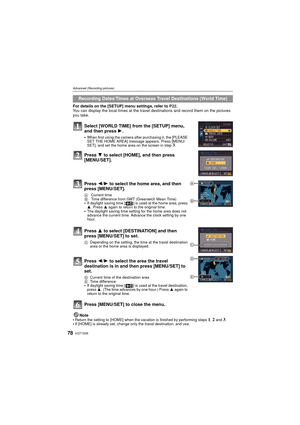

Page 78
![Page 78
VQT1S3678
Advanced (Recording pictures)
For details on the [SETUP] menu settings, refer to P22.
You can display the local times at the travel destinations and record them on the pictures
you take.
Note
Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.If [HOME] is already set, change only the travel destination, and use.
Recording Dates/Times at Overseas Travel Destinations (World Time)
Select [WORLD TIME] from the [SETUP] menu,
and then press 1.
When first...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-77.png "Page 78
VQT1S3678
Advanced (Recording pictures)
For details on the [SETUP] menu settings, refer to P22.
You can display the local times at the travel destinations and record them on the pictures
you take.
Note
Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.If [HOME] is already set, change only the travel destination, and use.
Recording Dates/Times at Overseas Travel Destinations (World Time)
Select [WORLD TIME] from the [SETUP] menu,
and then press 1.
When first...")
VQT1S3678 Advanced (Recording pictures) For details on the [SETUP] menu settings, refer to P22. You can display the local times at the travel destinations and record them on the pictures you take. Note Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.If [HOME] is already set, change only the travel destination, and use. Recording Dates/Times at Overseas Travel Destinations (World Time) Select [WORLD TIME] from the [SETUP] menu, and then press 1. When first...

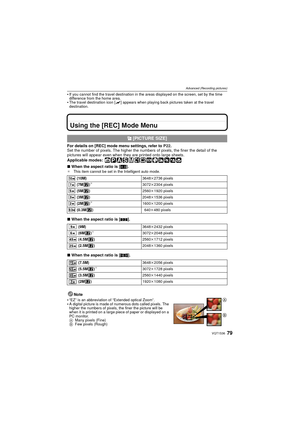

Page 79
![Page 79
79VQT1S36
Advanced (Recording pictures)
If you cannot find the travel destination in the areas displayed on the screen, set by the time
difference from the home area.
The travel destination icon [“] appears when playing back pict ures taken at the travel
destination.
Using the [REC] Mode Menu
For details on [REC] mode menu settings, refer to P22 .
Set the number of pixels. The higher the numbers of pixels, the finer the detail of the
pictures will appear even when they are printed onto large sheets....](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-78.png "Page 79
79VQT1S36
Advanced (Recording pictures)
If you cannot find the travel destination in the areas displayed on the screen, set by the time
difference from the home area.
The travel destination icon [“] appears when playing back pict ures taken at the travel
destination.
Using the [REC] Mode Menu
For details on [REC] mode menu settings, refer to P22 .
Set the number of pixels. The higher the numbers of pixels, the finer the detail of the
pictures will appear even when they are printed onto large sheets....")
79VQT1S36 Advanced (Recording pictures) If you cannot find the travel destination in the areas displayed on the screen, set by the time difference from the home area. The travel destination icon [“] appears when playing back pict ures taken at the travel destination. Using the [REC] Mode Menu For details on [REC] mode menu settings, refer to P22 . Set the number of pixels. The higher the numbers of pixels, the finer the detail of the pictures will appear even when they are printed onto large sheets....

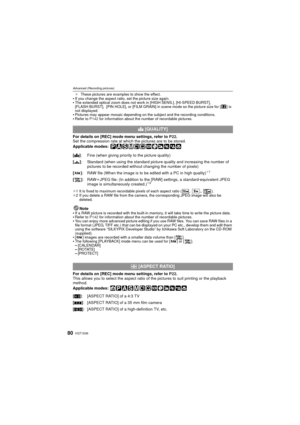

Page 80
![Page 80
VQT1S3680
Advanced (Recording pictures)
¢These pictures are examples to show the effect.If you change the aspect ratio, set the picture size again.The extended optical zoom does not work in [HIGH SENS.], [HI-SPEED BURST],
[FLASH BURST], [PIN HOLE], or [FILM GRAIN] in scene mode so the picture size for [ ] is
not displayed.
Pictures may appear mosaic depending on the subject and the recording conditions. Refer to P142 for information about the number of recordable pictures.
For details on [REC] mode...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-79.png "Page 80
VQT1S3680
Advanced (Recording pictures)
¢These pictures are examples to show the effect.If you change the aspect ratio, set the picture size again.The extended optical zoom does not work in [HIGH SENS.], [HI-SPEED BURST],
[FLASH BURST], [PIN HOLE], or [FILM GRAIN] in scene mode so the picture size for [ ] is
not displayed.
Pictures may appear mosaic depending on the subject and the recording conditions. Refer to P142 for information about the number of recordable pictures.
For details on [REC] mode...")
VQT1S3680 Advanced (Recording pictures) ¢These pictures are examples to show the effect.If you change the aspect ratio, set the picture size again.The extended optical zoom does not work in [HIGH SENS.], [HI-SPEED BURST], [FLASH BURST], [PIN HOLE], or [FILM GRAIN] in scene mode so the picture size for [ ] is not displayed. Pictures may appear mosaic depending on the subject and the recording conditions. Refer to P142 for information about the number of recordable pictures. For details on [REC] mode...
