- 11 -
Preparation

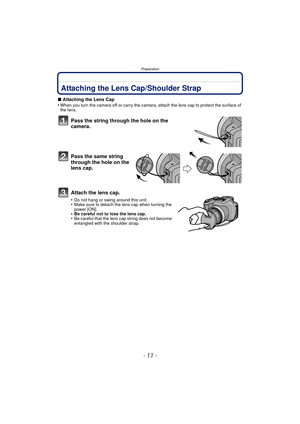

PreparationAttaching the Lens Cap/Shoulder Strap
∫Attaching the Lens Cap
•When you turn the camera off or carry the camera, attach the lens cap to protect the surface of
the lens.
Pass the string through the hole on the
camera.
Pass the same string
through the hole on the
lens cap.
Attach the lens cap.
•Do not hang or swing around this unit.•Make sure to detach the lens cap when turning the
power [ON].
•Be careful not to lose the lens cap.•Be careful that the lens cap string does...

Preparation
- 12 -

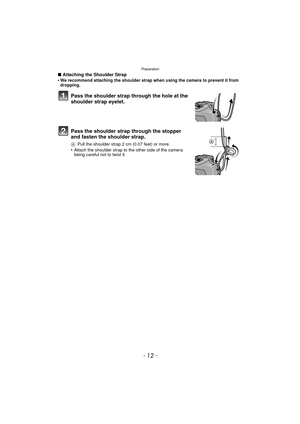

∫Attaching the Shoulder Strap
•We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the hole at the
shoulder strap eyelet.
Pass the shoulder strap through the stopper
and fasten the shoulder strap.
A Pull the shoulder strap 2 cm (0.07 feet) or more.
•Attach the shoulder strap to the other side of the camera
being careful not to twist it.

- 13 -
Preparation

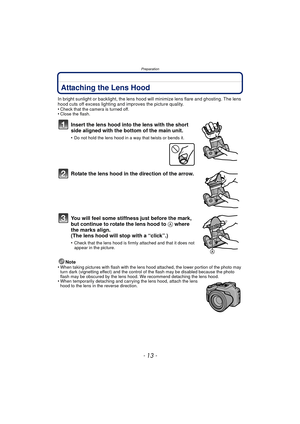

Attaching the Lens Hood
In bright sunlight or backlight, the lens hood will minimize lens flare and ghosting. The lens
hood cuts off excess lighting and improves the picture quality.
•
Check that the camera is turned off.•Close the flash.
Insert the lens hood into the lens with the short
side aligned with the bottom of the main unit.
•Do not hold the lens hood in a way that twists or bends it.
Rotate the lens hood in the direction of the arrow.
You will feel some stiffness just...

Preparation
- 14 -

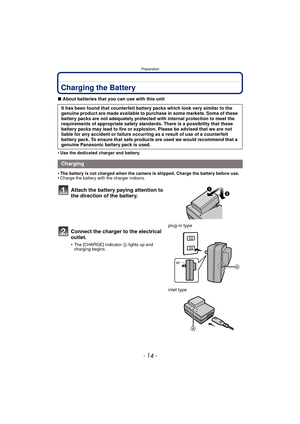

Charging the Battery
∫About batteries that you can use with this unit
•
Use the dedicated charger and battery.
•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.
It has been found that counterfeit battery packs which look very similar to the
genuine product are made available to purchase in some markets. Some of these
battery packs are not adequately protected with internal protection to meet the...

- 15 -
Preparation

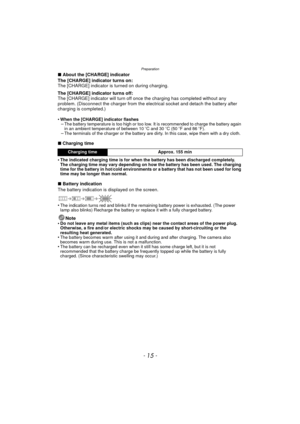

∫About the [CHARGE] indicator
The [CHARGE] indicator turns on:
The [CHARGE] indicator is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator will turn off once the charging has completed without any
problem. (Disconnect the charger from the elec trical socket and detach the battery after
charging is completed.)
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the battery again
in an...

Preparation
- 16 -

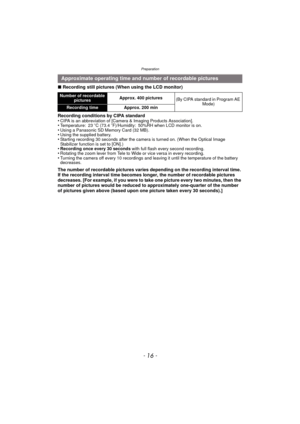

∫Recording still pictures (When using the LCD monitor)
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the Optical Image
Stabilizer function is set to [ON].)
•Recording once every 30 seconds  with full flash every second...

- 17 -
Preparation

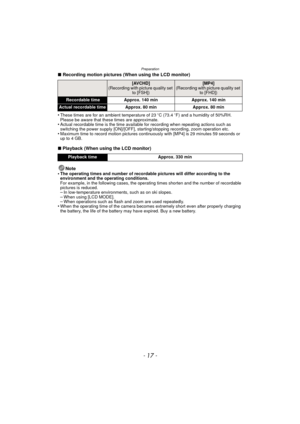

∫Recording motion pictures (When using the LCD monitor)
•
These times are for an ambient temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
Please be aware that these times are approximate.
•Actual recordable time is the time available  for recording when repeating actions such as
switching the power supply [ON]/[OFF], starting/stopping recording, zoom operation etc.
•Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or
up to 4 GB.
∫...

Preparation
- 18 -

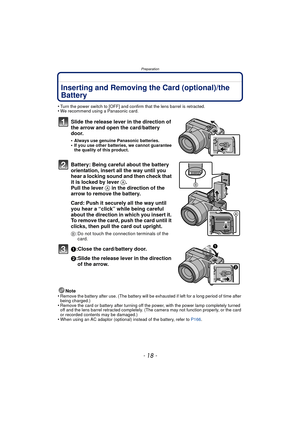

Inserting and Removing the Card (optional)/the
Battery
•Turn the power switch to [OFF] and confirm that the lens barrel is retracted.•We recommend using a Panasonic card.
Slide the release lever in the direction of
the arrow and open the card/battery
door.
•Always use genuine Panasonic batteries.•If you use other batteries, we cannot guarantee
the quality of this product.
Battery: Being careful about the battery
orientation, insert all the way until you
hear a locking sound and...

- 19 -
Preparation

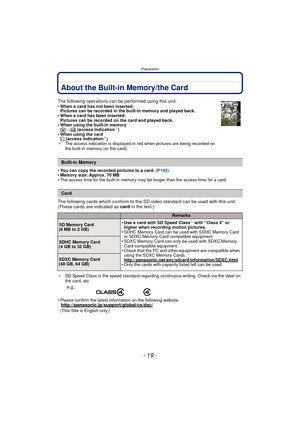

About the Built-in Memory/the Card
•You can copy the recorded pictures to a card. (P145)•Memory size: Approx. 70 MB•The access time for the built-in memory may be longer than the access time for a card.
The following cards which conform to the SD video standard can be used with this unit.
(These cards are indicated as card in the text.)
¢SD Speed Class is the speed standard regarding continuous writing. Check via the label on
the card, etc.
•Please confirm the latest information on...

Preparation
- 20 -

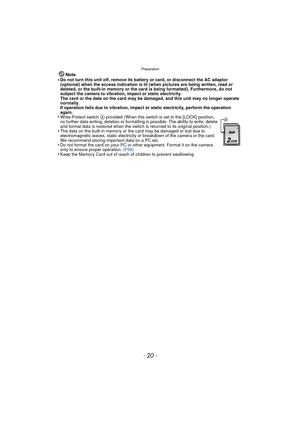

Note
•Do not turn this unit off, remove its battery or card, or disconnect the AC adaptor
(optional) when the access indication is lit (when pictures are being written, read or
deleted, or the built-in memory or the card is being formatted). Furthermore, do not
subject the camera to vibration, impact or static electricity.
The card or the data on the card may be damaged, and this unit may no longer operate
normally.
If operation fails due to vibration, impact or static electricity,...
