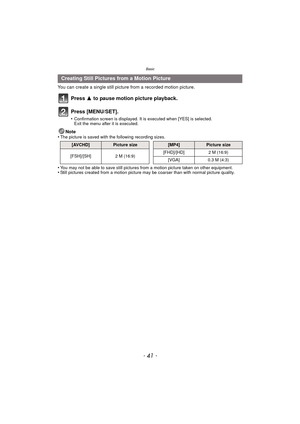

- 41 -
Basic
You can create a single still picture from a recorded motion picture.
Press 3 to pause motion picture playback.
Press [MENU/SET].
•Confirmation screen is displayed. It is executed when [YES] is selected.
Exit the menu after it is executed.
Note
•The picture is saved with the following recording sizes.
•You may not be able to save still pictures from a motion picture taken on other equipment.•Still pictures created from a motion picture may be coarser than with normal picture quality....

Basic

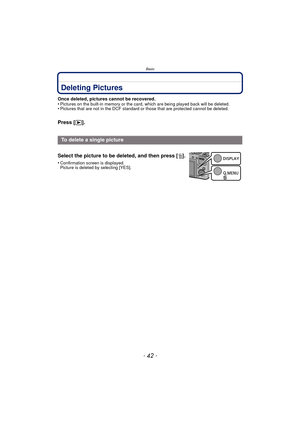

- 42 -
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which are being played back will be deleted.•Pictures that are not in the DCF standard or those that are protected cannot be deleted.
Press [(].
To delete a single picture
Select the picture to be deleted, and then press [ ‚].
•Confirmation screen is displayed.
Picture is deleted by selecting [YES].

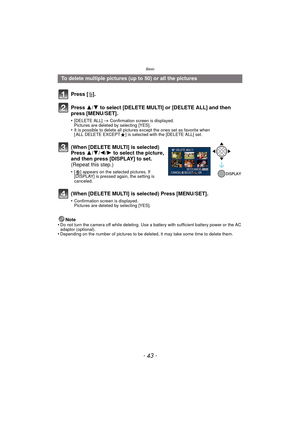

- 43 -
Basic
Note
•Do not turn the camera off while deleting. Use a battery with sufficient battery power or the AC
adaptor (optional).
•Depending on the number of pictures to be deleted, it may take some time to delete them.
To delete multiple pictures (up to 50) or all the pictures
Press [‚ ].
Press  3/4 to select [DELETE MULTI] or [DELETE ALL] and then
press [MENU/SET].
•[DELETE ALL]  > Confirmation screen is displayed.
Pictures are deleted by selecting [YES].
•It is possible to delete all pictures...

Basic
- 44 -

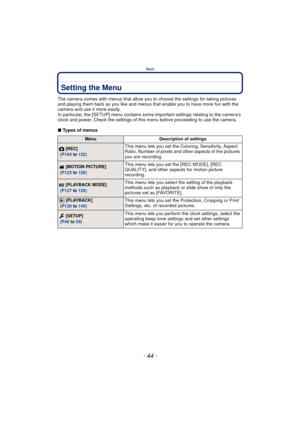

Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back as you like and menus that enable you to have more fun with the
camera and use it more easily.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
∫ Types of menus
Menu Description of settings
! [REC]
  (P104  to 122)This menu lets you set the...

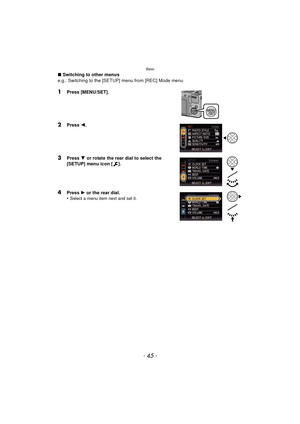

- 45 -
Basic
∫Switching to other menus
e.g.: Switching to the [SETUP] menu from [REC] Mode menu
1Press [MENU/SET].
2Press  2.
3Press  4 or rotate the rear dial to select the
[SETUP] menu icon [ ].
4Press  1 or the rear dial.
•Select a menu item next and set it.

Basic

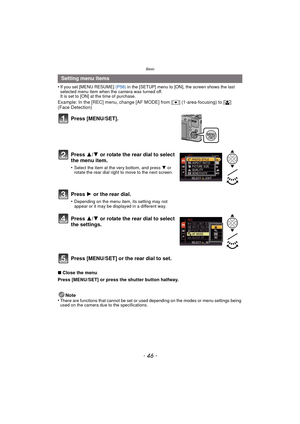

- 46 -
•If you set [MENU RESUME] (P58) in the [SETUP] menu to [ON], the screen shows the last
selected menu item when the camera was turned off.
It is set to [ON] at the time of purchase.
Example: In the [REC] menu, change [AF MODE] from [ Ø] (1-area-focusing) to [ š]
(Face Detection)
Press [MENU/SET].
∫ Close the menu
Press [MENU/SET] or press the shutter button halfway.
Note
•
There are functions that cannot be set or used depending on the modes or menu settings being
used on the camera due to...

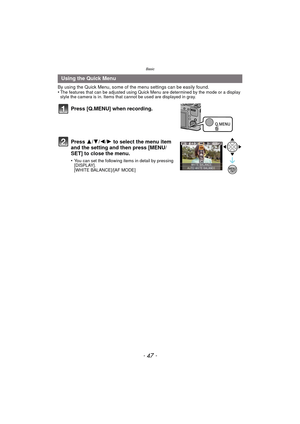

- 47 -
Basic
By using the Quick Menu, some of the menu settings can be easily found.
•The features that can be adjusted using Quick Menu are determined by the mode or a display
style the camera is in. Items that cannot be used are displayed in gray.
Using the Quick Menu
Press [Q.MENU] when recording.
Press  3/4/2/ 1 to select the menu item
and the setting and then press [MENU/
SET] to close the menu.
•You can set the following items in detail by pressing
[DISPLAY].
[WHITE BALANCE]/[AF MODE]

Basic

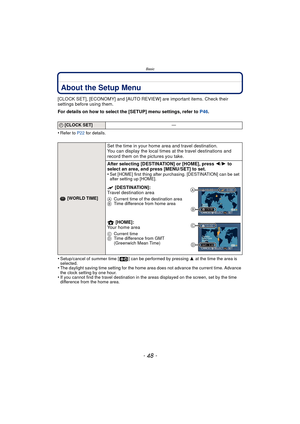

- 48 -
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
For details on how to select the [SETUP] menu settings, refer to P46.
•
Refer to P22  for details.
•Setup/cancel of summer time [ ] can be performed by pressing  3 at the time the area is
selected.
•The daylight saving time setting for the home area does not advance the current time. Advance
the clock setting by one hour.
•If you cannot find the travel destination in...

- 49 -
Basic

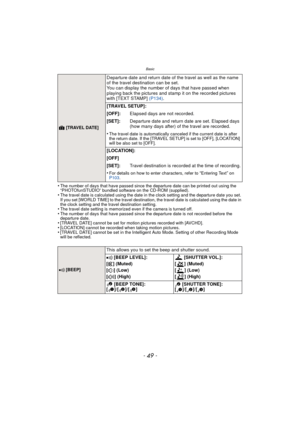

•The number of days that have passed since the departure date can be printed out using the
“PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied).
•The travel date is calculated using the date in the clock setting and the departure date you set.
If you set [WORLD TIME] to the travel destination, the travel date is calculated using the date in
the clock setting and the travel destination setting.
•The travel date setting is memorized even if the camera is turned off.•The number of days...

Basic

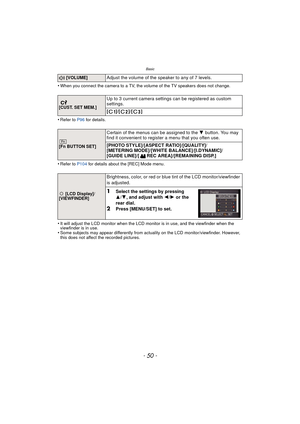

- 50 -
•When you connect the camera to a TV, the volume of the TV speakers does not change.
•Refer to P96 for details.
•Refer to P104 for details about the [REC] Mode menu.
•It will adjust the LCD monitor when the LCD monitor is in use, and the viewfinder when the
viewfinder is in use.
•Some subjects may appear differently from actuality on the LCD monitor/viewfinder. However,
this does not affect the recorded pictures.
u [VOLUME]Adjust the volume of the speaker to any of 7 levels.

[CUST. SET...
