Panasonic Dmc Fz47 Owners Manual

- 51 -
Basic

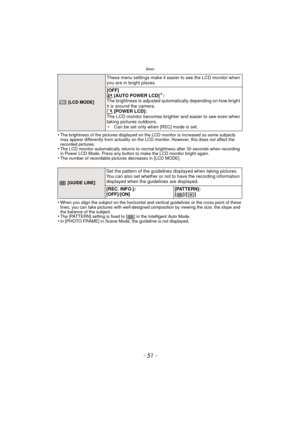

•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear differently from actuality on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness after 30 seconds when recording
in Power LCD Mode. Press any button to make the LCD monitor bright again.
•The number of recordable pictures decreases in [LCD MODE].
•When you align the subject on the horizontal and vertical...

Basic
- 52 -

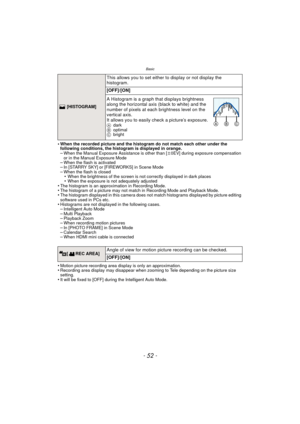

•When the recorded picture and the histogram do not match each other under the
following conditions, the histogram is displayed in orange.
–When the Manual Exposure Assistance is other than [ n0EV] during exposure compensation
or in the Manual Exposure Mode
–When the flash is activated–In [STARRY SKY] or [FIREWORKS] in Scene Mode–When the flash is closed•When the brightness of the screen is not correctly displayed in dark places•When the exposure is not adequately adjusted•The histogram is...

- 53 -
Basic

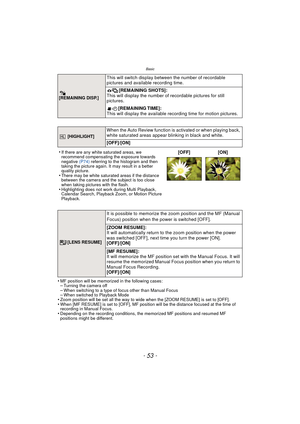

•MF position will be memorized in the following cases:–Turning the camera off–When switching to a type of focus other than Manual Focus–When switched to Playback Mode•Zoom position will be set all the way to wide when the [ZOOM RESUME] is set to [OFF].•When [MF RESUME] is set to [OFF], MF position will be the distance focused at the time of
recording in Manual Focus.
•Depending on the recording conditions, the memorized MF positions and resumed MF
positions might be different.
[REMAINING...

Basic
- 54 -

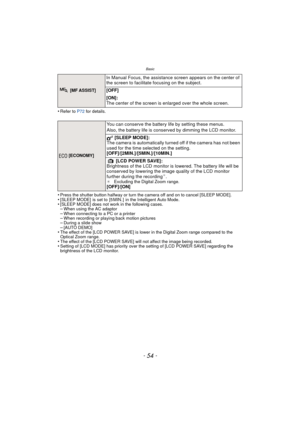

•Refer to P72 for details.
•Press the shutter button halfway or turn the camera off and on to cancel [SLEEP MODE].•[SLEEP MODE]  is set to  [5 MIN. ]  in the Intelligent Auto Mode.•[SLEEP MODE] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a printer–When recording or playing back motion pictures–During a slide show–[AUTO DEMO]•The effect of the [LCD POWER SAVE] is lower in the Digital Zoom range compared to the
Optical Zoom range.
•The effect of...

- 55 -
Basic
•[AUTO REVIEW] is activated regardless of its setting in the following cases.–When using Auto Bracket–[HANDHELD NITE SHOT] in [NIGHT PORTRAIT]–[HI-SPEED BURST] and [FLASH BURST] in Scene Mode–During the Burst Mode•In Intelligent Auto Mode or [PHOTO FRAME] in  Scene Mode, the Auto Review function is fixed
to [2SEC.].
•[AUTO REVIEW] does not work when recording motion pictures.
•The folder number is updated and the file number starts from 0001.•A folder number between 100 and 999 can be...

Basic
- 56 -

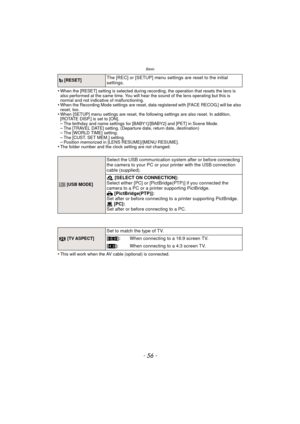

•When the [RESET] setting is selected during recording, the operation that resets the lens is
also performed at the same time. You will hear the sound of the lens operating but this is
normal and not indicative of malfunctioning.
•When the Recording Mode settings are reset, data registered with [FACE RECOG.] will be also
reset, too.
•When [SETUP] menu settings are reset, the following settings are also reset. In addition,
[ROTATE DISP.] is set to [ON].
–The birthday and name settings for...

- 57 -
Basic
•If the images are not output on the TV when the setting is [AUTO], match with the image format
your TV can display, and select number of effective scanning lines. (Please read the operating
instructions for the TV.)
•This will work when the HDMI mini cable (optional) is connected.
•This will work when the HDMI mini cable (optional) is connected.•Refer to P148 for details.
[HDMI MODE]
Set the format for the HDMI output when playing back on the
HDMI compatible high definition TV connected...

Basic
- 58 -

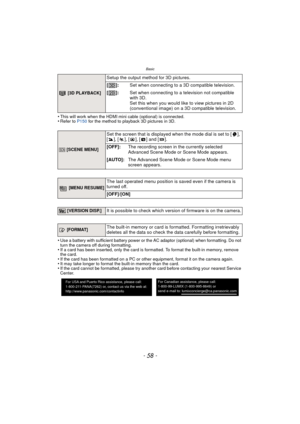

•This will work when the HDMI mini cable (optional) is connected.•Refer to P150 for the method to playback 3D pictures in 3D.
•Use a battery with sufficient battery power or the AC adaptor (optional) when formatting. Do not
turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To format the built-in memory, remove
the card.
•If the card has been formatted on a PC or other equipment, format it on the camera again.•It may take longer to format the...

- 59 -
Basic

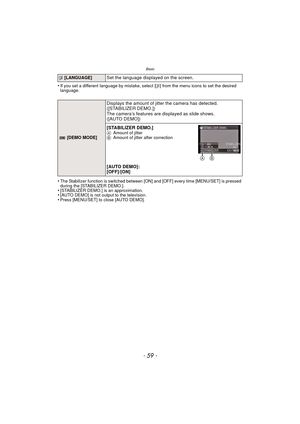

•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The Stabilizer function is switched between [ON ] and [OFF] every time [MENU/SET] is pressed
during the [STABILIZER DEMO.].
•[STABILIZER DEMO.] is an approximation.•[AUTO DEMO] is not output to the television.•Press [MENU/SET] to close [AUTO DEMO].
~  [LANGUAGE]Set the language displayed on the screen.
 [DEMO MODE]
Displays the amount of jitter the camera has detected.
([STABILIZER...

Recording
- 60 -

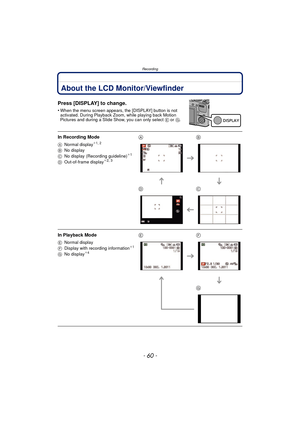

RecordingAbout the LCD Monitor/Viewfinder
Press [DISPLAY] to change.
•When the menu screen appears, the [DISPLAY] button is not
activated. During Playback Zoom, while playing back Motion
Pictures and during a Slide Show, you can only select E or G.
In Recording Mode
ANormal display¢1, 2
BNo display
C No display (Recording guideline)¢1
D Out-of-frame display¢2, 3
AB
DC
In Playback Mode
E Normal display
F Display with recording information¢1
GNo display¢4
EF
G
