Panasonic Dmc Fz47 Owners Manual

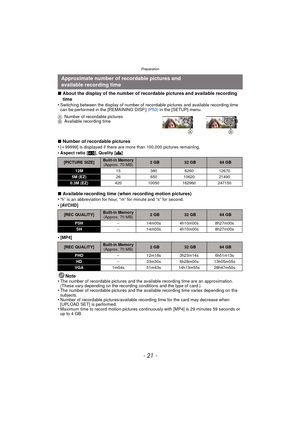

- 21 -
Preparation
∫About the display of the number of recordable pictures and available recording
time
•
Switching between the display of number of recordable pictures and available recording time
can be performed in the [REMAINING DISP.] (P53)  in the [SETUP] menu.
∫Number of recordable pictures
•[ i 99999] is displayed if there are more than 100,000 pictures remaining.•Aspect ratio [ X], Quality [ A]
∫Available recording time (when recording motion pictures)
•“h” is an abbreviation for hour, “m” for...

Preparation
- 22 -
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
•The power lamp 1 lights when you turn this unit on.•If the language select screen is not displayed,
proceed to step4.
Press [MENU/SET].
Press 3/4 to select the language, and press [MENU/SET].
Press [MENU/SET].
Press  2/1 to select the items (year,
month, day, hour, minute, display
sequence or time display format), and
press  3/4 to set.
A: Time at the home area
B : Time at the...

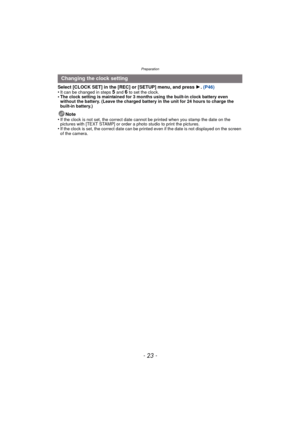

- 23 -
Preparation
Select [CLOCK SET] in the [REC] or [SETUP] menu, and press 1. (P46)
•It can be changed in steps 5 and 6 to set the clock.•The clock setting is maintained for 3 months using the built-in clock battery even
without the battery. (Leave the charged battery  in the unit for 24 hours to charge the
built-in battery.)
Note
•If the clock is not set, the correct date cannot be printed when you stamp the date on the
pictures with [TEXT STAMP] or order a photo studio to print the pictures.
•If...

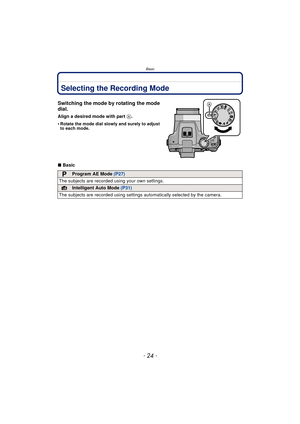

Basic
- 24 -
BasicSelecting the Recording Mode
Switching the mode by rotating the mode
dial.
Align a desired mode with part A.
•
Rotate the mode dial slowly and surely to adjust
to each mode.
∫ Basic
Program AE Mode  (P27)
The subjects are recorded  using your own settings.
Intelligent Auto Mode (P31)
The subjects are recorded using settings  automatically selected by the camera.
CUSTM
CUSTM

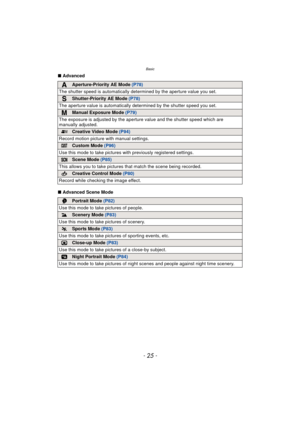

- 25 -
Basic
∫Advanced
∫ Advanced Scene Mode
Aperture-Priority AE Mode  (P78)
The shutter speed is automatically det ermined by the aperture value you set.
Shutter-Priority AE Mode (P78)
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode  (P79)
The exposure is adjusted by the apertur e value and the shutter speed which are
manually adjusted.
Creative Video Mode  (P94)
Record motion picture with manual settings.
Custom Mode  (P96)
Use this mode to take...

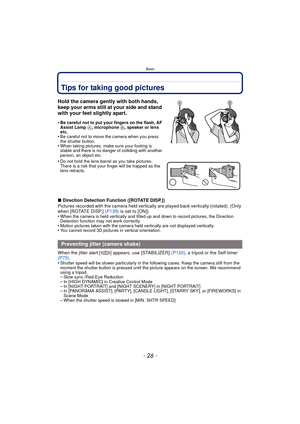

Basic
- 26 -
Tips for taking good pictures
∫Direction Detection Function ([ROTATE DISP.])
Pictures recorded with the camera held vertica lly are played back vertically (rotated). (Only
when [ROTATE DISP.] (P139)  is set to [ON])
•
When the camera is held vertically and tilted up and down to record pictures, the Direction
Detection function may not work correctly.
•Motion pictures taken with the camera held vertically are not displayed vertically.•You cannot record 3D pictures in vertical orientation....

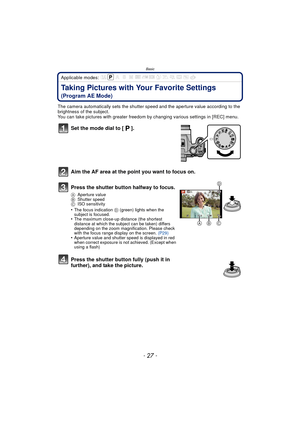

- 27 -
Basic
Applicable modes:
Taking Pictures with Your Favorite Settings
(Program AE Mode)
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in [REC] menu.
Set the mode dial to [ ].
Aim the AF area at the point you want to focus on.
Press the shutter button halfway to focus.
AAperture value
B Shutter speed
C ISO sensitivity
•The focus indication  D (green) lights...

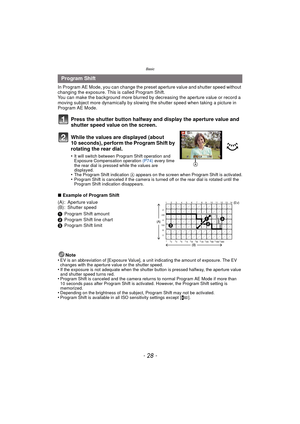

Basic
- 28 -
In Program AE Mode, you can change the preset aperture value and shutter speed without
changing the exposure. This is called Program Shift.
You can make the background more blurred by  decreasing the aperture value or record a
moving subject more dynamically by slowing the shutter speed when taking a picture in
Program AE Mode.
Press the shutter button halfway and display the aperture value and
shutter speed value on the screen.
While the values are displayed (about
10 seconds), perform...

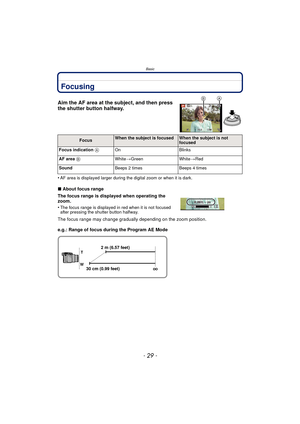

- 29 -
Basic
Focusing
Aim the AF area at the subject, and then press
the shutter button halfway.
•AF area is displayed larger during the digital zoom or when it is dark.
∫About focus range
The focus range is displayed when operating the
zoom.
•
The focus range is displayed in red when it is not focused
after pressing the shutter button halfway.
The focus range may change gradually depending on the zoom position.
e.g.: Range of focus during the Program AE Mode
FocusWhen the subject is focusedWhen the...

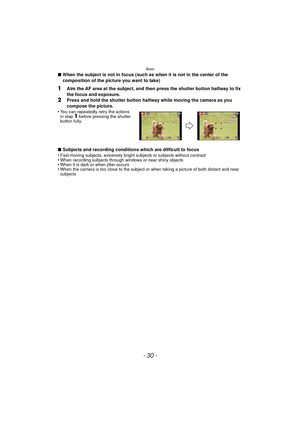

Basic
- 30 -
∫When the subject is not in focus (such as when it is not in the center of the
composition of the picture you want to take)
1Aim the AF area at the subject, and then press the shutter button halfway to fix
the focus and exposure.
2Press and hold the shutter button halfway while moving the camera as you
compose the picture.
•
You can repeatedly retry the actions
in step 1 before pressing the shutter
button fully.
∫ Subjects and recording conditions which are difficult to focus...
