- 61 -
Recording

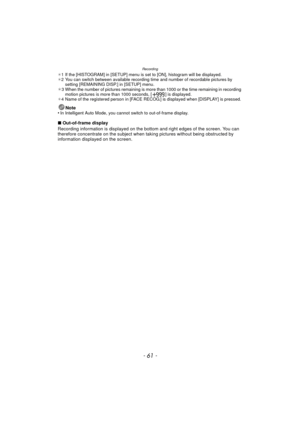

¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed.
¢ 2 You can switch between available recording time and number of recordable pictures by
setting [REMAINING DISP.] in [SETUP] menu.
¢3 When the number of pictures remaining is more than 1000 or the time remaining in recording motion pictures is more than 1000 seconds, [ ] is displayed.
¢ 4 Name of the registered person in [FACE RECOG .] is displayed when [DISPLAY] is pressed.
Note
•In Intelligent Auto...

Recording
- 62 -
Applicable modes:

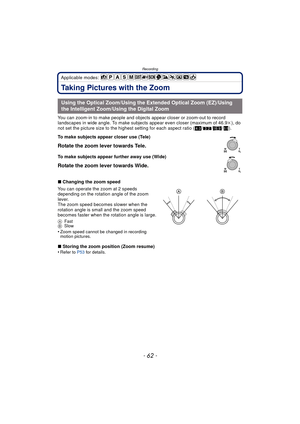

Taking Pictures with the Zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle. To make subjects appear even closer (maximum of 46.9k ), do
not set the picture size to the highest setting for each aspect ratio ( X/Y /W /).
∫ Changing the zoom speed
You can operate the zoom at 2 speeds
depending on the rotation angle of the zoom
lever.
The zoom speed becomes slower when the
rotation angle is small and the zoom...

- 63 -
Recording

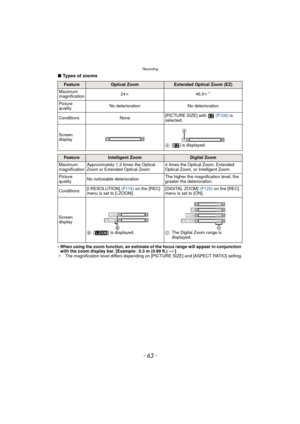

∫Types of zooms
•
When using the zoom function, an estimate of the focus range will appear in conjunction
with the zoom display bar. [Example: 0.3 m (0.99 ft.) – ¶]
¢ The magnification level differs depending on [PICTURE SIZE] and [ASPECT RATIO] setting.
FeatureOptical ZoomExtended Optical Zoom (EZ)
Maximum
magnification 24
k 46.9k
¢
quality No deterioration No deterioration
Conditions None [PICTURE SIZE] with
(P106) is
selected.
Screen
display A[ ] is displayed....

Recording
- 64 -

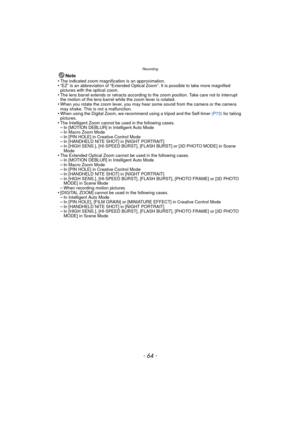

Note
•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended Optical Zoom”. It is possible to take more magnified
pictures with the optical zoom.
•The lens barrel extends or retracts according to the zoom position. Take care not to interrupt
the motion of the lens barrel while the zoom lever is rotated.
•When you rotate the zoom lever, you may hear some sound from the camera or the camera
may shake. This is not a malfunction.
•When using the Digital...

- 65 -
Recording
Applicable modes:

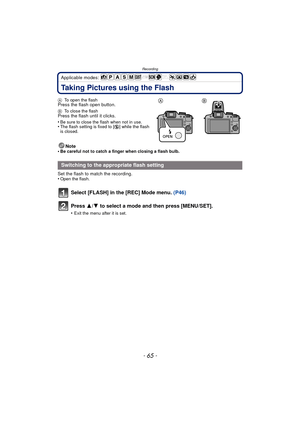

Taking Pictures using the Flash
ATo open the flashPress the flash open button.
BTo close the flashPress the flash until it clicks.
•
Be sure to close the flash when not in use.•The flash setting is fixed to [ Œ] while the flash
is closed.
Note
•Be careful not to catch a finger when closing a flash bulb.
Set the flash to match the recording.
•Open the flash.
Select [FLASH] in the [REC] Mode menu.  (P46)
Press  3/4 to select a mode and then press [MENU/SET].
•Exit the...

Recording
- 66 -

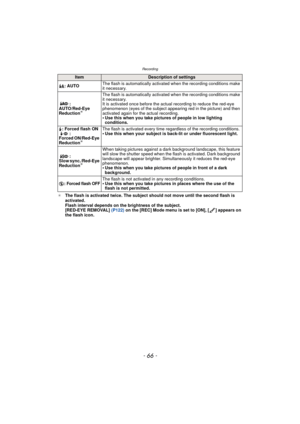

¢The flash is activated twice. The subject should not move until the second flash is
activated.
Flash interval depends on the brightness of the subject.
[RED-EYE REMOVAL]  (P122) on the [REC] Mode menu is set to [ON], [ ] appears on
the flash icon.
ItemDescription of settings
‡ : AUTO The flash is automatically activated when the recording conditions make
it necessary.
:
AUTO/Red-Eye
Reduction
¢
The flash is automatically activated when the recording conditions make
it necessary.
It...

- 67 -
Recording

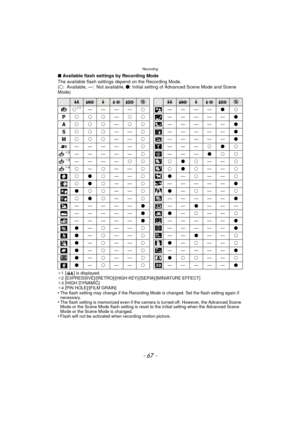

∫Available flash settings by Recording Mode
The available flash settings depend on the Recording Mode.
(± : Available, —: Not available,  ¥: Initial setting of Advanced Scene Mode and Scene
Mode)
¢ 1 [ ] is displayed.
¢ 2 [EXPRESSIVE]/[RETRO]/[HIGH KEY]/[SEPIA]/[MINIATURE EFFECT]
¢ 3 [HIGH DYNAMIC]
¢ 4 [PIN HOLE]/[FILM GRAIN]
•The flash setting may change if the Recording Mode is changed. Set the flash setting again if
necessary.
•The flash setting is memorized even if the camera is...

Recording
- 68 -

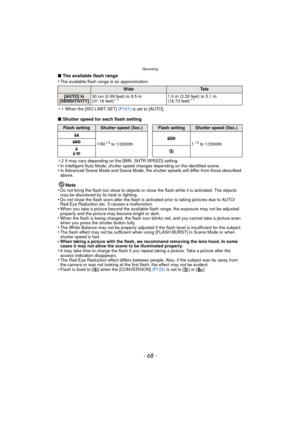

∫The available flash range
•The available flash range is an approximation.
¢ 1 When the [ISO LIMIT SET]  (P107) is set to [AUTO].
∫Shutter speed for each flash setting
¢2 It may vary depending on the [MIN. SHTR SPEED] setting.•In Intelligent Auto Mode, shutter speed changes depending on the identified scene.•In Advanced Scene Mode and Scene Mode, the shutter speeds will differ from those described
above.
Note
•Do not bring the flash too close to objects or close the flash while it is...

- 69 -
Recording

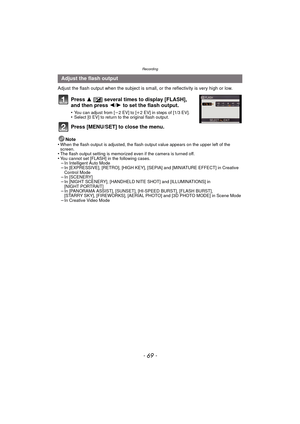

Adjust the flash output when the subject is small, or the reflectivity is very high or low.
Press 3 [È] several times to display [FLASH],
and then press  2/1 to set the flash output.
•You can adjust from [ j2 EV] to [ i2 EV] in steps of [1/3 EV].•Select [0 EV] to return to the original flash output.
Press [MENU/SET] to close the menu.
Note
•When the flash output is adjusted, the flash output value appears on the upper left of the
screen.
•The flash output setting is memorized even if...

Recording
- 70 -
Applicable modes:

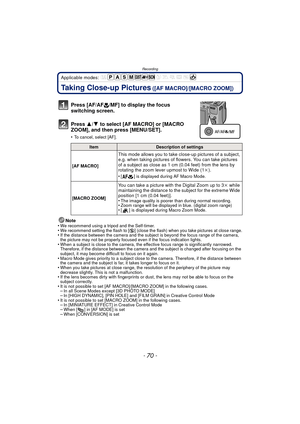

Taking Close-up Pictures ([AF MACRO]/[MACRO ZOOM])
Press [AF/AF#/MF] to display the focus
switching screen.
Press  3/4 to select [AF MACRO] or [MACRO
ZOOM], and then press [MENU/SET].
•To cancel, select [AF].
Note
•We recommend using a tripod and the Self-timer.•We recommend setting the flash to [ Œ] (close the flash) when you take pictures at close range.•If the distance between the camera and the subject is beyond the focus range of the camera,
the picture may not...
