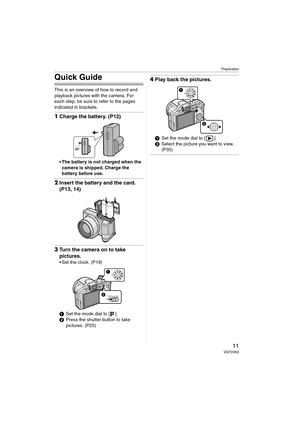

Preparation
11VQT0V63
Quick Guide
This is an overview of how to record and
playback pictures with the camera. For
each step, be sure to refer to the pages
indicated in brackets.
1Charge the battery. (P12)
 The battery is not charged when the
camera is shipped. Charge the
battery before use.
2Insert the battery and the card.
(P13, 14)
3Turn the camera on to take
pictures.
 Set the clock. (P19)
1Set the mode dial to [ ].
2Press the shutter button to take
pictures. (P25)
4Play back the pictures....

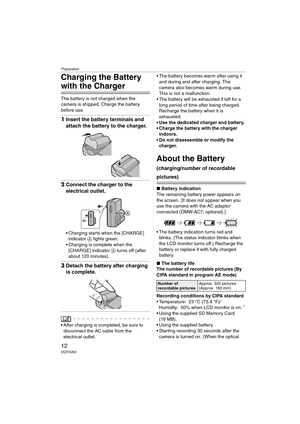

Preparation
12VQT0V63
Charging the Battery
with the Charger
The battery is not charged when the
camera is shipped. Charge the battery
before use.
1Insert the battery terminals and
attach the battery to the charger.
2Connect the charger to the
electrical outlet.
 Charging starts when the [CHARGE]
indicator A lights green.
 Charging is complete when the
[CHARGE] indicator A turns off (after
about 120 minutes).
3Detach the battery after charging
is complete.
 After charging is completed, be sure...

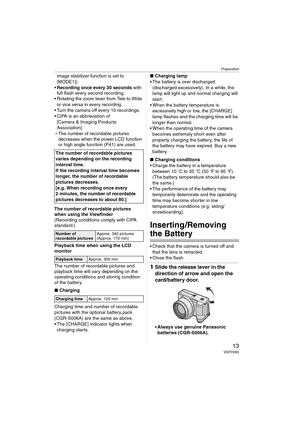

Preparation
13VQT0V63
image stabilizer function is set to
[MODE1])
Recording once every 30 seconds with
full flash every second recording.
 Rotating the zoom lever from Tele to Wide
or vice versa in every recording.
 Turn the camera off every 10 recordings.
 CIPA is an abbreviation of
[Camera & Imaging Products
Association].
¢The number of recordable pictures
decreases when the power LCD function
or high angle function (P41) are used.
The number of recordable pictures
when using the...

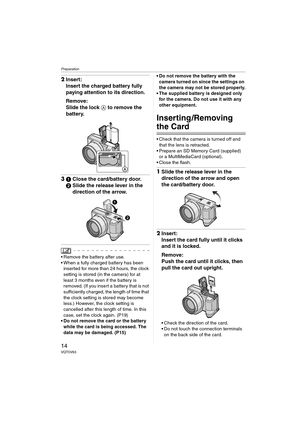

Preparation
14VQT0V63
2Insert:
Insert the charged battery fully
paying attention to its direction.
Remove:
Slide the lock A to remove the
battery.
31Close the card/battery door.
2Slide the release lever in the
direction of the arrow.
 Remove the battery after use.
 When a fully charged battery has been
inserted for more than 24 hours, the clock
setting is stored (in the camera) for at
least 3 months even if the battery is
removed. (If you insert a battery that is not
sufficiently charged, the...

Preparation

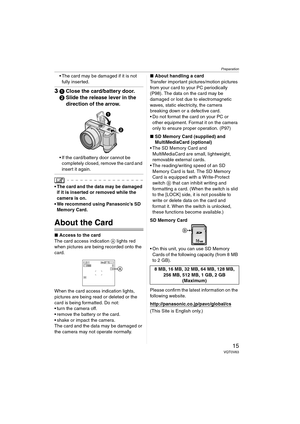

15VQT0V63
 The card may be damaged if it is not
fully inserted.
31Close the card/battery door.
2Slide the release lever in the
direction of the arrow.
 If the card/battery door cannot be
completely closed, remove the card and
insert it again.
 The card and the data may be damaged
if it is inserted or removed while the
camera is on.
 We recommend using Panasonic’s SD
Memory Card.
About the Card
∫Access to the card
The card access indication A lights red
when pictures are being...

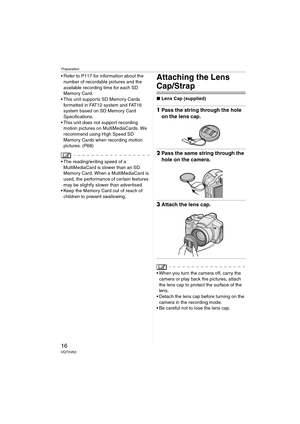

Preparation
16VQT0V63
 Refer to P117 for information about the
number of recordable pictures and the
available recording time for each SD
Memory Card.
 This unit supports SD Memory Cards
formatted in FAT12 system and FAT16
system based on SD Memory Card
Specifications.
 This unit does not support recording
motion pictures on MultiMediaCards. We
recommend using High Speed SD
Memory Cards when recording motion
pictures. (P68)
 The reading/writing speed of a
MultiMediaCard is slower than an...

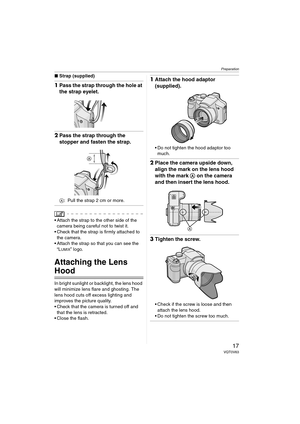

Preparation
17VQT0V63
∫Strap (supplied)
1Pass the strap through the hole at
the strap eyelet.
2Pass the strap through the
stopper and fasten the strap.
A: Pull the strap 2 cm or more.
 Attach the strap to the other side of the
camera being careful not to twist it.
 Check that the strap is firmly attached to
the camera.
 Attach the strap so that you can see the
“L
UMIX” logo.
Attaching the Lens
Hood
In bright sunlight or backlight, the lens hood
will minimize lens flare and ghosting. The
lens...

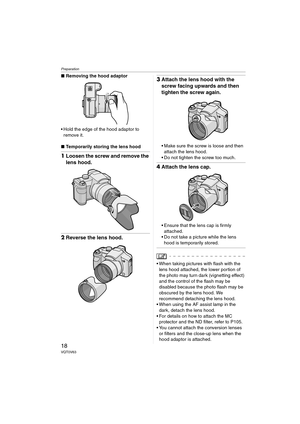

Preparation
18VQT0V63
∫Removing the hood adaptor
 Hold the edge of the hood adaptor to
remove it.
∫Temporarily storing the lens hood
1Loosen the screw and remove the
lens hood.
2Reverse the lens hood.
3Attach the lens hood with the
screw facing upwards and then
tighten the screw again.
 Make sure the screw is loose and then
attach the lens hood.
 Do not tighten the screw too much.
4Attach the lens cap.
 Ensure that the lens cap is firmly
attached.
 Do not take a picture while the lens
hood is...

Preparation

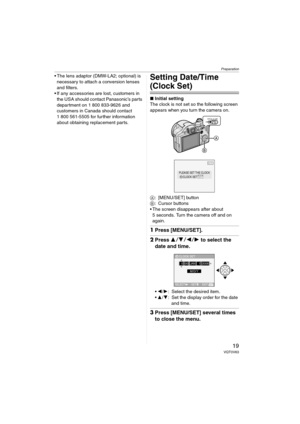

19VQT0V63
 The lens adaptor (DMW-LA2; optional) is
necessary to attach a conversion lenses
and filters.
 If any accessories are lost, customers in
the USA should contact Panasonic’s parts
department on 1 800 833-9626 and
customers in Canada should contact
1 800 561-5505 for further information
about obtaining replacement parts.Setting Date/Time
(Clock Set)
∫Initial setting
The clock is not set so the following screen
appears when you turn the camera on.
A: [MENU/SET] button
B:...

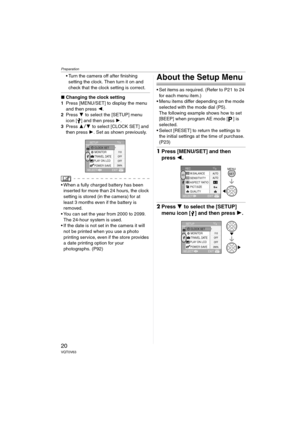

Preparation
20VQT0V63
 Turn the camera off after finishing
setting the clock. Then turn it on and
check that the clock setting is correct.
∫Changing the clock setting
1Press [MENU/SET] to display the menu
and then press 2.
2Press 4 to select the [SETUP] menu
icon [ ] and then press 1.
3Press 34 to select [CLOCK SET] and
then press 1. Set as shown previously.
 When a fully charged battery has been
inserted for more than 24 hours, the clock
setting is stored (in the camera) for at
least 3 months...
