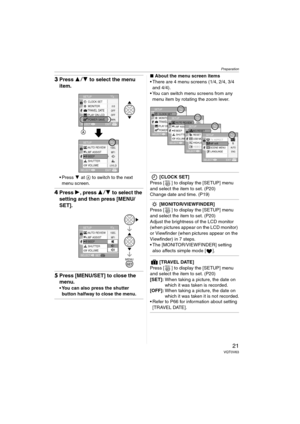

Preparation
21VQT0V63
3Press 34 to select the menu
item.
Press 4 at A to switch to the next
menu screen.
4Press 1, press 34 to select the
setting and then press [MENU/
SET].
5Press [MENU/SET] to close the
menu.
 You can also press the shutter
button halfway to close the menu.
∫About the menu screen items
 There are 4 menu screens (1/4, 2/4, 3/4
and 4/4).
 You can switch menu screens from any
menu item by rotating the zoom lever.
[CLOCK SET]
Press [ ] to display the [SETUP] menu
and select...

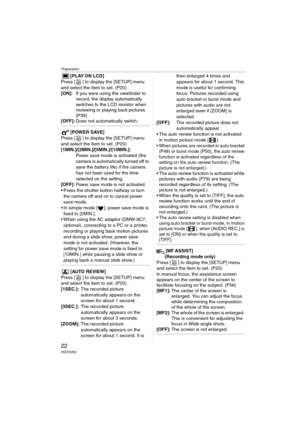

Preparation
22VQT0V63
[PLAY ON LCD]
Press [ ] to display the [SETUP] menu
and select the item to set. (P20)
[ON]:If you were using the viewfinder to
record, the display automatically
switches to the LCD monitor when
reviewing or playing back pictures.
(P39)
[OFF]:Does not automatically switch.
[POWER SAVE]
Press [ ] to display the [SETUP] menu
and select the item to set. (P20)
[1MIN.]/[2MIN.]/[5MIN.]/[10MIN.]:
Power save mode is activated (the
camera is automatically turned off to
save the...

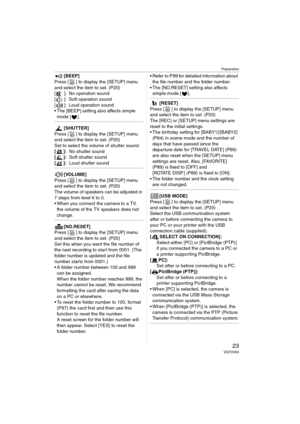

Preparation
23VQT0V63
[BEEP]
Press [ ] to display the [SETUP] menu
and select the item to set. (P20)
[ ]: No operation sound
[ ]: Soft operation sound
[ ]: Loud operation sound
 The [BEEP] setting also affects simple
mode [ ].
[SHUTTER]
Press [ ] to display the [SETUP] menu
and select the item to set. (P20)
Set to select the volume of shutter sound.
[]:No shutter sound
[]:Soft shutter sound
[]:Loud shutter sound
[VOLUME]
Press [ ] to display the [SETUP] menu
and select the item to set. (P20)
The...

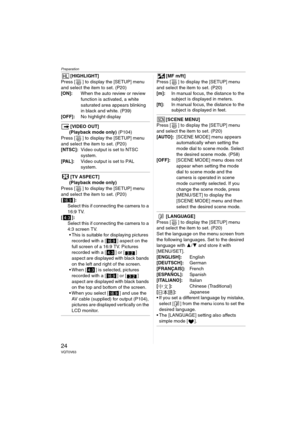

Preparation
24VQT0V63
[HIGHLIGHT]
Press [ ] to display the [SETUP] menu
and select the item to set. (P20)
[ON]:When the auto review or review
function is activated, a white
saturated area appears blinking
in black and white. (P39)
[OFF]:No highlight display
[VIDEO OUT]
(Playback mode only) (P104)
Press [ ] to display the [SETUP] menu
and select the item to set. (P20)
[NTSC]:Video output is set to NTSC
system.
[PAL]:Video output is set to PAL
system.
[TV ASPECT]
(Playback mode only)
Press [ ] to...

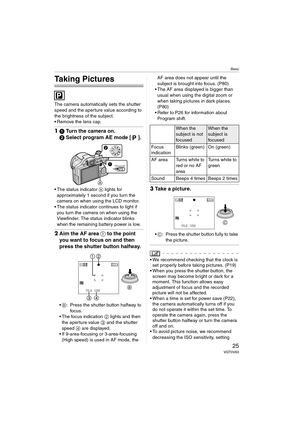

Basic
25VQT0V63
Basic
Taking Pictures
The camera automatically sets the shutter
speed and the aperture value according to
the brightness of the subject.
 Remove the lens cap.
11 Turn the camera on.
2 Select program AE mode [ ].
 The status indicator  A lights for
approximately 1 second if you turn the
camera on when using the LCD monitor.
 The status indicator continues to light if  you turn the camera on when using the
Viewfinder. The status indicator blinks
when the remaining battery power is...

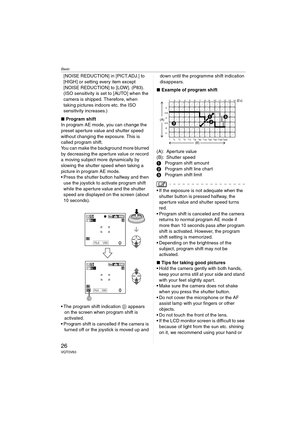

Basic
26VQT0V63
[NOISE REDUCTION] in [PICT.ADJ.] to
[HIGH] or setting every item except
[NOISE REDUCTION] to [LOW]. (P83).
(ISO sensitivity is set to [AUTO] when the
camera is shipped. Therefore, when
taking pictures indoors etc. the ISO
sensitivity increases.)
∫ Program shift
In program AE mode, you can change the
preset aperture value and shutter speed
without changing the exposure. This is
called program shift.
You can make the background more blurred
by decreasing the aperture value or...

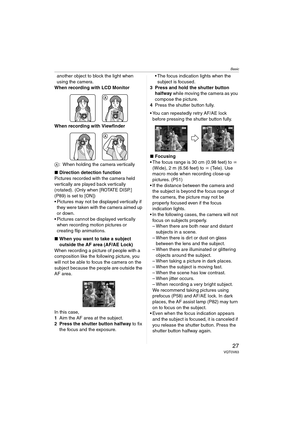

Basic
27VQT0V63
another object to block the light when
using the camera.
When recording with LCD Monitor
When recording with Viewfinder
A: When holding the camera vertically
∫Direction detection function
Pictures recorded with the camera held
vertically are played back vertically
(rotated). (Only when [ROTATE DISP.]
(P89) is set to [ON])
 Pictures may not be displayed vertically if
they were taken with the camera aimed up
or down.
 Pictures cannot be displayed vertically
when recording motion...

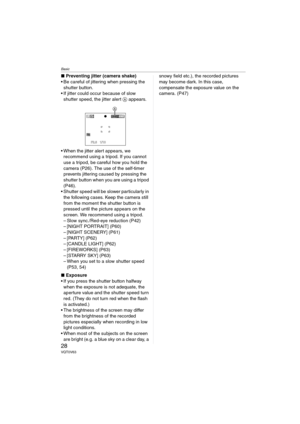

Basic
28VQT0V63
∫Preventing jitter (camera shake)
 Be careful of jittering when pressing the  shutter button.
 If jitter could occur because of slow
shutter speed, the jitter alert  A appears.
 When the jitter alert appears, we  recommend using a tripod. If you cannot
use a tripod, be careful how you hold the
camera (P26). The use of the self-timer
prevents jittering caused by pressing the
shutter button when you are using a tripod
(P46).
 Shutter speed will be slower particularly in
the...

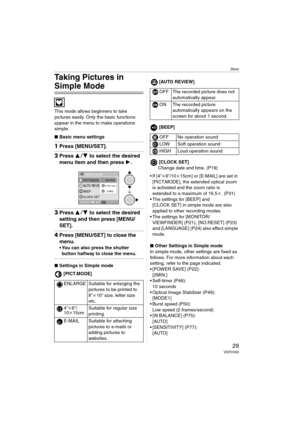

Basic
29VQT0V63
Taking Pictures in
Simple Mode
This mode allows beginners to take
pictures easily. Only the basic functions
appear in the menu to make operations
simple.
∫Basic menu settings
1Press [MENU/SET].
2Press 34 to select the desired
menu item and then press 1.
3Press 34 to select the desired
setting and then press [MENU/
SET].
4Press [MENU/SET] to close the
menu.
 You can also press the shutter
button halfway to close the menu.
∫Settings in Simple mode
[PICT.MODE][AUTO REVIEW]
[BEEP]...

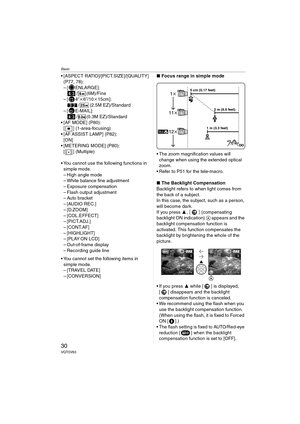

Basic
30VQT0V63
 [ASPECT RATIO]/[PICT.SIZE]/[QUALITY]
(P77, 78):
– [ ENLARGE]:
/ (6M)/Fine
–[ 4qk6q/10k15cm]:
/ (2.5M EZ)/Standard
–[ E-MAIL]:
/ (0.3M EZ)/Standard
 [AF MODE] (P80):
[ ] (1-area-focusing)
 [AF ASSIST LAMP] (P82):
[ON]
 [METERING MODE] (P80):
[ ] (Multiple)
 You cannot use the following functions in
simple mode.
– High angle mode
– White balance fine adjustment
– Exposure compensation
– Flash output adjustment
– Auto bracket
– [AUDIO REC.]
– [D.ZOOM]
– [COL.EFFECT]
– [PICT.ADJ.]...
