Basic

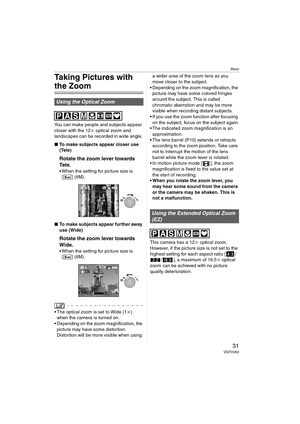

31VQT0V63
Taking Pictures with
the Zoom
You can make people and subjects appear
closer with the 12k optical zoom and
landscapes can be recorded in wide angle.
∫To make subjects appear closer use
(Tele)
Rotate the zoom lever towards
Tel e .
 When the setting for picture size is
[] (6M).
∫To make subjects appear further away
use (Wide)
Rotate the zoom lever towards
Wide.
 When the setting for picture size is
[] (6M).
 The optical zoom is set to Wide (1k)
when the camera is turned on.
...

Basic

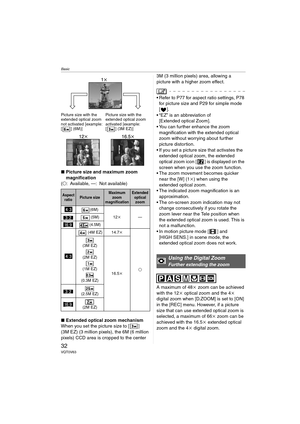

32VQT0V63
∫Picture size and maximum zoom
magnification
(±: Available, —: Not available)
∫Extended optical zoom mechanism
When you set the picture size to [ ]
(3M EZ) (3 million pixels), the 6M (6 million
pixels) CCD area is cropped to the center 3M (3 million pixels) area, allowing a
picture with a higher zoom effect.
 Refer to P77 for aspect ratio settings, P78
for picture size and P29 for simple mode
[].
 “EZ” is an abbreviation of
[Extended optical Zoom].
 You can further enhance the...

Basic

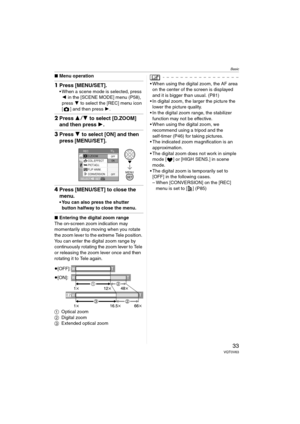

33VQT0V63
∫Menu operation
1Press [MENU/SET].
 When a scene mode is selected, press
2 in the [SCENE MODE] menu (P58),
press 4 to select the [REC] menu icon
[ ] and then press 1.
2Press 34 to select [D.ZOOM]
and then press 1.
3Press 4 to select [ON] and then
press [MENU/SET].
4Press [MENU/SET] to close the
menu.
 You can also press the shutter
button halfway to close the menu.
∫Entering the digital zoom range
The on-screen zoom indication may
momentarily stop moving when you rotate
the...

Basic

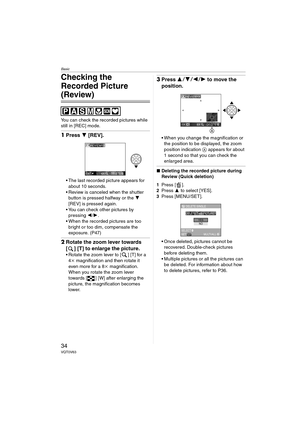

34VQT0V63
Checking the
Recorded Picture
(Review)
You can check the recorded pictures while
still in [REC] mode.
1Press  4 [REV].
 The last recorded picture appears for
about 10 seconds.
 Review is canceled when the shutter  button is pressed halfway or the  4
[REV] is pressed again.
 You can check other pictures by  pressing  2/1 .
 When the recorded pictures are too
bright or too dim, compensate the
exposure. (P47)
2 Rotate the zoom lever towards
[ ] [T] to enlarge the picture.
...

Basic

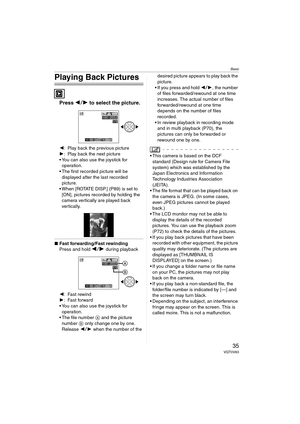

35VQT0V63
Playing Back Pictures
Press 21 to select the picture.
2: Play back the previous picture
1: Play back the next picture
 You can also use the joystick for
operation.
 The first recorded picture will be
displayed after the last recorded
picture.
 When [ROTATE DISP.] (P89) is set to
[ON], pictures recorded by holding the
camera vertically are played back
vertically.
∫ Fast forwarding/Fast rewinding
Press and hold 21 during playback
2: Fast rewind
1:Fast forward
 You can also use...

Basic

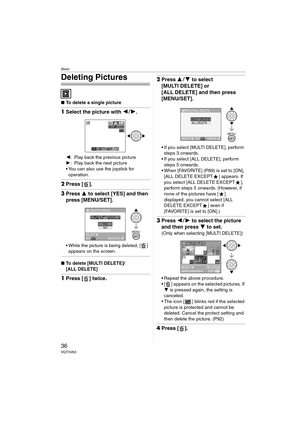

36VQT0V63
Deleting Pictures
∫To delete a single picture
1Select the picture with  21.
2: Play back the previous picture
1 : Play back the next picture
 You can also use the joystick for
operation.
2 Press [ ].
3Press  3 to select [YES] and then
press [MENU/SET].
 While the picture is being deleted, [ ]
appears on the screen.
∫ To delete [MULTI DELETE]/
[ALL DELETE]
1Press [ ] twice.
2Press  34 to select
[MULTI DELETE] or
[ALL DELETE] and then press
[MENU/SET].
 If you select [MULTI...

Basic

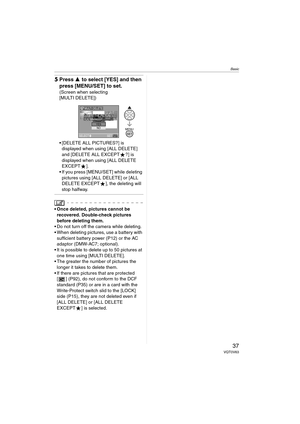

37VQT0V63
5Press 3 to select [YES] and then
press [MENU/SET] to set.
(Screen when selecting
[MULTI DELETE])
 [DELETE ALL PICTURES?] is
displayed when using [ALL DELETE]
and [DELETE ALL EXCEPT ?] is
displayed when using [ALL DELETE
EXCEPT ].
 If you press [MENU/SET] while deleting  pictures using [ALL DELETE] or [ALL
DELETE EXCEPT ], the deleting will
stop halfway.
 Once deleted, pictures cannot be recovered. Double-check pictures
before deleting them.
 Do not turn off the camera while...

Advanced

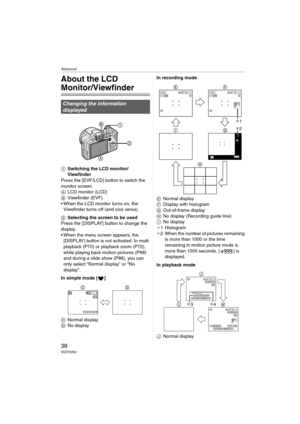

38VQT0V63
Advanced
About the LCD
Monitor/Viewfinder
1Switching the LCD monitor/
Viewfinder
Press the [EVF/LCD] button to switch the
monitor screen.
ALCD monitor (LCD)
BViewfinder (EVF)
 When the LCD monitor turns on, the
Viewfinder turns off (and vice versa).
2Selecting the screen to be used
Press the [DISPLAY] button to change the
display.
 When the menu screen appears, the
[DISPLAY] button is not activated. In multi
playback (P70) or playback zoom (P72),
while playing back motion...

Advanced
39VQT0V63
KDisplay with recording information and
histogram
LNo display
¢3 Displayed if [BIRTHDAY SET.] and
[WITH AGE] were set in [BABY1]/
[BABY2] (P64) in scene mode before
taking pictures.
¢4 The number of days that have passed
since the travel date are displayed if
[TRAVEL DATE] (P66) is set.
 In [NIGHT PORTRAIT] (P60),
[NIGHT SCENERY] (P61), [FIREWORKS]
(P63) and [STARRY SKY] (P63) in scene
mode, the lines are grey.
∫Out-of-frame display
Recording information is displayed on the...

Advanced

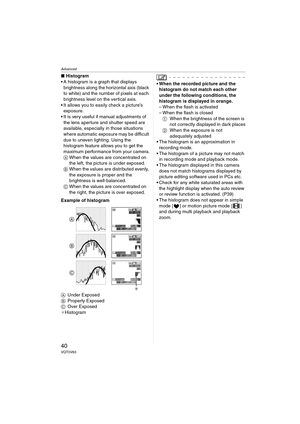

40VQT0V63
∫Histogram
 A histogram is a graph that displays  brightness along the horizontal axis (black
to white) and the number of pixels at each
brightness level on the vertical axis.
 It allows you to easily check a picture’s  exposure.
 It is very useful if manual adjustments of  the lens aperture and shutter speed are
available, especially in those situations
where automatic exposure may be difficult
due to uneven lighting. Using the
histogram feature allows you to get the
maximum...
