Panasonic Dmc Fz7 Operating Instructions Manual

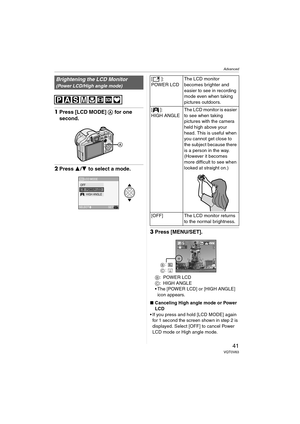

Advanced
41VQT0V63
1Press [LCD MODE] A for one
second.
2Press 3/4 to select a mode.
3Press [MENU/SET].
B:POWER LCD
C:HIGH ANGLE
 The [POWER LCD] or [HIGH ANGLE]
icon appears.
∫Canceling High angle mode or Power
LCD
 If you press and hold [LCD MODE] again
for 1 second the screen shown in step 2 is
displayed. Select [OFF] to cancel Power
LCD mode or High angle mode.
Brightening the LCD Monitor
(Power LCD/High angle mode)
LCD MODE
SET
SELECTMENU
LCD
OFF
HIGH ANGLE POWER LCD
[]:
POWER LCDThe LCD...

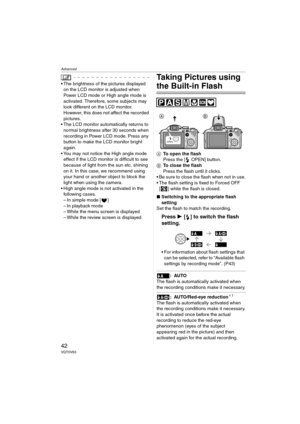

Advanced
42VQT0V63
 The brightness of the pictures displayed
on the LCD monitor is adjusted when
Power LCD mode or High angle mode is
activated. Therefore, some subjects may
look different on the LCD monitor.
However, this does not affect the recorded
pictures.
 The LCD monitor automatically returns to
normal brightness after 30 seconds when
recording in Power LCD mode. Press any
button to make the LCD monitor bright
again.
 You may not notice the High angle mode
effect if the LCD monitor...

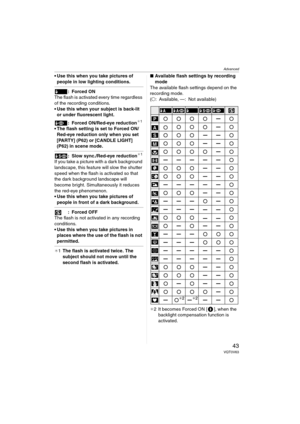

Advanced
43VQT0V63
 Use this when you take pictures of
people in low lighting conditions.
: Forced ON
The flash is activated every time regardless
of the recording conditions.
 Use this when your subject is back-lit
or under fluorescent light.
: Forced ON/Red-eye reduction
¢1
 The flash setting is set to Forced ON/
Red-eye reduction only when you set
[PARTY] (P62) or [CANDLE LIGHT]
(P62) in scene mode.
: Slow sync./Red-eye reduction¢1
If you take a picture with a dark background
landscape, this...

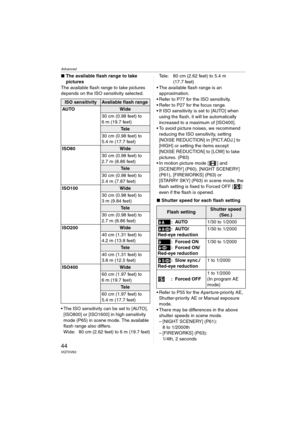

Advanced
44VQT0V63
∫The available flash range to take
pictures
The available flash range to take pictures
depends on the ISO sensitivity selected.
 The ISO sensitivity can be set to [AUTO],
[ISO800] or [ISO1600] in high sensitivity
mode (P65) in scene mode. The available
flash range also differs.
Wide:  80 cm (2.62 feet) to 6 m (19.7 feet)Tele: 80 cm (2.62 feet) to 5.4 m
(17.7 feet)
 The available flash range is an
approximation.
 Refer to P77 for the ISO sensitivity.
 Refer to P27 for the...

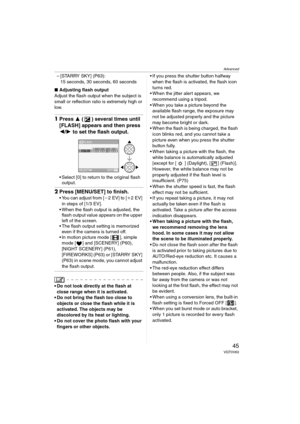

Advanced
45VQT0V63
– [STARRY SKY] (P63):
15 seconds, 30 seconds, 60 seconds
∫Adjusting flash output
Adjust the flash output when the subject is
small or reflection ratio is extremely high or
low.
1Press 3 ( ) several times until
[FLASH] appears and then press
2/1 to set the flash output.
 Select [0] to return to the original flash
output.
2Press [MENU/SET] to finish.
 You can adjust from [j2EV] to [i2EV]
in steps of [1/3 EV].
 When the flash output is adjusted, the
flash output value appears on...

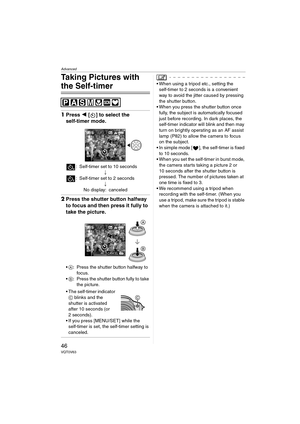

Advanced
46VQT0V63
Taking Pictures with
the Self-timer
1Press 2 [ ] to select the
self-timer mode.
: Self-timer set to 10 seconds
;
: Self-timer set to 2 seconds
;
No display: canceled
2Press the shutter button halfway
to focus and then press it fully to
take the picture.
A: Press the shutter button halfway to
focus.
B: Press the shutter button fully to take
the picture.
 The self-timer indicator
C blinks and the
shutter is activated
after 10 seconds (or
2 seconds).
 If you press [MENU/SET]...

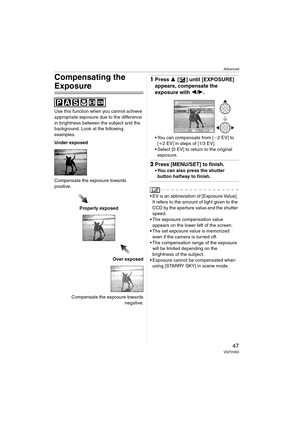

Advanced
47VQT0V63
Compensating the
Exposure
Use this function when you cannot achieve
appropriate exposure due to the difference
in brightness between the subject and the
background. Look at the following
examples.
Under exposed
Compensate the exposure towards
positive.
Properly exposed
Over exposed
Compensate the exposure towards
negative.
1Press 3 [ ] until [EXPOSURE]
appears, compensate the
exposure with 2/1.
 You can compensate from [j2 EV] to
[i2 EV] in steps of [1/3 EV].
 Select [0 EV]...

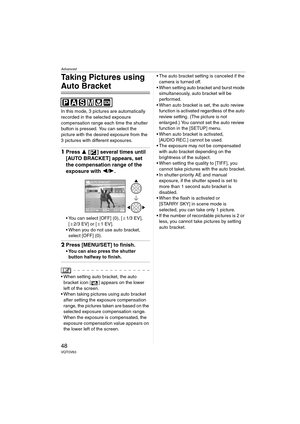

Advanced
48VQT0V63
Taking Pictures using
Auto Bracket
In this mode, 3 pictures are automatically
recorded in the selected exposure
compensation range each time the shutter
button is pressed. You can select the
picture with the desired exposure from the
3 pictures with different exposures.
1Press 3 [ ] several times until
[AUTO BRACKET] appears, set
the compensation range of the
exposure with 2/1.
 You can select [OFF] (0), [d1/3 EV],
[d2/3 EV] or [d1EV].
 When you do not use auto bracket,...

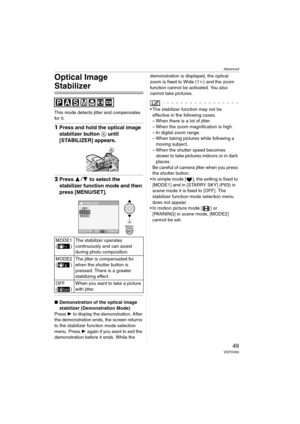

Advanced
49VQT0V63
Optical Image
Stabilizer
This mode detects jitter and compensates
for it.
1Press and hold the optical image
stabilizer button A until
[STABILIZER] appears.
2Press 34 to select the
stabilizer function mode and then
press [MENU/SET].
∫Demonstration of the optical image
stabilizer (Demonstration Mode)
Press 1 to display the demonstration. After
the demonstration ends, the screen returns
to the stabilizer function mode selection
menu. Press 1 again if you want to exit the...

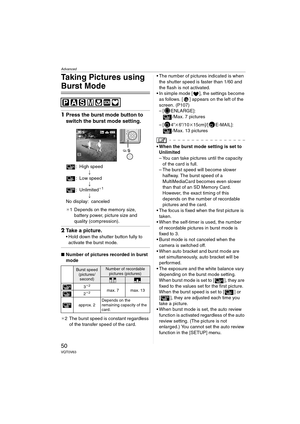

Advanced
50VQT0V63
Taking Pictures using
Burst Mode
1Press the burst mode button to
switch the burst mode setting.
: High speed
;
: Low speed
;
:Unlimited
¢1
;
No display: canceled
¢1 Depends on the memory size,
battery power, picture size and
quality (compression).
2Take a picture.
 Hold down the shutter button fully to
activate the burst mode.
∫Number of pictures recorded in burst
mode
¢2 The burst speed is constant regardless
of the transfer speed of the card. The number of pictures indicated...
