Panasonic Dmp Bd50 Operating Instructions

RQT9184-YPP
Operating Instructions
Blu-ray Disc Player
Model No. DMP-BD50
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.
Region management information
BD-Video
This unit plays BD-Video marked with labels containing the region code A.Example:
DVD- Video
This unit plays DVD-Video...

2
RQT9184
(ENG)
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions
listed below. Keep these operating instructions handy for future reference.
(Inside of product) 1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation...

Getting started
3
RQT9184
(ENG)
Table of contents
IMPORTANT SAFETY INSTRUCTIONS............ 2
Accessory information ..................................... 3
Disc and card information ................................ 4
Using the remote control.................................. 5
Connection ........................................................ 6
Firmware updating ............................................ 9
Control reference guide.................................. 10
Easy...

4
RQT9184
(ENG)
Disc and card information
This chart shows the different type of retail/commercial discs you can use, and also includes the industry-standard logos that should appear on
the discs and/or packaging.
This chart shows the different type of discs recorded with DVD recorders, DVD video cameras, personal computers, etc. that you can use.
 This mark means you must finalize the disc with the DVD recorder, etc. before playback. For details about finalizing, refer to
the operating instructions...

5
RQT9184
(ENG)

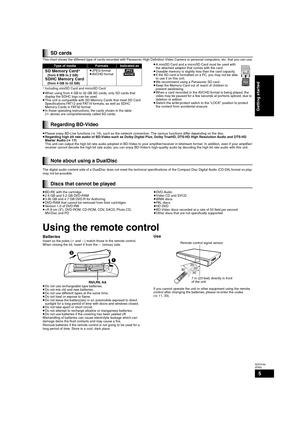

This chart shows the different type of cards recorded with Panasonic High Definition Video Camera or personal computers, etc. that you can use.
§Including miniSD Card and microSD Card
≥When using from 4 GB to 32 GB SD cards, only SD cards that
display the SDHC logo can be used.
≥This unit is compatible with SD Memory Cards that meet SD Card
Specifications FAT12 and FAT16 formats, as well as SDHC
Memory Cards in FAT32 format.
≥In these operating instructions, the cards shown in the...

6
RQT9184
(ENG)

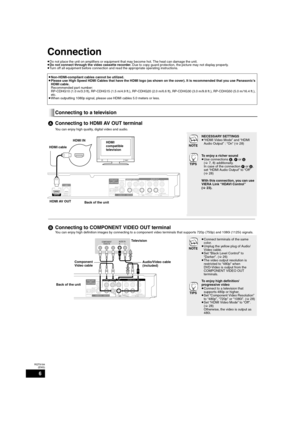

Connection
≥Do not place the unit on amplifiers or equipment that may become hot. The heat can damage the unit.
≥Do not connect through the video cassette recorder. Due to copy guard protection, the picture may not display properly.
≥Turn off all equipment before connection and read the appropriate operating instructions.
≥Non-HDMI-compliant cables cannot be utilized.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover). It is recommended that you use...

7
RQT9184
(ENG)

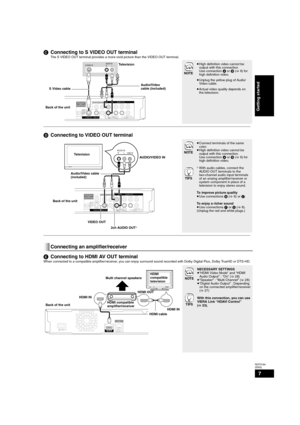

CConnecting to S VIDEO OUT terminal
The S VIDEO OUT terminal provides a more vivid picture than the VIDEO OUT terminal.
NOTE
≥High definition video cannot be
output with this connection.
Use connection A or B (>6) for
high definition video.
≥Unplug the yellow plug of Audio/
Video cable.
≥Actual video quality depends on
the television.
DConnecting to VIDEO OUT terminal
NOTE
TIPS
≥Connect terminals of the same
color.
≥High definition video cannot be
output with this connection.
Use...

8
RQT9184
(ENG)

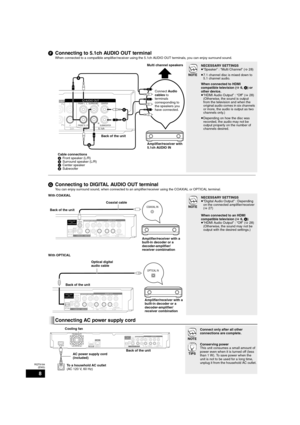

FConnecting to 5.1ch AUDIO OUT terminal
When connected to a compatible amplifier/receiver using the 5.1ch AUDIO OUT terminals, you can enjoy surround sound.
NOTE
NECESSARY SETTINGS
≥“Speaker” : “Multi Channel” (>28)
≥7.1 channel disc is mixed down to
5.1 channel audio.
When connected to HDMI
compatible television (>6, A) or
other device.
≥“HDMI Audio Output” : “Off” (>28)
(Otherwise, the sound is output
from the television and when the
original audio comes in six channels
or more,...

9
RQT9184
(ENG)

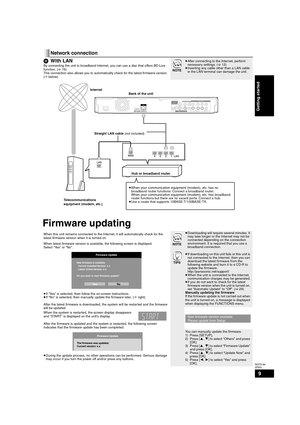

Firmware updating
Network connection
HWith LAN
By connecting the unit to broadband Internet, you can use a disc that offers BD-Live
function. (>16)
This connection also allows you to automatically check for the latest firmware version.
(Bbelow)
NOTE
≥After connecting to the Internet, perform
necessary settings. (>12)
≥Inserting any cable other than a LAN cable
in the LAN terminal can damage the unit.
AC IN AV OUTFRONT R  /R VIDEO OUT S VIDEO OUTOPTICAL COAXIAL
FRONT L  /L
SUBWOOFER...

10
RQT9184
(ENG)

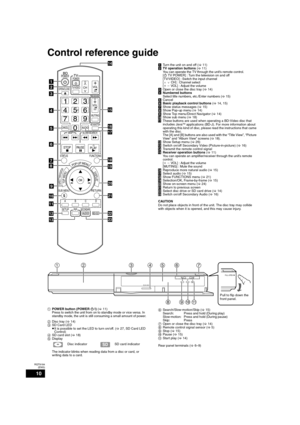

Control reference guide
!Turn the unit on and off (>11)
@TV operation buttons (>11)
You can operate the TV through the unit’s remote control.
[ÍTV POWER] : Turn the television on and off
[TV/VIDEO] : Switch the input channel
[WXCH] : Channel select
[ijVOL] : Adjust the volume
#Open or close the disc tray (>14)
$Numbered buttons
Select title numbers, etc./Enter numbers (>15)
%Cancel
^Basic playback control buttons (>14, 15)
&Show status messages (>15)
*Show Pop-up menu (>14)
(Show Top...
