Panasonic Dmp Bd50 Operating Instructions

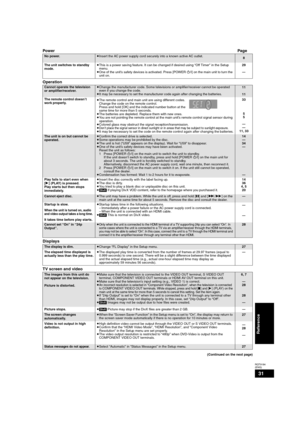

31
RQT9184
(ENG)
Pow erPag e
Operation
Displays
TV screen and video
(Continued on the next page)
No power. ≥Inser t the AC power supply cord securely into a known active AC outlet.8
The unit switches to standby
mode.≥This is a power saving feature. It can be changed if desired using “Off Timer” in the Setup
menu.
≥One of the unit’s safety devices is activated. Press [POWER Í/I] on the main unit to turn the
unit on.29
—
Cannot operate the television
or amplifier/receiver.≥Change the manufacturer code....

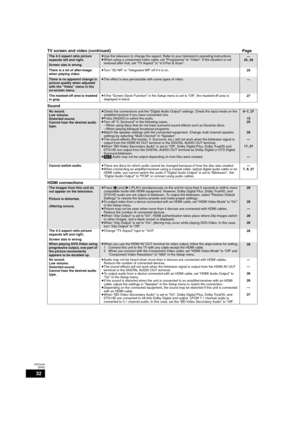

32
RQT9184
(ENG)
TV screen and video (continued)Page
Sound
HDMI connections
The 4:3 aspect ratio picture
expands left and right.
Screen size is wrong.≥Use the television to change the aspect. Refer to your television’s operating instructions.
≥When using a component video cable, set “Progressive” to “Video”. If the situation is not
restored after that, set “TV Aspect” to “4:3 Pan & Scan”.—
25, 28
There is a lot of after-image
when playing video.≥Turn “3D NR” or “Integrated NR” off if it is on.
25...

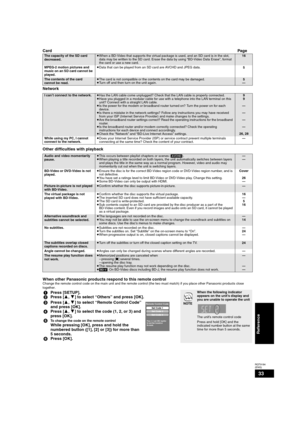

33
RQT9184
(ENG)
CardPag e
Network
Other difficulties with playback
When other Panasonic products respond to this remote control
Change the remote control code on the main unit and the remote control (the two must match) if you place other Panasonic products close
together.
The capacity of the SD card
decreased.≥When a BD-Video that supports the virtual package is used, and an SD card is in the slot,
data may be written to the SD card. Erase the data by using “BD-Video Data Erase”, format
the card or...

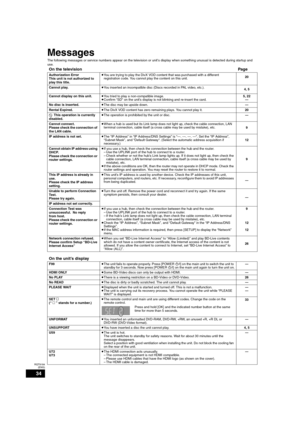

34
RQT9184
(ENG)
Messages
The following messages or service numbers appear on the television or unit’s display when something unusual is detected during startup and
use.
On the televisionPag e
Authorization Error
This unit is not authorized to
play this title.≥You are trying to play the DivX VOD content that was purchased with a different
registration code. You cannot play the content on this unit. 20
Cannot play.≥You inserted an incompatible disc (Discs recorded in PAL video, etc.).
4, 5
Cannot...

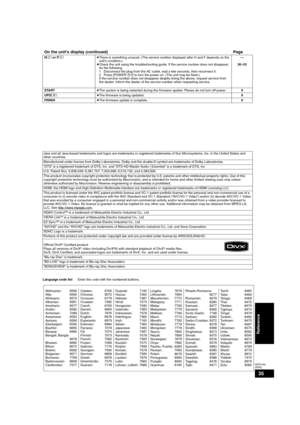

35
RQT9184
(ENG)
Language code listEnter the code with the numbered buttons.
On the unit’s display (continued) Page
H or F≥There is something unusual. (The service number displayed after H and F depends on the
unit’s condition.)
≥Check the unit using the troubleshooting guide. If the service number does not disappear,
do the following.
1 Disconnect the plug from the AC outlet, wait a few seconds, then reconnect it.
2 Press [POWER Í/I] to turn the power on. (The unit may be fixed.)
If the service...

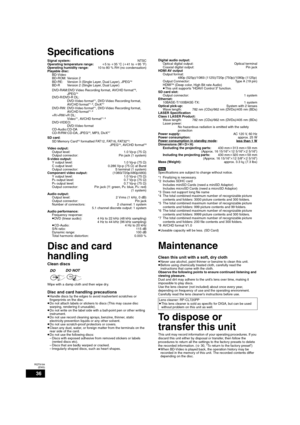

36
RQT9184
(ENG)
Specifications
Signal system: NTSC
Operating temperature range:i5 to i35 oC (i41 to i95 oF)
Operating humidity range:10 to 80 % RH (no condensation)
Playable disc:
BD-Video
BD-ROM: Version 2
BD-RE: Version 3 (Single Layer, Dual Layer), JPEG*
6
BD-R Version 2 (Single Layer, Dual Layer)
DVD-RAM:DVD Video Recording format, AVCHD format*8,
JPEG*4
DVD-R/DVD-R DL:
DVD-Video format*1, DVD-Video Recording format,
AVCHD format*1, 8, DivX*7
DV D - RW : DV D - V id eo  fo r ma t*1, DVD-Video...

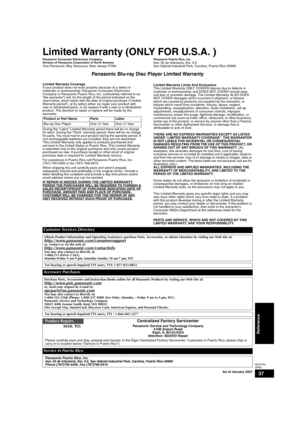

37
RQT9184
(ENG)
Limited Warranty (ONLY FOR U.S.A. )
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Blu-ray Disc Player Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in
materials or workmanship, Panasonic Consumer Electronics
Company or...

38
RQT9184
(ENG)

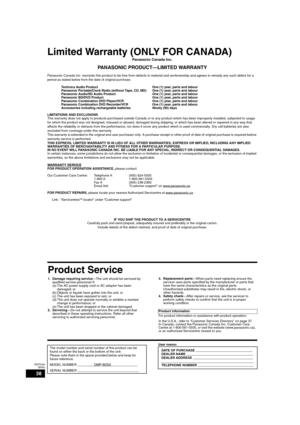

Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
PANASONIC PRODUCT—LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a
period as stated below from the date of original purchase.
Technics Audio Product  One (1) year, parts and labour
Panasonic Portable/Clock Radio (without Tape, CD, MD) One (1) year, parts and labour
Panasonic Audio/SD Audio Product One (1) year, parts and...

39
RQT9184
(ENG)

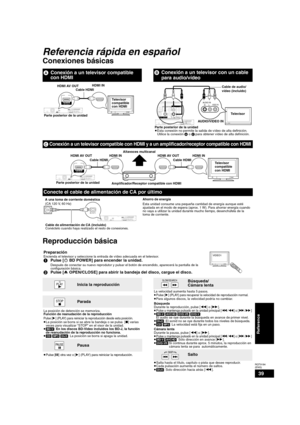

Referencia rápida en español
Conexiones básicas
Reproducción básica
AConexión a un televisor compatible
con HDMIBConexión a un televisor con un cable
para audio/vídeo
AC IN AV OUTFRONT R  /R VIDEO OUT S VIDEO OUTOPTICAL COAXIAL FRONT L  /L
SUBWOOFER  CENTER  SURROUND  AUDIO OUTCOMPONENT VIDEO OUT
DIGITAL AUDIO
OUT
(
PCM/BITSTREAM)2ch 5.1ch  Y PB PR L
R L
R Please
connect
directly
to TV. LAN10BASE-T/
100BASE-TX
AV OUT
Parte posterior de la unidadHDMI IN
HDMI AV OUT
Televisor...

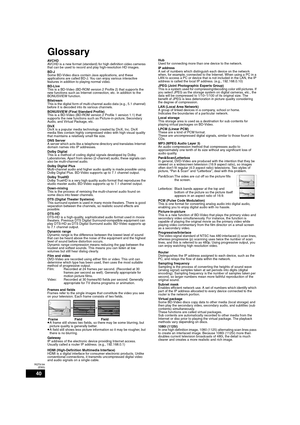

40
RQT9184
(ENG)
Glossary
AVCHD
AVCHD is a new format (standard) for high definition video cameras
that can be used to record and play high-resolution HD images.
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various interactive
features in addition to playing normal video.
BD-Live
This is a BD-Video (BD-ROM version 2 Profile 2) that supports the
new functions such as Internet connection, etc. in addition to the
BONUSVIEW function....
