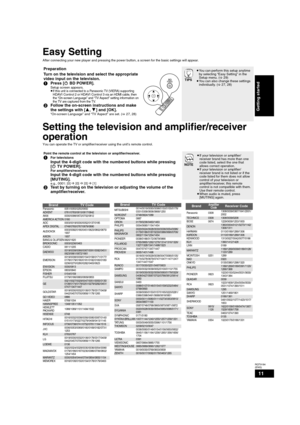

Page 11
![Page 11
11
RQT9184
(ENG)
Easy Setting
After connecting your new player and pressing the power button, a screen for the basic settings will appear.
Setting the television and amplifier/receiver
operation
You can operate the TV or amplifier/receiver using the unit’s remote control.
Preparation
Turn on the television and select the appropriate
video input on the television.
1Press [ÍBD POWER].
Setup screen appears.
≥If this unit is connected to a Panasonic TV (VIERA) supporting HDAVI Control 2 or HDAVI Control 3...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-10.png "Page 11
11
RQT9184
(ENG)
Easy Setting
After connecting your new player and pressing the power button, a screen for the basic settings will appear.
Setting the television and amplifier/receiver
operation
You can operate the TV or amplifier/receiver using the unit’s remote control.
Preparation
Turn on the television and select the appropriate
video input on the television.
1Press [ÍBD POWER].
Setup screen appears.
≥If this unit is connected to a Panasonic TV (VIERA) supporting HDAVI Control 2 or HDAVI Control 3...")
11 RQT9184 (ENG) Easy Setting After connecting your new player and pressing the power button, a screen for the basic settings will appear. Setting the television and amplifier/receiver operation You can operate the TV or amplifier/receiver using the unit’s remote control. Preparation Turn on the television and select the appropriate video input on the television. 1Press [ÍBD POWER]. Setup screen appears. ≥If this unit is connected to a Panasonic TV (VIERA) supporting HDAVI Control 2 or HDAVI Control 3...

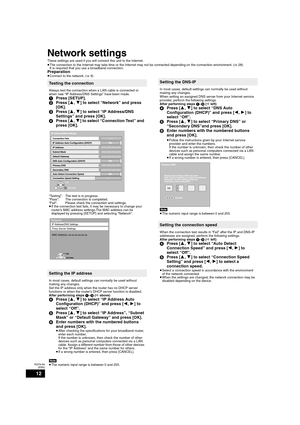

Page 12
![Page 12
12
RQT9184
(ENG)
Network settings
These settings are used if you will connect this unit to the Internet.
≥The connection to the Internet may take time or the Internet may not be connected depending on the connection environment. (>28)
It is required that you use a broadband connection.
Preparation≥Connect to the network. (>9)
Testing the connection
Always test the connection when a LAN cable is connected or
when new “IP Address/DNS Settings” have been made.
1Press [SETUP].
2Press [3,4] to select...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-11.png "Page 12
12
RQT9184
(ENG)
Network settings
These settings are used if you will connect this unit to the Internet.
≥The connection to the Internet may take time or the Internet may not be connected depending on the connection environment. (>28)
It is required that you use a broadband connection.
Preparation≥Connect to the network. (>9)
Testing the connection
Always test the connection when a LAN cable is connected or
when new “IP Address/DNS Settings” have been made.
1Press [SETUP].
2Press [3,4] to select...")
12 RQT9184 (ENG) Network settings These settings are used if you will connect this unit to the Internet. ≥The connection to the Internet may take time or the Internet may not be connected depending on the connection environment. (>28) It is required that you use a broadband connection. Preparation≥Connect to the network. (>9) Testing the connection Always test the connection when a LAN cable is connected or when new “IP Address/DNS Settings” have been made. 1Press [SETUP]. 2Press [3,4] to select...

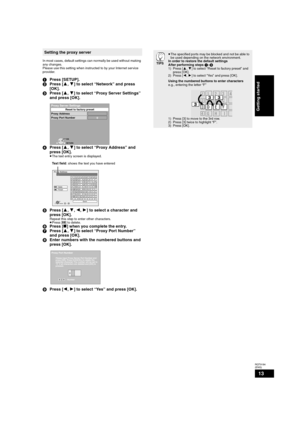

Page 13
![Page 13
13
RQT9184
(ENG)
In most cases, default settings can normally be used without making
any changes.
Please use this setting when instructed to by your Internet ser vice
provider.
1Press [SETUP].
2Press [3,4] to select “Network” and press
[OK].
3Press [3,4] to select “Proxy Server Settings”
and press [OK].
4Press [3,4] to select “Proxy Address” and
press [OK].
≥The text entry screen is displayed.
Text field: shows the text you have entered
5Press [3,4,2,1] to select a character and
press [OK].
Repeat...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-12.png "Page 13
13
RQT9184
(ENG)
In most cases, default settings can normally be used without making
any changes.
Please use this setting when instructed to by your Internet ser vice
provider.
1Press [SETUP].
2Press [3,4] to select “Network” and press
[OK].
3Press [3,4] to select “Proxy Server Settings”
and press [OK].
4Press [3,4] to select “Proxy Address” and
press [OK].
≥The text entry screen is displayed.
Text field: shows the text you have entered
5Press [3,4,2,1] to select a character and
press [OK].
Repeat...")
13 RQT9184 (ENG) In most cases, default settings can normally be used without making any changes. Please use this setting when instructed to by your Internet ser vice provider. 1Press [SETUP]. 2Press [3,4] to select “Network” and press [OK]. 3Press [3,4] to select “Proxy Server Settings” and press [OK]. 4Press [3,4] to select “Proxy Address” and press [OK]. ≥The text entry screen is displayed. Text field: shows the text you have entered 5Press [3,4,2,1] to select a character and press [OK]. Repeat...

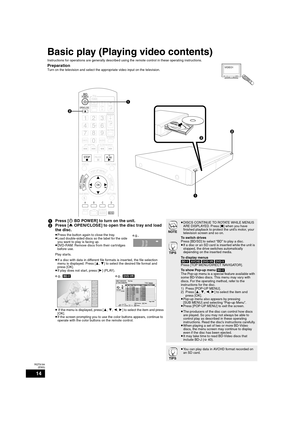

Page 14
14
RQT9184
(ENG)
Basic play (Playing video contents)
Instructions for operations are generally described using the remote control in these operating instructions.
PreparationTurn on the television and select the appropriate video input on the television.VIDEO1
VOL
RE-MASTER
SKIPSLOW/SEARCH
STATUSFUNCTIONS
ABCD
RETURNSUB MENU
AUD IOMUTING
POP-UP MENU
PLAYPA U S ESTOP
S
CANCEL
PIPSECONDARY AUDIO
BD/SDSETUP
DIRECT NAVIGATOR
OK
RECEIVER
CHVOL
POWERPOWER
TV/VIDEOOPEN/CLOSE
TOP MENU DISPLAY
...

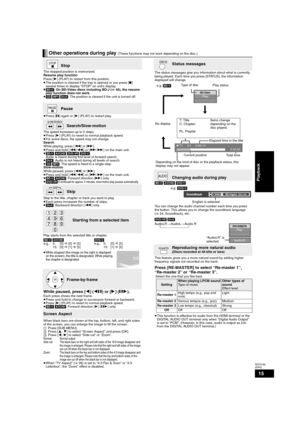

Page 15
![Page 15
15
RQT9184
(ENG)
Other operations during play (These functions may not work depending on the disc.)
Stop
The stopped position is memorized.
Resume play function
Press [1] (PLAY) to restart from this position.
≥The position is cleared if the tray is opened or you press [∫]
several times to display “STOP” on unit’s display.
≥[BD-V]: On BD-Video discs including BD-J (>40), the resume
play function does not work.
≥[CD] [MP3] [DivX]: The position is cleared if the unit is turned off.
Pause
≥Press [;] again...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-14.png "Page 15
15
RQT9184
(ENG)
Other operations during play (These functions may not work depending on the disc.)
Stop
The stopped position is memorized.
Resume play function
Press [1] (PLAY) to restart from this position.
≥The position is cleared if the tray is opened or you press [∫]
several times to display “STOP” on unit’s display.
≥[BD-V]: On BD-Video discs including BD-J (>40), the resume
play function does not work.
≥[CD] [MP3] [DivX]: The position is cleared if the unit is turned off.
Pause
≥Press [;] again...")
15 RQT9184 (ENG) Other operations during play (These functions may not work depending on the disc.) Stop The stopped position is memorized. Resume play function Press [1] (PLAY) to restart from this position. ≥The position is cleared if the tray is opened or you press [∫] several times to display “STOP” on unit’s display. ≥[BD-V]: On BD-Video discs including BD-J (>40), the resume play function does not work. ≥[CD] [MP3] [DivX]: The position is cleared if the unit is turned off. Pause ≥Press [;] again...

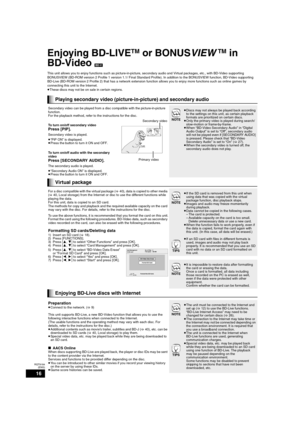

Page 16
![Page 16
16
RQT9184
(ENG)
Enjoying BD-LIVETM or BONUSVIEW TM in
BD-Video
[BD-V]
This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting
BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1/ Final Standard Profile). In addition to the BONUSVIEW function, BD-Video supporting
BD-Live (BD-ROM version 2 Profile 2) that has a network extension function allows you to enjoy more functions such as online games by
connecting this unit to the...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-15.png "Page 16
16
RQT9184
(ENG)
Enjoying BD-LIVETM or BONUSVIEW TM in
BD-Video
[BD-V]
This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting
BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1/ Final Standard Profile). In addition to the BONUSVIEW function, BD-Video supporting
BD-Live (BD-ROM version 2 Profile 2) that has a network extension function allows you to enjoy more functions such as online games by
connecting this unit to the...")
16 RQT9184 (ENG) Enjoying BD-LIVETM or BONUSVIEW TM in BD-Video [BD-V] This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1/ Final Standard Profile). In addition to the BONUSVIEW function, BD-Video supporting BD-Live (BD-ROM version 2 Profile 2) that has a network extension function allows you to enjoy more functions such as online games by connecting this unit to the...

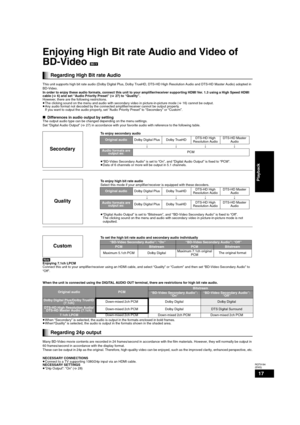

Page 17
![Page 17
17
RQT9184
(ENG)
Enjoying High Bit rate Audio and Video of
BD-Video
[BD-V]
This unit supports high bit rate audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in
BD-Video.
In order to enjoy these audio formats, connect this unit to your amplifier/receiver supporting HDMI Ver. 1.3 using a High Speed HDMI
cable (>6) and set “Audio Priority Preset” (>27) to “Quality”.
However, there are the following restrictions.
≥The clicking sound on the menu and...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-16.png "Page 17
17
RQT9184
(ENG)
Enjoying High Bit rate Audio and Video of
BD-Video
[BD-V]
This unit supports high bit rate audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in
BD-Video.
In order to enjoy these audio formats, connect this unit to your amplifier/receiver supporting HDMI Ver. 1.3 using a High Speed HDMI
cable (>6) and set “Audio Priority Preset” (>27) to “Quality”.
However, there are the following restrictions.
≥The clicking sound on the menu and...")
17 RQT9184 (ENG) Enjoying High Bit rate Audio and Video of BD-Video [BD-V] This unit supports high bit rate audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in BD-Video. In order to enjoy these audio formats, connect this unit to your amplifier/receiver supporting HDMI Ver. 1.3 using a High Speed HDMI cable (>6) and set “Audio Priority Preset” (>27) to “Quality”. However, there are the following restrictions. ≥The clicking sound on the menu and...

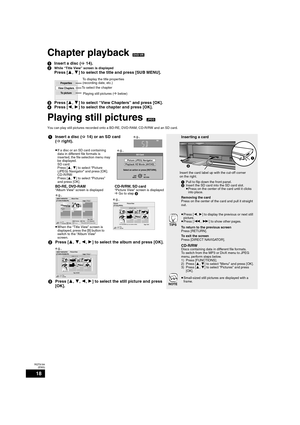

Page 18
![Page 18
18
RQT9184
(ENG)
Chapter playback[DVD-VR]
1Insert a disc (>14).
2
While “Title View” screen is displayed
Press [3,4] to select the title and press [SUB MENU].
3Press [3,4] to select “View Chapters” and press [OK].
4Press [2,1] to select the chapter and press [OK].
Playing still pictures[JPEG]
You can play still pictures recorded onto a BD-RE, DVD-RAM, CD-R/RW and an SD card.
Properties
View Chapters
To picture
To display the title properties
(recording date, etc.)
Playing still pictures (Bbelow) To...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-17.png "Page 18
18
RQT9184
(ENG)
Chapter playback[DVD-VR]
1Insert a disc (>14).
2
While “Title View” screen is displayed
Press [3,4] to select the title and press [SUB MENU].
3Press [3,4] to select “View Chapters” and press [OK].
4Press [2,1] to select the chapter and press [OK].
Playing still pictures[JPEG]
You can play still pictures recorded onto a BD-RE, DVD-RAM, CD-R/RW and an SD card.
Properties
View Chapters
To picture
To display the title properties
(recording date, etc.)
Playing still pictures (Bbelow) To...")
18 RQT9184 (ENG) Chapter playback[DVD-VR] 1Insert a disc (>14). 2 While “Title View” screen is displayed Press [3,4] to select the title and press [SUB MENU]. 3Press [3,4] to select “View Chapters” and press [OK]. 4Press [2,1] to select the chapter and press [OK]. Playing still pictures[JPEG] You can play still pictures recorded onto a BD-RE, DVD-RAM, CD-R/RW and an SD card. Properties View Chapters To picture To display the title properties (recording date, etc.) Playing still pictures (Bbelow) To...

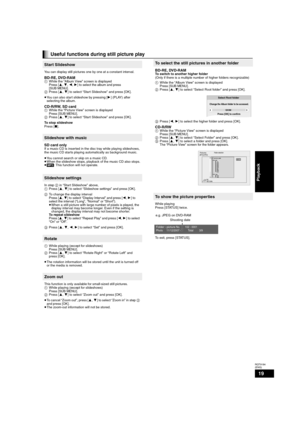

Page 19
![Page 19
19
RQT9184
(ENG)
Useful functions during still picture play
Start Slideshow
You can display still pictures one by one at a constant interval.
BD-RE, DVD-RAM1While the “Album View” screen is displayed
Press [3,4,2,1] to select the album and press
[SUB MENU].
2Press [3,4] to select “Start Slideshow” and press [OK].
≥You can also star t slideshow by pressing [1] (PLAY) after
selecting the album.
CD-R/RW, SD card1While the “Picture View” screen is displayed
Press [SUB MENU].
2Press [3,4] to select “Start...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-18.png "Page 19
19
RQT9184
(ENG)
Useful functions during still picture play
Start Slideshow
You can display still pictures one by one at a constant interval.
BD-RE, DVD-RAM1While the “Album View” screen is displayed
Press [3,4,2,1] to select the album and press
[SUB MENU].
2Press [3,4] to select “Start Slideshow” and press [OK].
≥You can also star t slideshow by pressing [1] (PLAY) after
selecting the album.
CD-R/RW, SD card1While the “Picture View” screen is displayed
Press [SUB MENU].
2Press [3,4] to select “Start...")
19 RQT9184 (ENG) Useful functions during still picture play Start Slideshow You can display still pictures one by one at a constant interval. BD-RE, DVD-RAM1While the “Album View” screen is displayed Press [3,4,2,1] to select the album and press [SUB MENU]. 2Press [3,4] to select “Start Slideshow” and press [OK]. ≥You can also star t slideshow by pressing [1] (PLAY) after selecting the album. CD-R/RW, SD card1While the “Picture View” screen is displayed Press [SUB MENU]. 2Press [3,4] to select “Start...

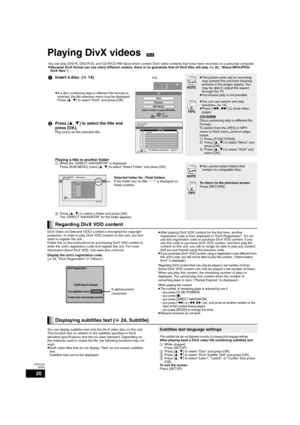

Page 20
![Page 20
20
RQT9184
(ENG)
Playing DivX videos[DivX]
DivX Video-on-Demand (VOD) content is encrypted for copyright
protection. In order to play DivX VOD content on this unit, you first
need to register the unit.
Follow the on line instructions for purchasing DivX VOD content to
enter the unit’s registration code and register the unit. For more
information about DivX VOD, visit www.divx.com/vod
Display the unit’s registration code.
(>29, “DivX Registration” in “Others”)≥After playing DivX VOD content for the...](http://img.usermanuals.tech/thumb/58/64100/w300_dmp-bd50_mul_om_d-19.png "Page 20
20
RQT9184
(ENG)
Playing DivX videos[DivX]
DivX Video-on-Demand (VOD) content is encrypted for copyright
protection. In order to play DivX VOD content on this unit, you first
need to register the unit.
Follow the on line instructions for purchasing DivX VOD content to
enter the unit’s registration code and register the unit. For more
information about DivX VOD, visit www.divx.com/vod
Display the unit’s registration code.
(>29, “DivX Registration” in “Others”)≥After playing DivX VOD content for the...")
20 RQT9184 (ENG) Playing DivX videos[DivX] DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the unit. Follow the on line instructions for purchasing DivX VOD content to enter the unit’s registration code and register the unit. For more information about DivX VOD, visit www.divx.com/vod Display the unit’s registration code. (>29, “DivX Registration” in “Others”)≥After playing DivX VOD content for the...
