Panasonic Dmp Bd50 Operating Instructions

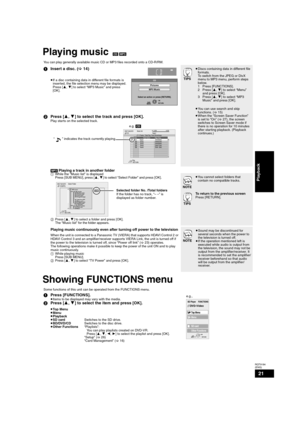

21
RQT9184
(ENG)
Playing music[CD] [MP3]
Showing FUNCTIONS menu
You can play generally available music CD or MP3 files recorded onto a CD-R/RW.
1Insert a disc. (>14)
≥If a disc containing data in different file formats is
inser ted, the file selection menu may be displayed.
Press [3,4] to select “MP3 Music” and press
[OK].
2Press [3,4] to select the track and press [OK].Play starts on the selected track.
TIPS
≥Discs containing data in different file
fo r m ats.
To switch from the JPEG or DivX...

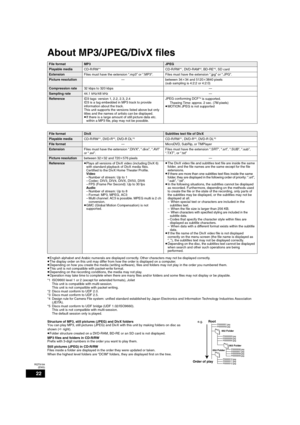

22
RQT9184
(ENG)
About MP3/JPEG/DivX files
Structure of MP3, still pictures (JPEG) and DivX folders
You can play MP3, still pictures (JPEG) and DivX with this unit by making folders on disc as
shown (Dright).
≥Folder structure created on a DVD-RAM, BD-RE or an SD card is not displayed.
MP3 files and folders in CD-R/RW
Prefix with 3-digit numbers in the order you want to play them.
Still pictures (JPEG) in CD-R/RW
Files inside a folder are displayed in the order they were updated or taken.
When the...

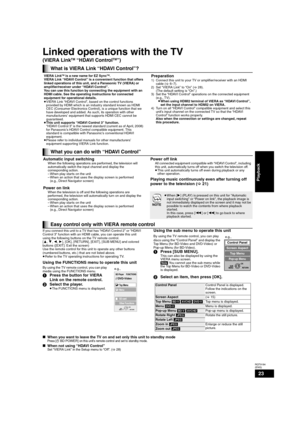

23
RQT9184
(ENG)
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”)
If you connect this unit to a TV that has “HDAVI Control 2” or “HDAVI
Control 3” function with an HDMI cable, you can operate this unit
using the following buttons on the TV remote control.
[3,4,2,1], [OK], [RETURN], [EXIT], [SUB MENU] and colored
buttons ([EXIT]: Exit the screen)
Use the remote control for this unit to operate any other buttons
(numbered buttons, etc.) that are not listed above.
≥Refer to the TV...

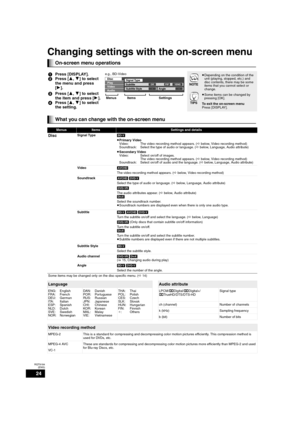

24
RQT9184
(ENG)
Changing settings with the on-screen menu
On-screen menu operations
1Press [DISPLAY].
2Press [3,4] to select
the menu and press
[1].
3Press [3,4] to select
the item and press [1].
4Press [3,4] to select
the setting.
NOTE
TIPS
≥Depending on the condition of the
unit (playing, stopped, etc.) and
disc contents, there may be some
items that you cannot select or
change.
≥Some items can be changed by
pressing [OK].
To exit the on-screen menu
Press [DISPLAY].
VideoAudio
PlaySignal...

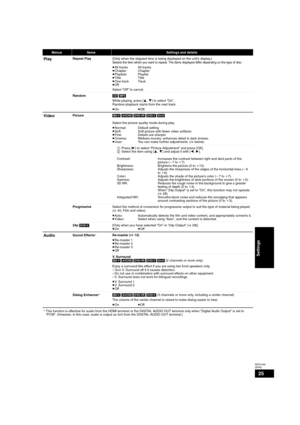

25
RQT9184
(ENG)
MenusItemsSettings and details
PlayRepeat Play(Only when the elapsed time is being displayed on the unit’s display.)Selects the item which you want to repeat. The items displayed differ depending on the type of disc.
≥All tracks All tracks
≥Chapter Chapter
≥Playlists Playlist
≥Title Title
≥One track Track
≥Off
Select “Off” to cancel.
Random[CD] [MP3]
While playing, press [3,4] to select “On”.
Random playback starts from the next track.
≥On≥Off
VideoPicture[BD-V] [AVCHD] [DVD-VR] [DVD-V]...

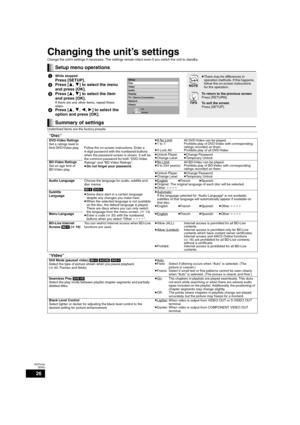

26
RQT9184
(ENG)
Changing the unit’s settings
Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.
Underlined items are the factory presets.
Setup menu operations
1While stopped
Press [SETUP].
2Press [3,4] to select the menu
and press [OK].
3Press [3,4] to select the item
and press [OK].
If there are any other items, repeat these
steps.
4Press [3,4,2,1] to select the
option and press [OK].
NOTE
≥There may be differences in
operation methods. If...

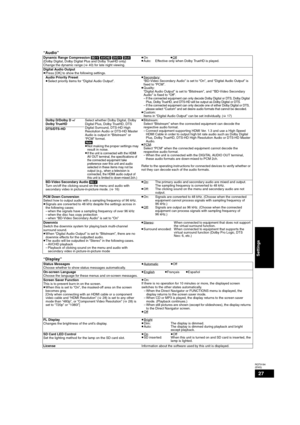

27
RQT9184
(ENG)
“Audio”
Dynamic Range Compression [BD-V] [AVCHD] [DVD-V] [DivX]
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
Change the dynamic range (>40) for late night viewing.≥On≥Off≥Auto: Effective only when Dolby TrueHD is played.
Digital Audio Output
≥Press [OK] to show the following settings.
Audio Priority Preset
≥Select priority items for “Digital Audio Output”.≥Secondary
:
“BD-Video Secondary Audio” is set to “On”, and “Digital Audio Output” is
fixed to “PCM”.
≥Quality:
“Digital...

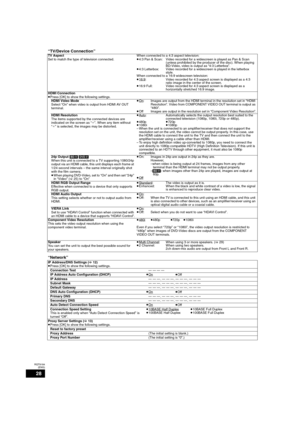

28
RQT9184
(ENG)
“TV/Device Connection”
TV Aspect
Set to match the type of television connected.When connected to a 4:3 aspect television:
≥4:3 Pan & Scan: Video recorded for a widescreen is played as Pan & Scan
(unless prohibited by the producer of the disc). When playing
BD-Video, video is output as “4:3 Letterbox”.
≥4:3 Letterbox:  Video recorded for a widescreen is played in the letterbox
style.
When connected to a 16:9 widescreen television:
≥16:9
:  Video recorded for 4:3 aspect screen is...

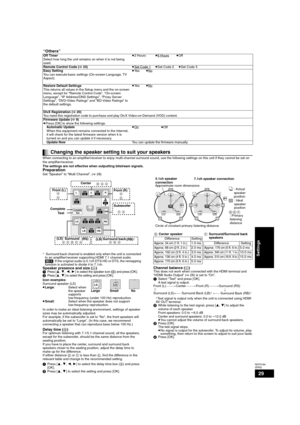

29
RQT9184
(ENG)
When connecting to an amplifier/receiver to enjoy multi-channel surround sound, use the following settings on this unit if they cannot be set on
the amplifier/receiver.
The settings are not effective when outputting bitstream signals.
PreparationSet “Speaker” to “Multi Channel”. (>28)
§ Surround back channel is enabled only when the unit is connected
to an amplifier/receiver supporting HDMI 7.1 channel audio.
[BD-V]: If the original audio is 5.1ch DTS-HD or DTS, the remapping
function...

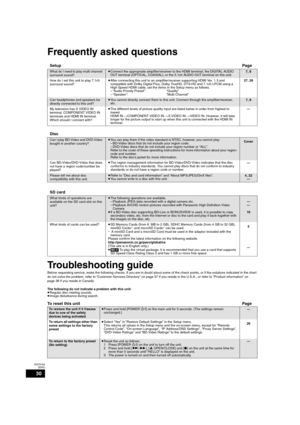

30
RQT9184
(ENG)
Frequently asked questions
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart
do not solve the problem, refer to “Customer Services Directory” on page 37 if you reside in the U.S.A., or refer to “Product information” on
page 38 if you reside in Canada.
The following do not indicate a problem with this unit:
≥Regular disc rotating sounds.
≥Image disturbance during...
