Panasonic Dual DIN Hdd Mobile Navigation System Cn Nvd905u Operating Instructions

END-USER TERMS
The data (“Data”) is provided for your personal, internal use only and not for resale. It is protected by copyright,
and is subject to the following terms and conditions which are agreed to by you, on the one hand, and
Matsushita
Electric Industrial Co., Ltd.
Panasonic Automotive Systems Company (“Panasonic”) and its licensors (including
their licensors and suppliers) on the other hand.
© 2005 NAVTEQ. All rights reserved.
The Data for areas of Canada includes information taken with...

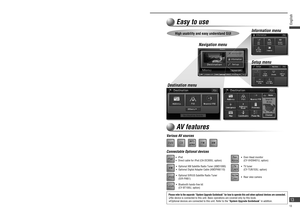

Features
Easy to use
Destination menuInformation menu
Setup menu Navigation menu
Panasonic welcomes you to our constantly growing family of electronic products owners. We endeavor to give you
the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components,
and assembled by people who are proud of the reputation their work has built for our company. We know this product
will bring you many hours of enjoyments, and after you discover the quality, value...

Features
Easy to use
Destination menuInformation menu
Setup menu Navigation menu
Panasonic welcomes you to our constantly growing family of electronic products owners. We endeavor to give you
the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components,
and assembled by people who are proud of the reputation their work has built for our company. We know this product
will bring you many hours of enjoyments, and after you discover the quality, value...

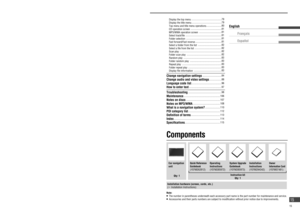

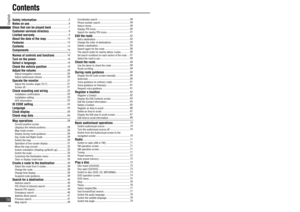

Contents
Car navigation
unitQuick Reference
Guidebook
(YEFM262812)Operating
Instructions
(YEFM285972)
System Upgrade
Guidebook
(YEFM285973)Installation
Instructions
(YEFM294342)
Owner
Information Card
(YEFM07481)
Qty: 1
Instruction kit
Qty: 1
Installation hardware (screws, cords, etc.)
(
Installation Instructions)
Note:
   The number in parentheses underneath each accessory part name is the part number for maintenance and service.    Accessories and their parts numbers are subject to modi...

Contents
Car navigation
unitQuick Reference
Guidebook
(YEFM262812)Operating
Instructions
(YEFM285972)
System Upgrade
Guidebook
(YEFM285973)Installation
Instructions
(YEFM294342)
Owner
Information Card
(YEFM07481)
Qty: 1
Instruction kit
Qty: 1
Installation hardware (screws, cords, etc.)
(
Installation Instructions)
Note:
   The number in parentheses underneath each accessory part name is the part number for maintenance and service.    Accessories and their parts numbers are subject to modi...

Panel open (Volume)    Adjusts  audiovisual  volume.
(
 page 20)
 (Source)
   Displays the Audiovisual source operation screen.
 (Navigation)
   Displays the Navigation menu.
 (Map)
   Displays the vehicle position (current position).
(
 page 28) SD Memory card slot
   Only used for map data and
software updates.
It cannot be used for playing
back audio format such as SD
audio.
CD/DVD slot
 (Tune/Track)   Selects a station. ( page 71)   Skips a track/chapter.
(
 page 77, 81)   Fast...

Panel open (Volume)    Adjusts  audiovisual  volume.
(
 page 20)
 (Source)
   Displays the Audiovisual source operation screen.
 (Navigation)
   Displays the Navigation menu.
 (Map)
   Displays the vehicle position (current position).
(
 page 28) SD Memory card slot
   Only used for map data and
software updates.
It cannot be used for playing
back audio format such as SD
audio.
CD/DVD slot
 (Tune/Track)   Selects a station. ( page 71)   Skips a track/chapter.
(
 page 77, 81)   Fast...

ACC

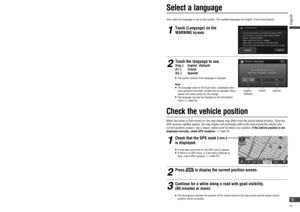

ONFirst, select the language to use on this system. The available languages are English, French and Spanish.
English
(Default)French Spanish

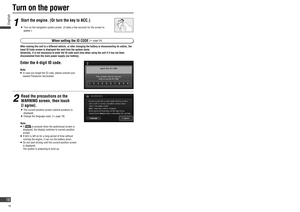

Turn on the power  Select a language
When the power is  rst turned on, the map display may differ from the actual vehicle position. Once the
GPS receives satellite signals, the map display will eventually shift to the area around the vehicle (the
current position screen). Use a clearly visible point to check your position. If the vehicle position is not...

ACC
ONFirst, select the language to use on this system. The available languages are English, French and Spanish.
English
(Default)French Spanish
Turn on the power  Select a language
When the power is  rst turned on, the map display may differ from the actual vehicle position. Once the
GPS receives satellite signals, the map display will eventually shift to the area around the vehicle (the
current position screen). Use a clearly visible point to check your position. If the vehicle position is not...

1
5

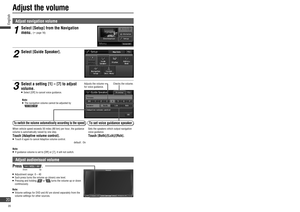

Adjusts the volume
for voice guidance.Checks the volume.
Press .
   Adjustment range:  0 – 40   Each press turns the volume up (down) one level.  Pressing and holding  or  turns the volume up or down
continuously.
Note:
   Volume settings for DVD and AV are stored separately from the
volume settings for other sources.
Adjust the volume
Note:   When the engine is turned off, the monitor returns to the fully closed position.   Next time the engine is started, the monitor opens to the...
