Page 31
Enlarged intersection map
The distance to the next intersection, the name of the road to turn onto,
and the direction to turn are displayed.
The intersection is displayed approximately 0.25 miles (400 m*) in
advance. (In residential area)
The intersection is displayed approximately 0.5 miles (800 m*) in
advance. (In non-residential area)
In some cases, an intersection may be displayed even if the route does
not require a turn at that intersection.
Turn list
Course information is...
Page 32

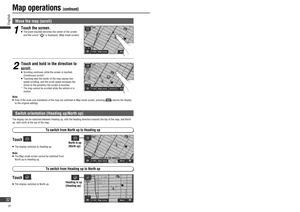

Map operations (continued) Move the map ( scroll) Note: Even if the scale and orientation of the map are switched in Map mode screen, pressing returns the display to the original settings. Switch orientation ( Heading up/ North up) The display can be switched between Heading up, with the heading direction towards the top of the map, and North up, with north at the top of the map. Heading is up (Heading up) Touch . The display switches to North up. North is up (North up)Touch . The display...
Page 33
Map operations (continued) Move the map ( scroll) Note: Even if the scale and orientation of the map are switched in Map mode screen, pressing returns the display to the original settings. Switch orientation ( Heading up/ North up) The display can be switched between Heading up, with the heading direction towards the top of the map, and North up, with north at the top of the map. Heading is up (Heading up) Touch . The display switches to North up. North is up (North up)Touch . The display...
Page 34

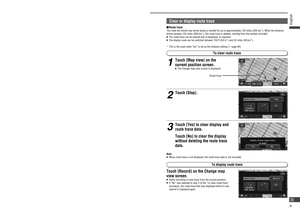

Map operations (continued) Clear or display route trace Route trace The route the vehicle has driven along is marked for up to approximately 125 miles (200 km*). When the distance driven exceeds 125 miles (200 km*), the route trace is deleted, starting from the earliest recorded. The route trace can be cleared and re-displayed, as required. The display scale can be switched between 150 ft (50 m*) and 32 miles (50 km*). * This is the scale when “km” is set as the distance setting ( page...
Page 35
Map operations (continued) Clear or display route trace Route trace The route the vehicle has driven along is marked for up to approximately 125 miles (200 km*). When the distance driven exceeds 125 miles (200 km*), the route trace is deleted, starting from the earliest recorded. The route trace can be cleared and re-displayed, as required. The display scale can be switched between 150 ft (50 m*) and 32 miles (50 km*). * This is the scale when “km” is set as the distance setting ( page...
Page 36

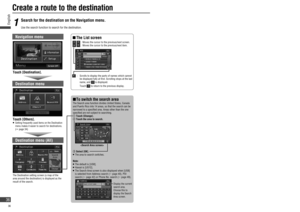

![Page 36
To switch the search area
The Search area function divides United States, Canada
and Puerto Rico into 14 areas, so that the search can be
narrowed to a specifi ed area. Areas other than the one
specifi ed are not subject to searching.
Touch [Change].
Touch the area to search.
Select [OK].
The area to search switches.
Note:
The default is [US8]. Hawaii is [US12]. The Search Area screen is also displayed when [US8]
is selected from Address search (
page 40), POI
search (
...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-35.png "Page 36
To switch the search area
The Search area function divides United States, Canada
and Puerto Rico into 14 areas, so that the search can be
narrowed to a specifi ed area. Areas other than the one
specifi ed are not subject to searching.
Touch [Change].
Touch the area to search.
Select [OK].
The area to search switches.
Note:
The default is [US8]. Hawaii is [US12]. The Search Area screen is also displayed when [US8]
is selected from Address search (
page 40), POI
search (
...")
To switch the search area The Search area function divides United States, Canada and Puerto Rico into 14 areas, so that the search can be narrowed to a specifi ed area. Areas other than the one specifi ed are not subject to searching. Touch [Change]. Touch the area to search. Select [OK]. The area to search switches. Note: The default is [US8]. Hawaii is [US12]. The Search Area screen is also displayed when [US8] is selected from Address search ( page 40), POI search ( ...
Page 37
![Page 37
To switch the search area
The Search area function divides United States, Canada
and Puerto Rico into 14 areas, so that the search can be
narrowed to a specifi ed area. Areas other than the one
specifi ed are not subject to searching.
Touch [Change].
Touch the area to search.
Select [OK].
The area to search switches.
Note:
The default is [US8]. Hawaii is [US12]. The Search Area screen is also displayed when [US8]
is selected from Address search (
page 40), POI
search (
...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-36.png "Page 37
To switch the search area
The Search area function divides United States, Canada
and Puerto Rico into 14 areas, so that the search can be
narrowed to a specifi ed area. Areas other than the one
specifi ed are not subject to searching.
Touch [Change].
Touch the area to search.
Select [OK].
The area to search switches.
Note:
The default is [US8]. Hawaii is [US12]. The Search Area screen is also displayed when [US8]
is selected from Address search (
page 40), POI
search (
...")
To switch the search area The Search area function divides United States, Canada and Puerto Rico into 14 areas, so that the search can be narrowed to a specifi ed area. Areas other than the one specifi ed are not subject to searching. Touch [Change]. Touch the area to search. Select [OK]. The area to search switches. Note: The default is [US8]. Hawaii is [US12]. The Search Area screen is also displayed when [US8] is selected from Address search ( page 40), POI search ( ...
Page 38
![Page 38

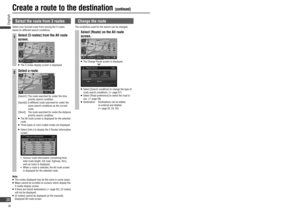

Select the route from 3 routes
Select your favored route from among the 3 routes
based on different search conditions.
1Select [3 routes] from the All route
screen.
The 3 routes display screen is displayed.
2Select a route.
[Quick1]: The route searched for under the time
priority search condition.
[Quick2]: A different route searched for under the
same search conditions as the current
route.
[Short]: The route searched for under the distance
priority search condition.
The All route...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-37.png "Page 38
Select the route from 3 routes
Select your favored route from among the 3 routes
based on different search conditions.
1Select [3 routes] from the All route
screen.
The 3 routes display screen is displayed.
2Select a route.
[Quick1]: The route searched for under the time
priority search condition.
[Quick2]: A different route searched for under the
same search conditions as the current
route.
[Short]: The route searched for under the distance
priority search condition.
The All route...")
Select the route from 3 routes Select your favored route from among the 3 routes based on different search conditions. 1Select [3 routes] from the All route screen. The 3 routes display screen is displayed. 2Select a route. [Quick1]: The route searched for under the time priority search condition. [Quick2]: A different route searched for under the same search conditions as the current route. [Short]: The route searched for under the distance priority search condition. The All route...
Page 39
![Page 39
Select the route from 3 routes
Select your favored route from among the 3 routes
based on different search conditions.
1Select [3 routes] from the All route
screen.
The 3 routes display screen is displayed.
2Select a route.
[Quick1]: The route searched for under the time
priority search condition.
[Quick2]: A different route searched for under the
same search conditions as the current
route.
[Short]: The route searched for under the distance
priority search condition.
The All route...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-38.png "Page 39
Select the route from 3 routes
Select your favored route from among the 3 routes
based on different search conditions.
1Select [3 routes] from the All route
screen.
The 3 routes display screen is displayed.
2Select a route.
[Quick1]: The route searched for under the time
priority search condition.
[Quick2]: A different route searched for under the
same search conditions as the current
route.
[Short]: The route searched for under the distance
priority search condition.
The All route...")
Select the route from 3 routes Select your favored route from among the 3 routes based on different search conditions. 1Select [3 routes] from the All route screen. The 3 routes display screen is displayed. 2Select a route. [Quick1]: The route searched for under the time priority search condition. [Quick2]: A different route searched for under the same search conditions as the current route. [Short]: The route searched for under the distance priority search condition. The All route...
Page 40
![Page 40

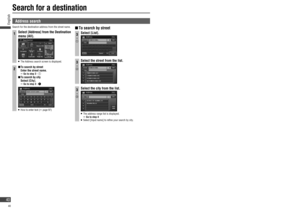

Address search
Search for the destination address from the street name.
1Select [Address] from the Destination
menu (All).
The Address search screen is displayed.
2 To search by street
Enter the street name.
Go to step 3 -
To search by city
Select [City].
Go to step 3 -
How to enter text (page 97)
To search by street
3
ı
Select [List].
3
ı
Select the street from the list.
3
ı
Select the city from the list.
The address range list is displayed.
Go to step 4...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-39.png "Page 40
Address search
Search for the destination address from the street name.
1Select [Address] from the Destination
menu (All).
The Address search screen is displayed.
2 To search by street
Enter the street name.
Go to step 3 -
To search by city
Select [City].
Go to step 3 -
How to enter text (page 97)
To search by street
3
ı
Select [List].
3
ı
Select the street from the list.
3
ı
Select the city from the list.
The address range list is displayed.
Go to step 4...")
Address search Search for the destination address from the street name. 1Select [Address] from the Destination menu (All). The Address search screen is displayed. 2 To search by street Enter the street name. Go to step 3 - To search by city Select [City]. Go to step 3 - How to enter text (page 97) To search by street 3 ı Select [List]. 3 ı Select the street from the list. 3 ı Select the city from the list. The address range list is displayed. Go to step 4...
