Page 41
![Page 41
Address search
Search for the destination address from the street name.
1Select [Address] from the Destination
menu (All).
The Address search screen is displayed.
2 To search by street
Enter the street name.
Go to step 3 -
To search by city
Select [City].
Go to step 3 -
How to enter text (page 97)
To search by street
3
ı
Select [List].
3
ı
Select the street from the list.
3
ı
Select the city from the list.
The address range list is displayed.
Go to step 4...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-40.png "Page 41
Address search
Search for the destination address from the street name.
1Select [Address] from the Destination
menu (All).
The Address search screen is displayed.
2 To search by street
Enter the street name.
Go to step 3 -
To search by city
Select [City].
Go to step 3 -
How to enter text (page 97)
To search by street
3
ı
Select [List].
3
ı
Select the street from the list.
3
ı
Select the city from the list.
The address range list is displayed.
Go to step 4...")
Address search Search for the destination address from the street name. 1Select [Address] from the Destination menu (All). The Address search screen is displayed. 2 To search by street Enter the street name. Go to step 3 - To search by city Select [City]. Go to step 3 - How to enter text (page 97) To search by street 3 ı Select [List]. 3 ı Select the street from the list. 3 ı Select the city from the list. The address range list is displayed. Go to step 4...
Page 42
![Page 42

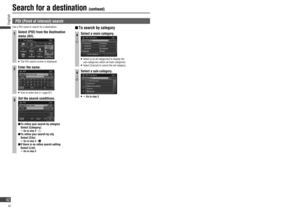

POI (Point of interest) search
Use a POI name to search for a destination.
1Select [POI] from the Destination
menu (All).
The POI search screen is displayed.
2Enter the name.
How to enter text (page 97)
3Set the search conditions.
To refi ne your search by category
Select [Category].
Go to step 4 -
To refi ne your search by city
Select [City].
Go to step 4 -
If there is no refi ne search setting
Select [List].
Go to step 5
To search by category
4
ı
Select a main...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-41.png "Page 42
POI (Point of interest) search
Use a POI name to search for a destination.
1Select [POI] from the Destination
menu (All).
The POI search screen is displayed.
2Enter the name.
How to enter text (page 97)
3Set the search conditions.
To refi ne your search by category
Select [Category].
Go to step 4 -
To refi ne your search by city
Select [City].
Go to step 4 -
If there is no refi ne search setting
Select [List].
Go to step 5
To search by category
4
ı
Select a main...")
POI (Point of interest) search Use a POI name to search for a destination. 1Select [POI] from the Destination menu (All). The POI search screen is displayed. 2Enter the name. How to enter text (page 97) 3Set the search conditions. To refi ne your search by category Select [Category]. Go to step 4 - To refi ne your search by city Select [City]. Go to step 4 - If there is no refi ne search setting Select [List]. Go to step 5 To search by category 4 ı Select a main...
Page 43
![Page 43
POI (Point of interest) search
Use a POI name to search for a destination.
1Select [POI] from the Destination
menu (All).
The POI search screen is displayed.
2Enter the name.
How to enter text (page 97)
3Set the search conditions.
To refi ne your search by category
Select [Category].
Go to step 4 -
To refi ne your search by city
Select [City].
Go to step 4 -
If there is no refi ne search setting
Select [List].
Go to step 5
To search by category
4
ı
Select a main...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-42.png "Page 43
POI (Point of interest) search
Use a POI name to search for a destination.
1Select [POI] from the Destination
menu (All).
The POI search screen is displayed.
2Enter the name.
How to enter text (page 97)
3Set the search conditions.
To refi ne your search by category
Select [Category].
Go to step 4 -
To refi ne your search by city
Select [City].
Go to step 4 -
If there is no refi ne search setting
Select [List].
Go to step 5
To search by category
4
ı
Select a main...")
POI (Point of interest) search Use a POI name to search for a destination. 1Select [POI] from the Destination menu (All). The POI search screen is displayed. 2Enter the name. How to enter text (page 97) 3Set the search conditions. To refi ne your search by category Select [Category]. Go to step 4 - To refi ne your search by city Select [City]. Go to step 4 - If there is no refi ne search setting Select [List]. Go to step 5 To search by category 4 ı Select a main...
Page 44
![Page 44

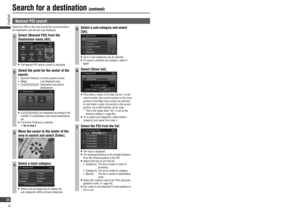

Nearest POI search
Search for POIs in the area around the current position,
the destination and the last map displayed.
1Select [Nearest POI] from the
Destination menu (All).
The Nearest POI search screen is displayed.
2Select the point for the center of the
search.
[Current Position]: Current position screen [Map]: Last displayed map [1]/[2]/[3]/[4]/[5]: Destination and transit
destinations
[1]/[2]/[3]/[4]/[5] are displayed according to the
number of a destination and transit...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-43.png "Page 44
Nearest POI search
Search for POIs in the area around the current position,
the destination and the last map displayed.
1Select [Nearest POI] from the
Destination menu (All).
The Nearest POI search screen is displayed.
2Select the point for the center of the
search.
[Current Position]: Current position screen [Map]: Last displayed map [1]/[2]/[3]/[4]/[5]: Destination and transit
destinations
[1]/[2]/[3]/[4]/[5] are displayed according to the
number of a destination and transit...")
Nearest POI search Search for POIs in the area around the current position, the destination and the last map displayed. 1Select [Nearest POI] from the Destination menu (All). The Nearest POI search screen is displayed. 2Select the point for the center of the search. [Current Position]: Current position screen [Map]: Last displayed map [1]/[2]/[3]/[4]/[5]: Destination and transit destinations [1]/[2]/[3]/[4]/[5] are displayed according to the number of a destination and transit...
Page 45
![Page 45
Nearest POI search
Search for POIs in the area around the current position,
the destination and the last map displayed.
1Select [Nearest POI] from the
Destination menu (All).
The Nearest POI search screen is displayed.
2Select the point for the center of the
search.
[Current Position]: Current position screen [Map]: Last displayed map [1]/[2]/[3]/[4]/[5]: Destination and transit
destinations
[1]/[2]/[3]/[4]/[5] are displayed according to the
number of a destination and transit...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-44.png "Page 45
Nearest POI search
Search for POIs in the area around the current position,
the destination and the last map displayed.
1Select [Nearest POI] from the
Destination menu (All).
The Nearest POI search screen is displayed.
2Select the point for the center of the
search.
[Current Position]: Current position screen [Map]: Last displayed map [1]/[2]/[3]/[4]/[5]: Destination and transit
destinations
[1]/[2]/[3]/[4]/[5] are displayed according to the
number of a destination and transit...")
Nearest POI search Search for POIs in the area around the current position, the destination and the last map displayed. 1Select [Nearest POI] from the Destination menu (All). The Nearest POI search screen is displayed. 2Select the point for the center of the search. [Current Position]: Current position screen [Map]: Last displayed map [1]/[2]/[3]/[4]/[5]: Destination and transit destinations [1]/[2]/[3]/[4]/[5] are displayed according to the number of a destination and transit...
Page 46
![Page 46

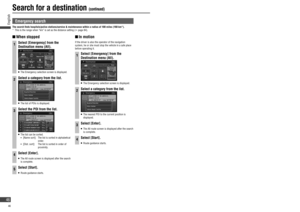

When stopped
1Select [Emergency] from the
Destination menu (All).
The Emergency selection screen is displayed.
2Select a category from the list.
The list of POIs is displayed.
3Select the POI from the list.
The list can be sorted.
[Name sort]: The list is sorted in alphabetical
order.
[Dist. sort]: The list is sorted in order of
proximity.
4Select [Enter].
The All route screen is displayed after the search
is complete.
5Select [Start].
Route guidance starts.
...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-45.png "Page 46
When stopped
1Select [Emergency] from the
Destination menu (All).
The Emergency selection screen is displayed.
2Select a category from the list.
The list of POIs is displayed.
3Select the POI from the list.
The list can be sorted.
[Name sort]: The list is sorted in alphabetical
order.
[Dist. sort]: The list is sorted in order of
proximity.
4Select [Enter].
The All route screen is displayed after the search
is complete.
5Select [Start].
Route guidance starts.
...")
When stopped 1Select [Emergency] from the Destination menu (All). The Emergency selection screen is displayed. 2Select a category from the list. The list of POIs is displayed. 3Select the POI from the list. The list can be sorted. [Name sort]: The list is sorted in alphabetical order. [Dist. sort]: The list is sorted in order of proximity. 4Select [Enter]. The All route screen is displayed after the search is complete. 5Select [Start]. Route guidance starts. ...
Page 47
![Page 47
When stopped
1Select [Emergency] from the
Destination menu (All).
The Emergency selection screen is displayed.
2Select a category from the list.
The list of POIs is displayed.
3Select the POI from the list.
The list can be sorted.
[Name sort]: The list is sorted in alphabetical
order.
[Dist. sort]: The list is sorted in order of
proximity.
4Select [Enter].
The All route screen is displayed after the search
is complete.
5Select [Start].
Route guidance starts.
...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-46.png "Page 47
When stopped
1Select [Emergency] from the
Destination menu (All).
The Emergency selection screen is displayed.
2Select a category from the list.
The list of POIs is displayed.
3Select the POI from the list.
The list can be sorted.
[Name sort]: The list is sorted in alphabetical
order.
[Dist. sort]: The list is sorted in order of
proximity.
4Select [Enter].
The All route screen is displayed after the search
is complete.
5Select [Start].
Route guidance starts.
...")
When stopped 1Select [Emergency] from the Destination menu (All). The Emergency selection screen is displayed. 2Select a category from the list. The list of POIs is displayed. 3Select the POI from the list. The list can be sorted. [Name sort]: The list is sorted in alphabetical order. [Dist. sort]: The list is sorted in order of proximity. 4Select [Enter]. The All route screen is displayed after the search is complete. 5Select [Start]. Route guidance starts. ...
Page 48

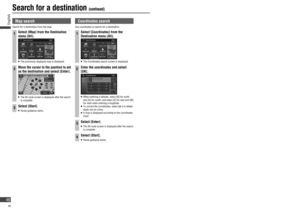

![Page 48
Map search
Search for a destination from the map.
1Select [Map] from the Destination
menu (All).
The previously displayed map is displayed.
2Move the cursor to the position to set
as the destination and select [Enter].
The All route screen is displayed after the search
is complete.
3Select [Start]. Route guidance starts.
Coordinates search
Use coordinates to search for a destination.
1Select [Coordinates] from the
Destination menu (All).
The Coordinates search screen is displayed....](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-47.png "Page 48
Map search
Search for a destination from the map.
1Select [Map] from the Destination
menu (All).
The previously displayed map is displayed.
2Move the cursor to the position to set
as the destination and select [Enter].
The All route screen is displayed after the search
is complete.
3Select [Start]. Route guidance starts.
Coordinates search
Use coordinates to search for a destination.
1Select [Coordinates] from the
Destination menu (All).
The Coordinates search screen is displayed....")
Map search Search for a destination from the map. 1Select [Map] from the Destination menu (All). The previously displayed map is displayed. 2Move the cursor to the position to set as the destination and select [Enter]. The All route screen is displayed after the search is complete. 3Select [Start]. Route guidance starts. Coordinates search Use coordinates to search for a destination. 1Select [Coordinates] from the Destination menu (All). The Coordinates search screen is displayed....
Page 49
![Page 49
Map search
Search for a destination from the map.
1Select [Map] from the Destination
menu (All).
The previously displayed map is displayed.
2Move the cursor to the position to set
as the destination and select [Enter].
The All route screen is displayed after the search
is complete.
3Select [Start]. Route guidance starts.
Coordinates search
Use coordinates to search for a destination.
1Select [Coordinates] from the
Destination menu (All).
The Coordinates search screen is displayed....](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-48.png "Page 49
Map search
Search for a destination from the map.
1Select [Map] from the Destination
menu (All).
The previously displayed map is displayed.
2Move the cursor to the position to set
as the destination and select [Enter].
The All route screen is displayed after the search
is complete.
3Select [Start]. Route guidance starts.
Coordinates search
Use coordinates to search for a destination.
1Select [Coordinates] from the
Destination menu (All).
The Coordinates search screen is displayed....")
Map search Search for a destination from the map. 1Select [Map] from the Destination menu (All). The previously displayed map is displayed. 2Move the cursor to the position to set as the destination and select [Enter]. The All route screen is displayed after the search is complete. 3Select [Start]. Route guidance starts. Coordinates search Use coordinates to search for a destination. 1Select [Coordinates] from the Destination menu (All). The Coordinates search screen is displayed....
Page 50
![Page 50

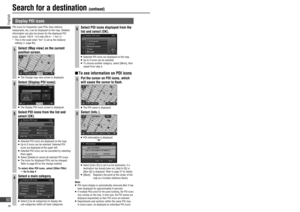

Display POI icons
POI icons for frequently used POIs (Gas stations,
restaurants, etc.) can be displayed on the map. Detailed
information can also be shown for the displayed POI
icons. (Scale: 150 ft – 0.5 mile (50 m – 1 km*))
* This is the scale when “km” is set as the distance
setting (
page 84).
1Select [Map view] on the current
position screen.
The Change map view screen is displayed.
2Select [Display POI icons].
The Display POI Icons screen is displayed.
3Select POI icons from...](http://img.usermanuals.tech/thumb/58/65918/w300_cn-nvd905u_en_om_d-49.png "Page 50
Display POI icons
POI icons for frequently used POIs (Gas stations,
restaurants, etc.) can be displayed on the map. Detailed
information can also be shown for the displayed POI
icons. (Scale: 150 ft – 0.5 mile (50 m – 1 km*))
* This is the scale when “km” is set as the distance
setting (
page 84).
1Select [Map view] on the current
position screen.
The Change map view screen is displayed.
2Select [Display POI icons].
The Display POI Icons screen is displayed.
3Select POI icons from...")
Display POI icons POI icons for frequently used POIs (Gas stations, restaurants, etc.) can be displayed on the map. Detailed information can also be shown for the displayed POI icons. (Scale: 150 ft – 0.5 mile (50 m – 1 km*)) * This is the scale when “km” is set as the distance setting ( page 84). 1Select [Map view] on the current position screen. The Change map view screen is displayed. 2Select [Display POI icons]. The Display POI Icons screen is displayed. 3Select POI icons from...
