Panasonic Dual DIN Hdd Mobile Navigation System Cn Nvd905u Operating Instructions

 Display   POI  icons
POI icons for frequently used POIs (Gas stations,
restaurants, etc.) can be displayed on the map. Detailed
information can also be shown for the displayed POI
icons. (Scale: 150 ft – 0.5 mile (50 m – 1 km*))
*   This is the scale when “km” is set as the distance
setting (
 page 84).
1Select [Map view] on the current
position screen.
   The Change map view screen is displayed.
2Select [Display POI icons].
   The Display POI Icons screen is displayed.
3Select POI icons from...

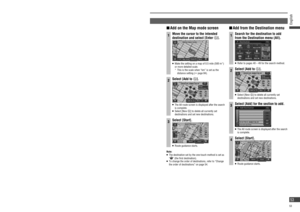

6Select [Add] for the section to add.
   The Change Route screen is displayed.
7Select [OK].
   The All route screen is displayed after the search
is complete.
   To add further destinations, select [Add] and
repeat the procedure from step 4.
8Select [Start].
   Route guidance starts.
Note:
   [3 routes] is not displayed on the All route screen if
multiple destinations have been set.
   Set destinations are marked by “” – “”.

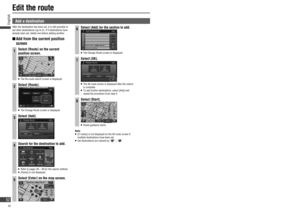

 Add a destination
After the destination has been set, it is still...

6Select [Add] for the section to add.
   The Change Route screen is displayed.
7Select [OK].
   The All route screen is displayed after the search
is complete.
   To add further destinations, select [Add] and
repeat the procedure from step 4.
8Select [Start].
   Route guidance starts.
Note:
   [3 routes] is not displayed on the All route screen if
multiple destinations have been set.
   Set destinations are marked by “” – “”.
 Add a destination
After the destination has been set, it is still...

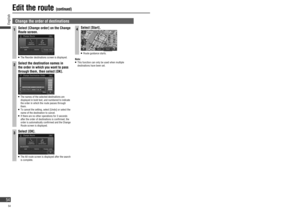

 Change the order of destinations
1Select [Change order] on the Change
Route screen.
   The Reorder destinations screen is displayed.
2Select the destination names in
the order in which you want to pass
through them, then select [OK].
   The names of the selected destinations are
displayed in bold text, and numbered to indicate
the order in which the route passes through
them.
   To cancel the setting, select [Undo] or select the
name of the destination to cancel.
   If there are no other...

 Change the order of destinations
1Select [Change order] on the Change
Route screen.
   The Reorder destinations screen is displayed.
2Select the destination names in
the order in which you want to pass
through them, then select [OK].
   The names of the selected destinations are
displayed in bold text, and numbered to indicate
the order in which the route passes through
them.
   To cancel the setting, select [Undo] or select the
name of the destination to cancel.
   If there are no other...

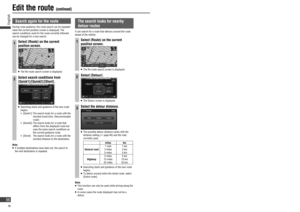

 Search again for the route
During route guidance, the route search can be repeated
when the current position screen is displayed. The
search conditions used for the route currently followed
can be changed for a new search.
1Select [Route] on the current
position screen.
   The Re-route search screen is displayed.
2Select search conditions from
[Quick1]/[Quick2]/[Short].
   Searching starts and guidance of the new route
begins.

  [Quick1]:  The search looks for a route with the
shortest...

 Search again for the route
During route guidance, the route search can be repeated
when the current position screen is displayed. The
search conditions used for the route currently followed
can be changed for a new search.
1Select [Route] on the current
position screen.
   The Re-route search screen is displayed.
2Select search conditions from
[Quick1]/[Quick2]/[Short].
   Searching starts and guidance of the new route
begins.

  [Quick1]:  The search looks for a route with the
shortest...

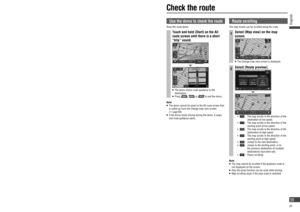

Use the  demo to check the route
Runs the route demo.
Touch and hold [Start] on the All
route screen until there is a short
“blip” sound.
   The demo shows route guidance to the
destination.
  Press ,  or  to end the demo.
Note:
   The demo cannot be used on the All route screen that
is called up from the Change map view screen.
(
 page 60)   If the driver starts driving during the demo, it stops
and route guidance starts.
Check the route
 Route  scrolling
The map screen can be scrolled along...

Use the  demo to check the route
Runs the route demo.
Touch and hold [Start] on the All
route screen until there is a short
“blip” sound.
   The demo shows route guidance to the
destination.
  Press ,  or  to end the demo.
Note:
   The demo cannot be used on the All route screen that
is called up from the Change map view screen.
(
 page 60)   If the driver starts driving during the demo, it stops
and route guidance starts.
Check the route
 Route  scrolling
The map screen can be scrolled along...

During route guidance
In half of a mile
(800 m*), right turn.
Next right, and then,
left turn.
  Non residential area
 Residential area
In a quarter of a mile
(400 m*), slight left turn.
Next slight left.
Slight right turn ahead.Keep right onto XX. In 2 miles (3 km*), keep
right onto XX.
The exit on the right.
 Autoroute
If the vehicle deviates from the guidance route, a new
search is performed automatically and a new route to the
destination from the current position is displayed.
Note:
...
