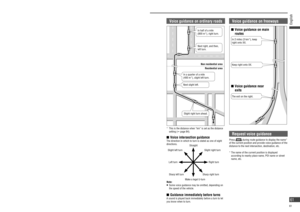

During route guidance
In half of a mile
(800 m*), right turn.
Next right, and then,
left turn.
  Non residential area
 Residential area
In a quarter of a mile
(400 m*), slight left turn.
Next slight left.
Slight right turn ahead.Keep right onto XX. In 2 miles (3 km*), keep
right onto XX.
The exit on the right.
 Autoroute
If the vehicle deviates from the guidance route, a new
search is performed automatically and a new route to the
destination from the current position is displayed.
Note:
...

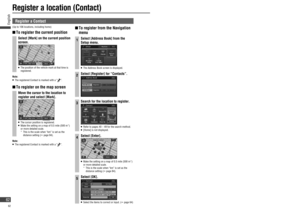

 Register a Contact
(Up to 106 locations, including home)
  To register the current position
Select [Mark] on the current position
screen.
   The position of the vehicle mark at that time is
registered.
Note:
   The registered Contact is marked with a “”.
  To register on the map screen
Move the cursor to the location to
register and select [Mark].
   The cursor position is registered.   Make the setting on a map of 0.5 mile (500 m*)
or more detailed scale.
  *   This is the scale when “km” is...

 Register a Contact
(Up to 106 locations, including home)
  To register the current position
Select [Mark] on the current position
screen.
   The position of the vehicle mark at that time is
registered.
Note:
   The registered Contact is marked with a “”.
  To register on the map screen
Move the cursor to the location to
register and select [Mark].
   The cursor position is registered.   Make the setting on a map of 0.5 mile (500 m*)
or more detailed scale.
  *   This is the scale when “km” is...

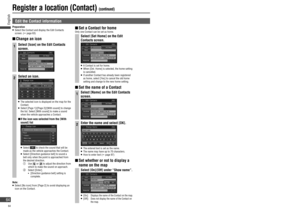

 Edit the Contact information
Preparation   Select the Contact and display the Edit Contacts
screen. (
 page 63)
  Change an icon
1Select [Icon] on the Edit Contacts
screen.
2Select an icon.
   The selected icon is displayed on the map for the
Contact.
   Select [Page 1]/[Page 2]/[With sound] to change
the list. Select [With sound] to make a sound
when the vehicle approaches a Contact.
  If the icon was selected from the [With
sound] list
   Select  to check the sound that will be
made as...

 Edit the Contact information
Preparation   Select the Contact and display the Edit Contacts
screen. (
 page 63)
  Change an icon
1Select [Icon] on the Edit Contacts
screen.
2Select an icon.
   The selected icon is displayed on the map for the
Contact.
   Select [Page 1]/[Page 2]/[With sound] to change
the list. Select [With sound] to make a sound
when the vehicle approaches a Contact.
  If the icon was selected from the [With
sound] list
   Select  to check the sound that will be
made as...

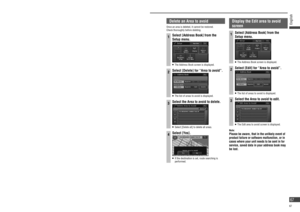

 Delete an Area to avoid
Once an area is deleted, it cannot be restored.
Check thoroughly before deleting.
1Select [Address Book] from the
Setup menu.
   The Address Book screen is displayed.
2Select [Delete] for “Area to avoid”.
   The list of areas to avoid is displayed.
3Select the Area to avoid to delete.
   Select [Delete all] to delete all areas.
4Select [Yes].
   If the destination is set, route searching is
performed.
 Register an Area to avoid
Points and areas to detour around on the...

 Delete an Area to avoid
Once an area is deleted, it cannot be restored.
Check thoroughly before deleting.
1Select [Address Book] from the
Setup menu.
   The Address Book screen is displayed.
2Select [Delete] for “Area to avoid”.
   The list of areas to avoid is displayed.
3Select the Area to avoid to delete.
   Select [Delete all] to delete all areas.
4Select [Yes].
   If the destination is set, route searching is
performed.
 Register an Area to avoid
Points and areas to detour around on the...

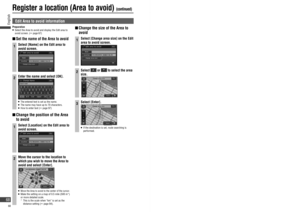

Register a location (Area to avoid) (continued)
 Edit Area to avoid information
Preparation   Select the Area to avoid and display the Edit area to
avoid screen. (
 page 67)
  Set the name of the Area to avoid
1Select [Name] on the Edit area to
avoid screen.
2Enter the name and select [OK].
   The entered text is set as the name.   The name may have up to 70 characters.   How to enter text ( page 97)
  Change the position of the Area
to avoid
1Select [Location] on the Edit area to
avoid...

Register a location (Area to avoid) (continued)
 Edit Area to avoid information
Preparation   Select the Area to avoid and display the Edit area to
avoid screen. (
 page 67)
  Set the name of the Area to avoid
1Select [Name] on the Edit area to
avoid screen.
2Enter the name and select [OK].
   The entered text is set as the name.   The name may have up to 70 characters.   How to enter text ( page 97)
  Change the position of the Area
to avoid
1Select [Location] on the Edit area to
avoid...

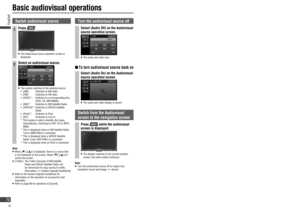

Switch audiovisual source
1Press .
   The Audiovisual source operation screen is
displayed.
2Select an audiovisual source.
   The system switches to the selected source.
   [AM]:       Switches to AM radio.
   [FM]:       Switches to FM radio.
  [DISC]*1:    Switches to a corresponding disc.
(DVD, CD, MP3/WMA)

 [XM]*2:     Switches to XM Satellite Radio.
  [SIRIUS]*3:  Switches to SIRIUS Satellite
Radio.

 [iPod]*4:     Switches to iPod.
  [AV]:    Switches to Line-in.
 *1  This system is...
