Owner’s Manual
High Definition Video Camera
Model No.HC-W570
Please read these instructions carefully before using this product,
and save this manual for future use.
SQW0220
until
2015/1/22
Register online at www.panasonic.com/register (U.S. customers only)

- 2 -
∫
About the recording format for
recording motion pictures
You can select from AVCHD*1, MP4 or iFrame
recording formats to record motion pictures
using this unit.
 ( l 71)
*1 It is compatible with the AVCHD  Progressive (1080/60p).
AVCHD:
It is suitable for viewing on a high-definition TV
or for saving to disc
*2.
*2 The following methods are available for
saving an image recorded in 1080/60p:
j Copy the image to a disc using the
HD Writer LE 3.0.
j Copy the image to a Panasonic Blu-ray
disc...

- 3 -
∫
Cards that you can use with
this unit
SD Memory Card, SDHC Memory Card and
SDXC Memory Card
≥4 GB or more Memory Cards that do not have
the SDHC logo or 48 GB or more Memory
Cards that do not have the SDXC logo are
not based on SD Memory Card
Specifications.
≥ Refer to page  14 for more details on SD
cards.
∫ For the purposes of this
owner’s manual
≥SD Memory Card, SDHC Memory Card and
SDXC Memory Card are referred to as the
“SD card”.
≥ The smartphone and tablet are indicated as...

- 4 -
Read this first .................................................2
Preparation
Names and Functions of Main Parts ............ 7
Power supply................................................ 10
Inserting/removing the battery ...............  10
Charging the battery ..............................  11
Charging and recording time .................  12
Recording to a card ..................................... 14 Cards that you can use with this unit .....  14
Inserting/removing an SD card .................

- 5 -
Various playback functions ........................ 83Playing back motion pictures/
still pictures by date ...............................  83
Highlight Playback .................................  84
Manual Edit ............................................  90
Baby Calendar .......................................  93
Changing the playback settings and
playing back the slide show ...................  95
Playing back still pictures recorded in
Stop Motion Animation Assist Mode as
a slide show...

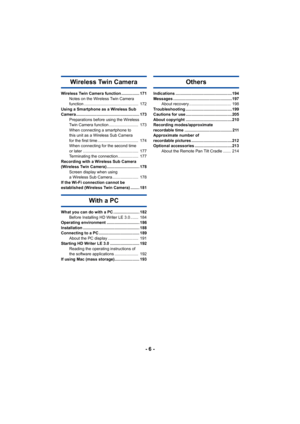

- 6 -
Wireless Twin Camera
Wireless Twin Camera function ................ 171Notes on the Wireless Twin Camera
function ................................................  172
Using a Smartphone as a Wireless Sub
Camera ........................................................ 1 73
Preparations before using the Wireless
Twin Camera function ..........................  173
When connecting a smartphone to
this unit as a Wireless Sub Camera
for the first time ....................................  174
When...

- 7 -
1Speaker
2 Recording/playback button [ / ]
(l 17)
3 Level Shot Function button [ ]
(l 41)
4 Wi-Fi button [Wi-Fi]
(l 125 , 131, 134 , 140, 142 , 146 , 162 , 165)
5 Power button [ ] (l 16)
6 Battery release lever [BATT] ( l10)
7 A/V connector [A/V] ( l105 , 11 9 )
8 HDMI mini connector [HDMI] ( l105 )
9 USB terminal
[] (l 11 0 , 11 7 , 189 ) 10
Lens cover
≥ The lens cover opens in Motion Picture
Recording Mode or Still Picture Recording
Mode. ( l17)
11 Lens
12 Internal stereo microphones...

- 8 -

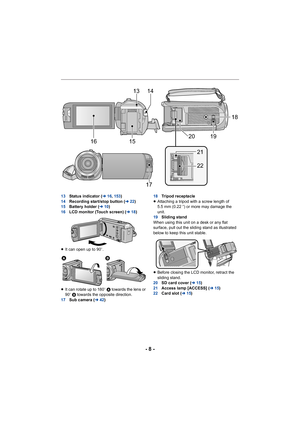

13Status indicator ( l16, 153 )
14 Recording start/stop button ( l22)
15 Battery holder ( l10)
16 LCD monitor (Touch screen) ( l18)
≥ It can open up to 90 o.
≥ It can rotate up to 180 o A towards the lens or
90 o B  towards the opposite direction.
17 Sub camera ( l42) 18
Tripod receptacle
≥ Attaching a tripod with a screw length of
5.5 mm (0.22 q) or more may damage the
unit.
19 Sliding stand
When using this unit on a desk or any flat
surface, pull out the sliding stand as illustrated
below to...

- 9 -

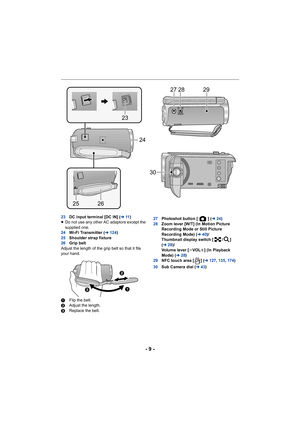

23DC input terminal [DC IN] ( l11)
≥ Do not use any other AC adaptors except the
supplied one.
24 Wi-Fi Transmitter ( l124 )
25 Shoulder strap fixture
26 Grip belt
Adjust the length of the grip belt so that it fits
your hand.
1 Flip the belt.
2 Adjust the length.
3 Replace the belt. 27
Photoshot button [ ] ( l24)
28 Zoom lever [W/T] (In Motion Picture
Recording Mode or Still Picture
Recording Mode) ( l40)/
Thumbnail display switch [ / ]
( l 28)/
Volume lever [ sVOL r] (In Playback
Mode) (l...

- 10 -
∫

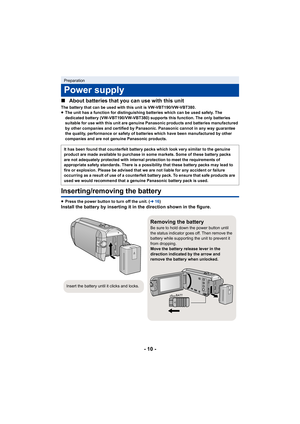

About batteries that you can use with this unit
The battery that can be used with this unit is VW-VBT190/VW-VBT 380.
≥ The unit has a function for distinguishing batteries which can  be used safely. The
dedicated battery (VW-VBT190/VW-VBT380) supports this function.  The only batteries
suitable for use with this unit are genuine Panasonic products  and batteries manufactured
by other companies and certified by Panasonic. Panasonic cannot  in any way guarantee
the quality, performance or...
