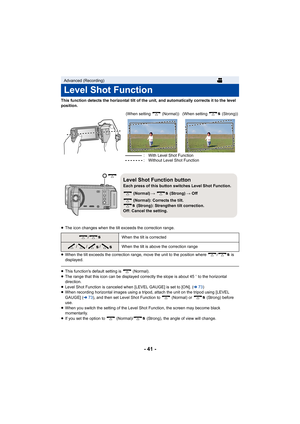

- 41 -
This function detects the horizontal tilt of the unit, and automatically corrects it to the level
position.
≥ The icon changes when the tilt exceeds the correction range.
≥ When the tilt exceeds the correction range, move the unit to th e position where  /  is
displayed.
≥ This function's default setting is   (Normal).
≥ The range that this icon can be displayed correctly the slope i s about 45o to the horizontal
direction.
≥ Level Shot Function is canceled when [LEVEL GAUGE] is set to [O...

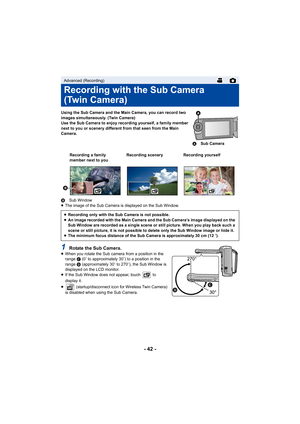

- 42 -
Using the Sub Camera and the Main Camera, you can record two
images simultaneously. (Twin Camera)
Use the Sub Camera to enjoy recording yourself, a family member
next to you or scenery different from that seen from the Main
Camera.
B Sub Window
≥ The image of the Sub Camera is displayed on the Sub Window.
1Rotate the Sub Camera.≥When you rotate the Sub camera from a position in the
range  C (0e to approximately 30 e) to a position in the
range  D (approximately 30 e to 270 e), the Sub Window...

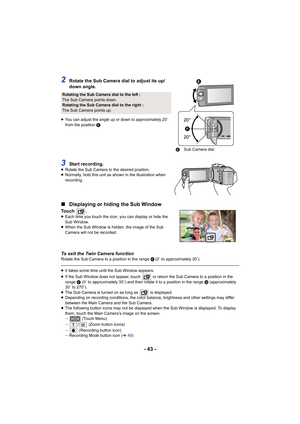

- 43 -
2Rotate the Sub Camera dial to adjust its up/
down angle.
≥You can adjust the angle up or down to approximately 20 e
from the position  F.
3Start recording.≥ Rotate the Sub Camera to the desired position.
≥ Normally, hold this unit as shown in the illustration when
recording.
∫ Displaying or hiding the Sub Window
Touch  .≥Each time you touch the icon, y ou can display or hide the
Sub Window.
≥ When the Sub Window is hidden, the image of the Sub
Camera will not be recorded.
To exit the Twin...

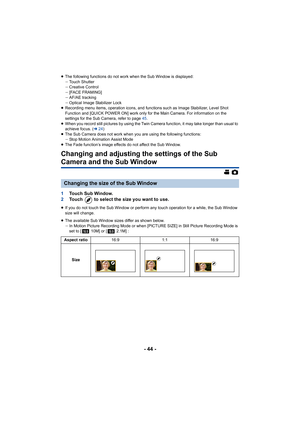

- 44 -
≥The following functions do not work when the Sub Window is displayed:
jTouch Shutter
j Creative Control
j [FACE FRAMING]
j AF/AE tracking
j Optical Image Stabilizer Lock
≥ Recording menu items, operation icons, and functions such as Im age Stabilizer, Level Shot
Function and
[QUICK POWER ON] work only for the Main Camera. For information on the
settings for the Sub Camera, refer to page  45.
≥ When you record still pictures by using the Twin Camera functio n, it may take longer than usual to...

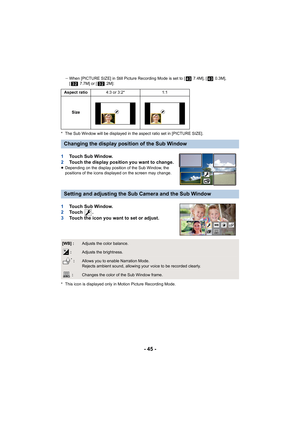

- 45 -
jWhen [PICTURE SIZE] in Still Picture Recording Mode is set to [  7.4M], [  0.3M],
[  7.7M] or [  2M]:
* The Sub Window will be displayed in the aspect ratio set in [P ICTURE SIZE].
1Touch Sub Window.
2 Touch the display position you want to change.
≥Depending on the display position of the Sub Window, the
positions of the icons displayed on the screen may change.
1 Touch Sub Window.
2 To u c h   .
3 Touch the icon you want to set or adjust.
* This icon is displayed only in Motion Picture...

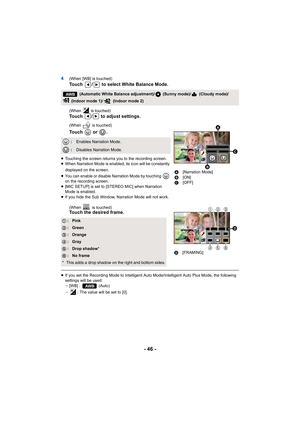

- 46 -
4(When [WB] is touched)
Touch  /  to select White Balance Mode.
(When   is touched)Touch  /  to adjust settings.
(When   is touched)
To u c h     o r   .
≥Touching the screen returns you to the recording screen.
≥ When Narration Mode is enabled, its icon will be constantly
displayed on the screen.
≥ You can enable or disable Narration Mode by touching
on the recording screen.
≥ [MIC SETUP] is set to [ST EREO MIC] when Narration
Mode is enabled.
≥ If you hide the Sub Window, Narration Mode...

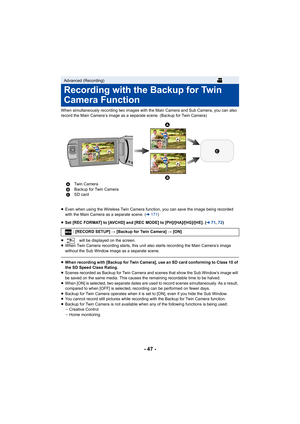

- 47 -
When simultaneously recording two images with the Main Camera and Sub Camera, you can also
record the Main Camera’s image as a separate scene. (Backup for  Twin Camera)
≥ Even when using the Wireless Twin Camera function, you can save  the image being recorded
with the Main Camera as a separate scene. ( l171 )
≥ Set [REC FORMAT] to [AVCHD] and [REC MODE] to [PH]/[HA]/[HG]/[H E]. (l71, 72 )
≥  will be displayed on the screen.
≥ When Twin Camera recording starts, this unit also starts record ing...

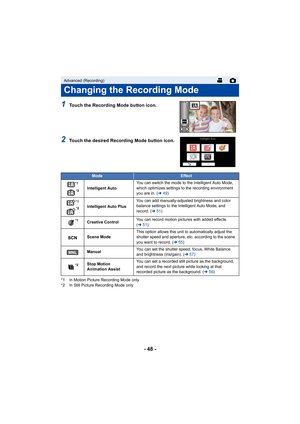

- 48 -
1Touch the Recording Mode button icon.
2Touch the desired Recording Mode button icon.
*1 In Motion Picture Recording Mode only
*2 In Still Picture Recording Mode only
Advanced (Recording)
Changing the Recording Mode
ModeEffect
*1*2Intelligent Auto You can switch the mode to the Intelligent Auto Mode,
which optimizes settings to the recording environment
you are in. (
l49)
*1
*2Intelligent Auto Plus You can add manually-adjusted brightness and color
balance settings to the Intelligent Auto Mode,...

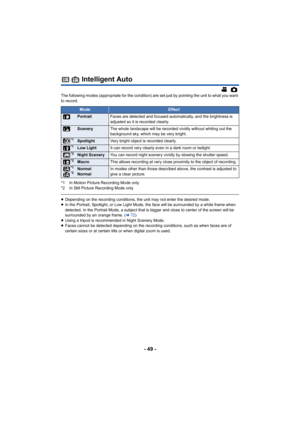

- 49 -
Intelligent Auto
The following modes (appropriate for the condition) are set just by pointing the unit to what you want
to record.
*1 In Motion Picture Recording Mode only
*2 In Still Picture Recording Mode only
≥ Depending on the recording conditions, the unit may not enter t he desired mode.
≥ In the Portrait, Spotlight, or Low Light Mode, the face will be  surrounded by a white frame when
detected. In the Portrait Mode, a  subject that is bigger and close to center of the screen will be...

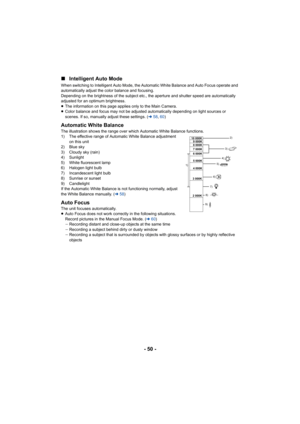

- 50 -
∫
Intelligent Auto Mode
When switching to Intelligent Auto Mode, the Automatic White Ba lance and Auto Focus operate and
automatically adjust the color balance and focusing.
Depending on the brightness of the subject etc., the aperture a nd shutter speed are automatically
adjusted for an optimum brightness.
≥ The information on this page applies only to the Main Camera.
≥ Color balance and focus may not be adjusted automatically depen ding on light sources or
scenes. If so, manually adjust...
