- 11 -

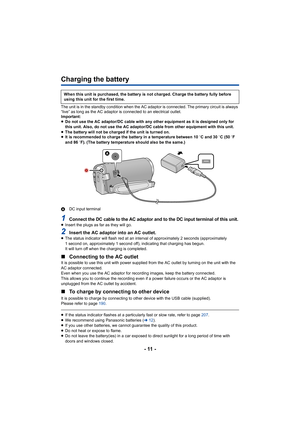

Charging the battery
The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always
“live” as long as the AC adaptor is connected to an electrical  outlet.
Important:
≥ Do not use the AC adaptor/DC cable with any other equipment as  it is designed only for
this unit. Also, do not use the AC adaptor/DC cable from other  equipment with this unit.
≥ The battery will not be charged if the unit is turned on.
≥ It is recommended to charge the battery in a...

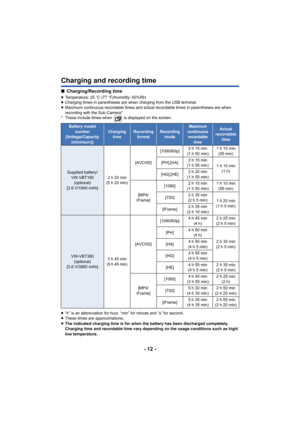

- 12 -
Charging and recording time
∫Charging/Recording time
≥Temperature: 25 oC (77  oF)/humidity: 60%RH
≥ Charging times in parentheses are when charging from the USB te rminal.
≥ Maximum continuous recordable times and actual recordable times  in parentheses are when
recording with the Sub Camera*.
* These include times when   is displayed on the screen.
≥ “h” is an abbreviation for hour, “min” for minute and “s” for s econd.
≥ These times are approximations.
≥ The indicated charging time is for when...

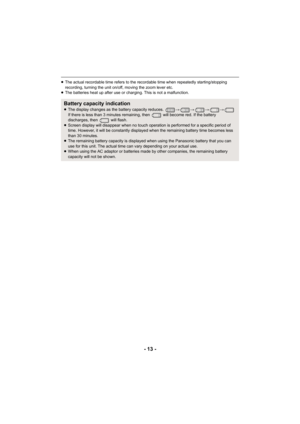

- 13 -
≥The actual recordable time refers to the recordable time when r epeatedly starting/stopping
recording, turning the unit on/off, moving the zoom lever etc.
≥ The batteries heat up after use or charging. This is not a malf unction.
Battery capacity indication≥The display changes as the battery capacity reduces.  ####
If there is less than 3 minutes  remaining, then   will become re d. If the battery
discharges, then   will flash.
≥ Screen display will disappear when no touch operation is perfor...

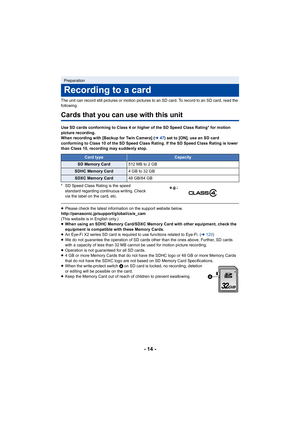

- 14 -
The unit can record still pictures or motion pictures to an SD card. To record to an SD card, read the
following.
Cards that you can use with this unit
Use SD cards conforming to Class 4 or higher of the SD Speed Cla ss Rating* for motion
picture recording.
When recording with [Backup for Twin Camera] ( l47) set to [ON], use an SD card
conforming to Class 10 of the SD Speed Class Rating. If the SD  Speed Class Rating is lower
than Class 10, recording may suddenly stop.
* SD Speed Class Rating...

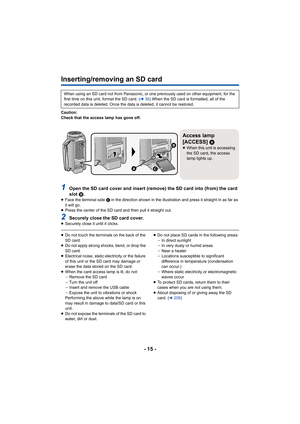

- 15 -
Inserting/removing an SD card
Caution:
Check that the access lamp has gone off.
1Open the SD card cover and insert (remove) the SD card into (from) the card
slot  B.
≥ Face the terminal side  C in the direction shown in the illustration and press it straig ht in as far as
it will go.
≥ Press the center of the SD card and then pull it straight out.
2Securely close the SD card cover.≥Securely close it until it clicks.
≥Do not touch the terminals on the back of the
SD card.
≥ Do not apply strong...

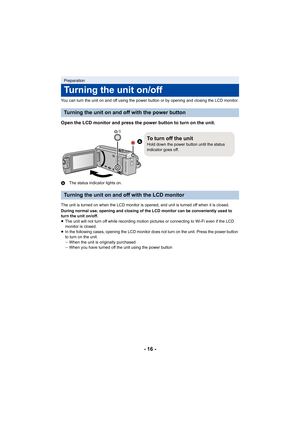

- 16 -
You can turn the unit on and off using the power button or by opening and closing the LCD monitor.
Open the LCD monitor and press the power button to turn on the  unit.
AThe status indicator lights on.
The unit is turned on when the LCD monitor is opened, and unit  is turned off when it is closed.
During normal use, opening and closing of the LCD monitor can b e conveniently used to
turn the unit on/off.
≥ The unit will not turn off while recording motion pictures or c onnecting to Wi-Fi even if...

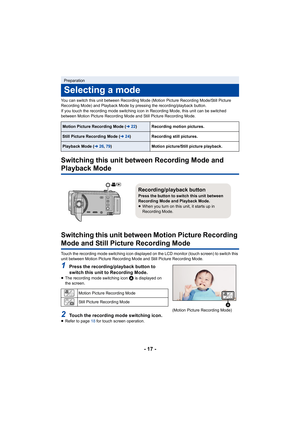

- 17 -
You can switch this unit between Recording Mode (Motion Picture Recording Mode/Still Picture
Recording Mode) and Playback Mode by pressing the recording/playback button.
If you touch the recording mode switching icon in Recording Mod e, this unit can be switched
between Motion Picture Recording Mode and Still Picture Recordi ng Mode.
Switching this unit between Recording Mode and
Playback Mode
Switching this unit between Motion Picture Recording
Mode and Still Picture Recording Mode
Touch the...

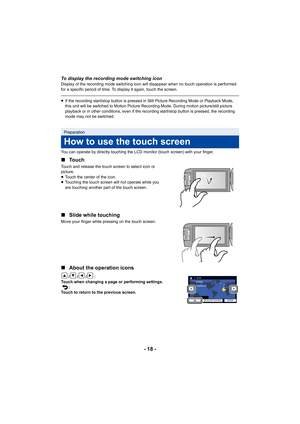

- 18 -
To display the recording mode switching iconDisplay of the recording mode switching icon will disappear when no touch operation is performed
for a specific period of time. To display it again, touch the screen.
≥If the recording start/stop button is pressed in Still Picture  Recording Mode or Playback Mode,
this unit will be switched to Motion Picture Recording Mode. During motion picture/still picture
playback or in other conditions, even if the recording start/st op button is pressed, the...

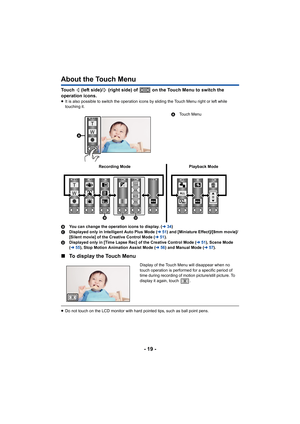

- 19 -
About the Touch Menu
Touch   (left side)/  (right side) of   on the Touch Menu to switch the
operation icons.
≥ It is also possible to switch the operation icons by sliding th e Touch Menu right or left while
touching it.
B You can change the operation icons to display. ( l34)
C Displayed only in Intelligent Auto Plus Mode ( l51) and [Miniature Effect]/[8mm movie]/
[Silent movie] of the Creative Control Mode ( l51).
D Displayed only in [Time Lapse Rec] of the Creative Control Mode  (l 51), Scene...

- 20 -

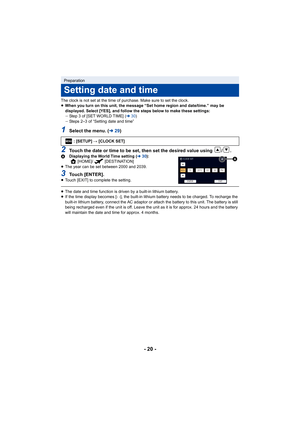

The clock is not set at the time of purchase. Make sure to set the clock.
≥ When you turn on this unit, the message “Set home region and da te/time.” may be
displayed. Select [YES], and follow the steps below to make the se settings:
j Step 3 of [SET WORLD TIME] ( l30)
j Steps 2–3 of “Setting date and time”
1Select the menu. ( l29)
2Touch the date or time to be set, then set the desired value us ing /.ADisplaying the World Time setting ( l30):
[HOME]/ [DESTINATION]
≥ The year can be set between...
