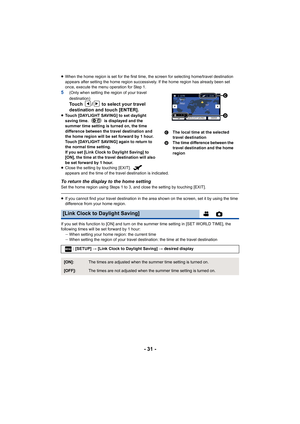

- 31 -
≥When the home region is set for the first time, the screen for  selecting home/travel destination
appears after setting the home region successively. If the home  region has already been set
once, execute the menu operation for Step 1.
5(Only when setting the region of your travel
destination)
Touch  /  to select your travel
destination and touch [ENTER].
≥ Touch [DAYLIGHT SAVING] to set daylight
saving time.   is displayed and the
summer time setting is turned on, the time
difference...

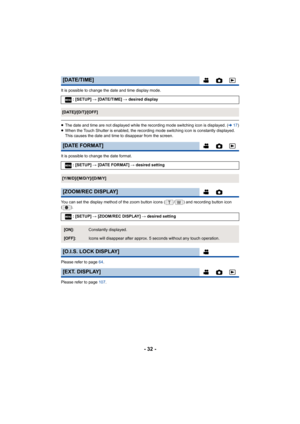

- 32 -
It is possible to change the date and time display mode.
≥The date and time are not displayed while the recording mode sw itching icon is displayed. (l17)
≥ When the Touch Shutter is enabled, the recording mode switching  icon is constantly displayed.
This causes the date and time to disappear from the screen.
It is possible to change the date format.
You can set the display method of the zoom button icons ( / ) and  recording button icon
().
Please refer to page  64.
Please refer to page  107....

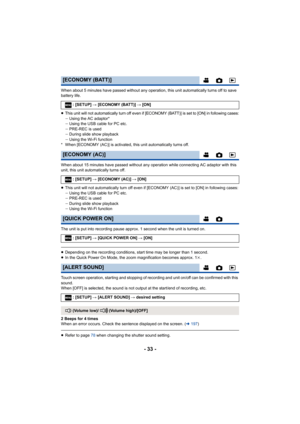

- 33 -
When about 5 minutes have passed without any operation, this unit automatically turns off to save
battery life.
≥
This unit will not automatically turn off even if [ECONOMY (BAT T)] is set to [ON] in following cases:jUsing the AC adaptor*
j Using the USB cable for PC etc.
j PRE-REC is used
j During slide show playback
j Using the Wi-Fi function
* When [ECONOMY (AC)] is activated, this unit automatically turn s off.
When about 15 minutes have passed without any operation while co nnecting AC...

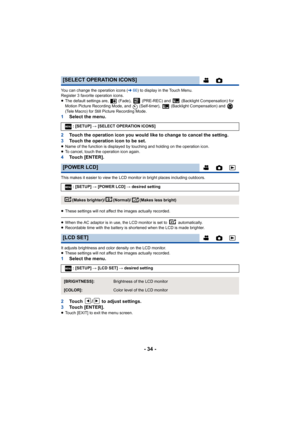

- 34 -
You can change the operation icons (l66) to display in the Touch Menu.
Register 3 favorite operation icons.
≥ The default settings are,   (Fade),   (PRE-REC) and   (Backlight C ompensation) for
Motion Picture Recording Mode, and   (Self-timer),   (Backlight C ompensation) and
(Tele Macro) for Still Picture Recording Mode.
1 Select the menu.
2 Touch the operation icon you would like to change to cancel the  setting.
3 Touch the operation icon to be set.
≥Name of the function is displayed by...

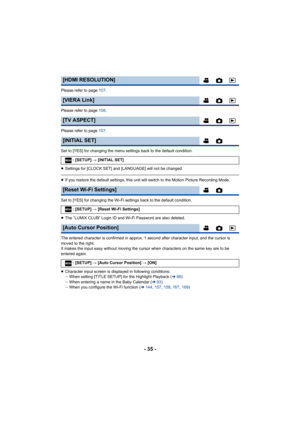

- 35 -
Please refer to page 107.
Please refer to page  108.
Please refer to page  107.
Set to [YES] for changing the menu settings back to the default  condition.
≥ Settings for [CLOCK SET] and [LANGUAGE] will not be changed.
≥If you restore the default settings, this unit will switch to t he Motion Picture Recording Mode.
Set to [YES] for changing the Wi-Fi settings back to the default condition.
≥ The “LUMIX CLUB” Login ID and Wi-Fi Password are also deleted.
The entered character is confirmed in...

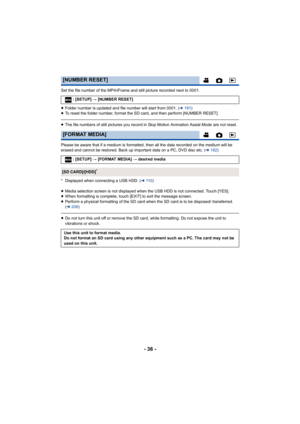

- 36 -
Set the file number of the MP4/iFrame and still picture recorded next to 0001.
≥ Folder number is updated and f ile number will start from 0001. (l 191 )
≥ To reset the folder number, format the SD card, and then perfor m [NUMBER RESET].
≥The file numbers of still pictures you record in Stop Motion An imation Assist Mode are not reset.
Please be aware that if a medium is formatted, then all the dat a recorded on the medium will be
erased and cannot be restored. Back up important data on a PC,...

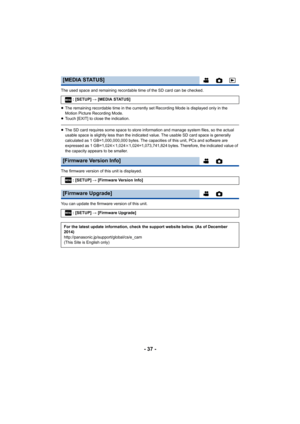

- 37 -
The used space and remaining recordable time of the SD card can be checked.
≥ The remaining recordable time in the currently set Recording Mode is displayed only in the
Motion Picture Recording Mode.
≥ Touch [EXIT] to close the indication.
≥The SD card requires some space to store information and manage  system files, so the actual
usable space is slightly less than the indicated value. The usa ble SD card space is generally
calculated as 1 GB=1,000,000,000 bytes. The capacities of this u nit,...

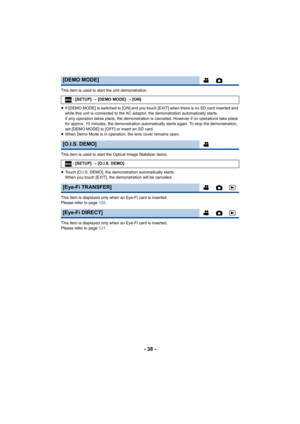

- 38 -
This item is used to start the unit demonstration.
≥If [DEMO MODE] is switched to [ON] and you touch [EXIT] when th ere is no SD card inserted and
while this unit is connected to the AC adaptor, the demonstrati on automatically starts.
If any operation takes place, the demonstration is canceled. Ho wever if no operations take place
for approx. 10 minutes, the demonstration automatically starts again. To stop the demonstration,
set [DEMO MODE] to [OFF] or insert an SD card.
≥ When Demo Mode is...

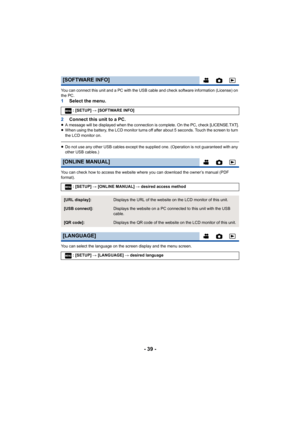

- 39 -
You can connect this unit and a PC with the USB cable and check software information (License) on
the PC.
1 Select the menu.
2 Connect this unit to a PC.
≥A message will be displayed when the connection is complete. On  the PC, check [LICENSE.TXT].≥When using the battery, the LCD monitor turns off after about 5 seconds. Touch the screen to turn
the LCD monitor on.
≥ Do not use any other USB cables except the supplied one. (Opera tion is not guaranteed with any
other USB cables.)
You can check...

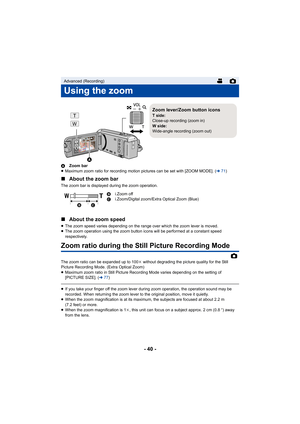

- 40 -
AZoom bar
≥ Maximum zoom ratio for recording motion pictures can be set wit h [ZOOM MODE]. (l71)
∫ About the zoom bar
The zoom bar is displayed during the zoom operation.
∫About the zoom speed
≥The zoom speed varies depending on the range over which the zoo m lever is moved.
≥ The zoom operation using the zoom button icons will be performe d at a constant speed
respectively.
Zoom ratio during the Still Picture Recording Mode
The zoom ratio can be expanded up to 100 k without degrading the picture...
