Panasonic Kx Tgf340 Operating Instructions Manual

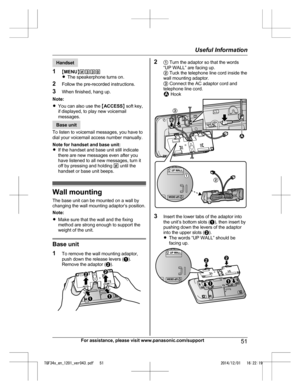

Handset
1 MM
ENUN#330
R The speakerphone turns on.
2 Follow the pre-recorded instructions.
3 When finished, hang up.
Note:
R You can also use the  MACCESS N soft key,
if displayed, to play new voicemail
messages. Base unit
T

o listen to voicemail messages, you have to
dial your voicemail access number manually.
Note for handset and base unit:
R If the handset and base unit still indicate
there are new messages even after you
have listened to all new messages, turn it
off by pressing and holding  # until...

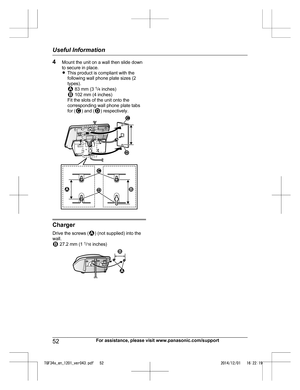

4
Mount the unit on a wall then slide down
to secure in place.
RThis product is compliant with the
following wall phone plate sizes (2
types).  83 mm (3
1
/4
 inches)  102 mm (4 inches)
F
it the slots of the unit onto the
corresponding wall phone plate tabs
for ( ) and ( ) respectively.
Charger
D

rive the screws ( ) (not supplied) into the
w

all.  27.2 mm (1
1
/1
 6 inches) 52
For assistance, please visit www.panasonic.com/supportUseful Information
TGF34x_en_1201_ver043.pdf   522014/12/01...

Error messages
Display message Cause/solution
Ask phone
c ompany for
VM access # R
You have not stored the voicemail access number. Store the
number (page 50).
Base no power
o
 r
No link. Re-
connect base
AC adaptor.
or
No link. R
Confirm the base unit’s AC adaptor is connected to the unit
and the power outlet correctly.
R The handset has lost communication with the base unit. Move
closer to the base unit and try again.
R Unplug the base unit’s AC adaptor to reset the unit.
Reconnect the adaptor and try...

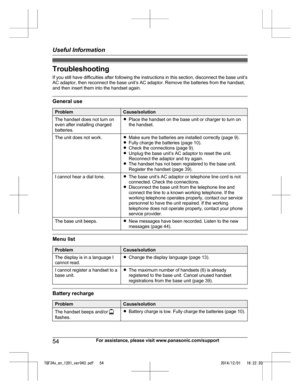

Troubleshooting
I f you still have difficulties after following the instructions in this section, disconnect the base unit’s
AC adaptor, then reconnect the base unit’s AC adaptor. Remove the batteries from the handset,
and then insert them into the handset again. General use
Problem Cause/solution
The handset does not turn on
e
 ven after installing charged
batteries. R
Place the handset on the base unit or charger to turn on
the handset.
The unit does not work. RM
ake sure the batteries are installed...

Problem Cause/solution
I fully charged the batteries, but
–  still flashes,
–  is displayed, or
–
the operating time seems to be shorter. R
C
lean the battery ends ( ,  ) and the charge contacts
w
ith a dry cloth and charge again.
R It is time to replace the batteries (page 9). Making/answering calls, intercom
Problem Cause/solution
 is displayed.
R
T
he handset is too far from the base unit. Move closer.
RThe base unit’s AC adaptor is not properly connected.
Reconnect AC adaptor to the base unit.
R The...

Caller ID/Talking Caller ID
Problem Cause/solution
Caller information is not
d isplayed. R
You must subscribe to Caller ID service. Contact your
phone service provider for details.
R If your unit is connected to any additional telephone
equipment such as a Caller ID box or cordless telephone
line jack, plug the unit directly into the wall jack.
R If you use a DSL/ADSL service, we recommend
connecting a DSL/ADSL filter between the base unit and
the telephone line jack. Contact your DSL/ADSL provider
for...

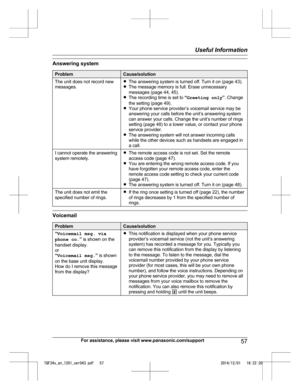

Answering system
Problem Cause/solution
The unit does not record new
m essages. R
The answering system is turned off. Turn it on (page 43).
RThe message memory is full. Erase unnecessary
messages (page 44, 45).
R The recording time is set to  “Greeting only ”. Change
the setting (page 49).
R Your phone service provider’s voicemail service may be
answering your calls before the unit’s answering system
can answer your calls. Change the unit’s number of rings
setting (page 48) to a lower value, or contact...

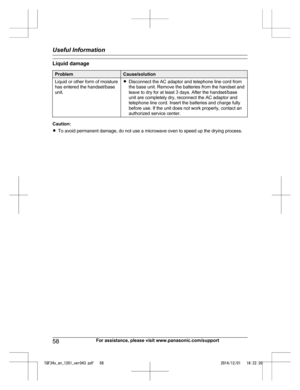

Liquid damage
Problem Cause/solution
Liquid or other form of moisture
h as entered the handset/base
unit. R
Disconnect the AC adaptor and telephone line cord from
the base unit. Remove the batteries from the handset and
leave to dry for at least 3 days. After the handset/base
unit are completely dry, reconnect the AC adaptor and
telephone line cord. Insert the batteries and charge fully
before use. If the unit does not work properly, contact an
authorized service center. Caution:
R
T

o avoid permanent...

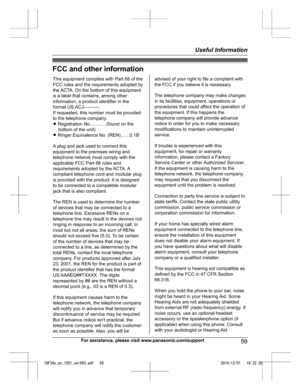

FCC and other information
For assistance, please visit www.panasonic.com/support
59Useful InformationTGF34x_en_1201_ver043.pdf   592014/12/01   16:22:20This equipment complies with Part 68 of the
FCC rules and the requirements adopted by
the ACTA. On the bottom of this equipment
is a label that contains, among other
information, a product identifier in the
format US:ACJ----------.
If requested, this number must be provided
to the telephone company.
L Registration No.............(found on the...

60
For assistance, please visit www.panasonic.com/supportUseful InformationTGF34x_en_1201_ver043.pdf   602014/12/01   16:22:20manufacturer about the availability of
Hearing Aids which provide adequate
shielding to RF energy commonly emitted
by digital devices.
WHEN PROGRAMMING EMERGENCY
NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to
the dispatcher the reason for the call.
2) Perform such activities in the off-peak
hours, such as early morning or...
