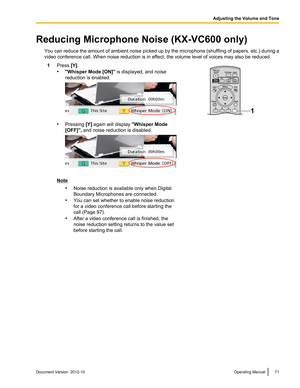

Reducing Microphone Noise (KX-VC600 only)You can reduce the amount of ambient noise picked up by the microphone (shuffling of papers, etc.) during a
video conference call. When noise reduction is in effect, the volume level of voices may also be reduced.1Press  [Y].
• "Whisper Mode [ON]"  is displayed, and noise
reduction is enabled.
• Pressing  [Y] again will display  "Whisper Mode
[OFF]",  and noise reduction is disabled.
Note
•Noise reduction is available only when Digital
Boundary...

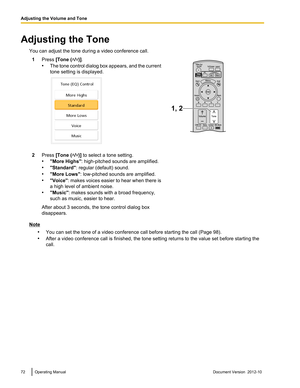

Adjusting the ToneYou can adjust the tone during a video conference call.1Press  [Tone (/)].
• The tone control dialog box appears, and the current
tone setting is displayed.2Press  [Tone (/)] to select a tone setting.
• "More Highs" : high-pitched sounds are amplified.
• "Standard" : regular (default) sound.
• "More Lows" : low-pitched sounds are amplified.
• "Voice" : makes voices easier to hear when there is
a high level of ambient noise.
• "Music" : makes...

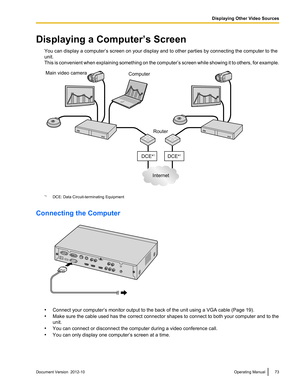

Displaying a Computer’s ScreenYou can display a computer’s screen on your display and to other parties by connecting the computer to the
unit.
This is convenient when explaining something on the computer ’s screen while showing it to others, for example.
*1
DCE: Data Circuit-terminating Equipment
Connecting the Computer
• Connect your computer’s monitor output to the back of the unit using a VGA cable (Page 19).
• Make sure the cable used has the correct connector shapes to connect to both your computer...

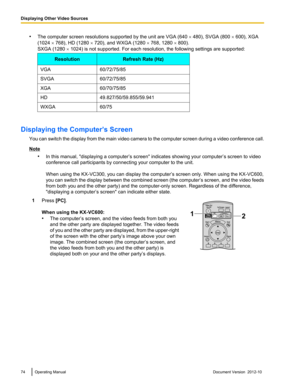

•The computer screen resolutions supported by the unit are VGA (640  ´ 480), SVGA (800  ´ 600), XGA
(1024  ´ 768), HD (1280  ´ 720), and WXGA (1280  ´ 768, 1280  ´ 800).
SXGA (1280  ´ 1024) is not supported. For each resolution, the following settings are supported:ResolutionRefresh Rate (Hz)VGA60/72/75/85SVGA60/72/75/85XGA60/70/75/85HD49.827/50/59.855/59.941WXGA60/75
Displaying the Computer’s Screen
You can switch the display from the main video camera to the computer screen during a video conference...

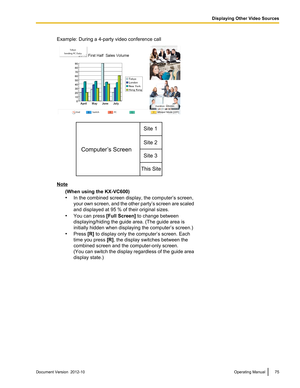

Example: During a 4-party video conference callNote(When using the KX-VC600)
• In the combined screen display, the computer’s screen,
your own screen, and the other party ’s screen are scaled
and displayed at 95 % of their original sizes.
• You can press  [Full Screen] to change between
displaying/hiding the guide area. (The guide area is
initially hidden when displaying the computer’s screen.)
• Press  [R] to display only the computer’s screen. Each
time you press  [R], the display switches between the...

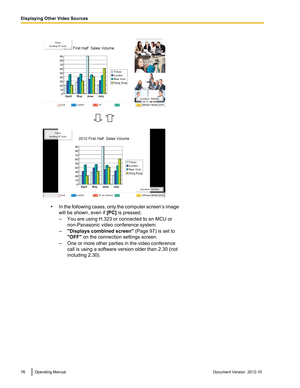

•In the following cases, only the computer screen ’s image
will be shown, even if  [PC] is pressed.
– You are using H.323 or connected to an MCU or
non-Panasonic video conference system.
– "Displays combined screen"  (Page 97) is set to
"OFF"  on the connection settings screen.
– One or more other parties in the video conference
call is using a software version older than 2.30 (not
including 2.30).76Operating ManualDocument Version  2012-10
Displaying Other Video Sources

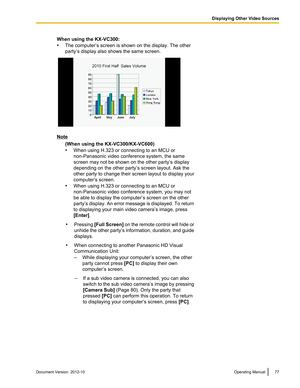

When using the KX-VC300:
• The computer’s screen is shown on the display. The other
party’s display also shows the same screen.
Note
(When using the KX-VC300/KX-VC600)
• When using H.323 or connecting to an MCU or
non-Panasonic video conference system, the same
screen may not be shown on the other party’s display
depending on the other party’s screen layout. Ask the
other party to change their screen layout to display your
computer’s screen.
• When using H.323 or connecting to an MCU or
non-Panasonic...

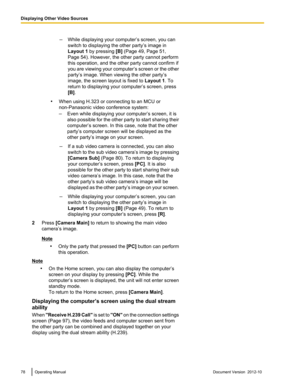

–While displaying your computer’s screen, you can
switch to displaying the other party’s image in
Layout 1  by pressing  [B] (Page 49, Page 51,
Page 54). However, the other party cannot perform
this operation, and the other party cannot confirm if
you are viewing your computer ’s screen or the other
party’s image. When viewing the other party’s
image, the screen layout is fixed to  Layout 1. To
return to displaying your computer’s screen, press
[B] .• When using H.323 or connecting to an MCU or...

Note•Dual stream is available only when you are using H.323 and
connected to an MCU or non-Panasonic video conference
system.
• You can switch the display by pressing the buttons on the
remote control.
– Press  [R] to display only the computer’s screen. Each
time you press  [R], the display switches between the
combined screen and the computer-only screen.Receiving a dual stream (combined screen)Receiving a dual stream (computer-only screen)– Press  [B] to display the other party ’s image in full...

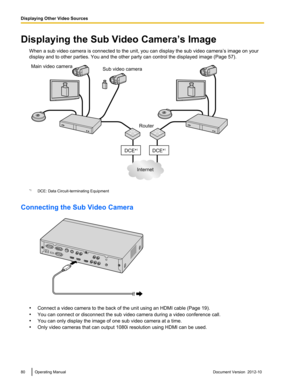

Displaying the Sub Video Camera’s ImageWhen a sub video camera is connected to the unit, you can display the sub video camera’s image on your
display and to other parties. You and the other party can control the displayed image (Page 57).
*1 DCE: Data Circuit-terminating Equipment
Connecting the Sub Video Camera
• Connect a video camera to the back of the unit using an HDMI cable (Page 19).
• You can connect or disconnect the sub video camera during a video conference call.
• You can only display the...
