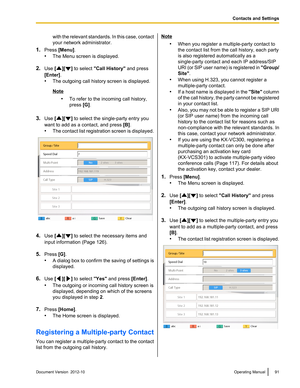

with the relevant standards. In this case, contact
your network administrator.
1. Press  [Menu] .
• The Menu screen is displayed.
2. Use  [
][] to select  "Call History"  and press
[Enter] .
• The outgoing call history screen is displayed.
Note
•To refer to the incoming call history,
press  [G].
3. Use  [
][] to select the single-party entry you
want to add as a contact, and press  [B].
• The contact list registration screen is displayed.
4.Use  [][] to select the necessary items and
input...

4.Use  [][] to select the necessary items and
input information (Page 126).
5. Press  [G].
• A dialog box to confirm the saving of settings is
displayed.
6. Use  [
][] to select  "Yes" and press  [Enter].
• The call history screen is displayed.
7. Press  [Home] .
• The Home screen is displayed.

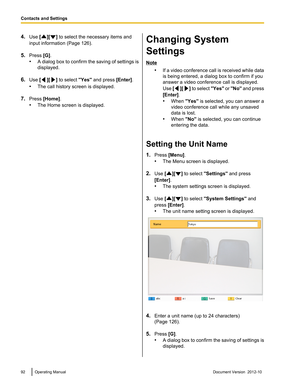

Changing System
Settings
Note •If a video conference call is received while data
is being entered, a dialog box to confirm if you
answer a video conference call is displayed.
Use  [
][] to select...

6.Use  [][] to select  "Yes" and press  [Enter].
• The system settings screen is displayed.
7. Press  [Home] .
• The Home screen is displayed.

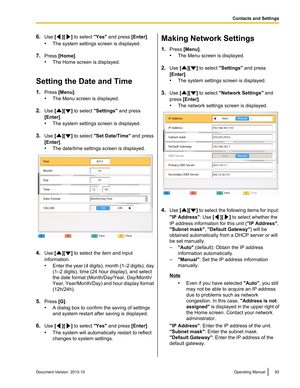

Setting the Date and Time
1. Press  [Menu] .
• The Menu screen is displayed.
2. Use  [
][] to select  "Settings"  and press
[Enter] .
• The system settings screen is displayed.
3. Use  [
][] to select  "Set Date/Time"  and press
[Enter] .
• The date/time settings screen is displayed.
4.Use  [][] to select the item and input
information.
•...

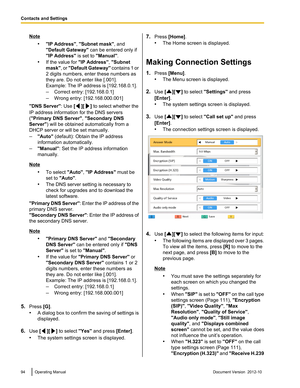

Note•"IP Address" , "Subnet mask" , and
"Default Gateway"  can be entered only if
"IP Address"  is set to "Manual" .
• If the value for  "IP Address", "Subnet
mask" , or "Default Gateway " contains 1 or
2 digits numbers, enter these numbers as
they are. Do not enter like [.001].
Example: The IP address is [192.168.0.1].
– Correct entry: [192.168.0.1]
– Wrong entry: [192.168.000.001]
"DNS Server" : Use [
][] to select whether the
IP...

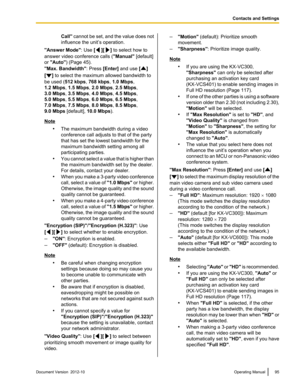

Call" cannot be set, and the value does not
influence the unit’s operation.
"Answer Mode" : Use [
][] to select how to
answer video conference calls ( "Manual" [default]
or  "Auto" ) (Page 45).
"Max. Bandwidth" : Press [Enter] and use  [
]
[
]  to select the maximum allowed bandwidth to
be used ( 512 kbps , 768 kbps , 1.0 Mbps ,
1.2 Mbps , 1.5 Mbps , 2.0 Mbps , 2.5 Mbps ,
3.0 Mbps , 3.5 Mbps , 4.0 Mbps , 4.5 Mbps ,
5.0 Mbps , 5.5 Mbps , 6.0 Mbps , 6.5 Mbps ,
7.0 Mbps ,...

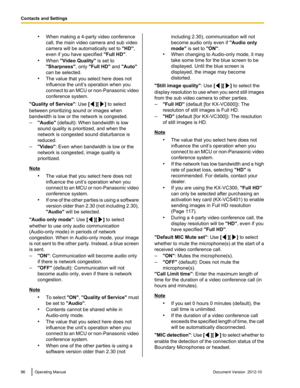

•When making a 4-party video conference
call, the main video camera and sub video
camera will be automatically set to  "HD",
even if you have specified  "Full HD".
• When  "Video Quality"  is set to
"Sharpness" , only "Full HD"  and "Auto"
can be selected.
• The value that you select here does not
influence the unit’s operation when you
connect to an MCU or non -Panasonic video
conference system.
"Quality of Service" : Use [
][] to select
between...

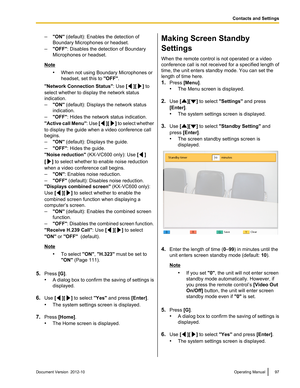

–"ON"  (default): Enables the detection of
Boundary Microphones or headset.
– "OFF" : Disables the detection of Boundary
Microphones or headset.
Note
•When not using Boundary Microphones or
headset, set this to  "OFF".
"Network Connection Status" : Use [
][] to
select whether to display the network status
indication.
– "ON"  (default): Displays the network status
indication.
– "OFF" : Hides the network status indication.
" Active call Menu ": Use...

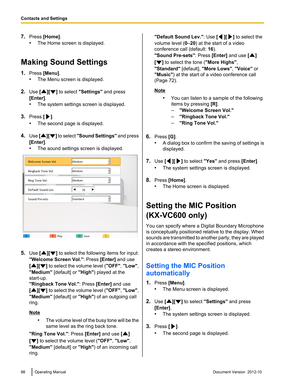

7.Press  [Home] .
• The Home screen is displayed.
Making Sound Settings
1. Press  [Menu] .
• The Menu screen is displayed.
2. Use  [
][] to select  "Settings"  and press
[Enter] .
• The system settings screen is displayed.
3. Press  [
].
• The second page is displayed.
4. Use  [
][] to select  "Sound Settings " and press
[Enter] .
• The sound settings screen is displayed.
5.Use  [][] to select the following items for input:
"Welcome Screen Vol." : Press [Enter] and use
[
][]  to...

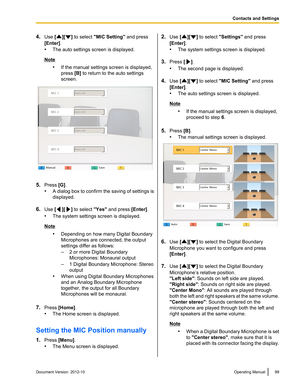

4.Use  [][] to select  "MIC Setting"  and press
[Enter] .
• The auto settings screen is displayed.
Note
•If the manual settings screen is displayed,
press  [B] to return to the auto settings
screen.
5. Press  [G].
• A dialog box to confirm the saving of settings is
displayed.
6. Use  [
][] to select  "Yes" and press  [Enter].
• The system settings screen is displayed.
Note
•Depending on how many Digital Boundary
Microphones are connected, the output
settings differ as follows:
– 2 or more...

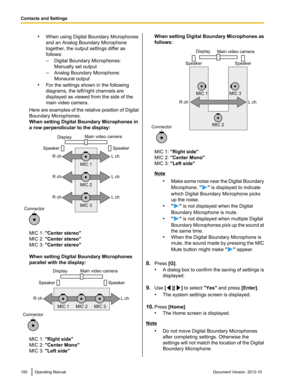

•When using Digital Boundary Microphones
and an Analog Boundary Microphone
together, the output settings differ as
follows:
– Digital Boundary Microphones:
Manually set output
– Analog Boundary Microphone:
Monaural output
• For the settings shown in the following
diagrams, the left/right channels are
displayed as viewed from the side of the
main video camera.
Here are examples of the relative position of Digital
Boundary Microphones.
When setting Digital Boundary Microphones in
a row perpendicular to the...
