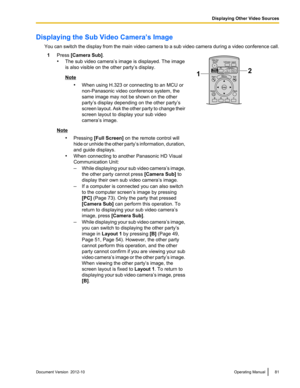

Displaying the Sub Video Camera’s ImageYou can switch the display from the main video camera to a sub video camera during a video conference call.1Press  [Camera Sub] .
• The sub video camera’s image is displayed. The image
is also visible on the other party’s display.
Note
•When using H.323 or connecting to an MCU or
non-Panasonic video conference system, the
same image may not be shown on the other
party’s display depending on the other party’s
screen layout. Ask the other party to change their
screen...

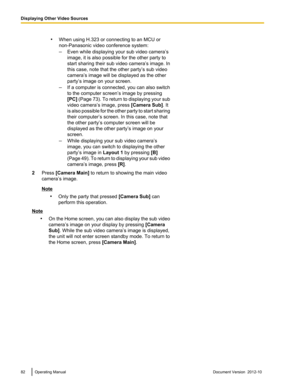

•When using H.323 or connecting to an MCU or
non-Panasonic video conference system:
– Even while displaying your sub video camera’s
image, it is also possible for the other party to
start sharing their sub video camera’s image. In
this case, note that the other party’s sub video
camera’s image will be displayed as the other
party’s image on your screen.
– If a computer is connected, you can also switch
to the computer screen’s image by pressing
[PC]  (Page  73). To return to displaying your sub
video...

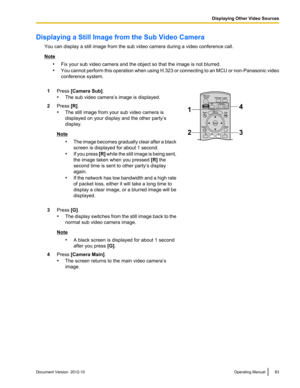

Displaying a Still Image from the Sub Video CameraYou can display a still image from the sub video camera during a video conference call.
Note•Fix your sub video camera and the object so that the image is not blurred.
• You cannot perform this operation when using H.323 or connecting to an MCU or non -Panasonic video
conference system.
1Press  [Camera Sub] .
• The sub video camera’s image is displayed.2Press  [R].
• The still image from your sub video camera is
displayed on your display and the other...

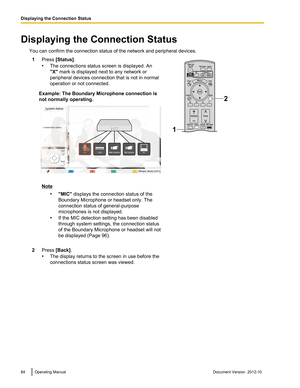

Displaying the Connection StatusYou can confirm the connection status of the network and peripheral devices.1Press  [Status] .
• The connections status screen is displayed. An
"X"  mark is displayed next to any network or
peripheral devices connection that is not in normal
operation or not connected.
Example: The Boundary Microphone connection is
not normally operating.
Note
•"MIC"  displays the connection status of the
Boundary Microphone or headset only. The
connection status of...

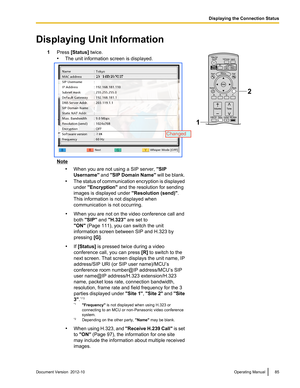

Displaying Unit Information1Press [Status]  twice.
• The unit information screen is displayed.Note
•When you are not using a SIP server,  "SIP
Username"  and "SIP Domain Name " will be blank.
• The status of communication encryption is displayed
under  "Encryption"  and the resolution for sending
images is displayed under  "Resolution (send)".
This information is not displayed when
communication is not occurring.• When you are not on the video conference call and
both...

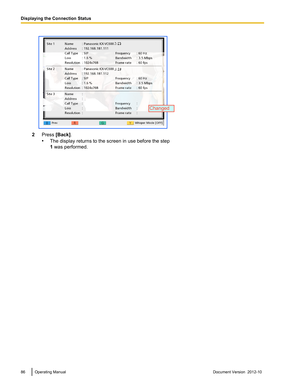

2Press [Back] .
• The display returns to the screen in use before the step
1  was performed.86Operating ManualDocument Version  2012-10
Displaying the Connection Status

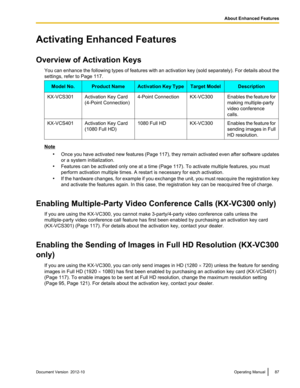

Activating Enhanced Features
Overview of Activation Keys You can enhance the following types of features with an activation key (sold separately). For details about the
settings, refer to Page 117.Model No.Product NameActivation Key TypeTarget ModelDescriptionKX-VCS301Activation Key Card
(4-Point Connection)4-Point ConnectionKX-VC300Enables the feature for
making multiple-party
video conference
calls.KX-VCS401Activation Key Card
(1080 Full HD)1080 Full HDKX-VC300Enables the feature for
sending images in...

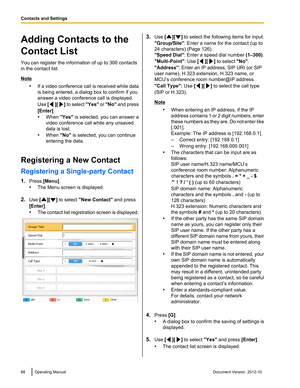

Adding Contacts to the
Contact List
You can register the information of up to 300 contacts
in the contact list.
Note
•If a video conference call is received while data
is being entered, a dialog box to confirm if you
answer a video conference call is displayed.
Use  [
][] to select  "Yes" or "No"  and press
[Enter] .
• When  "Yes" is selected, you can answer a
video conference call while any unsaved
data is lost.
• When  "No" is selected, you can continue
entering the...

Note•To continue entering another contact, press
[B]  and repeat steps  3–5.
6. Press  [Home] .
• The Home screen is displayed.

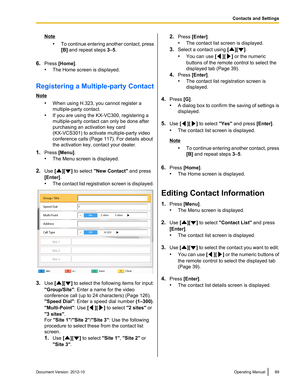

Registering a Multiple-party Contact
Note •When using H.323, you cannot register a
multiple-party contact.
• If you are using the KX-VC300, registering a
multiple-party contact can only be done after
purchasing an activation key card
(KX-VCS301) to activate multiple-party video
conference calls (Page 117). For details about
the activation key, contact your dealer.
1. Press...

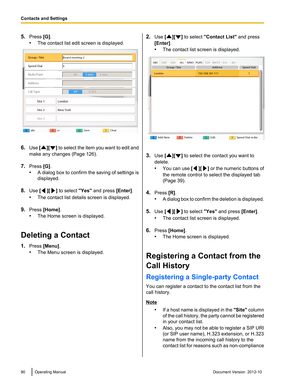

5.Press  [G].
• The contact list edit screen is displayed.
6.Use  [][] to select the item you want to edit and
make any changes (Page 126).
7. Press  [G].
• A dialog box to confirm the saving of settings is
displayed.
8. Use  [
][] to select  "Yes" and press  [Enter].
• The contact list details screen is displayed.
9. Press  [Home] .
• The Home screen is displayed.
Deleting a Contact
1. Press  [Menu] .
• The Menu screen is displayed.
2.Use  [][] to select  "Contact List"  and press...
