Panasonic Lcd Tv Dvd Recorder Combination Tc 22lr30 Operating Instructions

71

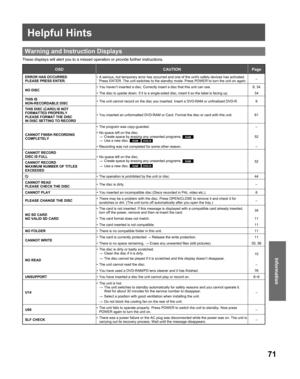

Information
These displays will alert you to a missed operation or provide further instructions.
Helpful Hints
  Warning and Instruction Displays
OSD CAUTION Page
ERROR HAS OCCURRED
PLEASE PRESS ENTER.•  A serious, but temporary error has occurred and one of the units safety devices has activated.
Press ENTER. The unit switches to the standby mode. Press POWER to turn the unit on again.–
NO DISC•  You haven’t inserted a disc. Correctly insert a disc that this unit can use. 9, 34
•  The disc is upside...

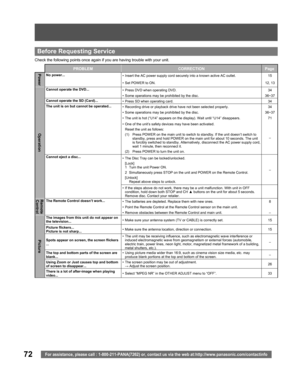

72For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
Check the following points once again if you are having trouble with your unit.
PROBLEM CORRECTION PagePowerNo power...
•  Insert the AC power supply cord securely into a known active AC outlet. 15
•  Set POWER to ON. 12, 13
Operation
Cannot operate the DVD...
•  Press DVD when operating DVD. 34
•  Some operations may be prohibited by the disc. 36~37
Cannot operate the SD (Card)...
•...

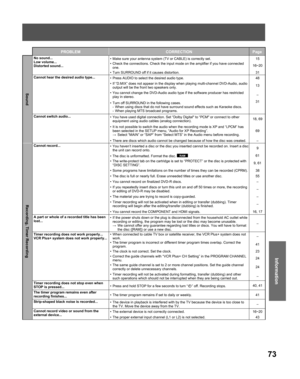

73
Information
PROBLEM CORRECTION Page
Sound
No sound...
Low volume...
Distorted sound...•  Make sure your antenna system (TV or CABLE) is correctly set. 15
•  Check the connections. Check the input mode on the amplifier if you have connected
one.16~20
•  Turn SURROUND off if it causes distortion. 31
Cannot hear the desired audio type...
•  Press AUDIO to select the desired audio type. 48
•  If “D.MIX” does not appear in the display when playing multi-channel DVD-Audio, audio
output will be the front...

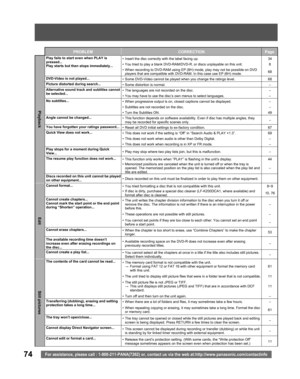

74For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
PROBLEM CORRECTION Page
Playback
Play fails to start even when PLAY is
pressed...
Play starts but then stops immediately...•  Insert the disc correctly with the label facing up. 34
•  You tried to play a blank DVD-RAM/DVD-R, or discs unplayable on this unit. 8
•  When recording to DVD-RAM using EP (8H) mode, play may not be possible on DVD
players that are compatible with DVD-RAM. In...

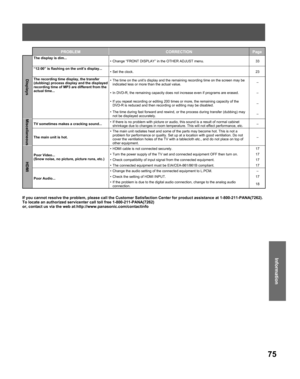

75
Information
PROBLEM CORRECTION Page
Displays
The display is dim...
•  Change “FRONT DISPLAY” in the OTHER ADJUST menu. 33
“12:00” is flashing on the unit’s display...
• Set the clock.23
The recording time display, the transfer
(dubbing) process display and the displayed
recording time of MP3 are different from the
actual time...•  The time on the unit’s display and the remaining recording time on the screen may be
indicated less or more than the actual value.–
•  In DVD-R, the remaining capacity...

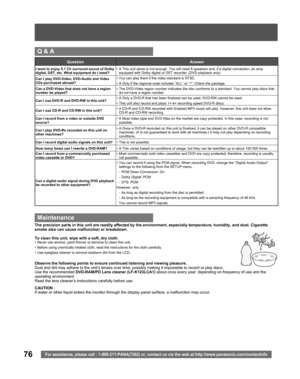

76For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
  Q & A
Question Answer
I want to enjoy 5.1 Ch surround sound of Dolby
digital, DST, etc. What equipment do I need?•  A This unit alone is not enough. You will need 6 speakers and, if a digital connection, an amp
equipped with Dolby digital or DST recorder. (DVD playback only)
Can I play DVD-Video, DVD-Audio and Video
CDs purchased abroad?•  You can play them if the video standard is...

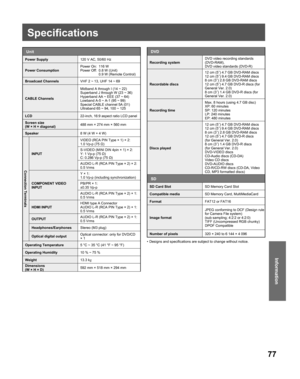

77
Information
•  Designs and specifications are subject to change without notice.
  Specifications
Unit
Power Supply120 V AC, 50/60 Hz
Power ConsumptionPower On:  116 W
Power Off:  0.8 W (Unit)
  0.9 W (Remote Control)
Broad cast ChannelsVHF 2 ~ 13, UHF 14 ~ 69
CA BLE ChannelsMidband A through I (14 ~ 22)
Superband J through W (23 ~ 36)
Hyperband AA ~ EEE (37 ~ 64)
Lowband A-5 ~ A-1 (95 ~ 99)
Special CABLE channel 5A (01)
Ultraband 65 ~ 94, 100 ~ 125
LCD22-inch, 16:9 aspect ratio LCD panel
Screen size...

78For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

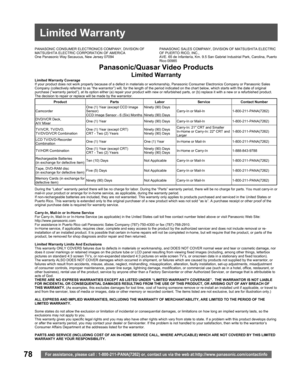

PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
One Panasonic Way Secaucus, New Jersey 07094PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA ELECTRIC
OF PUERTO RICO, INC.,
AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto
Rico 00985
Panasonic/Quasar Video Products
Limited Warranty
Limited Warranty Coverage
If...

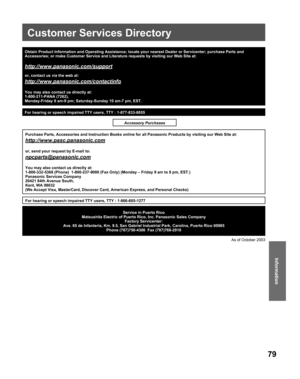

79
Information
As of October 2003
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and
Accessories; or make Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/support
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
Service in Puerto Rico
Matsushita Electric of...

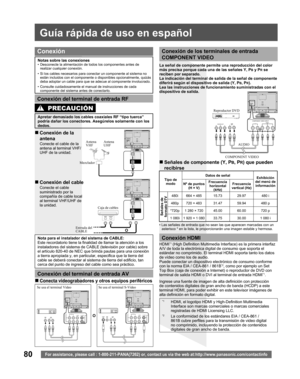

80For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
Guía rápida de uso en español
Notas sobre las conexiones•  Desconecte la alimentación de todos los componentes antes de
realizar cualquier conexión.
•  Si los cables necesarios para conectar un componente al sistema no
están incluidos con el componente o disponibles opcionalmente, quizás
deba adoptar un cable para que se adecue al componente involucrado.
•  Consulte cuidadosamente el...
