Panasonic Lumix Dmc Lc50 Operating Instructions

Downloaded from www.Manualslib.com manuals search engine Operating Instructions
Digital Camera
Model No.DMC-LC80GN
DMC-LC70GN
DMC-LC50GN
Before use, please read these
instructions completely.
VQT0M82
LC80GN.book  1 ページ  ２００４年６月１７日　木曜日　午前１０時１８分

Downloaded from www.Manualslib.com manuals search engine Safety
2
SafetyDear Customer,
We would like to take this opportunity to
thank you for purchasing this Panasonic
Digital Camera. Please read these
Operating Instructions carefully and
keep them handy for future reference.
Information for Your
Safety
Carefully observe copyright laws.
Recording of pre-recorded tapes or
discs or other published or
broadcast material for purposes
other than your own private use may
infringe copyright laws. Even...

Downloaded from www.Manualslib.com manuals search engine Safety
3
Extremely high precision technology
is employed to produce the LCD
monitor screen. The result is more
than 99.99% effective pixels with a
mere 0.01% of the pixels inactive or
always lit. However, this is not a
malfunction and does not affect the
recorded pictures.
LC80GN.book  3 ページ  ２００４年６月１７日　木曜日　午前１０時１８分

Downloaded from www.Manualslib.com manuals search engine 4
Contents
Safety
Information for Your Safety ................. 2
Preparation
Standard Accessories ......................... 6
Names of the Components ................. 7
Quick Guide ........................................ 9
Charging the Batteries ...................... 10
About the Battery .............................. 11
Inserting/Removing the Batteries ...... 16
About the Card .................................. 17
Inserting/Removing the Card...

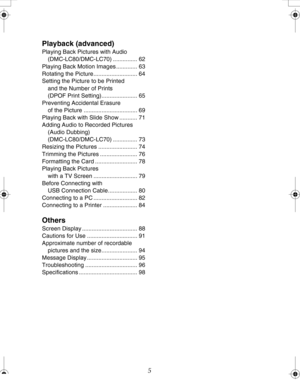

Downloaded from www.Manualslib.com manuals search engine 5
Playback (advanced)
Playing Back Pictures with Audio
(DMC-LC80/DMC-LC70) ............... 62
Playing Back Motion Images ............. 63
Rotating the Picture........................... 64
Setting the Picture to be Printed
and the Number of Prints
(DPOF Print Setting)...................... 65
Preventing Accidental Erasure
of the Picture ................................. 69
Playing Back with Slide Show ........... 71
Adding Audio to Recorded...

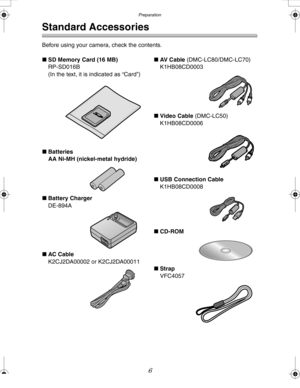

Downloaded from www.Manualslib.com manuals search engine Preparation
6
Preparation
Standard Accessories
Before using your camera, check the contents.
∫SD Memory Card (16 MB)
RP-SD016B
(In the text, it is indicated as “Card”)
∫Batteries
AA Ni-MH (nickel-metal hydride)
∫Battery Charger
DE-894A
∫AC Cable
K2CJ2DA00002 or K2CJ2DA00011∫AV  C a b l e  (DMC-LC80/DMC-LC70)
K1HB08CD0003
∫Video Cable (DMC-LC50)
K1HB08CD0006
∫USB Connection Cable
K1HB08CD0008
∫CD-ROM
∫Strap
VFC4057
LC80GN.book  6 ページ  ２００４年６月１７日　木曜日...

Downloaded from www.Manualslib.com manuals search engine Preparation
7
Preparation

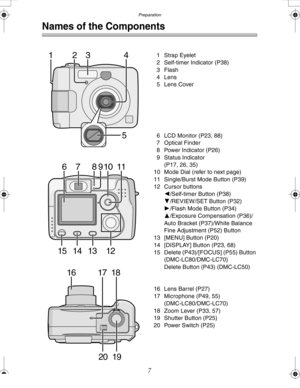

Names of the Components
1 Strap Eyelet
2 Self-timer Indicator (P38)
3Flash
4 Lens
5 Lens Cover
6 LCD Monitor (P23, 88)
7 Optical Finder
8 Power Indicator (P26)
9 Status Indicator
(P17, 26, 35)
10 Mode Dial (refer to next page)
11 Single/Burst Mode Button (P39)
12 Cursor buttons
2/Self-timer Button (P38)
4/REVIEW/SET Button (P32)
1/Flash Mode Button (P34)
3/Exposure Compensation (P36)/
Auto Bracket (P37)/White Balance...

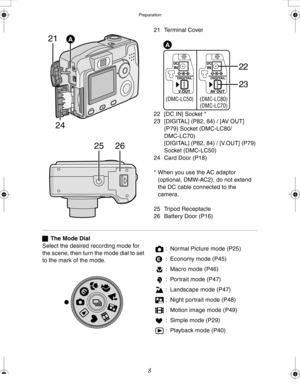

Downloaded from www.Manualslib.com manuals search engine Preparation
8
21 Terminal Cover
22 [DC IN] Socket *
23 [DIGITAL] (P82, 84) / [AV OUT]
(P79) Socket (DMC-LC80/
DMC-LC70)
[DIGITAL] (P82, 84) / [V.OUT] (P79)
Socket (DMC-LC50)
24 Card Door (P18)
* When you use the AC adaptor
(optional, DMW-AC2), do not extend
the DC cable connected to the
camera.
25 Tripod Receptacle
26 Battery Door (P16)
21
24
A
2526
(DMC-LC50)(DMC-LC70) (DMC-LC50)
A
(DMC-LC80)
(DMC-LC70) (DMC-LC50)
23
22
ªThe Mode Dial
Select...

Downloaded from www.Manualslib.com manuals search engine Preparation
9

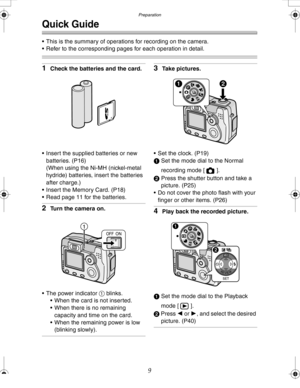

Quick Guide
 This is the summary of operations for recording on the camera.
 Refer to the corresponding pages for each operation in detail.
1Check the batteries and the card.
 Insert the supplied batteries or new
batteries. (P16)
(When using the Ni-MH (nickel-metal
hydride) batteries, insert the batteries
after charge.)
 Insert the Memory Card. (P18)
 Read page 11 for the batteries.
2Turn the camera on.
 The power indicator...

Downloaded from www.Manualslib.com manuals search engine Preparation
10

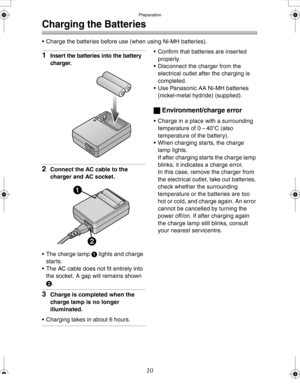

Charging the Batteries
 Charge the batteries before use (when using Ni-MH batteries).
1Insert the batteries into the battery
charger.
2Connect the AC cable to the
charger and AC socket.
 The charge lamp 1 lights and charge
starts.
 The AC cable does not fit entirely into
the socket. A gap will remains shown
2.
3Charge is completed when the
charge lamp is no longer
illuminated.
 Charging takes in about 6 hours.
 Confirm...
