Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)

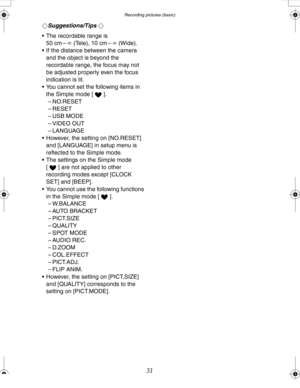

31
¬Suggestions/Tips ¬
 The recordable range is
50 cm –¶(Tele), 10 cm –¶(Wide).
 If the distance between the camera
and the object is beyond the
recordable range, the focus may not
be adjusted properly even the focus
indication is lit.
 You cannot set the following items in
the Simple mode [ ].
– NO.RESET
– RESET
–USB MODE
– VIDEO OUT
–LANGUAGE
 However, the setting on [NO.RESET]
and [LANGUAGE] in setup menu is...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)

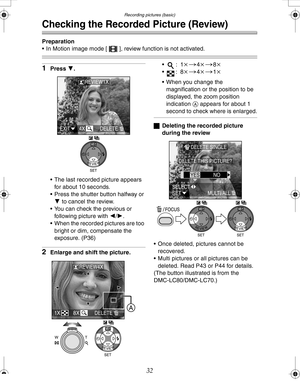

32
Checking the Recorded Picture (Review)
Preparation
 In Motion image mode [ ], review function is not activated.
1Press 4.
 The last recorded picture appears
for about 10 seconds.
 Press the shutter button halfway or
4 to cancel the review.
 You can check the previous or
following picture with 2/1.
 When the recorded pictures are too
bright or dim, compensate the
exposure. (P36)
2Enlarge and shift the...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)

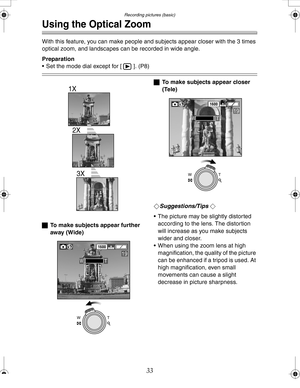

33
Using the Optical Zoom
With this feature, you can make people and subjects appear closer with the 3 times
optical zoom, and landscapes can be recorded in wide angle.
Preparation
 Set the mode dial except for [ ]. (P8)
ªTo make subjects appear further
away (Wide)ªTo make subjects appear closer
(Tele)
¬
Suggestions/Tips ¬
 The picture may be slightly distorted
according to the lens. The distortion
will increase as...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)

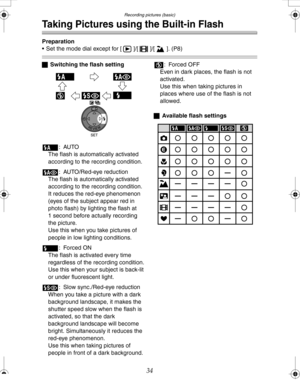

34
Taking Pictures using the Built-in Flash
Preparation
 Set the mode dial except for [ ]/[ ]/[ ]. (P8)
ªSwitching the flash setting
:AUTO
The flash is automatically activated
according to the recording condition.
: AUTO/Red-eye reduction
The flash is automatically activated
according to the recording condition.
It reduces the red-eye phenomenon
(eyes of the subject appear red in
photo flash) by lighting the flash at...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)

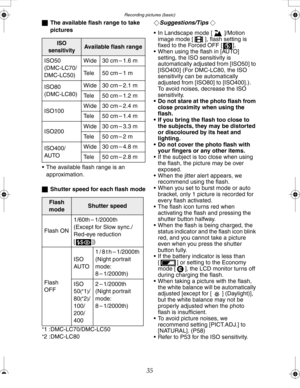

35
ªThe available flash range to take
pictures
 The available flash range is an
approximation.
ªShutter speed for each flash mode
°1 :DMC-LC70/DMC-LC50
°2 :DMC-LC80¬Suggestions/Tips ¬
 In Landscape mode [ ]/Motion
image mode [ ], flash setting is
fixed to the Forced OFF [ ].
 When using the flash in [AUTO]
setting, the ISO sensitivity is
automatically adjusted from [ISO50] to
[ISO400] (For DMC-LC80, the ISO...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
36
Compensating the Exposure
Use this function when you cannot achieve appropriate exposure due to the
difference of brightness between the subject and the background.
Preparation
 Set the mode dial except for [ ]/[ ]. (P8)
1Select [ EXPOSURE] and
compensate the exposure.
 You can compensate from j2EV
to i2 EV in steps of 1/3 EV.¬Suggestions/Tips ¬
 EV is an abbreviation of Exposure
Value, and it is the amount of...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
37

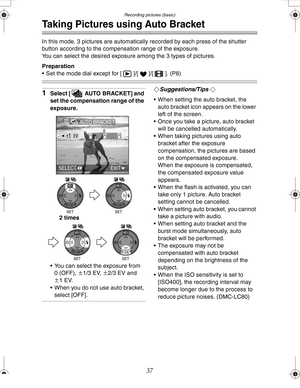

Taking Pictures using Auto Bracket
In this mode, 3 pictures are automatically recorded by each press of the shutter
button according to the compensation range of the exposure.
You can select the desired exposure among the 3 types of pictures.
Preparation
 Set the mode dial except for [ ]/[ ]/[ ]. (P8)
1Select [ AUTO BRACKET] and
set the compensation range of the
exposure.
 You can select the exposure from
0...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)

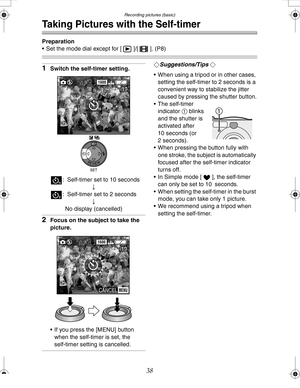

38
Taking Pictures with the Self-timer
Preparation
 Set the mode dial except for [ ]/[ ]. (P8)
1Switch the self-timer setting.
: Self-timer set to 10 seconds
;
: Self-timer set to 2 seconds
;
No display (cancelled)
2Focus on the subject to take the
picture.
 If you press the [MENU] button
when the self-timer is set, the
self-timer setting is cancelled.
¬Suggestions/Tips ¬
 When using a tripod or in other cases,...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)

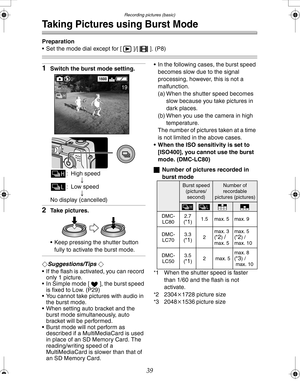

39
Taking Pictures using Burst Mode
Preparation
 Set the mode dial except for [ ]/[ ]. (P8)
1Switch the burst mode setting.
: High speed
;
: Low speed
;
No display (cancelled)
2Take pictures.
 Keep pressing the shutter button
fully to activate the burst mode.
¬Suggestions/Tips ¬
 If the flash is activated, you can record
only 1 picture.
 In Simple mode [ ], the burst speed
is fixed to Low. (P29)
 You cannot take...

Downloaded from www.Manualslib.com manuals search engine Playback (basic)

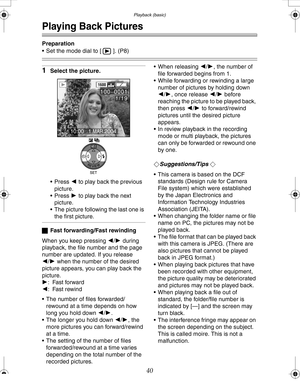

40
Playback (basic)
Playing Back Pictures
Preparation
 Set the mode dial to [ ]. (P8)
1Select the picture.
 Press 2 to play back the previous
picture.
 Press 1 to play back the next
picture.
 The picture following the last one is
the first picture.
ªFast forwarding/Fast rewinding
When you keep pressing 2/1 during
playback, the file number and the page
number are updated. If you release
2/1 when the number of the desired...
