Panasonic Lumix Dmc Lc50 Operating Instructions

Downloaded from www.Manualslib.com manuals search engine Preparation
11

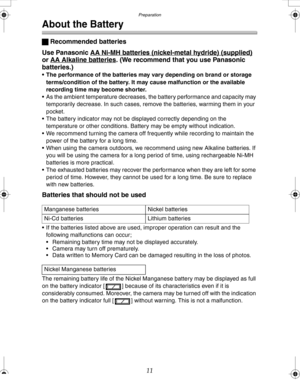

About the Battery
ª Recommended batteries
Use Panasonic AA Ni-MH batteries (nickel-metal hydride)
(supplied)
or AA Alkaline batteries. (We recommend that you use Panasonic
batteries.)
• The performance of the batteries may vary depending on brand or storage
terms/condition of the battery. It may cause malfunction or the available
recording time may become shorter.
 As the ambient temperature decreases, the battery performance...

Downloaded from www.Manualslib.com manuals search engine Preparation

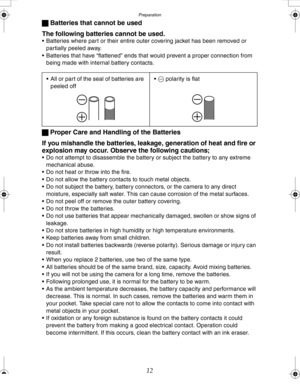

12 ª Batteries that cannot be used
The following batteries cannot be used.
 Batteries where part or their entire outer covering jacket has been removed or
partially peeled away.
 Batteries that have “flattened” ends that would prevent a proper connection from
being made with internal battery contacts.
ª Proper Care and Handling of the Batteries
If you mishandle the batteries, leakage, generation of heat and fire or
explosion may...

Downloaded from www.Manualslib.com manuals search engine Preparation

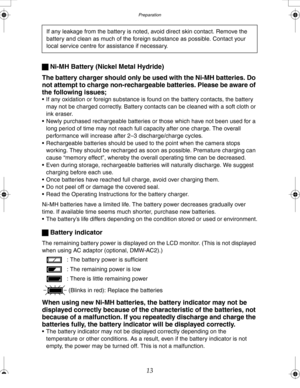

13 ª Ni-MH Battery (Nickel Metal Hydride)
The battery charger should only be used with the Ni-MH batteries. Do
not attempt to charge non-rechargeable batteries. Please be aware of
the following issues;
 If any oxidation or foreign substance is found on the battery contacts, the battery
may not be charged correctly. Battery contacts can be cleaned with a soft cloth or
ink eraser.
 Newly purchased rechargeable batteries or those...

Downloaded from www.Manualslib.com manuals search engine Preparation
14

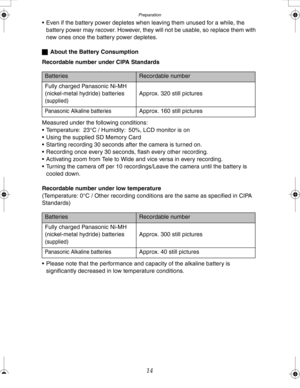

 Even if the battery power depletes when leaving them unused for a while, the
battery power may recover. However, they will not be usable, so replace them with
new ones once the battery power depletes.
ªAbout the Battery Consumption
Recordable number under CIPA Standards
Measured under the following conditions:
 Temperature: 23°C / Humidity: 50
%, LCD monitor is on
 Using the supplied SD Memory Card
 Starting recording 30...

Downloaded from www.Manualslib.com manuals search engine Preparation
15

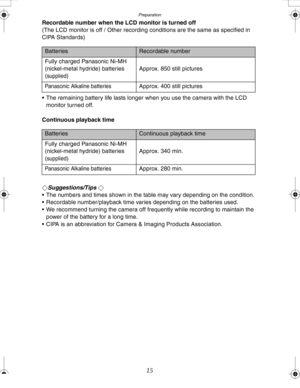

Recordable number when the LCD monitor is turned off
(The LCD monitor is off / Other recording conditions are the same as specified in
CIPA Standards)
 The remaining battery life lasts longer when you use the camera with the LCD
monitor turned off.
Continuous playback time
¬
Suggestions/Tips ¬
 The numbers and times shown in the table may vary depending on the condition.
 Recordable number/playback time varies depending on the...

Downloaded from www.Manualslib.com manuals search engine Preparation
16

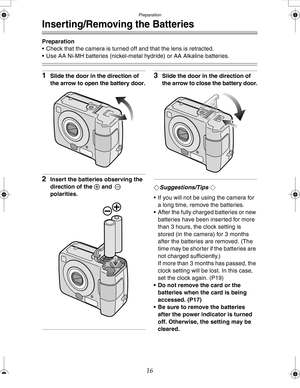

Inserting/Removing the Batteries
Preparation
 Check that the camera is turned off and that the lens is retracted.
 Use AA Ni-MH batteries (nickel-metal hydride) or AA Alkaline batteries.
1Slide the door in the direction of
the arrow to open the battery door.
2Insert the batteries observing the
direction of the + and -
polarities.
3Slide the door in the direction of
the arrow to close the battery door.
¬Suggestions/Tips ¬
 If...

Downloaded from www.Manualslib.com manuals search engine Preparation
17

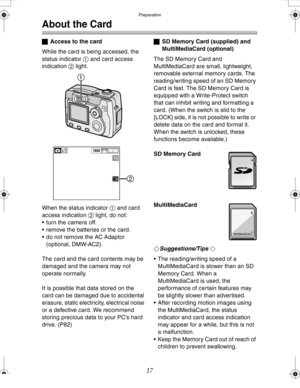

About the Card
ªAccess to the card
While the card is being accessed, the
status indicator 1 and card access
indication 2 light.
When the status indicator 1 and card
access indication 2 light, do not:
 turn the camera off.
 remove the batteries or the card.
 do not remove the AC Adaptor
(optional, DMW-AC2).
The card and the card contents may be
damaged and the camera may not
operate normally.
It is possible that data stored...

Downloaded from www.Manualslib.com manuals search engine Preparation
18

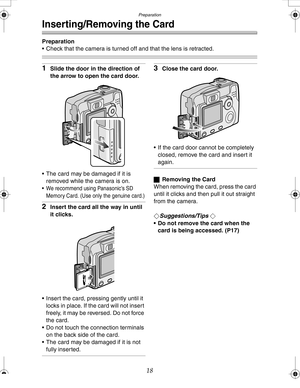

Inserting/Removing the Card
Preparation
 Check that the camera is turned off and that the lens is retracted.
1Slide the door in the direction of
the arrow to open the card door.
 The card may be damaged if it is
removed while the camera is on.
 We recommend using Panasonic’s SD
Memory Card. (Use only the genuine card.)
2Insert the card all the way in until
it clicks.
 Insert the card, pressing gently until it
locks in place....

Downloaded from www.Manualslib.com manuals search engine Preparation
19

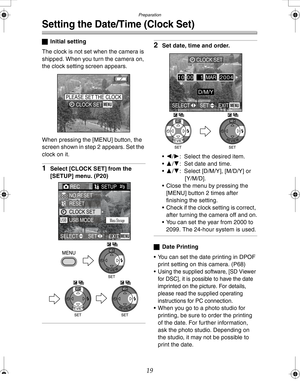

Setting the Date/Time (Clock Set)
ªInitial setting
The clock is not set when the camera is
shipped. When you turn the camera on,
the clock setting screen appears.
When pressing the [MENU] button, the
screen shown in step 2 appears. Set the
clock on it.
1Select [CLOCK SET] from the
[SETUP] menu. (P20)
2Set date, time and order.
2/1: Select the desired item.
3/4: Set date and time.
3/4: Select [D/M/Y], [M/D/Y] or
[Y/M/D].
...

Downloaded from www.Manualslib.com manuals search engine Preparation
20

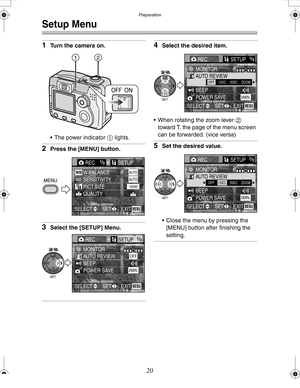

Setup Menu
1Turn the camera on.
 The power indicator 1 lights.
2Press the [MENU] button.
3Select the [SETUP] Menu.
4Select the desired item.
 When rotating the zoom lever 2
toward T, the page of the menu screen
can be forwarded. (vice versa)
5Set the desired value.
 Close the menu by pressing the
[MENU] button after finishing the
setting.
12
REC1/3SETUP
PICT.SIZE W.BALANCE
QUALITY
AUTO
1600
EXITSET SELECTMENU
SENSITIVITYAUTO...
