Panasonic Lumix Dmc Lc50 Operating Instructions

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

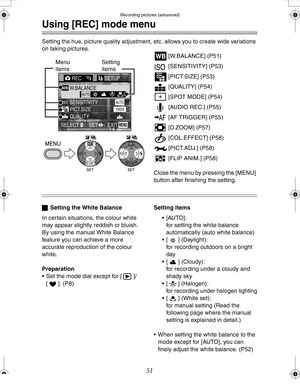

51
Using [REC] mode menu
Setting the hue, picture quality adjustment, etc. allows you to create wide variations
on taking pictures.
[W.BALANCE] (P51)
[SENSITIVITY] (P53)
[PICT.SIZE] (P53)
[QUALITY] (P54)
[SPOT MODE] (P54)
[AUDIO REC.] (P55)
[AF TRIGGER] (P55)
[D.ZOOM] (P57)
[COL.EFFECT] (P58)
[PICT.ADJ.] (P58)
[FLIP ANIM.] (P58)
Close the menu by pressing the [MENU]
button after finishing the setting.
ªSetting the...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

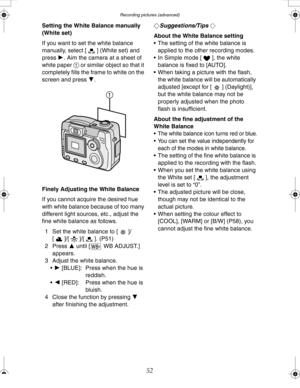

52
Setting the White Balance manually
(White set)
If you want to set the white balance
manually, select [ ] (White set) and
press 1. Aim the camera at a sheet of
white paper 1 or similar object so that it
completely fills the frame to white on the
screen and press 4.
Finely Adjusting the White Balance
If you cannot acquire the desired hue
with white balance because of too many
different light sources, etc.,...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

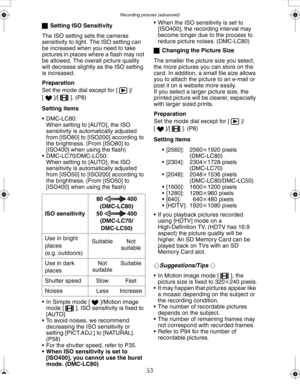

53
ªSetting ISO Sensitivity
The ISO setting sets the cameras
sensitivity to light. The ISO setting can
be increased when you need to take
pictures in places where a flash may not
be allowed. The overall picture quality
will decrease slightly as the ISO setting
is increased.
Preparation
Set the mode dial except for [ ]/
[ ]/[ ]. (P8)
Setting items
 DMC-LC80:
When setting to [AUTO], the ISO
sensitivity is...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

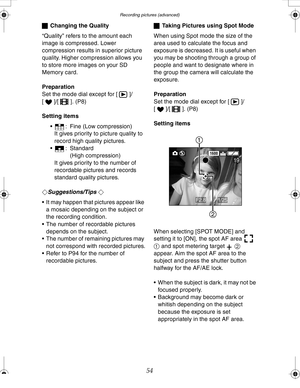

54
ªChanging the Quality
“Quality” refers to the amount each
image is compressed. Lower
compression results in superior picture
quality. Higher compression allows you
to store more images on your SD
Memory card.
Preparation
Set the mode dial except for [ ]/
[ ]/[ ]. (P8)
Setting items
 : Fine (Low compression)
It gives priority to picture quality to
record high quality pictures.
 : Standard
(High compression)...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

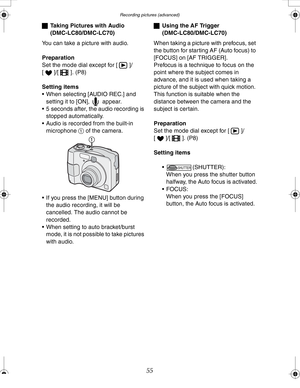

55
ªTaking Pictures with Audio
(DMC-LC80/DMC-LC70)
You can take a picture with audio.
Preparation
Set the mode dial except for [ ]/
[ ]/[ ]. (P8)
Setting items
 When selecting [AUDIO REC.] and
setting it to [ON],   appear.
 5 seconds after, the audio recording is
stopped automatically.
 Audio is recorded from the built-in
microphone 1 of the camera.
 If you press the [MENU] button during
the audio recording,...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

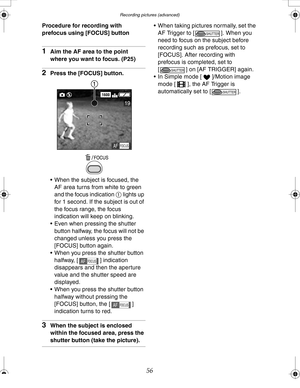

56
Procedure for recording with
prefocus using [FOCUS] button
1Aim the AF area to the point
where you want to focus. (P25)
2Press the [FOCUS] button.
 When the subject is focused, the
AF area turns from white to green
and the focus indication 1 lights up
for 1 second. If the subject is out of
the focus range, the focus
indication will keep on blinking.
 Even when pressing the shutter
button halfway, the focus...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

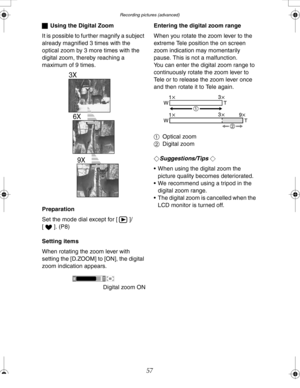

57
ªUsing the Digital Zoom
It is possible to further magnify a subject
already magnified 3 times with the
optical zoom by 3 more times with the
digital zoom, thereby reaching a
maximum of 9 times.
Preparation
Set the mode dial except for [ ]/
[]. (P8)
Setting items
When rotating the zoom lever with
setting the [D.ZOOM] to [ON], the digital
zoom indication appears.

Digital zoom ONEntering the digital zoom range...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

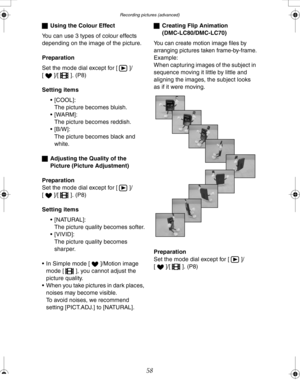

58
ªUsing the Colour Effect
You can use 3 types of colour effects
depending on the image of the picture.
Preparation
Set the mode dial except for [ ]/
[ ]/[ ]. (P8)
Setting items
 [COOL]:
The picture becomes bluish.
[WARM]:
The picture becomes reddish.
[B/W]:
The picture becomes black and
white.
ªAdjusting the Quality of the
Picture (Picture Adjustment)
Preparation
Set the mode dial except for [ ]/
[ ]/[ ]. (P8)...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

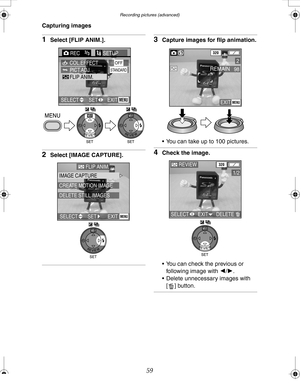

59
Capturing images
1Select [FLIP ANIM.].
2Select [IMAGE CAPTURE].
3Capture images for flip animation.
 You can take up to 100 pictures.
4Check the image.
 You can check the previous or
following image with 2/1.
 Delete unnecessary images with
[ ] button.
REa3/3SETUn
PICT.ADJ.COL.EFFECTOFF
FLIP ANIM.
EXITSET SELECTMENU
STANDARD
WBWB
MENU
FLIP ANIM.
IMAGE CAPTURE
CREATE MOTION IMAGE
DELETE STILL IMAGEq
EXITSET...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (advanced)

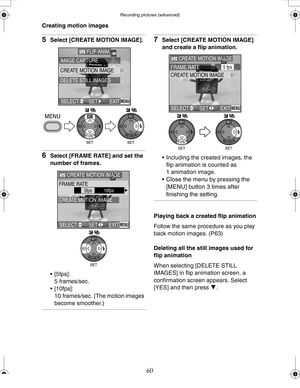

60
Creating motion images
5Select [CREATE MOTION IMAGE].
6Select [FRAME RATE] and set the
number of frames.
[5fps]:
5 frames/sec.
 [10fps]:
10 frames/sec. (The motion images
become smoother.)
7Select [CREATE MOTION IMAGE]
and create a flip animation.
 Including the created images, the
flip animation is counted as
1 animation image.
 Close the menu by pressing the
[MENU] button 3 times after
finishing the...
