Panasonic Lumix Dmc Lc50 Operating Instructions

Downloaded from www.Manualslib.com manuals search engine Preparation
21

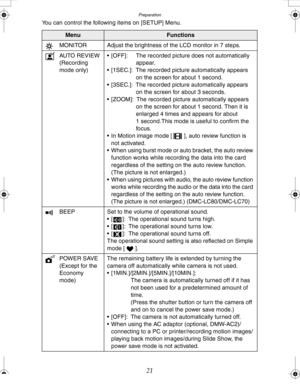

You can control the following items on [SETUP] Menu.
MenuFunctions
  MONITOR Adjust the brightness of the LCD monitor in 7 steps.
AUTO REVIEW
(Recording
mode only) [OFF]: The recorded picture does not automatically
appear.
 [1SEC.]: The recorded picture automatically appears
on the screen for about 1 second.
 [3SEC.]: The recorded picture automatically appears
on the screen for about 3 seconds.
 [ZOOM]: The recorded picture...

Downloaded from www.Manualslib.com manuals search engine Preparation
22

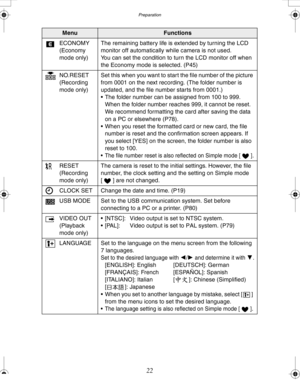

MenuFunctions
ECONOMY
(Economy
mode only)The remaining battery life is extended by turning the LCD
monitor off automatically while camera is not used.
You can set the condition to turn the LCD monitor off when
the Economy mode is selected. (P45)
NO.RESET
(Recording
mode only)Set this when you want to start the file number of the picture
from 0001 on the next recording. (The folder number is
updated, and the file number starts...

Downloaded from www.Manualslib.com manuals search engine Preparation
23

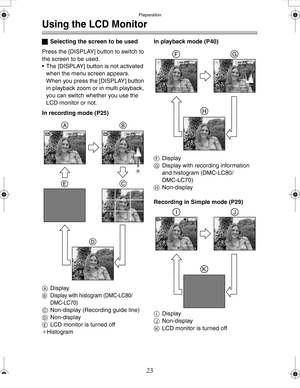

Using the LCD Monitor
ªSelecting the screen to be used
Press the [DISPLAY] button to switch to
the screen to be used.
 The [DISPLAY] button is not activated
when the menu screen appears.
When you press the [DISPLAY] button
in playback zoom or in multi playback,
you can switch whether you use the
LCD monitor or not.
In recording mode (P25)
ADisplay
BDisplay with histogram (DMC-LC80/
DMC-LC70)
CNon-display (Recording guide line)...

Downloaded from www.Manualslib.com manuals search engine Preparation
24

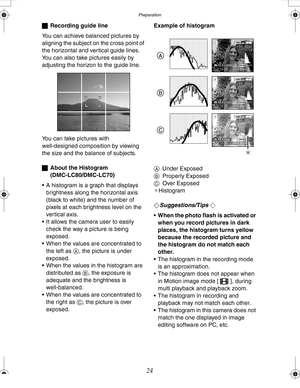

ªRecording guide line
You can achieve balanced pictures by
aligning the subject on the cross point of
the horizontal and vertical guide lines.
You can also take pictures easily by
adjusting the horizon to the guide line.
You can take pictures with
well-designed composition by viewing
the size and the balance of subjects.
ªAbout the Histogram
(DMC-LC80/DMC-LC70)
 A histogram is a graph that displays
brightness along the...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
25

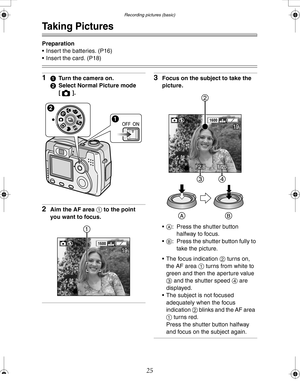

Recording pictures (basic)
Taking Pictures
Preparation
 Insert the batteries. (P16)
 Insert the card. (P18)
11Turn the camera on.
2Select Normal Picture mode
[].
2Aim the AF area 1 to the point
you want to focus.
3Focus on the subject to take the
picture.
A: Press the shutter button
halfway to focus.
B: Press the shutter button fully to
take the picture.
 The focus indication 2 turns on,
the AF area 1 turns...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
26

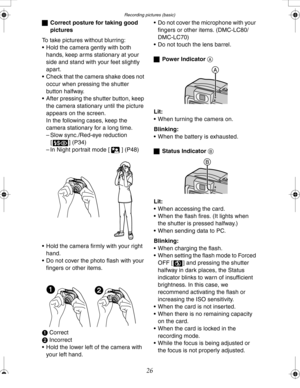

ªCorrect posture for taking good
pictures
To take pictures without blurring:
 Hold the camera gently with both
hands, keep arms stationary at your
side and stand with your feet slightly
apart.
 Check that the camera shake does not
occur when pressing the shutter
button halfway.
 After pressing the shutter button, keep
the camera stationary until the picture
appears on the screen.
In the following cases, keep...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
27

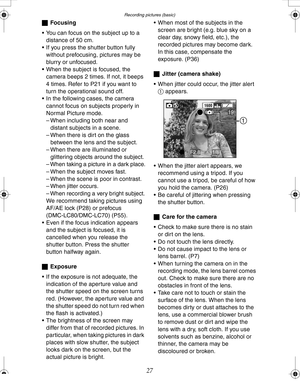

ªFocusing
 You can focus on the subject up to a
distance of 50 cm.
 If you press the shutter button fully
without prefocusing, pictures may be
blurry or unfocused.
 When the subject is focused, the
camera beeps 2 times. If not, it beeps
4 times. Refer to P21 if you want to
turn the operational sound off.
 In the following cases, the camera
cannot focus on subjects properly in
Normal Picture mode.
– When...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
28

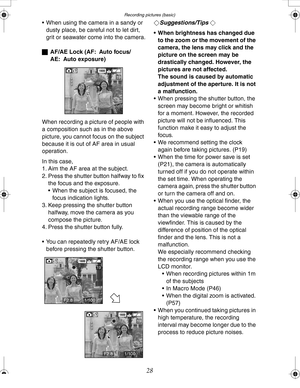

 When using the camera in a sandy or
dusty place, be careful not to let dirt,
grit or seawater come into the camera.
ªAF/AE Lock (AF: Auto focus/
AE: Auto exposure)
When recording a picture of people with
a composition such as in the above
picture, you cannot focus on the subject
because it is out of AF area in usual
operation.
In this case,
1. Aim the AF area at the subject.
2. Press the shutter button halfway...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
29

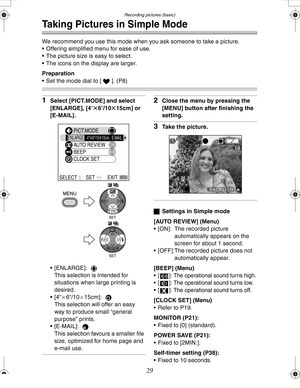

Taking Pictures in Simple Mode
We recommend you use this mode when you ask someone to take a picture.
 Offering simplified menu for ease of use.
 The picture size is easy to select.
 The icons on the display are larger.
Preparation
 Set the mode dial to [ ]. (P8)
1Select [PICT.MODE] and select
[ENLARGE], [4qt6q/10t15cm] or
[E-MAIL].
 [ENLARGE]:
This selection is intended for
situations when large printing is...

Downloaded from www.Manualslib.com manuals search engine Recording pictures (basic)
30

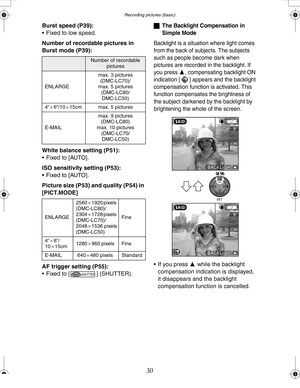

Burst speed (P39):
 Fixed to low speed.
Number of recordable pictures in
Burst mode (P39):
White balance setting (P51):
 Fixed to [AUTO].
ISO sensitivity setting (P53):
 Fixed to [AUTO].
Picture size (P53) and quality (P54) in
[PICT.MODE]
AF trigger setting (P55):
 Fixed to [ ] (SHUTTER).ªThe Backlight Compensation in
Simple Mode
Backlight is a situation where light comes
from the back of subjects. The...
