Panasonic Lumix Dmc Lc50 Operating Instructions

Downloaded from www.Manualslib.com manuals search engine Others
91

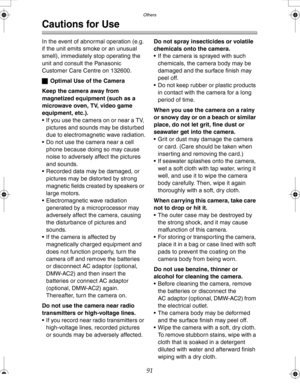

Cautions for Use
In the event of abnormal operation (e.g.
if the unit emits smoke or an unusual
smell), immediately stop operating the
unit and consult the Panasonic
Customer Care Centre on 132600.
ªOptimal Use of the Camera
Keep the camera away from
magnetized equipment (such as a
microwave oven, TV, video game
equipment, etc.).
 If you use the camera on or near a TV,
pictures and sounds may be disturbed
due to electromagnetic...

Downloaded from www.Manualslib.com manuals search engine Others
92

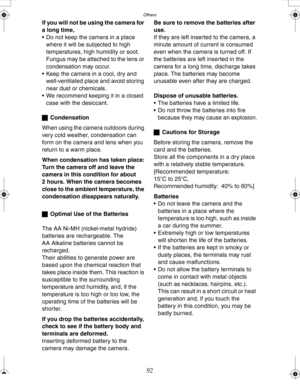

If you will not be using the camera for
a long time,
 Do not keep the camera in a place
where it will be subjected to high
temperatures, high humidity or soot.
Fungus may be attached to the lens or
condensation may occur.
 Keep the camera in a cool, dry and
well-ventilated place and avoid storing
near dust or chemicals.
 We recommend keeping it in a closed
case with the desiccant.
ªCondensation
When using the camera outdoors...

Downloaded from www.Manualslib.com manuals search engine Others
93

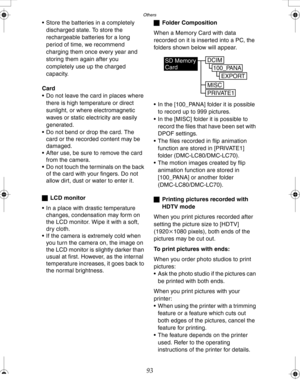

 Store the batteries in a completely
discharged state. To store the
rechargeable batteries for a long
period of time, we recommend
charging them once every year and
storing them again after you
completely use up the charged
capacity.
Card
 Do not leave the card in places where
there is high temperature or direct
sunlight, or where electromagnetic
waves or static electricity are easily
generated.
 Do not bend or drop the...

Downloaded from www.Manualslib.com manuals search engine Others
94

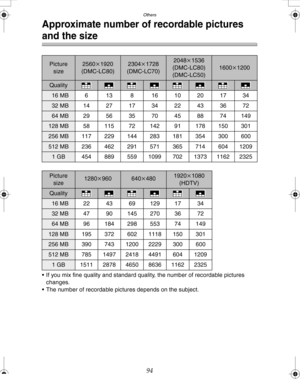

Approximate number of recordable pictures
and the size
 If you mix fine quality and standard quality, the number of recordable pictures
changes.
 The number of recordable pictures depends on the subject.
size2560k1920
(DMC-LC80)2304k1728
(DMC-LC70)2048k1536
(DMC-LC80)
(DMC-LC50)
1600k1200
Quality
16 MB 6 13 8 16 10 20 17 34
32 MB 14 27 17 34 22 43 36 72
64 MB 29 56 35 70 45 88 74 149
128 MB 58 115 72 142 91 178 150 301
256...

Downloaded from www.Manualslib.com manuals search engine Others
95

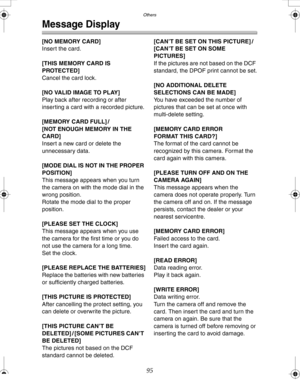

Message Display
[NO MEMORY CARD]
Insert the card.
[THIS MEMORY CARD IS
PROTECTED]
Cancel the card lock.
[NO VALID IMAGE TO PLAY]
Play back after recording or after
inserting a card with a recorded picture.
[MEMORY CARD FULL] /
[NOT ENOUGH MEMORY IN THE
CARD]
Insert a new card or delete the
unnecessary data.
[MODE DIAL IS NOT IN THE PROPER
POSITION]
This message appears when you turn
the camera on with the mode dial in the
wrong...

Downloaded from www.Manualslib.com manuals search engine Others
96

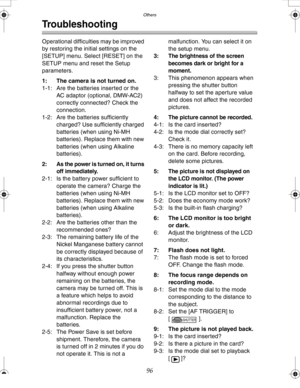

Troubleshooting
Operational difficulties may be improved
by restoring the initial settings on the
[SETUP] menu. Select [RESET] on the
SETUP menu and reset the Setup
parameters.
1: The camera is not turned on.
1-1: Are the batteries inserted or the
AC adaptor (optional, DMW-AC2)
correctly connected? Check the
connection.
1-2: Are the batteries sufficiently
charged? Use sufficiently charged
batteries (when using Ni-MH
batteries)....

Downloaded from www.Manualslib.com manuals search engine Others

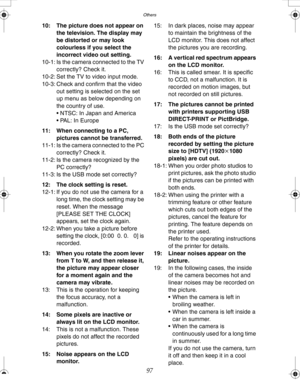

97
10: The picture does not appear on
the television. The display may
be distorted or may look
colourless if you select the
incorrect video out setting.
10-1: Is the camera connected to the TV
correctly? Check it.
10-2: Set the TV to video input mode.
10-3: Check and confirm that the video
out setting is selected on the set
up menu as below depending on
the country of use.
 NTSC: In Japan and America
 PAL: In Europe
11: When...

Downloaded from www.Manualslib.com manuals search engine Others
98

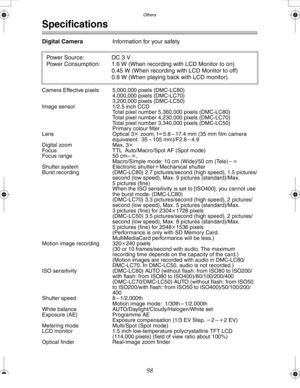

Specifications
Digital CameraInformation for your safety
Camera Effective pixels 5,000,000 pixels (DMC-LC80)
4,000,000 pixels (DMC-LC70)
3,200,000 pixels (DMC-LC50)
Image sensor 1/2.5 inch CCD
Total pixel number 5,360,000 pixels (DMC-LC80)
Total pixel number 4,230,000 pixels (DMC-LC70)
Total pixel number 3,340,000 pixels (DMC-LC50)
Primary colour filter
Lens Optical 3
k zoom, fl5.8 – 17.4 mm (35 mm film camera
equivalent: 35 – 105...

Downloaded from www.Manualslib.com manuals search engine Others
99

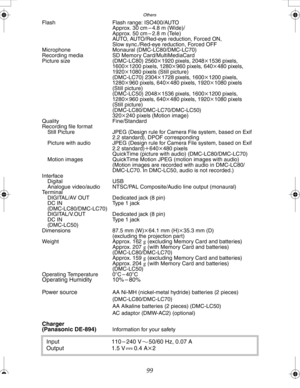

Flash Flash range: ISO400/AUTO
Approx. 30 cm – 4.8 m (Wide)/
Approx. 50 cm – 2.8 m (Tele)
AUTO, AUTO/Red-eye reduction, Forced ON,
Slow sync./Red-eye reduction, Forced OFF
Microphone Monaural (DMC-LC80/DMC-LC70)
Recording media SD Memory Card/MultiMediaCard
Picture size (DMC-LC80) 2560k1920 pixels, 2048k1536 pixels,
1600k1200 pixels, 1280k960 pixels, 640k480 pixels,
1920k1080 pixels (Still picture)
(DMC-LC70) 2304k1728 pixels, 1600k1200...

Downloaded from www.Manualslib.com manuals search engine VQT0M82
A
Matsushita Electric Industrial Co., Ltd.Web Site: http://www.panasonic.co.jp/global/
