Panasonic Lumix Dmc Lc50 Operating Instructions

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
81

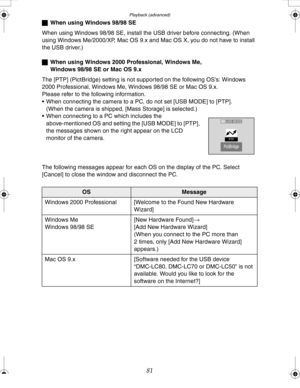

ªWhen using Windows 98/98 SE
When using Windows 98/98 SE, install the USB driver before connecting. (When
using Windows Me/2000/XP, Mac OS 9.x and Mac OS X, you do not have to install
the USB driver.)
ªWhen using Windows 2000 Professional, Windows Me,
Windows 98/98 SE or Mac OS 9.x
The [PTP] (PictBridge) setting is not supported on the following OS’s: Windows
2000 Professional, Windows Me, Windows 98/98 SE or Mac OS 9.x....

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
82

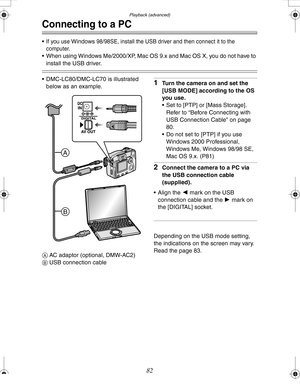

Connecting to a PC
If you use Windows 98/98SE, install the USB driver and then connect it to the
computer.
 When using Windows Me/2000/XP, Mac OS 9.x and Mac OS X, you do not have to
install the USB driver.
 DMC-LC80/DMC-LC70 is illustrated
below as an example.
A AC adaptor (optional, DMW-AC2)
B USB connection cable1Turn the camera on and set the
[USB MODE] according to the OS
you use.
 Set to [PTP] or [Mass...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
83

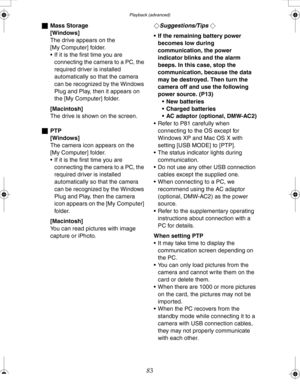

ªMass Storage
[Windows]
The drive appears on the
[My Computer] folder.
 If it is the first time you are
connecting the camera to a PC, the
required driver is installed
automatically so that the camera
can be recognized by the Windows
Plug and Play, then it appears on
the [My Computer] folder.
[Macintosh]
The drive is shown on the screen.
ªPTP
[Windows]
The camera icon appears on the
[My Computer] folder.
 If it is...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
84

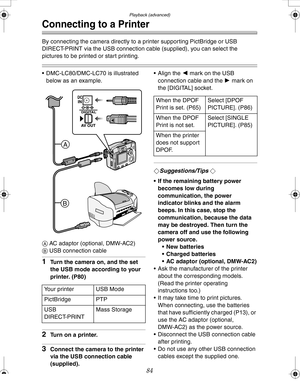

Connecting to a Printer
By connecting the camera directly to a printer supporting PictBridge or USB
DIRECT-PRINT via the USB connection cable (supplied), you can select the
pictures to be printed or start printing.
 DMC-LC80/DMC-LC70 is illustrated
below as an example.
A AC adaptor (optional, DMW-AC2)
B USB connection cable
1Turn the camera on, and the set
the USB mode according to your
printer. (P80)
2Turn on a...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
85
Preparation
 Set the paper size and print quality with the printer in advance. (Read the printer
operating instructions.)
 Connect the camera to a printer. (P84)
ªSingle picture
1Select [SINGLE PICTURE].
 The screen shown in step 2
appears when DPOF print is not
set or the printer does not support
DPOF print.
 When PTP is set, the screen
shown above appears.
2Select the picture to print.
3Select [YES] and print....

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
86

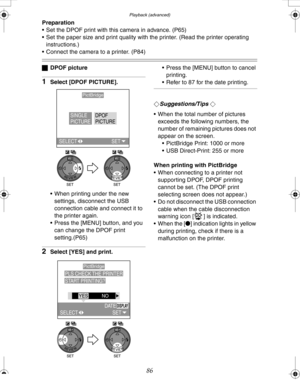

Preparation
 Set the DPOF print with this camera in advance. (P65)
 Set the paper size and print quality with the printer. (Read the printer operating
instructions.)
 Connect the camera to a printer. (P84)
ªDPOF picture
1Select [DPOF PICTURE].
 When printing under the new
settings, disconnect the USB
connection cable and connect it to
the printer again.
 Press the [MENU] button, and you
can change the DPOF print...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
87

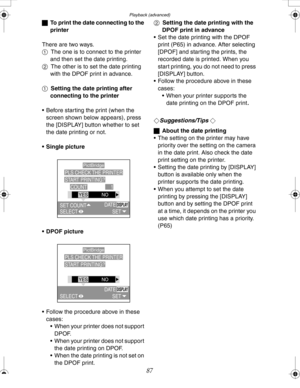

ªTo print the date connecting to the
printer
There are two ways.
1 The one is to connect to the printer
and then set the date printing.
2 The other is to set the date printing
with the DPOF print in advance.
1 Setting the date printing after
connecting to the printer
 Before starting the print (when the
screen shown below appears), press
the [DISPLAY] button whether to set
the date printing or not.
 Single picture...

Downloaded from www.Manualslib.com manuals search engine Others
88
Others

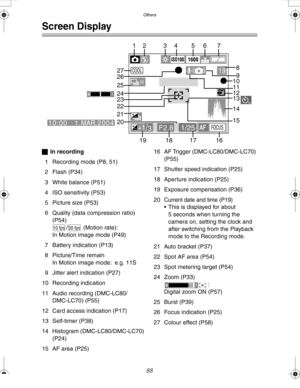

Screen Display
ªIn recording
1 Recording mode (P8, 51)
2 Flash (P34)
3 White balance (P51)
4 ISO sensitivity (P53)
5 Picture size (P53)
6 Quality (data compression ratio)
(P54)
/  (Motion rate):
In Motion image mode (P49)
7 Battery indication (P13)
8 Picture/Time remain
In Motion image mode: e.g. 11S
9 Jitter alert indication (P27)
10 Recording indication
11 Audio recording (DMC-LC80/
DMC-LC70) (P55)
12 Card access indication...

Downloaded from www.Manualslib.com manuals search engine Others
89
ªRecording in Simple mode
1 Flash (P34)
2 Focus indication (P25)
3 Jitter alert indication (P27)
4 Picture mode (P29)
5 Battery indication (P13)
6 Picture remain
7 Zoom (P33)
8 Recording indication
9 Self-timer (P38)
10 Card access indication (P17)
11 AF area (P25)
12 Backlight compensation indication
(P30)
13 Current date and time (
P19)
 This is displayed for about
5 seconds when turning the
camera on, setting the clock and
after...

Downloaded from www.Manualslib.com manuals search engine Others
90

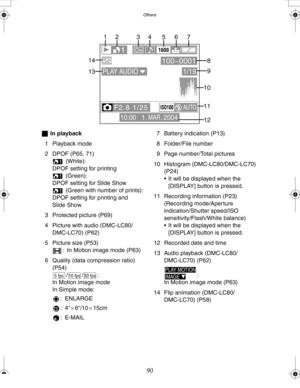

ªIn playback
1 Playback mode
2 DPOF (P65, 71)
 (White):
DPOF setting for printing
 (Green):
DPOF setting for Slide Show
 (Green with number of prints):
DPOF setting for printing and
Slide Show
3 Protected picture (P69)
4 Picture with audio (DMC-LC80/
DMC-LC70) (P62)
5 Picture size (P53)
: In Motion image mode (P63)
6 Quality (data compression ratio)
(P54)
//:
In Motion image mode
In Simple mode:
:ENLARGE
:4qa6q/10a15cm
:E-MAIL7 Battery...
