Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
71

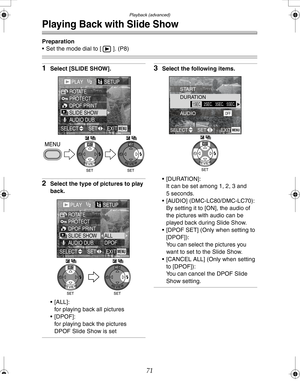

Playing Back with Slide Show
Preparation
 Set the mode dial to [ ]. (P8)
1Select [SLIDE SHOW].
2Select the type of pictures to play
back.
 [ALL]:
for playing back all pictures
[DPOF]:
for playing back the pictures
DPOF Slide Show is set
3Select the following items.
 [DURATION]:
It can be set among 1, 2, 3 and
5 seconds.
 [AUDIO] (DMC-LC80/DMC-LC70):
By setting it to [ON], the audio of
the pictures with audio can be...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
72

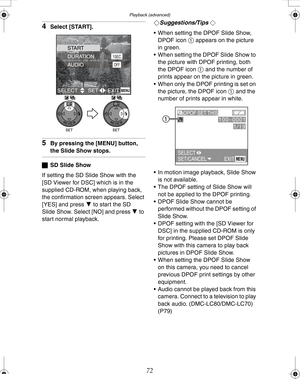

4Select [START].
5By pressing the [MENU] button,
the Slide Show stops.
ªSD Slide Show
If setting the SD Slide Show with the
[SD Viewer for DSC] which is in the
supplied CD-ROM, when playing back,
the confirmation screen appears. Select
[YES] and press 4 to start the SD
Slide Show. Select [NO] and press 4 to
start normal playback.¬
Suggestions/Tips ¬
 When setting the DPOF Slide Show,
DPOF icon 1 appears on the...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
73

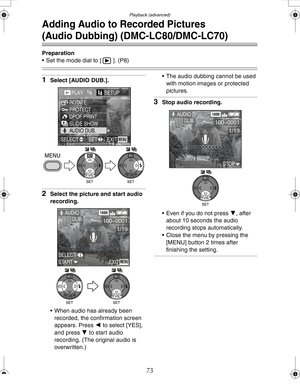

Adding Audio to Recorded Pictures
(Audio Dubbing) (DMC-LC80/DMC-LC70)
Preparation
 Set the mode dial to [ ]. (P8)
1Select [AUDIO DUB.].
2Select the picture and start audio
recording.
 When audio has already been
recorded, the confirmation screen
appears. Press 2 to select [YES],
and press 4 to start audio
recording. (The original audio is
overwritten.) The audio dubbing cannot be used
with motion images or protected...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
74

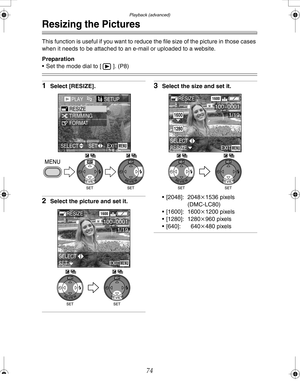

Resizing the Pictures
This function is useful if you want to reduce the file size of the picture in those cases
when it needs to be attached to an e-mail or uploaded to a website.
Preparation
 Set the mode dial to [ ]. (P8)
1Select [RESIZE].
2Select the picture and set it.
3Select the size and set it.
 [2048]: 2048k1536 pixels
(DMC-LC80)
 [1600]: 1600k1200 pixels
 [1280]: 1280k960 pixels
 [640]: 640k480 pixels...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
75

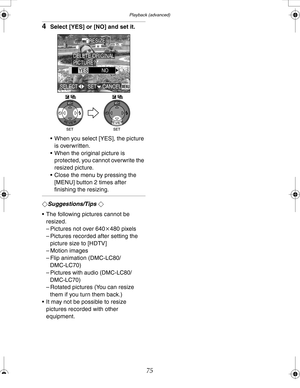

4Select [YES] or [NO] and set it.
 When you select [YES], the picture
is overwritten.
 When the original picture is
protected, you cannot overwrite the
resized picture.
 Close the menu by pressing the
[MENU] button 2 times after
finishing the resizing.
¬Suggestions/Tips ¬
 The following pictures cannot be
resized.
– Pictures not over 640k480 pixels
– Pictures recorded after setting the
picture size to [HDTV]
–...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
76

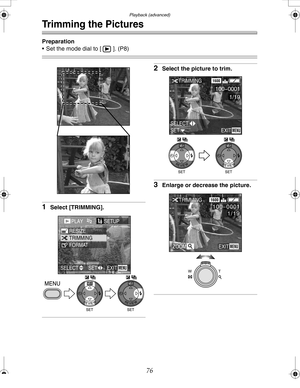

Trimming the Pictures
Preparation
 Set the mode dial to [ ]. (P8)
1Select [TRIMMING].
2Select the picture to trim.
3Enlarge or decrease the picture.
PLAY2/2SETUP
TRIMMING RESIZE
FORMA
EXITSET SELECTMENU
WBWB
SET SELECT
EXITMENU
TRIMMING1600
100-0001
1/19
WBWB
TRIMMING
ZOOM
1600
1/19
EXITMENU
100_
0001
WT
LC80GN.book  76 ページ  ２００４年６月１７日　木曜日　午前１０時１８分

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
77

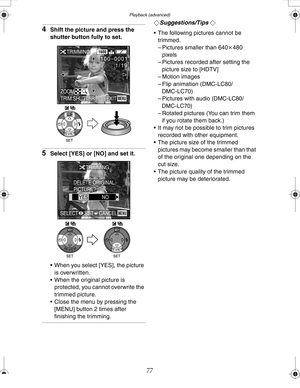

4Shift the picture and press the
shutter button fully to set.
5Select [YES] or [NO] and set it.
 When you select [YES], the picture
is overwritten.
 When the original picture is
protected, you cannot overwrite the
trimmed picture.
 Close the menu by pressing the
[MENU] button 2 times after
finishing the trimming.
¬Suggestions/Tips ¬
 The following pictures cannot be
trimmed.
– Pictures smaller than 640k480
pixels...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
78

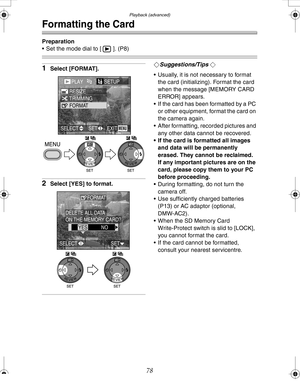

Formatting the Card
Preparation
 Set the mode dial to [ ]. (P8)
1Select [FORMAT].
2Select [YES] to format.
¬Suggestions/Tips ¬
 Usually, it is not necessary to format
the card (initializing). Format the card
when the message [MEMORY CARD
ERROR] appears.
 If the card has been formatted by a PC
or other equipment, format the card on
the camera again.
 After formatting, recorded pictures and
any other data cannot be...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
79

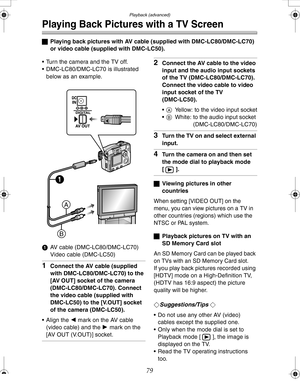

Playing Back Pictures with a TV Screen
ªPlaying back pictures with AV cable (supplied with DMC-LC80/DMC-LC70)
or video cable (supplied with DMC-LC50).
 Turn the camera and the TV off.
 DMC-LC80/DMC-LC70 is illustrated
below as an example.
1 AV cable (DMC-LC80/DMC-LC70)
Video cable (DMC-LC50)
1Connect the AV cable (supplied
with DMC-LC80/DMC-LC70) to the
[AV OUT] socket of the camera
(DMC-LC80/DMC-LC70). Connect
the...

Downloaded from www.Manualslib.com manuals search engine Playback (advanced)
80

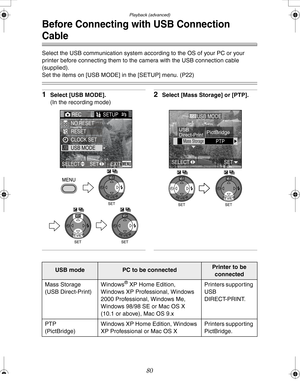

Before Connecting with USB Connection
Cable
Select the USB communication system according to the OS of your PC or your
printer before connecting them to the camera with the USB connection cable
(supplied).
Set the items on [USB MODE] in the [SETUP] menu. (P22)
1Select [USB MODE].
(In the recording mode)2Select [Mass Storage] or [PTP].
REC2/
3
USB MODE
NO
RESET
CLOCK SET
EXITSET SELECTMENU
WB
WBWB
USB
SET SELECT
Mass...
