Panasonic Projector PT-DS12KU User Manual

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 101
[DVI-D IN]
Switch the setting when the external device is connected to the  terminal of the projector and the image is not projected correctly.
1) Press as to select [DVI-D IN].
2)
Press the  button.
 f The  [DVI-D IN] screen is displayed.
3) Press  as to select [EDID].
4)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[EDID3] Recognizes movie-based video signals and still image signals automatically ....

Chapter 4 Settings — [DISPLAY OPTION] menu
102 - ENGLISH
Setting [SDI LINK]
(Only for PT-DZ13KU, PT- DS12KU)
1) Press as to select [SDI IN].
2)
Press the  button.
 f The  [SDI IN] screen is displayed.
3) Press  as to select [SDI LINK].
4)
Press
 qw to switch the item.
[SINGLE LINK] Sets SDI1 input and SDI2 input to single link.
[DUAL LINK] Sets SDI1 input and SDI2 input to dual link.
Note
 fWhen [BACKUP  INPUT MODE] is set to [ON], [1], or [2], [SDI LINK] cannot be set.
Setting [SIGNAL LEVEL]
Select...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 103
Note
 fDoes not operate during SD - SDI or HD - SDI input.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD POSITION]
Set the position of the menu screen (OSD).
1) Press as to select [ON-SCREEN DISPLAY].
2)
Press the  button.
 f The  [ON-SCREEN DISPLAY] screen is displayed.
3) Press  as to select [OSD POSITION].
4)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[2] Sets to the center left of...

Chapter 4 Settings — [DISPLAY OPTION] menu
104 - ENGLISH
[OFF]Does not hold the cursor position.
Note
 fEven if [OSD MEMOR Y] is set to [ON], the cursor position will not be held when the  switch of the projector body is turned
.
Setting [INPUT GUIDE]
Set whether to display the input guide (input terminal name, signal name, memory number , and [BACKUP INPUT STATUS] currently selected)
in the position set in [OSD POSITION].
1) Press  as to select [ON-SCREEN DISPLAY].
2)
Press the  button.
 f The...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 105
[STARTUP LOGO]
Set the logo display when the power is turned on.
1) Press as to select [STARTUP LOGO].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT LOGO] Displays the Panasonic logo.
[USER LOGO] Displays the image registered by the user.
[NONE] Disables the startup logo display.
Note
 fThe startup logo will disappear in approximately 15 seconds. fT
o create/register the [USER LOGO] image, use...

Chapter 4 Settings — [DISPLAY OPTION] menu
106 - ENGLISH
[SHUTTER SETTING]
Set image fade-in and fade-out at opening and closing of the shutter. Set automatic opening and closing of the shutter when power is turned
on.
Setting [FADE-IN] or [FADE-OUT]
1) Press  as to select [SHUTTER SETTING].
2)
Press the  button.
 f The  [SHUTTER SETTING]  screen is displayed.
3) Press as to select [FADE-IN] or [FADE-OUT].
4)
Press
 qw to switch the item.
Item Adjustment
[FADE-IN]
[FADE-OUT] [OFF]
Does not set...

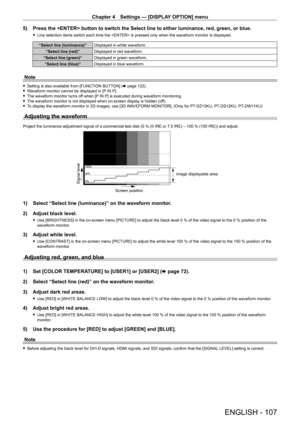

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 107
5) Press the  button to switch the Select line to either luminance, \
red, green, or blue.
 fLine selection items switch each time the  is pressed only when the waveform monitor is displayed.
“Select line (luminance)” Displayed in white waveform.
“Select line (red)” Displayed in red waveform.
“Select line (green)” Displayed in green waveform.
“Select line (blue)” Displayed in blue waveform.
Note
 fSetting is also available from [FUNCTION BUTT ON]...

Chapter 4 Settings — [DISPLAY OPTION] menu
108 - ENGLISH
[CUT OFF]
Each red, green, and blue color component can be removed.
1) Press as to select [CUT OFF].
2)
Press the  button.
 f The  [CUT OFF] screen is displayed.
3) Press  as to select [RED], [GREEN], or [BLUE].
4)
Press
 qw to switch the item.
[OFF] Disables cutoff.
[ON] Enables cutoff.
Note
 fWhen input is switched or a signal is switched, the cutof f setting returns to its original setting (off).

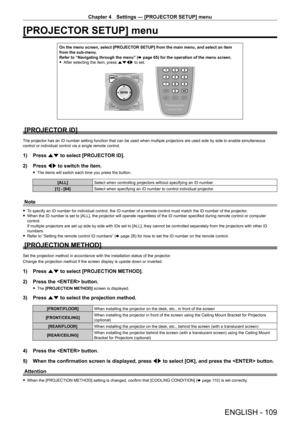

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 109
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item
from the sub-menu.
Refer to “Navigating through the menu” (x
  page   65) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous
control or individual control...

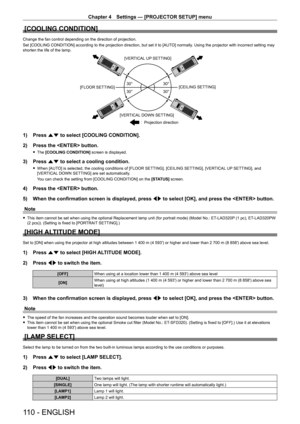

Chapter 4 Settings — [PROJECTOR SETUP] menu
110 - ENGLISH
[COOLING CONDITION]
Change the fan control depending on the direction of projection.
Set [COOLING CONDITION] according to the projection direction, but set it to [AUTO] normally. Using the projector with incorrect setting may
shorten the life of the lamp.

30°
30° 30°
30°
[VERTICAL UP SETTING]
[FLOOR SETTING] [CEILING SETTING]
[VERTICAL DOWN SETTING] Projection direction
1) Press as to select [COOLING CONDITION].
2)
Press the  button.
 f The...
