Panasonic Projector PT-DS12KU User Manual

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 121
[SUB VERSION]Displays the sub version of the firmware of the projector.
[NETWORK VERSION] Displays the firmware version of the projector.
[UPGRADE(ET
-

UK20)] Displays the activation status based on the Upgrade Kit.
[ON COUNT] [POWER ON TIMES]
Displays the number of times the power is turned on.
[LAMP1 ON] Displays the number of times the lamp is turned on.
[LAMP2 ON]
[LAMP1] Displays runtime in detail.
[LAMP2] Displays runtime in detail.
[NUMBER...

Chapter 4 Settings — [PROJECTOR SETUP] menu
122 - ENGLISH
[REMOTE2 MODE]
You can set the  terminal.
1) Press as to select [REMOTE2 MODE].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT] The pin assignment of the  terminal is used by the factory default setting of the
projector.
[USER] Used to change the setting of the  terminal.
[L6500 SERIES] The setting of  terminal is used for the L6500 series compatibility .
 fWhen [USER] is selected, proceed to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 123
4) Press the  button.
 fThe  [ADJUST CLOCK] screen is displayed.
5) Press  as to select an item, and press qw to set the local date and time.
6)
Press
 as to select [APPLY], and press the  button.
 fThe setting of the date and time will be completed.
Setting the date and time automatically
1) Press  as to select [DATE AND TIME].
2)
Press the  button.
 f The  [DATE AND TIME] screen is displayed.
3) Press  as to select [ADJUST CLOCK].
4)...

Chapter 4 Settings — [PROJECTOR SETUP] menu
124 - ENGLISH
6) When the confirmation screen is displayed, press qw  to select [OK], and press the  button.
 fThe  [LENS MEMORY NAME INPUT] screen is displayed.
7) Press  asqw to select the text, and press the  button to enter the text.
8)
After the name is input, press  asqw to select [OK], and press the  button.
 fThe registration completes and returns to the  [LENS MEMOR Y SAVE] screen.
 fIf you press

asqw to select [CANCEL] and then press the  button,...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 125
5) Press as to select [LENS MEMORY NAME CHANGE].
6)
Press the  button.
 f The  [LENS MEMORY NAME CHANGE] screen is displayed.
7) Press  as to select the name to change, and press the  button.
 fThe  [LENS MEMORY NAME INPUT] screen is displayed.
8) Press  asqw to select the text, and press the  button to enter the text.
9)
After the name is changed, press
 asqw to select [OK], and press the  button.
 fThe registration completes and returns to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
126 - ENGLISH
5) Press the  button.
6)
When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
[SERVICE PASSWORD]
This function is used by a service person.

Chapter 4 Settings — [P IN P] menu
ENGLISH - 127
[P IN P] menu
On the menu screen, select [P IN P] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   65) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously .
1) Press as to select [P IN P MODE].
2)
Press the  button.
 f The  [P IN P MODE] screen is...

Chapter 4 Settings — [P IN P] menu
128 - ENGLISH
12) If [CLOCK PHASE] is selected in Step 6), press qw  to make adjustment.
13)
Press
 as to select [FRAME LOCK].
14)

Press
 qw to switch the item.
[MAIN WINDOW] Set frame lock to the input signal set in the main window.
[SUB WINDOW] Set frame lock to the input signal set in the sub window.
15) Press as to select [TYPE].
16)
Press
 qw to switch the item.
[MAIN WINDOW] The main window has display priority.
[SUB WINDOW] The sub window has display...

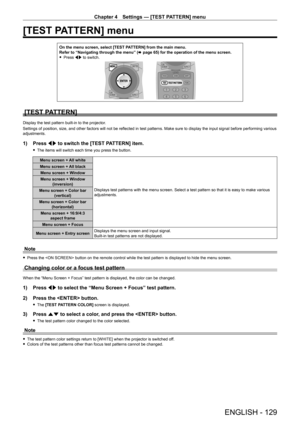

Chapter 4 Settings — [TEST PATTERN] menu
ENGLISH - 129
[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x
  page   65) for the operation of the menu screen.
 fPress

qw to switch.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing various
adjustments.
1) Press  qw to switch...

Chapter 4 Settings — [SIGNAL LIST] menu
130 - ENGLISH
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   65) for the operation of the menu screen.
 rRegistered signal details
A1 (1-2)
When the address number (A1, A2, ... L7, L8) signal is registered Sub memory number
Memory number:
 f
A name can be set for each sub memory (x   page   132).
Registering new signals
After a new signal is input and the  button on the remote...
