Panasonic Projector PT-DS12KU User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 141
Note
 fIf you use a web browser to control the projector , set [WEB CONTROL] to [ON] in [NETWORK CONTROL] ( x   page   137). fDo not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple
computers.
 fChange the password first. ( x

  page   153)
 fThe administrator rights allow use of all functions.

The user rights allow use of [Projector status] (x   page   142), confirmation...

Chapter 4 Settings — [NETWORK] menu
142 - ENGLISH
[Projector status] page
Click [Status] → [Projector status].
Display the status of the projector for the following items.
14
15
166
7
8
9
1
2
3
4
17 10
5
11
12
13
1 [PROJECTOR TYPE]
Displays the type of the projector.
2

[MAIN VERSION]
Displays the firmware version of the projector

.
3

[POWER]
Displays the status of the power

.
4

[SHUTTER]
Displays the status of the shutter (ON: closed, OFF: open).
5


[LAMP
  SELECT]
Displays the setting status...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 143
Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen, click it to display the
error/warning details.
 f The projector may go into the standby status to protect the projector depending on the contents of the error .
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[F
AILED]:
Indicates that there is a...

Chapter 4 Settings — [NETWORK] menu
144 - ENGLISH
[Network status] page
Click [Status] → [Network status].
The current network setting status is displayed.
[Access error log] page
Click [Status] → [Access error log].
The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or
passwords.
[Access log] page
Click [Status] → [Access log].
The log such as user name accessed to the WEB control page, accessed IP address, accessed time is...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 145
[Basic control] page
Click [Projector control] → [Basic control].
1
2
5 3
4
1 [POWER]
T
urns on/off the power.
2

[SHUTTER]
Switches the setting whether to use the shutter function
(closing/opening of the shutter). 3

 [OSD]
Switches on (display)/of
f (hide) the on-screen display function.
4

[SYSTEM]
Switches the system method.
5


[INPUT SELECT]
Switches the input signal.
[Detail control] page
Click [Projector control] → [Detail control].
6 5
4
3 2...

Chapter 4 Settings — [NETWORK] menu
146 - ENGLISH

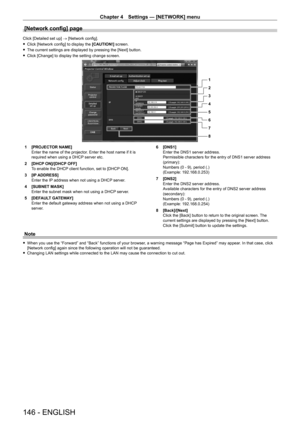

[Network config] page
Click [Detailed set up] → [Network config].
 fClick [Network config] to display the  [CAUTION!]

 screen.
 fThe current settings are displayed by pressing the [Next] button.
 fClick [Change] to display the setting change screen.
1
2
3
4
5
6
7
8
1 [PROJECT OR NAME]
Enter the name of the projector. Enter the host name if it is
required when using a DHCP server etc.
2

[DHCP
  ON]/[DHCP OFF]
To enable the DHCP client function, set to...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 147

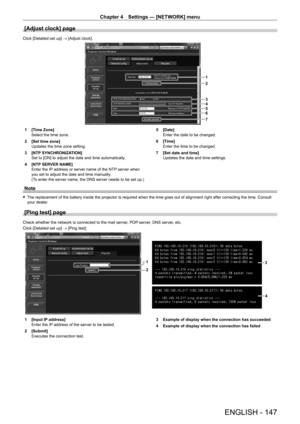

[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
4
5
6
7
1 [Time Zone]
Select the time zone.
2

[Set time zone]
Updates the time zone setting.
3


[NTP
  SYNCHRONIZATION]
Set to [ON] to adjust the date and time automatically.
4

[NTP
  SERVER NAME]
Enter the IP address or server name of the NTP server when
you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.) 5
 [Date]
Enter the...

Chapter 4 Settings — [NETWORK] menu
148 - ENGLISH

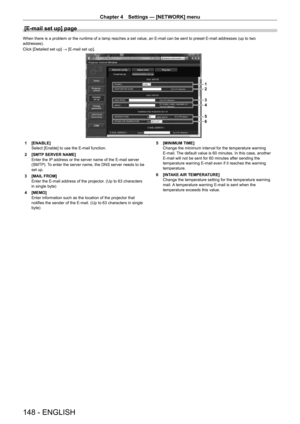

[E-mail set up] page
When there is a problem or the runtime of a lamp reaches a set value, an E-mail can be sent to preset E-mail addresses (up to two
addresses).
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [Enable] to use the E-mail function.
2

[SMTP
  SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3

[MAIL
  FROM]
Enter the...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 149

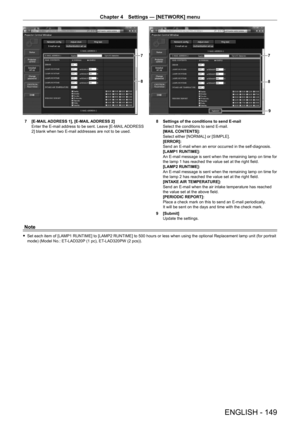

8
7
9
8
7
7 [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS
2] blank when two E-mail addresses are not to be used. 8
 Settings of the conditions to send E-mail
Select the conditions to send E-mail.
[MAIL
 CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[LAMP1 RUNTIME]:
An E-mail message is sent when the remaining lamp on time for
the...

Chapter 4 Settings — [NETWORK] menu
150 - ENGLISH

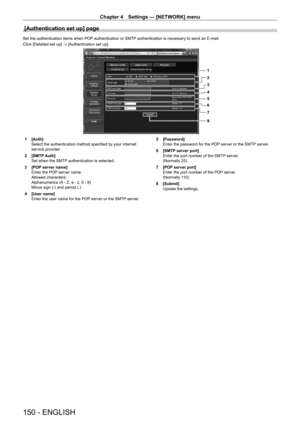

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet
service provider
.
2

[SMTP
  Auth]
Set when the SMTP authentication is selected.
3

[POP
  server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a - z, 0...
