Panasonic Projector PT-DS12KU User Manual

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 111
3) Press the  button.
Note
 f For a certain time after [LAMP  SELECT] is switched, [LAMP SELECT] cannot be switched again, because the speed of the lamp
replacement cycle will increase. Repeatedly switching [LAMP SELECT] in a short time will also increase the speed of the lamp replacement
cycle.
 f The colors of the items indicate the status.
Green Current setting
Yellow Current setting (when there is a lamp that cannot turn on or failed to turn...

Chapter 4 Settings — [PROJECTOR SETUP] menu
112 - ENGLISH
[LAMP POWER]
Switch the brightness of the lamp according to the operating environment of the projector or the purpose.
1) Press as to select [LAMP POWER].
2)
Press
 qw to switch the item.
[HIGH]*1Select when high luminance is required.
[MIDDLE]
*1Select when using the projector with slightly reduced luminance compared to [HIGH].
[NORMAL]
*2Select when high luminance is required.
[ECO] Select when high luminance is not required.
*1 Only for...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 113
4) Press the  button.
 fThe  [BRIGHTNESS CONTROL SETUP] screen is displayed.
5) Press  as to select [MODE].
6)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Does not correct the brightness of the screen by the brightness sensor .
[AUTO] Corrects the brightness of the screen by the brightness sensor.
Automatically corrects screen brightness when lamp brightness changes.
[PC] Synchronizes nine or more...

Chapter 4 Settings — [PROJECTOR SETUP] menu
114 - ENGLISH

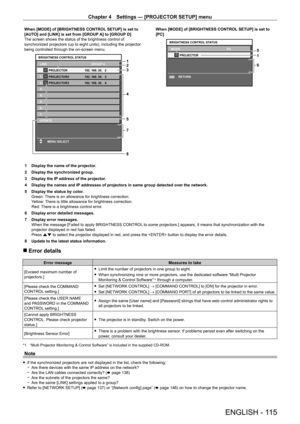

Note
 fWhen [MODE] in [BRIGHTNESS CONTROL  SETUP] is set to [AUTO] or [PC], keep the shutter open for at least two minutes to perform the
brightness sensor calibration after completed the [BRIGHTNESS CONTROL  SETUP] setting.
 fIf the shutter is closed within approx. 10 minutes after the lamp has turned on while [MODE] in [BRIGHTNESS CONTROL  SETUP] is set to
[AUT

O] or  [PC], brightness cannot be measured. Therefore, brightness may be corrected...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 115

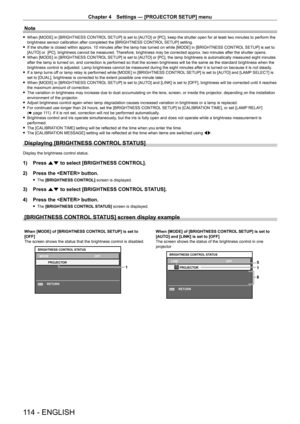

When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[AUTO] and [LINK] is set from [GROUP A] to [GROUP D]
The screen shows the status of the brightness control of
synchronized projectors (up to eight units), including the projector
being controlled through the on-screen menu.
2 1
3
4
5
7
8
1:
2:
3:
4:
5:
6:
7:192. 168. 30.   2
192. 168. 30.   3
192. 168. 30.   4
LINK
UPDATE PROJECTOR
GROUP A
PROJECTOR2
PROJECTOR3
BRIGHTNESS CONTROL STATUS
MENU...

Chapter 4 Settings — [PROJECTOR SETUP] menu
116 - ENGLISH
Brightness control adjustment procedure example
The steps exemplify an adjustment to link the brightness of eight projectors connected in a network.
1) Connect all projectors to the hub using LAN cables. (x   page   138)
2)
Switch on all projectors and start projection.
3)


Set [LAMP
  SELECT] to either [DUAL] or [SINGLE] for all projectors.
4)

Set [MODE] of [BRIGHTNESS CONTROL
  SETUP] to [OFF], and select [APPLY], and then press the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 117
[SCHEDULE]
Set the command execution schedule for each day of the week.
Enabling/disabling the schedule function
1) Press as to select [SCHEDULE].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Disables the schedule function.
[ON] Enables the schedule function. Refer to “How to assign a program” (
x
  page   117) or “How to set a
program” (x
  page   117) for how to set the schedule.
Note
 fWhen...

Chapter 4 Settings — [PROJECTOR SETUP] menu
118 - ENGLISH
[COMMAND]Detailed settings of
[COMMAND] Description
[INPUT] [VIDEO]
Switches the input to VIDEO.
[RGB1] Switches the input to RGB1.
[RGB2] Switches the input to RGB2.
[DVI
- D]Switches the input to DVI
- D.
[HDMI] Switches the input to HDMI.
[SDI1]
*1
(PT- DZ13KU, PT- DS12KU)
Switches the input to SDI1.
(PT
-

DZ10KU)
Switches the input to SDI.
[SDI2]
*2Switches the input to SDI2.
[LAMP SELECT] [DUAL]
Turns on two lamps.
[SINGLE] Turns on one...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 119
[RGB2]Sets the input to RGB2.
[DVI - D] Sets the input to DVI
- D.
[HDMI] Sets the input to HDMI.
[SDI1]
*1/[SDI]*2Sets the input to SDI/SDI1.
[SDI2]
*1Sets the input to SDI2.
*1 Only for PT- DZ13KU, PT- DS12KU
*2
Only for PT-
 DZ10KU
Note
 fWhen [BACKUP  INPUT MODE] in the [DISPLAY OPTION] menu → [BACKUP INPUT SETTING] ( x   page   99) has been set to [ON] or
[1], and the projector has been turned off with the input set to HDMI, projection...

Chapter 4 Settings — [PROJECTOR SETUP] menu
120 - ENGLISH
[NONE]Select the parity condition.
[EVEN]
[ODD]
Setting the response
1) Press  as to select [RS-232C].
2)
Press the  button.
 f The  [RS-232C]  screen is displayed.
3) Press  as to select [RESPONSE(ID ALL)].
4)
Press
 qw to switch the item.
[ON] Returns the response when the ID setting is ALL.
[OFF] Does not return the response when the ID setting is ALL.
5) Press as to select [GROUP].
6)
Press
 qw to switch the item.
[A] - [Z] Controls...
