Panasonic Projector Pt Ez570u Operating Instructions

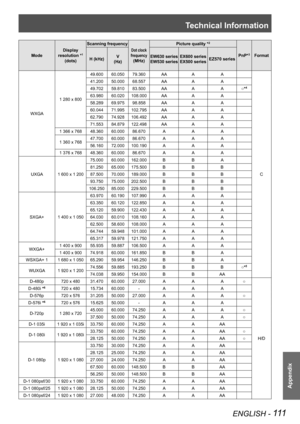

Technical Information
Appendix
ENGLISH - 111
Mode
Display
resolution *1
(dots)
Scanning frequency
Dot clock
frequency
(MHz)
Picture quality *2
PnP*3FormatH (kHz)V
(Hz)
EW630 series
EW530 series
EX600 series
EX500 seriesEZ570 series
WXGA
1 280 x 800
49.60060.05079.360AAAA
C
41.20050.00068.557AAAA
49.70259.81083.500AAAA○*4
63.98060.020108.000AAAA
58.28969.97598.858AAAA
60.04471.995102.795AAAA
62.79074.928106.492AAAA
71.55384.879122.498AAAA
1 366 x 76848.36060.00086.670AAA
1 360 x...

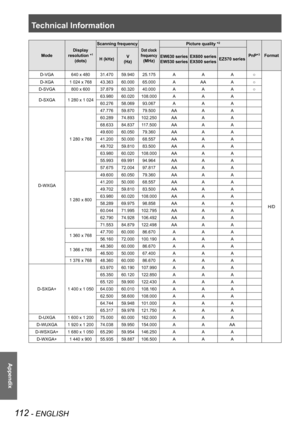

Technical Information
112 - ENGLISH
Appendix
Mode
Display
resolution *1
(dots)
Scanning frequency
Dot clock
frequency
(MHz)
Picture quality *2
PnP*3FormatH (kHz)V
(Hz)
EW630 series
EW530 series
EX600 series
EX500 seriesEZ570 series
D-VGA640 x 48031.47059.94025.175AAA○
H/D
D-XGA1 024 x 76843.36360.00065.000AAAA○
D-SVGA800 x 60037.87960.32040.000AAA○
D-SXGA1 280 x 1 02463.98060.020108.000AAA
60.27658.06993.067AAA
D-WXGA
1 280 x 768
47.77659.87079.500AAAA
60.28974.893102.250AAAA
68.63384.837117.500AAAA...

Technical Information
Appendix
ENGLISH - 113

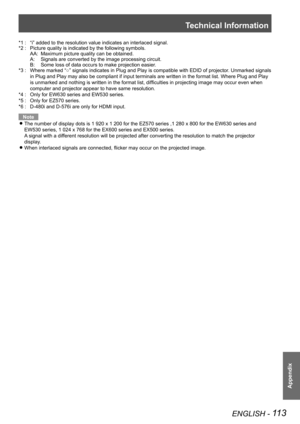

“i” added to the resolution value indicates an interlaced signal.*1 :
Picture quality is indicated by the following symbols.*2 :
AA: Maximum picture quality can be obtained.
A: Signals are converted by the image processing circuit.
B: Some loss of data occurs to make projection easier.
Where marked “○” signals indicates in Plug and Play is compatible with EDID of projector . Unmarked signals *3 :
in Plug and Play may also be compliant if input terminals are...

114 - ENGLISH
Appendix

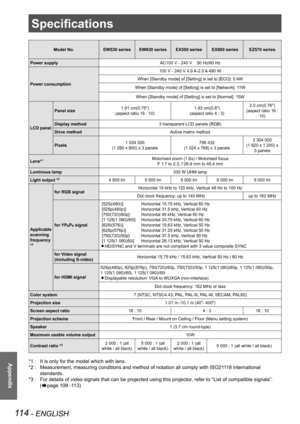

Specifications
Model No.EW530 seriesEW630 seriesEX500 seriesEX600 seriesEZ570 series
Power supplyAC100 V - 240 V    50 Hz/60 Hz
Power consumption
100 V - 240 V 4.9 A-2.0 A 490 W
When [Standby mode] of [Setting] is set to [ECO]: 0.4W
When [Standby mode] of [Setting] is set to [Network]: 11W
When [Standby mode] of [Setting] is set to [Normal]: 15W
LCD panel
Panel size1.91 cm(0.75")
(aspect ratio 16 : 10)
1.93 cm(0.8")
(aspect ratio 4 : 3)
2.0 cm(0.76")
(aspect ratio 16 :...

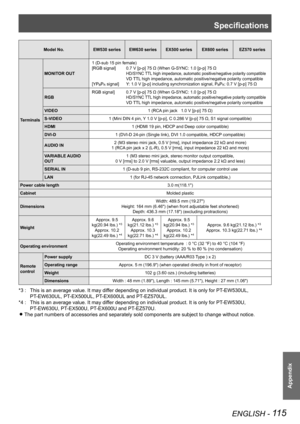

Specifications
Appendix
ENGLISH - 115
Model No.EW530 seriesEW630 seriesEX500 seriesEX600 seriesEZ570 series
Terminals
MONITOR OUT
1 (D-sub 15 pin female)
[RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω
 HD/SYNC TTL high impedance, automatic positive/negative polarity compatible
 VD TTL high impedance, automatic positive/negative polarity compatible
[YPBPR signal] Y: 1.0 V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
RGB
RGB signal]  0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75...

116 - ENGLISH
Appendix

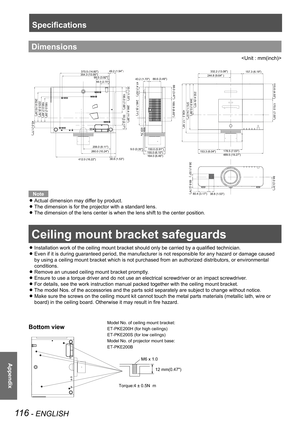

Dimensions

Ceiling mount bracket safeguards
Installation work of the ceiling mount bracket should only be carried by a qualified technician. z
Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused  z
by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental
conditions.
Remove an unused ceiling mount bracket promptly. z
Ensure to use a torque driver and do not use an electrical...

Appendix
ENGLISH - 117

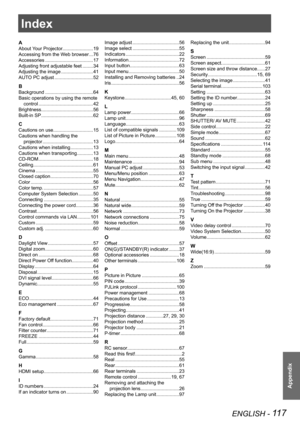

Index
A
About Your Projector.......................19
Accessing from the Web browser ...76
Accessories  ....................................17
Adjusting front adjustable feet ........34
Adjusting the image ........................41
AUTO PC adjust  .............................52
B
Background  ....................................64
Basic operations by using the remote
control .........................................42
Brightness.......................................56
Built-in...

Panasonic Systems Communications Company of North America
3 Panasonic Way, Secaucus, NJ 07094
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
Panasonic Corporatio n
© Panasonic Corporation 2012We
b Site : http://panasonic.net/avc/projector/

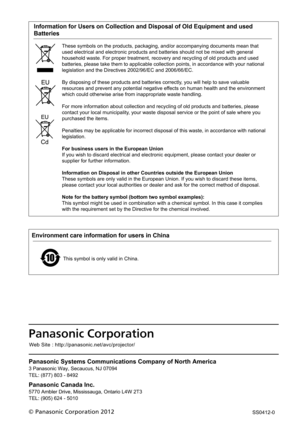

Environment care information for users in China
This symbol is only valid in China.
SS0412-0
    Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on...
