Network
ENGLISH - 81
Settings

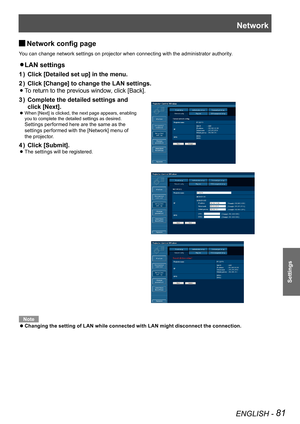

Network config page  J
You can change network settings on projector when connecting with the administrator authority.
LAN settings z
Click [Detailed set up] in the menu.1 )
Click [Change] to change the LAN settings.2 )
  zTo return to the previous window, click [Back].
Complete the detailed settings and  3 )
click [Next].

When [Next] is clicked, the next page appears, enabling   z
you to complete the detailed settings as desired.
Settings performed here are the same...

Network
82 - ENGLISH
Settings

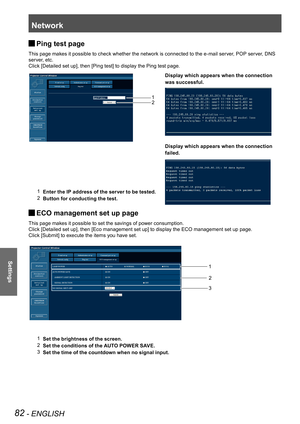

Ping test page  J
This page makes it possible to check whether the network is connected to the e-mail server, POP server, DNS
server, etc.
Click [Detailed set up], then [Ping test] to display the Ping test page.
Display which appears when the connection
was successful.
Display which appears when the connection
failed.
1 Enter the IP address of the server to be tested.
2 Button for conducting the test.
2
1
ECO management set up page  J
This page makes it possible to set the...

Network
ENGLISH - 83
Settings

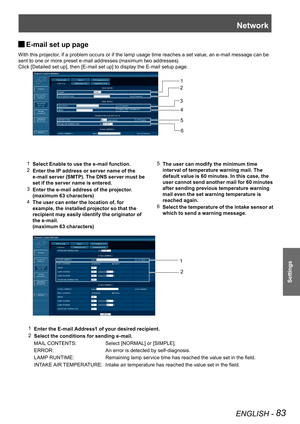

E-mail set up page  J
With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be
sent to one or more preset e-mail addresses (maximum two addresses).
Click [Detailed set up], then [E-mail set up] to display the E-mail setup page.
1 Select Enable to use the e-mail function.
2 Enter the IP address or server name of the
e-mail server (SMTP). The DNS server must be
set if the server name is entered.
3 Enter the e-mail...

Network
84 - ENGLISH
Settings

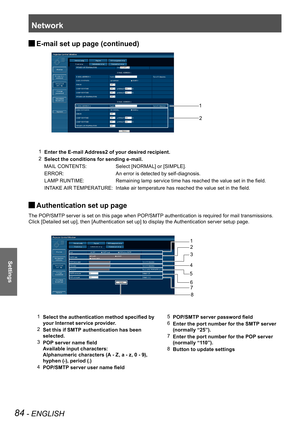

E-mail set up page (continued) J
1 Enter the E-mail Address2 of your desired recipient.
2 Select the conditions for sending e-mail.
    MAIL CONTENTS:Select [NORMAL] or [SIMPLE].
ERROR:An error is detected by self-diagnosis.
LAMP RUNTIME:Remaining lamp service time has reached the value set in the field.
INTAKE AIR TEMPERATURE:Intake air temperature has reached the value set in the field.
Authentication set up page  J
The POP/SMTP server is set on this page when POP/SMTP...

Network
ENGLISH - 85
Settings

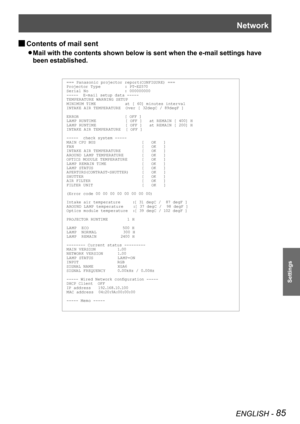

Contents of mail sent  J
Mail with the contents shown below is sent when the e-mail settings have  z
been established.
=== Panasonic projector report(CONFIGURE) ===Projector Ty pe          : PT-EZ570Serial No               : 000000000-----  E-mail setup data -----TEMPER ATURE WARNING SETUP MINIMUM TIME            at [ 60] minutes interval INTAKE AIR TEMPER ATURE  Over [ 32degC / 89degF ]
ERROR                   [ OFF ] LA MP RUNTIME            [ OFF ]   at REM AIN [ 400] H...

Network
86 - ENGLISH
Settings

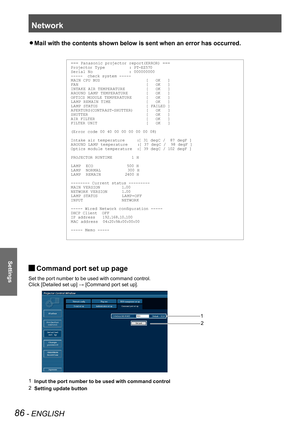

Mail with the contents shown below is sent when an error has occurred. z
=== Panasonic projector report(ERROR) ===
Projector Ty pe          : PT-EZ570
Serial No               : 000000000
-----  check system -----
M AIN CPU BUS                   [   OK   ]
FAN                            [   OK   ]
INTAKE AIR TEMPER ATURE
       [   OK   ]
AROUND LA MP TEMPER ATURE        [   OK   ]
OPTICS MODULE TEMPER ATURE      [   OK   ]
LA MP REM AIN TIME               [   OK   ]
LA MP...

Network
ENGLISH - 87
Settings
Change Password page  J
Click [Change password].
1 Administrator
2 User
Administrator mode
1 Account
2 Current user name input field
3 Current password input field
4 New user name input field
5 New password input field
6 New password input field (re- enter for
confirmation)
7 Button for executing password change
User account
1 Account
2 New user name input field
3 New password input field
4 New password input field (re- enter for
confirmation)
5 Button for executing...

Network
88 - ENGLISH
Settings

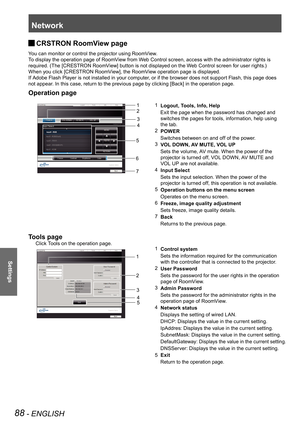

CRSTRON RoomView page  J
You can monitor or control the projector using RoomView.
To display the operation page of RoomView from Web Control screen, access with the administrator rights is
required. (The [CRESTRON RoomView] button is not displayed on the Web Control screen for user rights.)
When you click [CRESTRON RoomView], the RoomView operation page is displayed.
If Adobe Flash Player is not installed in your computer, or if the browser does not support Flash, this page...

Network
ENGLISH - 89
Settings

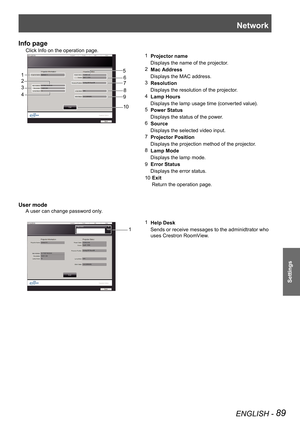

Info page
Click Info on the operation page.
1 Projector name
    Displays the name of the projector.
2 Mac Address
    Displays the MAC address.
3 Resolution
    Displays the resolution of the projector.
4 Lamp Hours
    Displays the lamp usage time (converted value).
5 Power Status
    Displays the status of the power.
6 Source
    Displays the selected video input.
7 Projector Position
    Displays the projection method of the projector.
8 Lamp Mode
    Displays the lamp...

90 - ENGLISH
Maintenance

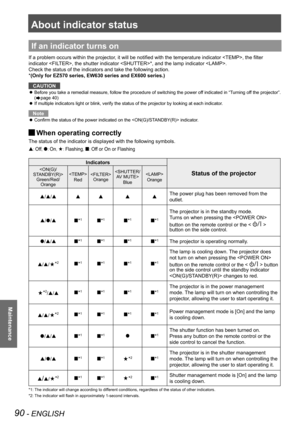

About indicator status
If an indicator turns on
If a problem occurs within the projector, it will be notified with the temperature indicator , the filter
indicator , the shutter indicator *, and the lamp indicator .
Check the status of the indicators and take the following action.
* (Only for EZ570 series, EW630 series and EX600 series.)
CAUTION
Before you take a remedial measure, follow the procedure of switching the power off indicated in “Turning off the projector”.  z
(Æpage...
