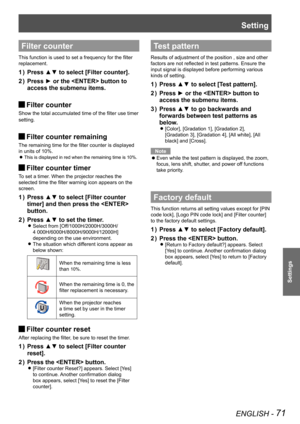

Page 71

Setting
ENGLISH - 71
Settings
Filter counter
This function is used to set a frequency for the filter
replacement.
Press ▲▼ to select [Filter counter].1 )
Press ► or the  button to 2 )
access the submenu items.
Filter counter J
Show the total accumulated time of the filter use timer
setting.
Filter counter remaining J
The remaining time for the filter counter is displayed
in units of 10%.

This is displayed in red when the remaining time is 10%. z
Filter counter timer J
To set a timer. When the...

Page 72

72 - ENGLISH
Settings
Information
Select [Information] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Input Source Information
Display
The Information Menu is used for checking the status
of the image signal being projected and the operation
of the projector.
You can also press the  button on the remote
control to display the Information menu.
Input J
The selected input source is displayed.
System J
The selected...

Page 73

ENGLISH - 73
Settings
Network
Select [Network] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Projector name
You can change the projector name to be displayed
on the network.
Press ▲▼ to select [Projector name].1 )
Press the  button.2 )
Press ▲▼◄► buttons to set the 3 )
[Projector name].
Network setup
You can make detailed wired LAN settings.
Press ▲▼ to select [Network setup], 1 )
and press  button.
Press ▲▼ to...

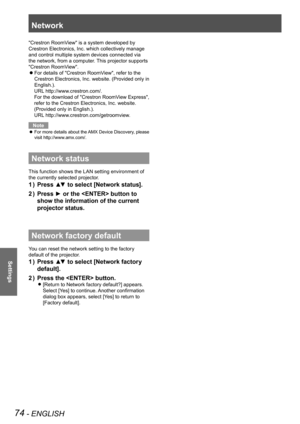

Page 74

Network
74 - ENGLISH
Settings
"Crestron RoomView" is a system developed by
Crestron Electronics, Inc. which collectively manage
and control multiple system devices connected via
the network, from a computer. This projector supports
"Crestron RoomView".

For details of "Crestron RoomView", refer to the  z
Crestron Electronics, Inc. website. (Provided only in
English.).
    URL http://www.crestron.com/.
     For the download of "Crestron RoomView Express",
refer to...

Page 75

Network
ENGLISH - 75
Settings

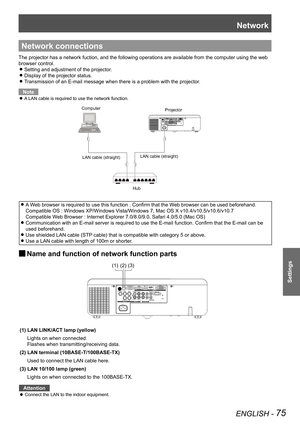

Network connections
The projector has a network fuction, and the following operations are av\
ailable from the computer using the web
browser control.
Setting and adjustment of the projector. z
Display of the projector status. z
Transmission of an E-mail message when there is a problem with the projec\
tor. z
Note
A LAN cable is required to use the network function. z
ComputerProjector
LAN cable (straight) LAN cable (straight)
Hub
A Web browser is required to use this...

Page 76

Network
76 - ENGLISH
Settings

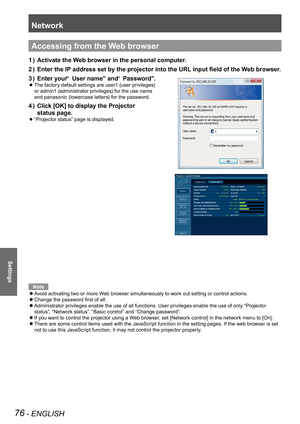

Accessing from the Web browser
Activate the Web browser in the personal computer.1 )
Enter the IP address set by the projector into the URL input field of the Web browser.2 )
Enter your “ User name” and “ Password”.3 )
  zThe factory default settings are user1 (user privileges)
or admin1 (administrator privileges) for the use name
and panasonic (lowercase letters) for the password.
Click [OK] to display the Projector  4 )
status page.
  z“Projector status” page is...

Page 77

Network
ENGLISH - 77
Settings

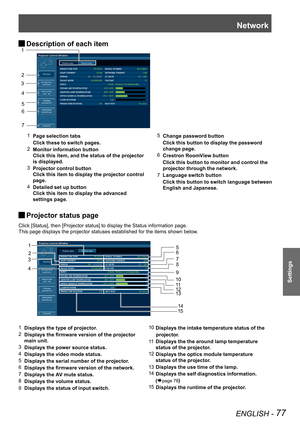

Description of each item  J
1 Page selection tabs
  Click these to switch pages.
2 Monitor information button
Click this item, and the status of the projector
is displayed.
3 Projector control button
Click this item to display the projector control
page.
4 Detailed set up button
Click this item to display the advanced
settings page.
5 Change password button
    Click this button to display the password
change page.
6 Crestron RoomView button
    Click this button to...

Page 78

Network
78 - ENGLISH
Settings

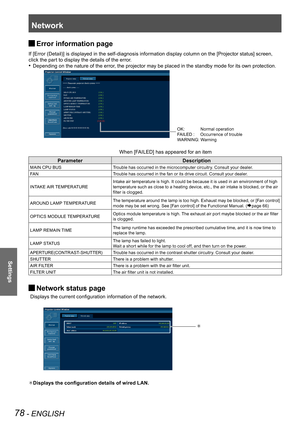

Error information page  J
If [Error (Detail)] is displayed in the self-diagnosis information display column on the [Projector status] screen,
click the part to display the details of the error.
Depending on the nature of the error, the projector may be placed in the standby mode for its own protection.•
                  When [FAILED] has appeared for an item
ParameterDescription
MAIN CPU BUSTrouble has occurred in the microcomputer circuitry. Consult your dealer.
FA...

Page 79

Network
ENGLISH - 79
Settings
Basic control page  J
To move from another page, click [Projector control], then [Basic control].
1 Power standby/on control
2 Use these to select the input signals
3 Switches image mode
4 Turn on or off the Shutter function

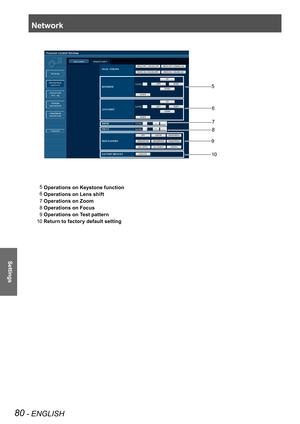

Detail control page J
Click [Projector control], then [Advanced control] to display the Detail control page.
1  Execute Auto PC ADJ. function
2 Operations on Image adjust
3  Operations on Screen mode
4  Operations on Rear/Ceiling
1
4
3
2
1
2
3
4

Page 80

Network
80 - ENGLISH
Settings
  5 Operations on Keystone function
  6 Operations on Lens shift
  7 Operations on Zoom
  8 Operations on Focus
  9 Operations on Test pattern
10 Return to factory default setting
5
6
7
8
9
10
