Panasonic Projector Pt Ez570u Operating Instructions

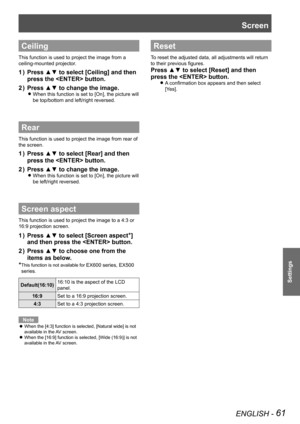

Screen
ENGLISH - 61
Settings
Ceiling
This function is used to project the image from a
ceiling-mounted projector.
Press ▲▼ to select [Ceiling] and then 1 )
press the  button.
Press ▲▼ to change the image.2 )
When this function is set to [On], the picture will  z
be top/bottom and left/right reversed.
Rear
This function is used to project the image from rear of
the screen.
Press ▲▼ to select [Rear] and then 1 )
press the  button.
Press ▲▼ to change the image.2 )
When this function is set to [On],...

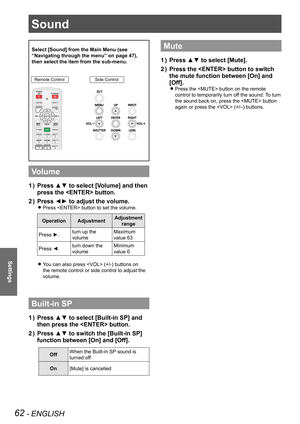

62 - ENGLISH
Settings
Sound
Select [Sound] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Volume
Press ▲▼ to select [Volume] and then 1 )
press the  button.
Press ◄► to adjust the volume.2 )
Press  button to set the volume. z
OperationAdjustmentAdjustment
range
Press ►.turn up the
volume
Maximum
value 63
Press ◄.turn down the
volume
Minimum
value 0
You can also press  (+/-) buttons on  z
the remote control or...

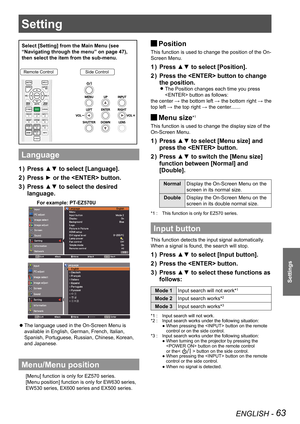

ENGLISH - 63
Settings
Setting
Select [Setting] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Language
Press ▲▼ to select [Language].1 )
Press ► or the  button.2 )
Press ▲▼ to select the desired 3 )
language.
             For example: PT-EZ570U
The language used in the On-Screen Menu is  z
available in English, German, French, Italian,
Spanish, Portuguese, Russian, Chinese, Korean,
and Japanese.
Menu/Menu...

Setting

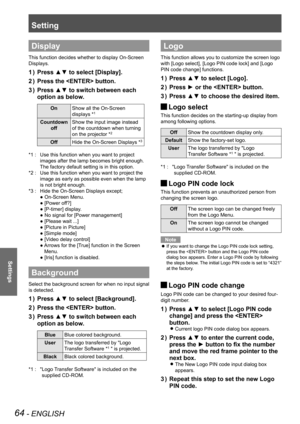

64 - ENGLISH
Settings
Display
This function decides whether to display On-Screen
Displays.
Press ▲▼ to select [Display].1 )
Press the  button.2 )
Press ▲▼ to switch3 )  between each
option as below.
OnShow all the On-Screen
displays *1
Countdown
off
Show the input image instead
of the countdown when turning
on the projector *2
OffHide the On-Screen Displays *3
Use this function when you want to project *1 :
images after the lamp becomes bright enough.
The factory default setting is in...

Setting

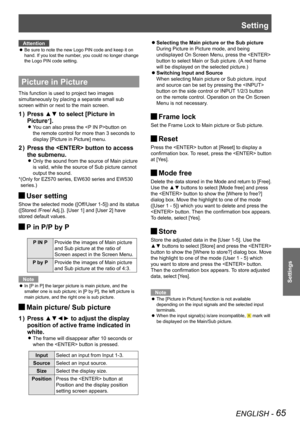

ENGLISH - 65
Settings
Attention
Be sure to note the new Logo PIN code and keep it on  z
hand. If you lost the number, you could no longer change
the Logo PIN code setting.
Picture in Picture
This function is used to project two images
simultaneously by placing a separate small sub
screen within or next to the main screen.
Press ▲▼ to select [Picture in 1 )
Picture*].
You can also press the button on  z
the remote control for more than 3 seconds to
display [Picture in Picture] menu.
Press the...

Setting

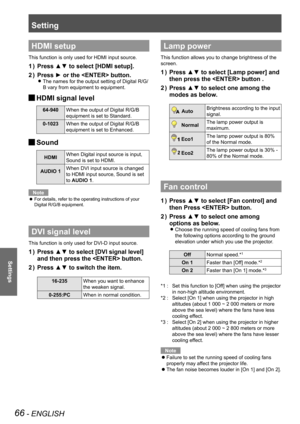

66 - ENGLISH
Settings
HDMI setup
This function is only used for HDMI input source.
Press ▲▼ to select [HDMI setup].1 )
Press ► or the  button.2 )
The names for the output setting of Digital R/G/ z
B vary from equipment to equipment.
HDMI signal level J
64-940When the output of Digital R/G/B
equipment is set to Standard.
0-1023When the output of Digital R/G/B
equipment is set to Enhanced.
Sound J
HDMIWhen Digital input source is input,
Sound is set to HDMI.
AUDIO 1When DVI input source is...

Setting

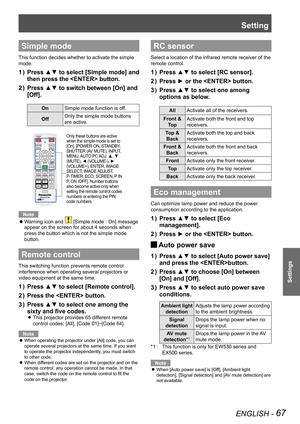

ENGLISH - 67
Settings
Simple mode
This function decides whether to activate the simple
mode.
Press ▲▼ to select [Simple mode] and 1 )
then press the  button.
Press ▲▼ to switch between [On] and 2 )
[Off].
OnSimple mode function is off.
OffOnly the simple mode buttons
are active.
Note
Warning icon and  z[Simple mode : On] message
appear on the screen for about 4 seconds when
press the button which is not the simple mode
button.
Remote control
This switching function prevents remote control...

Setting

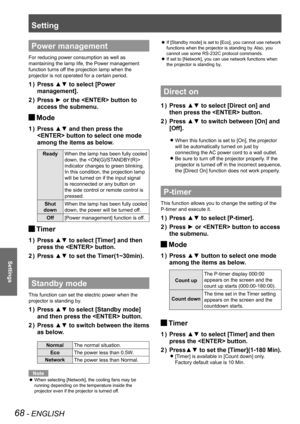

68 - ENGLISH
Settings
Power management
For reducing power consumption as well as
maintaining the lamp life, the Power management
function turns off the projection lamp when the
projector is not operated for a certain period.
Press ▲▼ to select [Power 1 )
management].
Press ► or the  button to 2 )
access the submenu.
Mode J
Press ▲▼ and then press the 1 )
 button to select one mode
among the items as below.
ReadyWhen the lamp has been fully cooled
down, the
indicator changes to green...

Setting

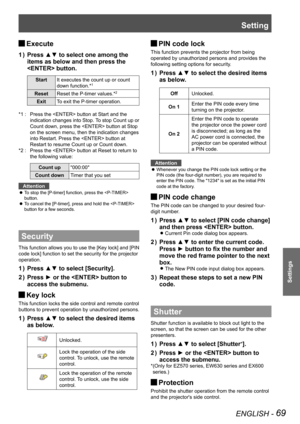

ENGLISH - 69
Settings
Execute J
Press ▲▼ to select one among the 1 )
items as below and then press the
 button.
StartIt executes the count up or count
down function.*1
ResetReset the P-timer values.*2
ExitTo exit the P-timer operation.
Press the  button at Start and the *1 :
indication changes into Stop. To stop Count up or
Count down, press the  button at Stop
on the screen menu, then the indication changes
into Restart. Press the  button at
Restart to resume Count up or Count down....

Setting

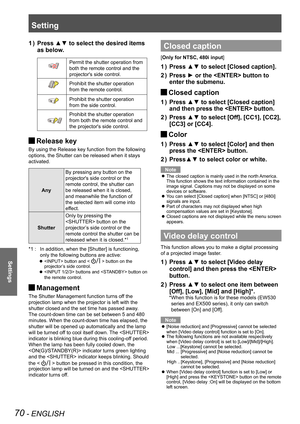

70 - ENGLISH
Settings
Press ▲▼ to select the desired items 1 )
as below.
Permit the shutter operation from
both the remote control and the
projector's side control.
Prohibit the shutter operation
from the remote control.
Prohibit the shutter operation
from the side control.
Prohibit the shutter operation
from both the remote control and
the projector's side control.
Release key J
By using the Release key function from the following
options, the Shutter can be released when it...
