Panasonic Projector Pt Ez570u Operating Instructions
Here you can view all the pages of manual Panasonic Projector Pt Ez570u Operating Instructions. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

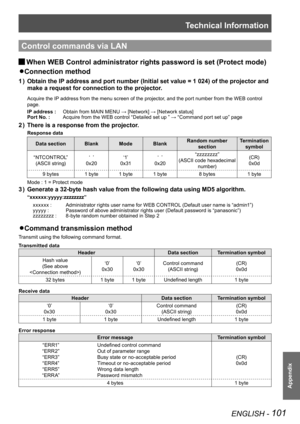

Page 101
![Page 101
Technical Information
Appendix
ENGLISH - 101
Control commands via LAN
When WEB Control administrator rights password is set (Protect mode) J
Connection method z
Obtain the IP address and port number (Initial set value = 1 024) of the projector and 1 )
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-100.png "Page 101
Technical Information
Appendix
ENGLISH - 101
Control commands via LAN
When WEB Control administrator rights password is set (Protect mode) J
Connection method z
Obtain the IP address and port number (Initial set value = 1 024) of the projector and 1 )
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB...")
Technical Information Appendix ENGLISH - 101 Control commands via LAN When WEB Control administrator rights password is set (Protect mode) J Connection method z Obtain the IP address and port number (Initial set value = 1 024) of the projector and 1 ) make a request for connection to the projector. Acquire the IP address from the menu screen of the projector, and the port number from the WEB control page. IP address :Obtain from MAIN MENU → [Network] → [Network status] Port No. :Acquire from the WEB...

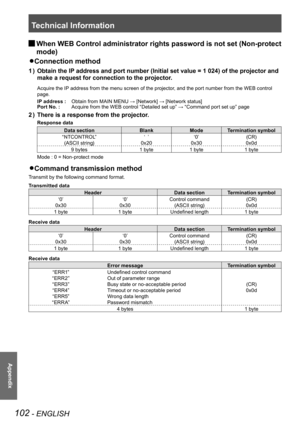

Page 102
![Page 102
Technical Information
102 - ENGLISH
Appendix
When WEB Control administrator rights password is not set (Non-protect J
mode)
Connection method z
Obtain the IP address and port number (Initial set value = 1 024) of the projector and 1 )
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB control “Detailed...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-101.png "Page 102
Technical Information
102 - ENGLISH
Appendix
When WEB Control administrator rights password is not set (Non-protect J
mode)
Connection method z
Obtain the IP address and port number (Initial set value = 1 024) of the projector and 1 )
make a request for connection to the projector.
Acquire the IP address from the menu screen of the projector, and the port number from the WEB control
page.
IP address :Obtain from MAIN MENU → [Network] → [Network status]
Port No. :Acquire from the WEB control “Detailed...")
Technical Information 102 - ENGLISH Appendix When WEB Control administrator rights password is not set (Non-protect J mode) Connection method z Obtain the IP address and port number (Initial set value = 1 024) of the projector and 1 ) make a request for connection to the projector. Acquire the IP address from the menu screen of the projector, and the port number from the WEB control page. IP address :Obtain from MAIN MENU → [Network] → [Network status] Port No. :Acquire from the WEB control “Detailed...

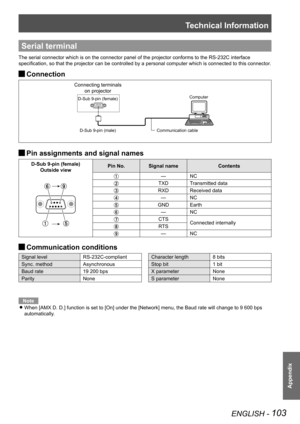

Page 103
![Page 103
Technical Information
Appendix
ENGLISH - 103
Serial terminal
The serial connector which is on the connector panel of the projector co\
nforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connector.
JConnection
JPin assignments and signal names
D-Sub 9-pin (female)
Outside viewPin No.Signal nameContents
—NC
TXDTransmitted data
RXDReceived data
—NC
GNDEarth
—NC
CTSConnected internallyRTS
—NC
JCommunication conditions...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-102.png "Page 103
Technical Information
Appendix
ENGLISH - 103
Serial terminal
The serial connector which is on the connector panel of the projector co\
nforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connector.
JConnection
JPin assignments and signal names
D-Sub 9-pin (female)
Outside viewPin No.Signal nameContents
—NC
TXDTransmitted data
RXDReceived data
—NC
GNDEarth
—NC
CTSConnected internallyRTS
—NC
JCommunication conditions...")
Technical Information Appendix ENGLISH - 103 Serial terminal The serial connector which is on the connector panel of the projector co\ nforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. JConnection JPin assignments and signal names D-Sub 9-pin (female) Outside viewPin No.Signal nameContents —NC TXDTransmitted data RXDReceived data —NC GNDEarth —NC CTSConnected internallyRTS —NC JCommunication conditions...

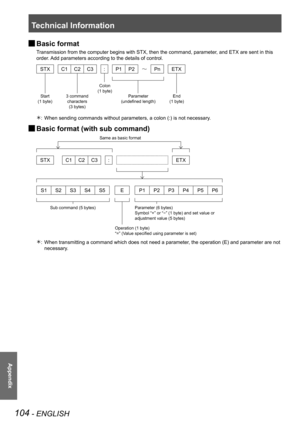

Page 104
![Page 104
Technical Information
104 - ENGLISH
Appendix
JBasic format
Transmission from the computer begins with STX, then the command, paramet\
er, and ETX are sent in this
order. Add parameters according to the details of control.
STXC1C2C3 : P1 P2Pn ETX
When sending commands without parameters, a colon (:) is not necessary .:
JBasic format (with sub command)
STXC1C2C3 : ETX
S1S2S3S4S5 EP1P2P3P4P5P6
When transmitting a command which does not need a parameter, the operation (E) and parameter are not : ...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-103.png "Page 104
Technical Information
104 - ENGLISH
Appendix
JBasic format
Transmission from the computer begins with STX, then the command, paramet\
er, and ETX are sent in this
order. Add parameters according to the details of control.
STXC1C2C3 : P1 P2Pn ETX
When sending commands without parameters, a colon (:) is not necessary .:
JBasic format (with sub command)
STXC1C2C3 : ETX
S1S2S3S4S5 EP1P2P3P4P5P6
When transmitting a command which does not need a parameter, the operation (E) and parameter are not : ...")
Technical Information 104 - ENGLISH Appendix JBasic format Transmission from the computer begins with STX, then the command, paramet\ er, and ETX are sent in this order. Add parameters according to the details of control. STXC1C2C3 : P1 P2Pn ETX When sending commands without parameters, a colon (:) is not necessary .: JBasic format (with sub command) STXC1C2C3 : ETX S1S2S3S4S5 EP1P2P3P4P5P6 When transmitting a command which does not need a parameter, the operation (E) and parameter are not : ...

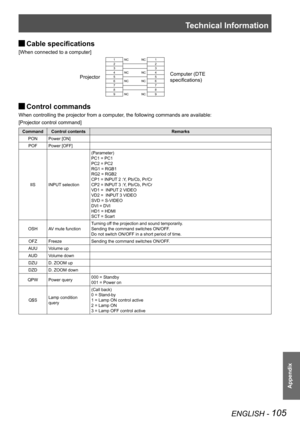

Page 105
![Page 105
Technical Information
Appendix
ENGLISH - 105
JCable specifications
[When connected to a computer]
Projector
1NCNC1
Computer (DTE
specifications)
22334NCNC4556NCNC677889NCNC9
JControl commands
When controlling the projector from a computer, the following commands are available:
[Projector control command]
CommandControl contentsRemarks
PONPower [ON]
POFPower [OFF]
IISINPUT selection
(Parameter)
PC1 = PC1
PC2 = PC2
RG1 = RGB1
RG2 = RGB2
CP1 = INPUT 2 :Y, Pb/Cb, Pr/Cr
CP2 = INPUT 3 :Y, Pb/Cb, Pr/Cr
VD1 =...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-104.png "Page 105
Technical Information
Appendix
ENGLISH - 105
JCable specifications
[When connected to a computer]
Projector
1NCNC1
Computer (DTE
specifications)
22334NCNC4556NCNC677889NCNC9
JControl commands
When controlling the projector from a computer, the following commands are available:
[Projector control command]
CommandControl contentsRemarks
PONPower [ON]
POFPower [OFF]
IISINPUT selection
(Parameter)
PC1 = PC1
PC2 = PC2
RG1 = RGB1
RG2 = RGB2
CP1 = INPUT 2 :Y, Pb/Cb, Pr/Cr
CP2 = INPUT 3 :Y, Pb/Cb, Pr/Cr
VD1 =...")
Technical Information Appendix ENGLISH - 105 JCable specifications [When connected to a computer] Projector 1NCNC1 Computer (DTE specifications) 22334NCNC4556NCNC677889NCNC9 JControl commands When controlling the projector from a computer, the following commands are available: [Projector control command] CommandControl contentsRemarks PONPower [ON] POFPower [OFF] IISINPUT selection (Parameter) PC1 = PC1 PC2 = PC2 RG1 = RGB1 RG2 = RGB2 CP1 = INPUT 2 :Y, Pb/Cb, Pr/Cr CP2 = INPUT 3 :Y, Pb/Cb, Pr/Cr VD1 =...

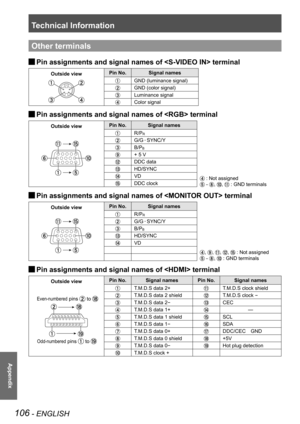

Page 106
Technical Information 106 - ENGLISH Appendix Other terminals Pin assignments and signal names of terminal J Outside viewPin No.Signal names GND (luminance signal) GND (color signal) Luminance signal Color signal Pin assignments and signal names of terminal J Outside viewPin No.Signal names : Not assigned - , , : GND terminals R/PR G/G SYNC/Y B/PB + 5 V DDC data HD/SYNC VD DDC clock Pin assignments and signal names of terminal J Outside viewPin No.Signal names , , , , : Not assigned - , : GND...

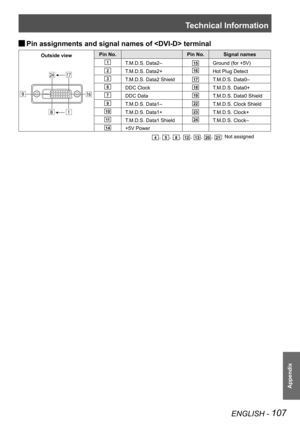

Page 107
Technical Information
Appendix
ENGLISH - 107
Pin assignments and signal names of terminal J
Outside viewPin No.Pin No.Signal names
1T.M.D.S. Data2–15Ground (for +5V)
2T.M.D.S. Data2+16Hot Plug Detect
3T.M.D.S. Data2 Shield17T.M.D.S. Data0–
6DDC Clock18T.M.D.S. Data0+
7DDC Data19T.M.D.S. Data0 Shield
9T.M.D.S. Data1–22T.M.D.S. Clock Shield
10T.M.D.S. Data1+23T.M.D.S. Clock+
11T.M.D.S. Data1 Shield24T.M.D.S. Clock–
14+5V Power
\...

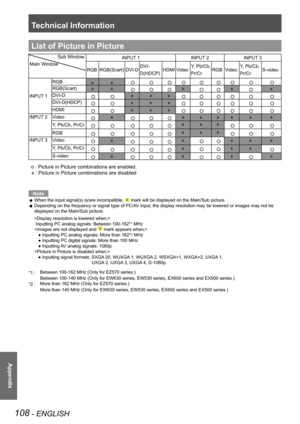

Page 108
Technical Information
108 - ENGLISH
Appendix
List of Picture in Picture
o : Picture in Picture combinations are enabled.
x : Picture in Picture combinations are disabled
Note
When the input signal(s) is/are incompatible, zX mark will be displayed on the Main/Sub picture.
Depending on the frequency or signal type of PC/AV input, the display resolution may be lowered or images may not be zdisplayed on the Main/Sub picture.
Inputting PC analog signals: Between 100-162*1 MHz
● Inputting...

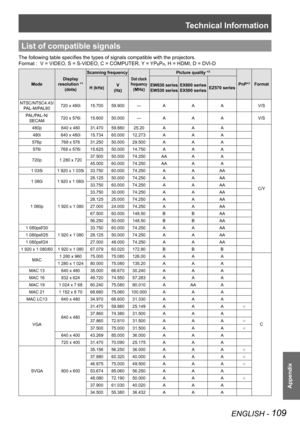

Page 109
Technical Information Appendix ENGLISH - 109 List of compatible signals The following table specifies the types of signals compatible with the projectors. Format : V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YPBPR, H = HDMI, D = DVI-D Mode Display resolution *1 (dots) Scanning frequency Dot clock frequency (MHz) Picture quality *2 PnP*3FormatH (kHz)V (Hz) EW630 series EW530 series EX600 series EX500 seriesEZ570 series NTSC/NTSC4.43/ PAL-M/PAL60720 x 480i15.70059.900—AAAV/S PAL/PAL-N/ SECAM720 x...
Page 110
Technical Information 110 - ENGLISH Appendix Mode Display resolution *1 (dots) Scanning frequency Dot clock frequency (MHz) Picture quality *2 PnP*3FormatH (kHz)V (Hz) EW630 series EW530 series EX600 series EX500 seriesEZ570 series SVGA800 x 600 38.00060.51040.128AAA C 38.60060.31038.600AAA 32.70051.09032.700AAA 38.00060.51040.128AAA XGA 1 024 x 768 48.36060.00065.000AAAA○ 68.67784.99794.504AAAA 60.02375.03078.750AAAA○ 56.47670.07075.000AAAA○ 60.31074.92079.252AAAA 48.50060.02065.179AAAA...
